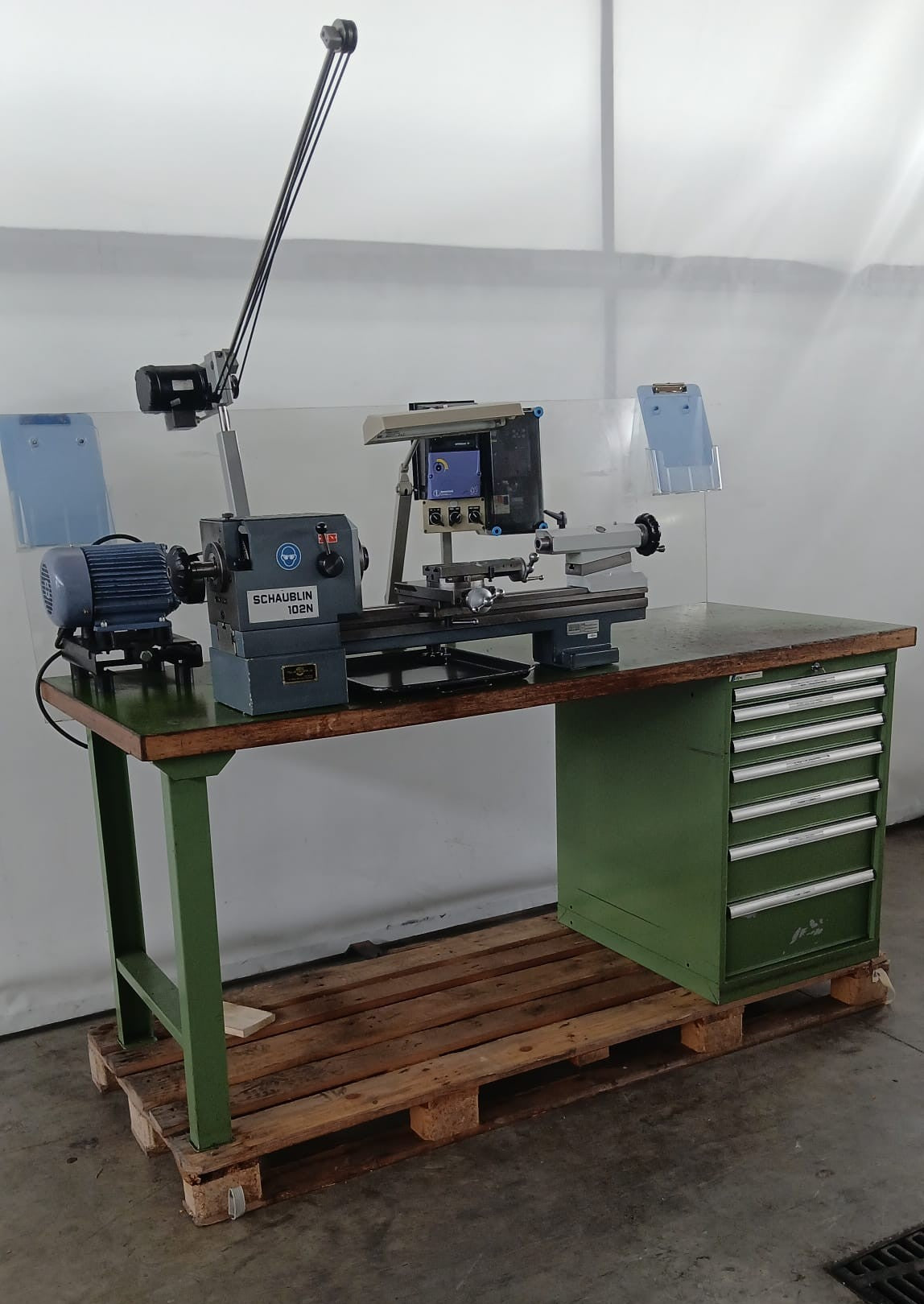

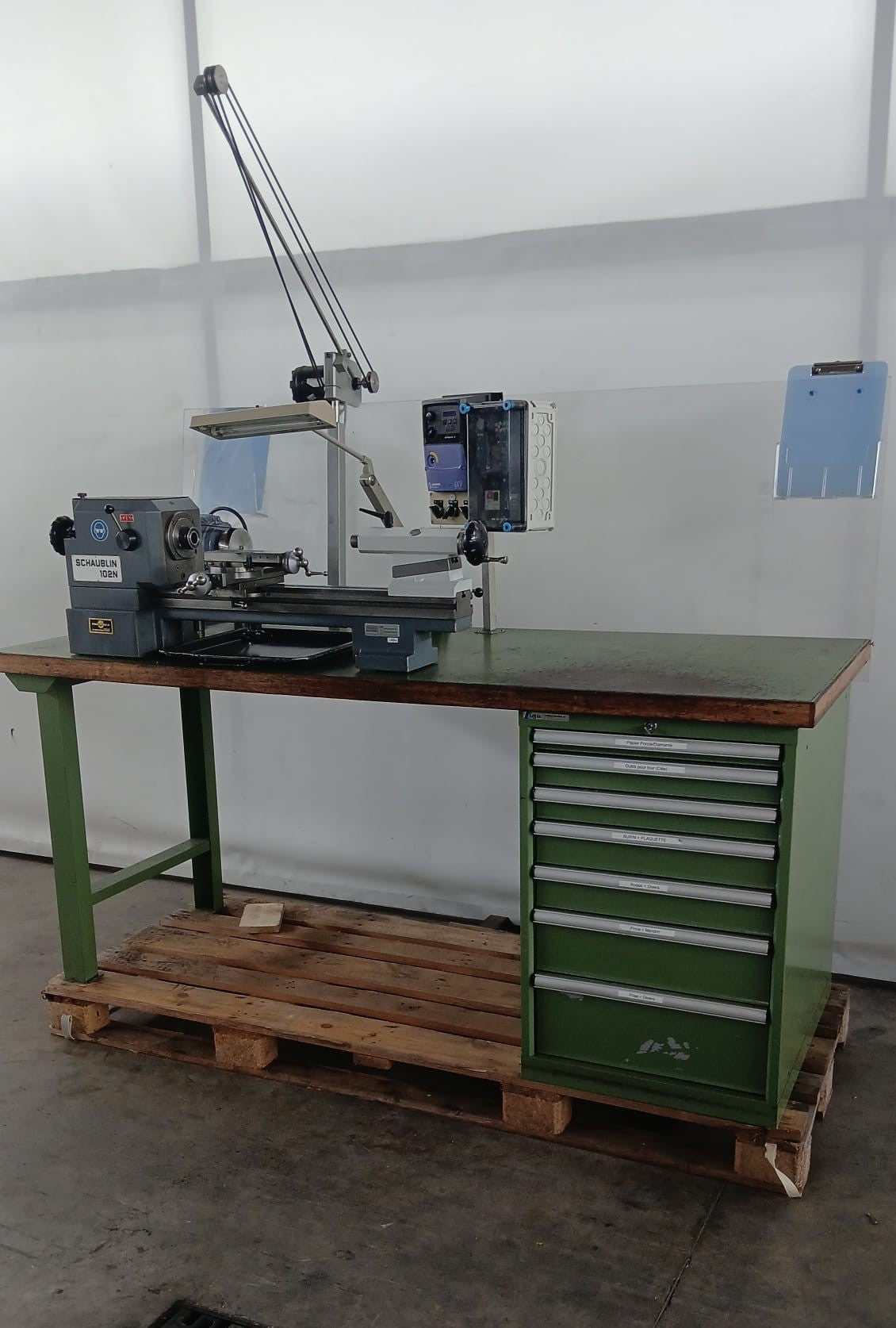

SCHAUBLIN 102 N is a toolmakers' lathe of high precision, accuracy and reliability. Centre height 102 mm; between centres 375 mm; swing over cross‑slide 120 mm, over bed 200 mm. Spindle stepless 45–3100 rpm, step‑down 1:5; motor 0.5/0.9 kW; 3×380 V; weight ≈500 kg; dims 2000×800×1400 mm. Accessories: bench, drawers, control panel, lamp, belt‑tensioner, drilling tailstock, cross‑slide (90 mm travel). Suited to tight tolerances in watchmaking, toolmaking, aerospace, medical and automotive.
Technical specifications are subject to change without notice
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |

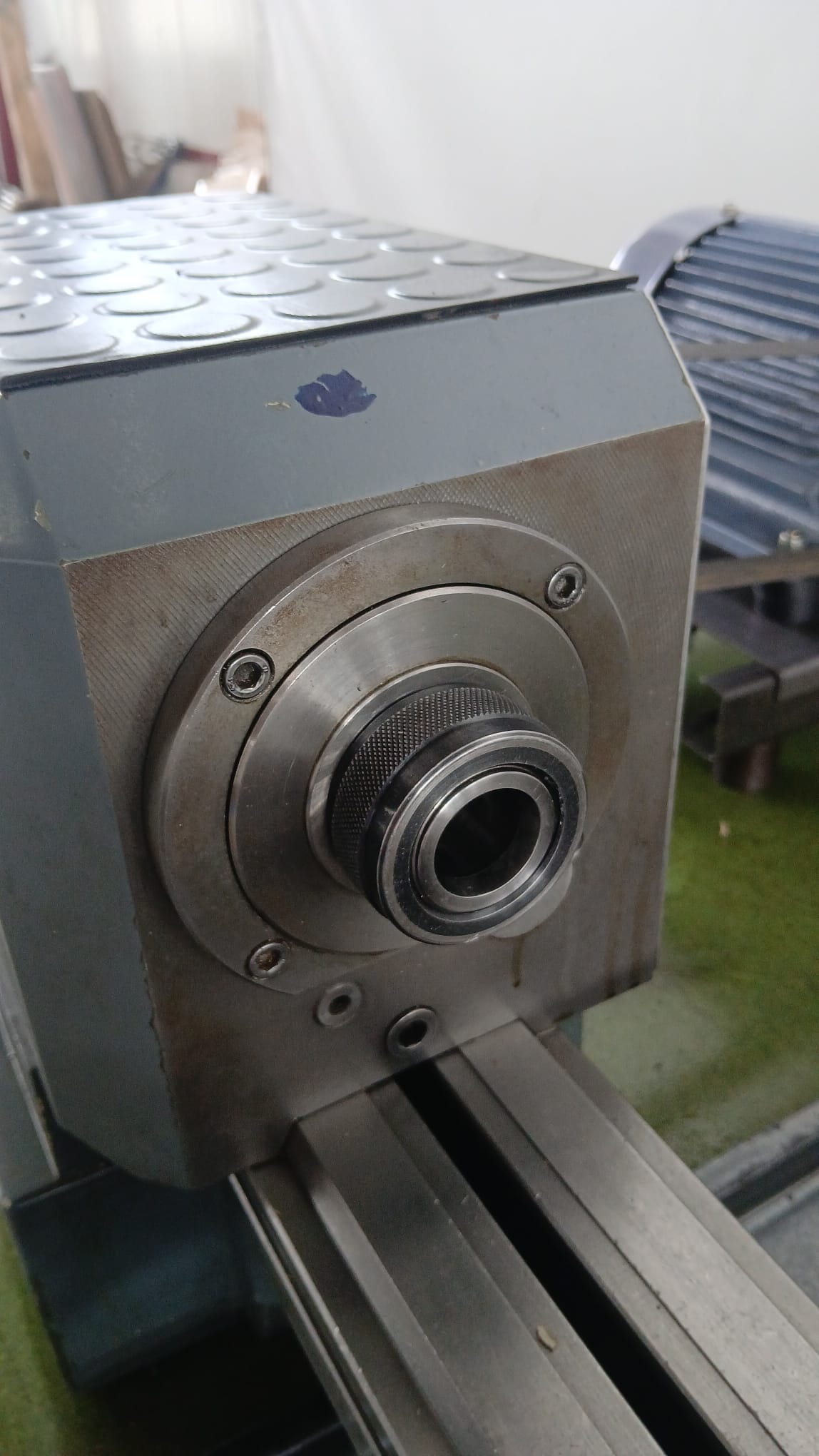

| Inner taper type | 20 W |
| Spindle speeds: | |
| stepless | |
| from | 45 t/min |
| up to | 3100 t/min |
| Step-down gear | 1:5 |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 / 0.9 kW |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Various accessories: | |
| Working bench | |
| Drawer Stock | |
| Rear drive | |

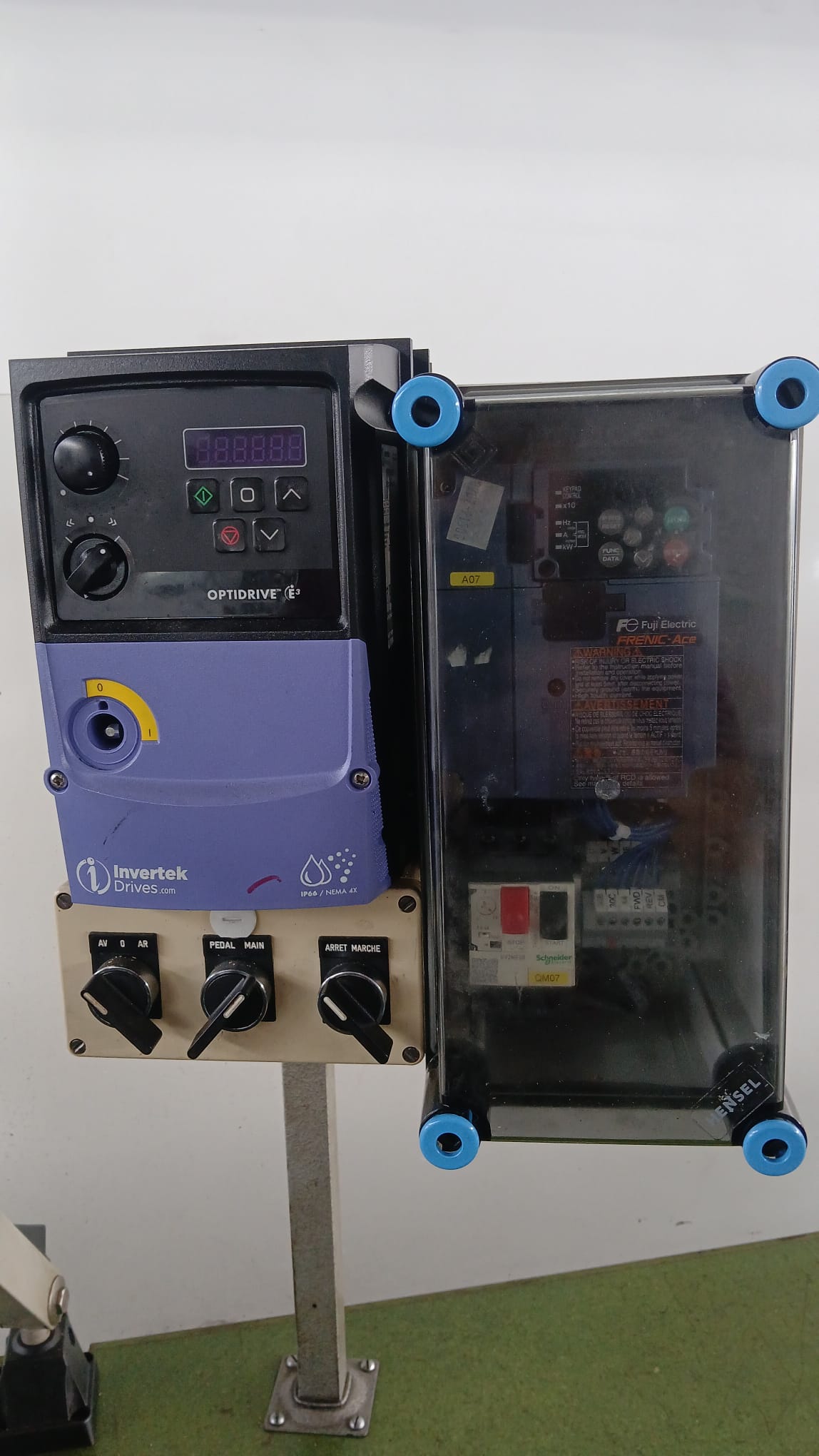

| Control panel | |
| Lamp | |
| Belt-tensioning device for milling/grinding att. | |

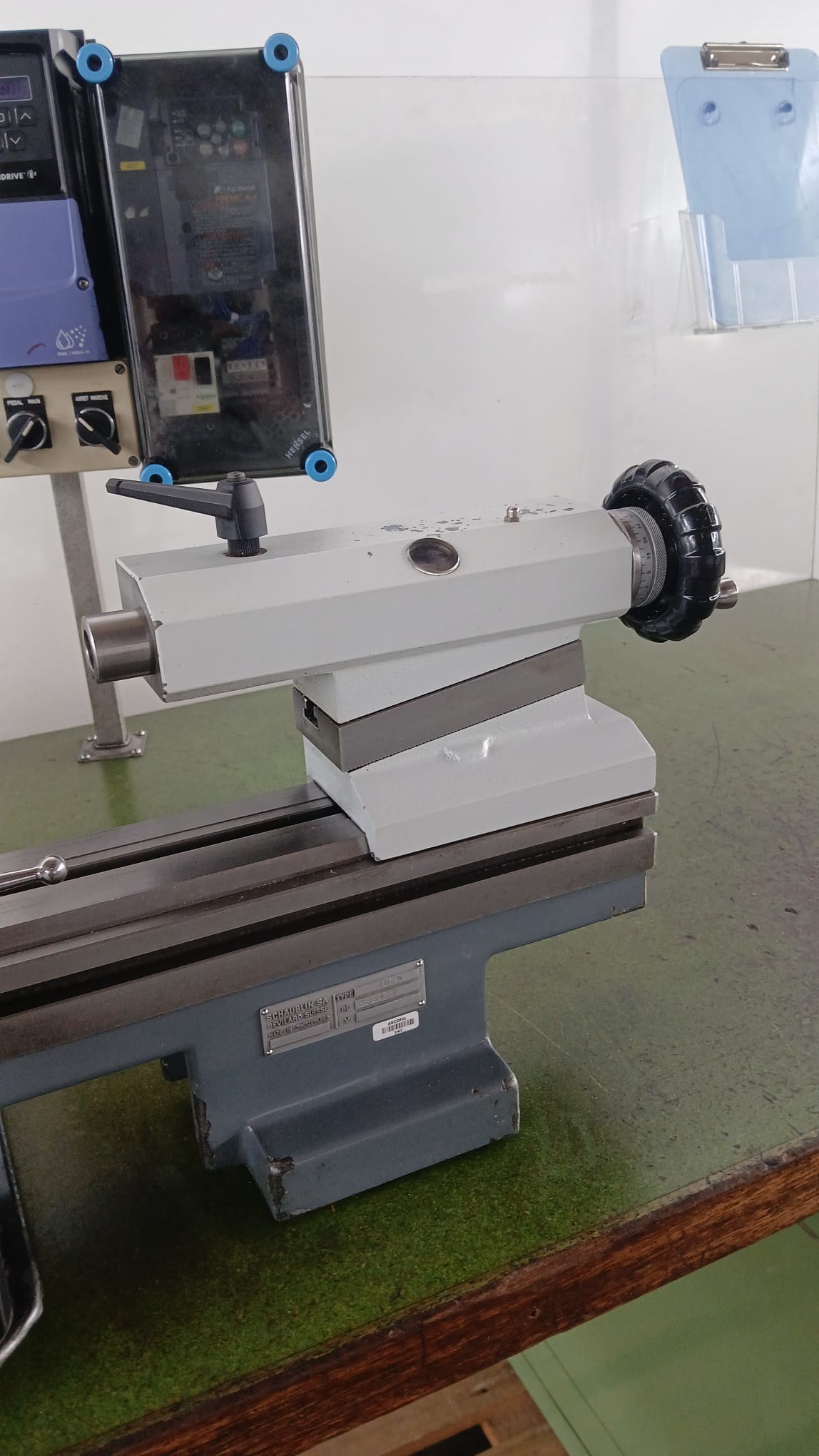

| Drilling tailstock | |

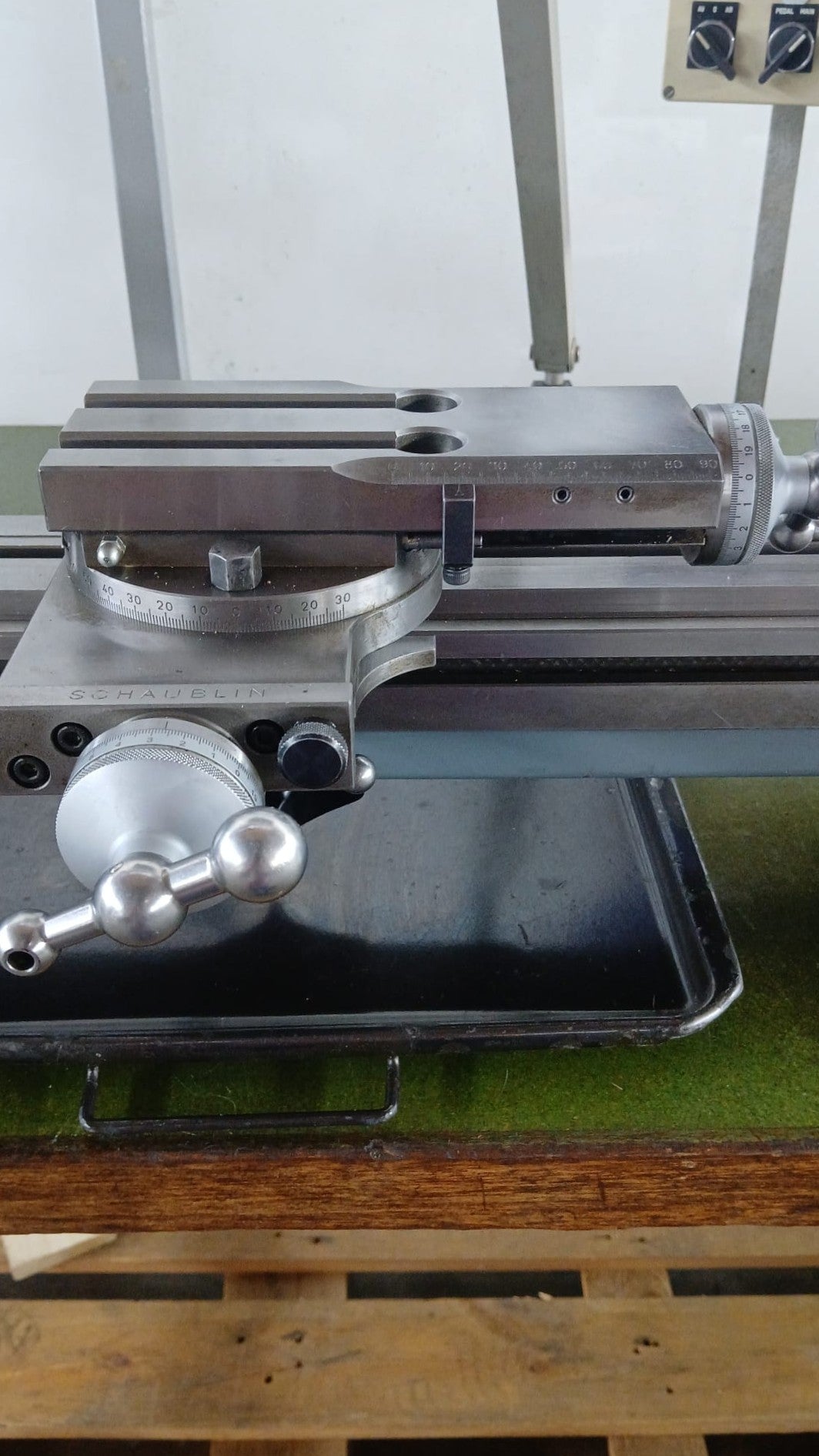

| Cross slide with 90 mm stroke |
