HAAS VF-2SS is a Vertical machining center engineered for precision, high accuracy and reliable production performance. Table 914×356 mm with 3 T-slots (16 mm), travels X762 × Y406 × Z508 mm, table load max 680 kg; 24-position tool changer, tool Ø max 64 mm (127 mm with free adjacent pockets), tool length 279 mm, max tool weight 5.4 kg. Spindle nose BT40, up to 12,000 rpm; spindle motor 22.4 kW; work feed 21.2 m/min, rapid traverse 35.6 m/min; tool change 1.8 s, average chip-to-chip 2.4 s. Voltage 3x 400 V 50 Hz, air 5.5 bar; machine weight ≈3800 kg, dimensions 3150×2600×2700 mm. Accessories: 4th-axis table (B), set of toolholders, set of collets, coolant system 208 l, 3D measuring feeler REGO‑FIX. Suitable for achieving tight tolerances in automotive, aerospace, medical, watchmaking and machine tool sectors.
Technical specifications are subject to change without notice
| Table length | 914 mm |
| Table width | 356 mm |
| Number of T-channels | 3 |
| T-channel width | 16 mm |
| Longitudinal travel (X-axis) | 762 mm |
| Transversal travel (y-axis) | 406 mm |
| Vertical travel (z axis) | 508 mm |
| Table load max. | 680 kg |
| Tool changer: | |
| Number of tools | 24 |
| Tool diameter max. | 64 mm |
| Diameter with free adjacent pockets | 127 mm |
| Tool lenght | 279 mm |
| Max. tool-weight | 5.4 kg |
| Time of tool changing | 1.8 s |
| Average chip-to-chip time | 2.4 s |
| Spindle nose: | BT 40 |
| Spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Direct drive | |
| Work feed rate | 21.2 m/min |
| Feed range | mm/min |
| Rapid traverse: | 35.6 m/min |
| Air connect | 5.5 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 22.4 kW |
| Machine's weight about | 3800 kg |
| Overall dimensions machine: | |
| Length | 3150 mm |
| Width | 2600 mm |
| Height | 2700 mm |
| Various accessories: | |

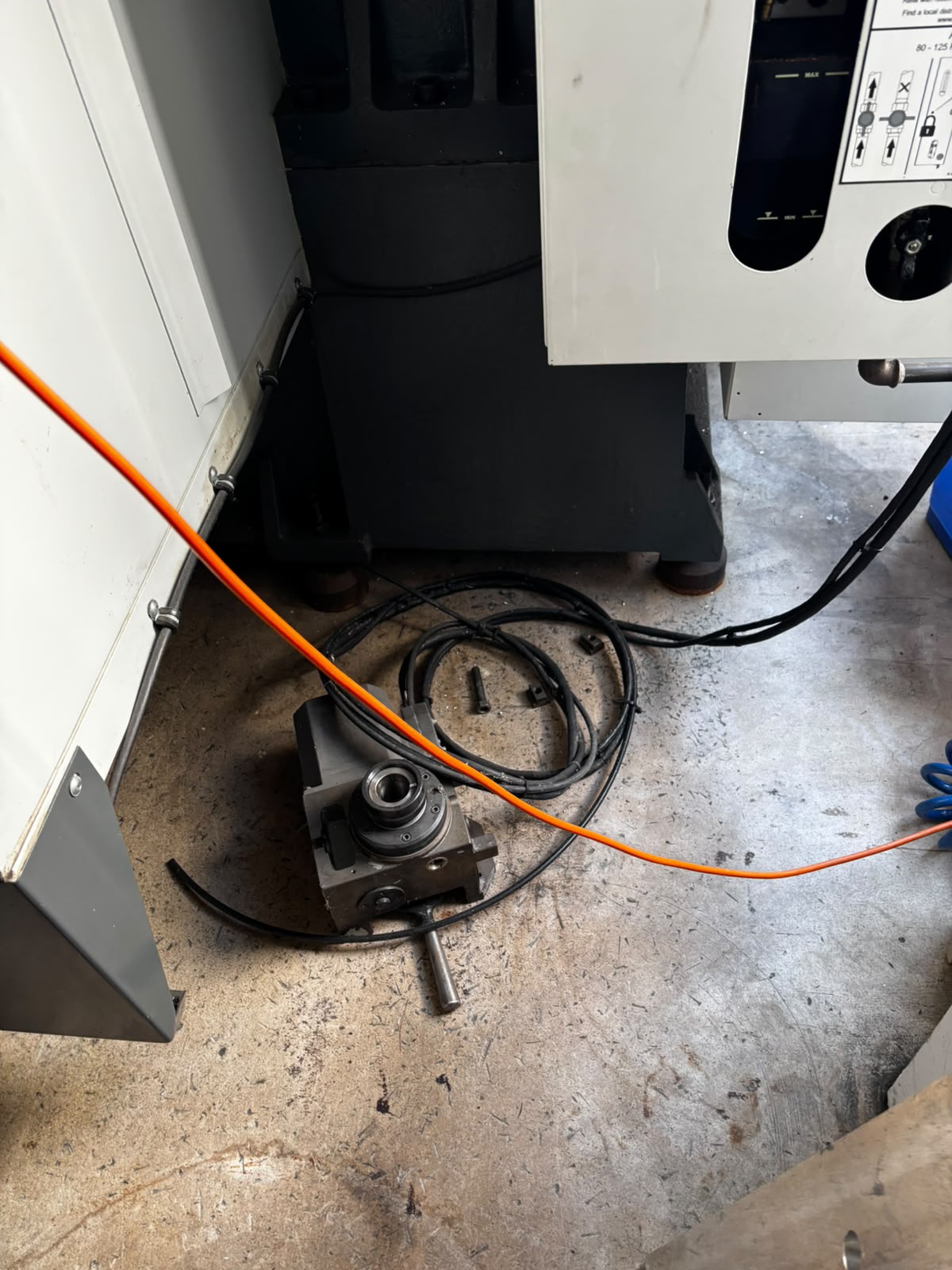

| Table 4th axis (B-axis) | |
| Set of toolholders | |
| Set of collets | |
| Coolant system | 208 l |
| 3D measuring feeler gauge | REGO-FIX |
