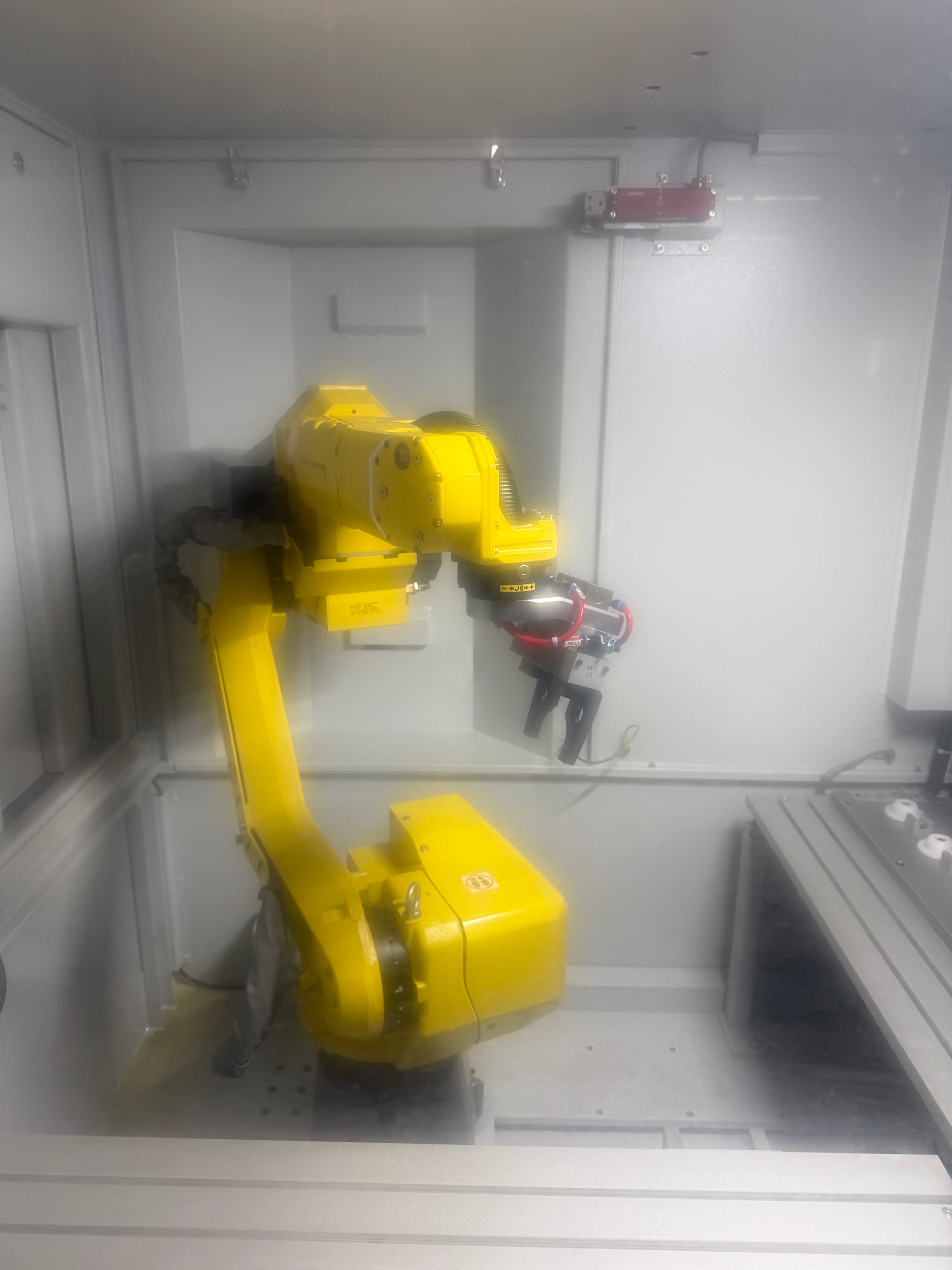

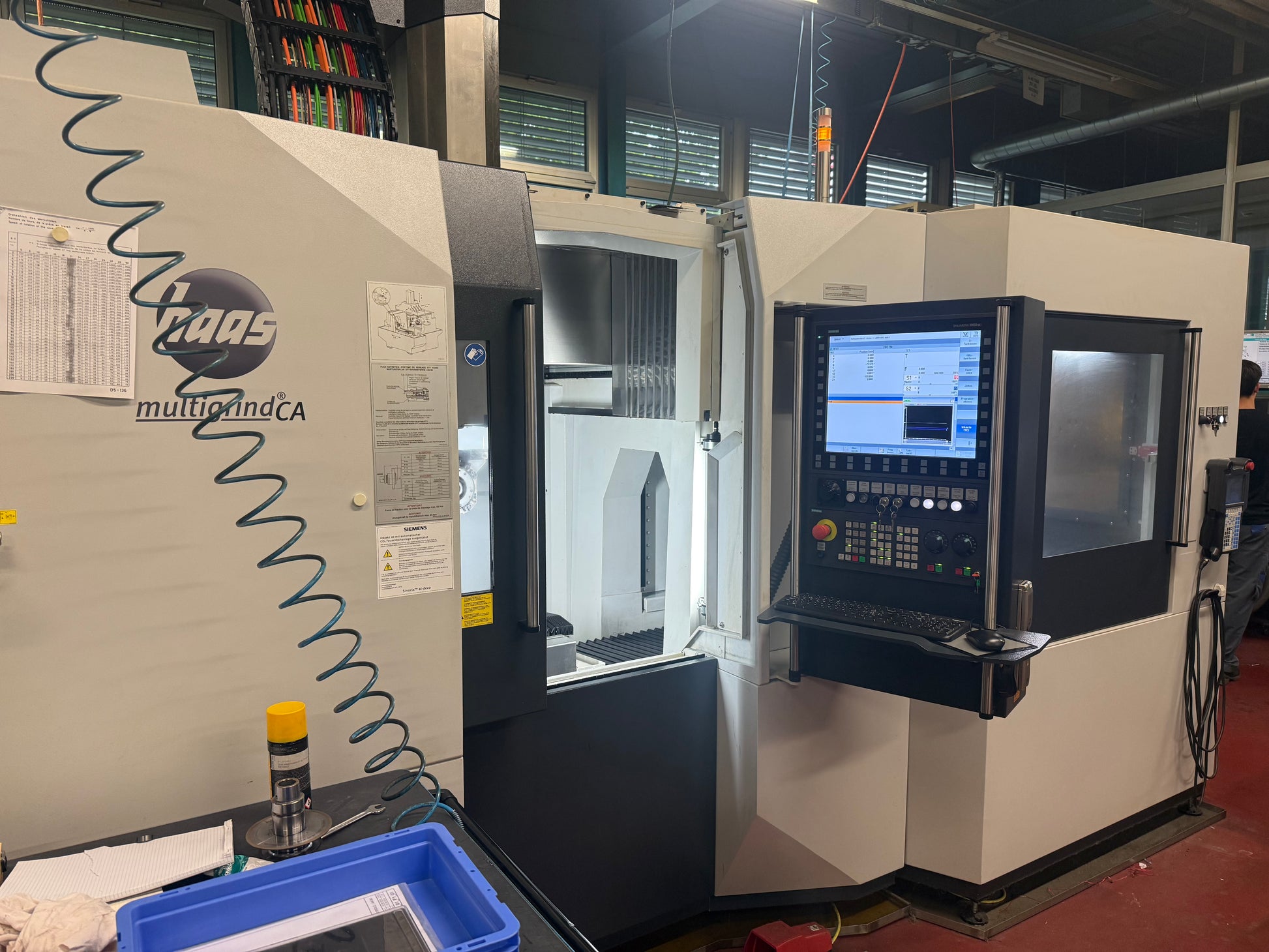

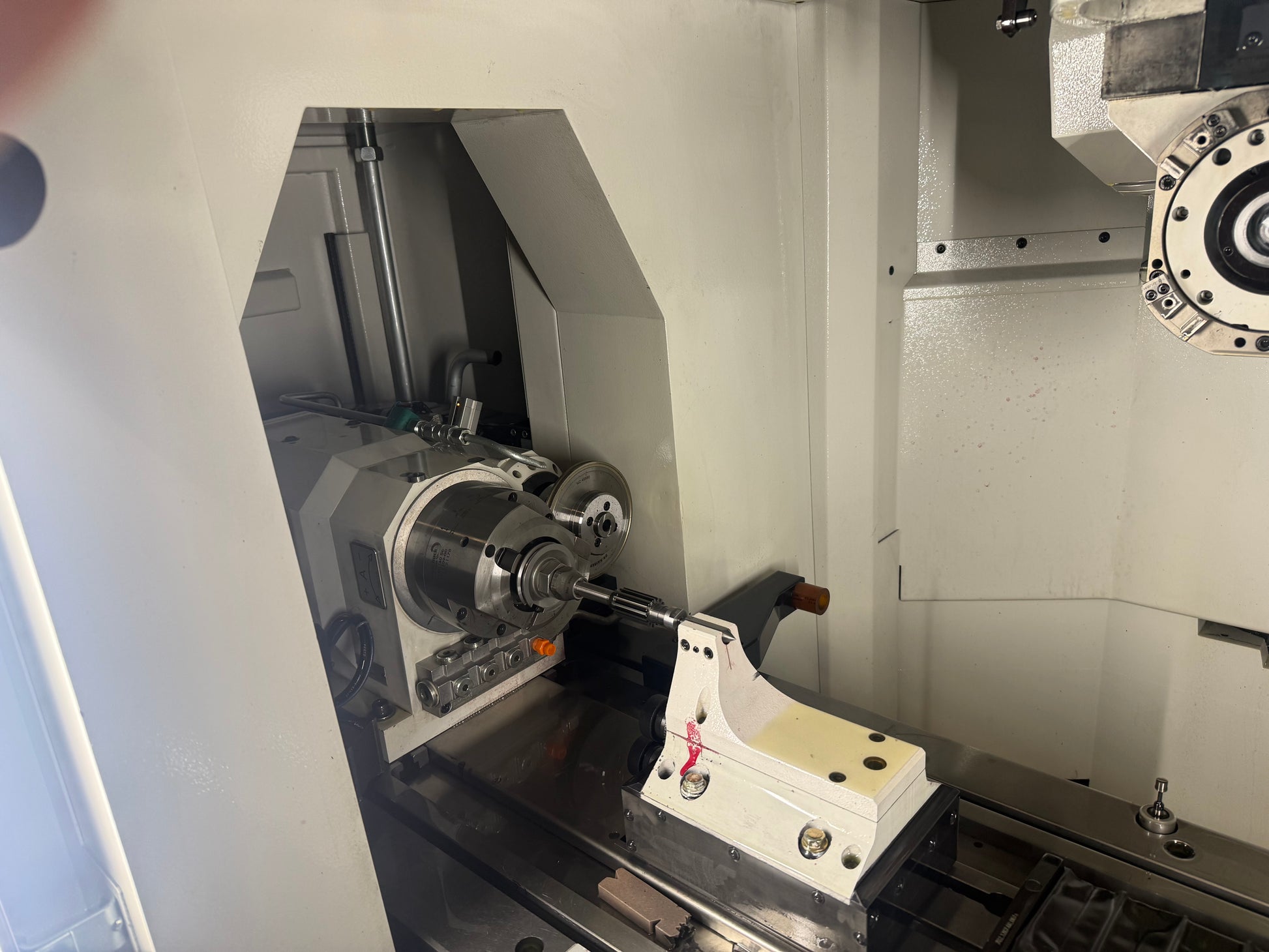

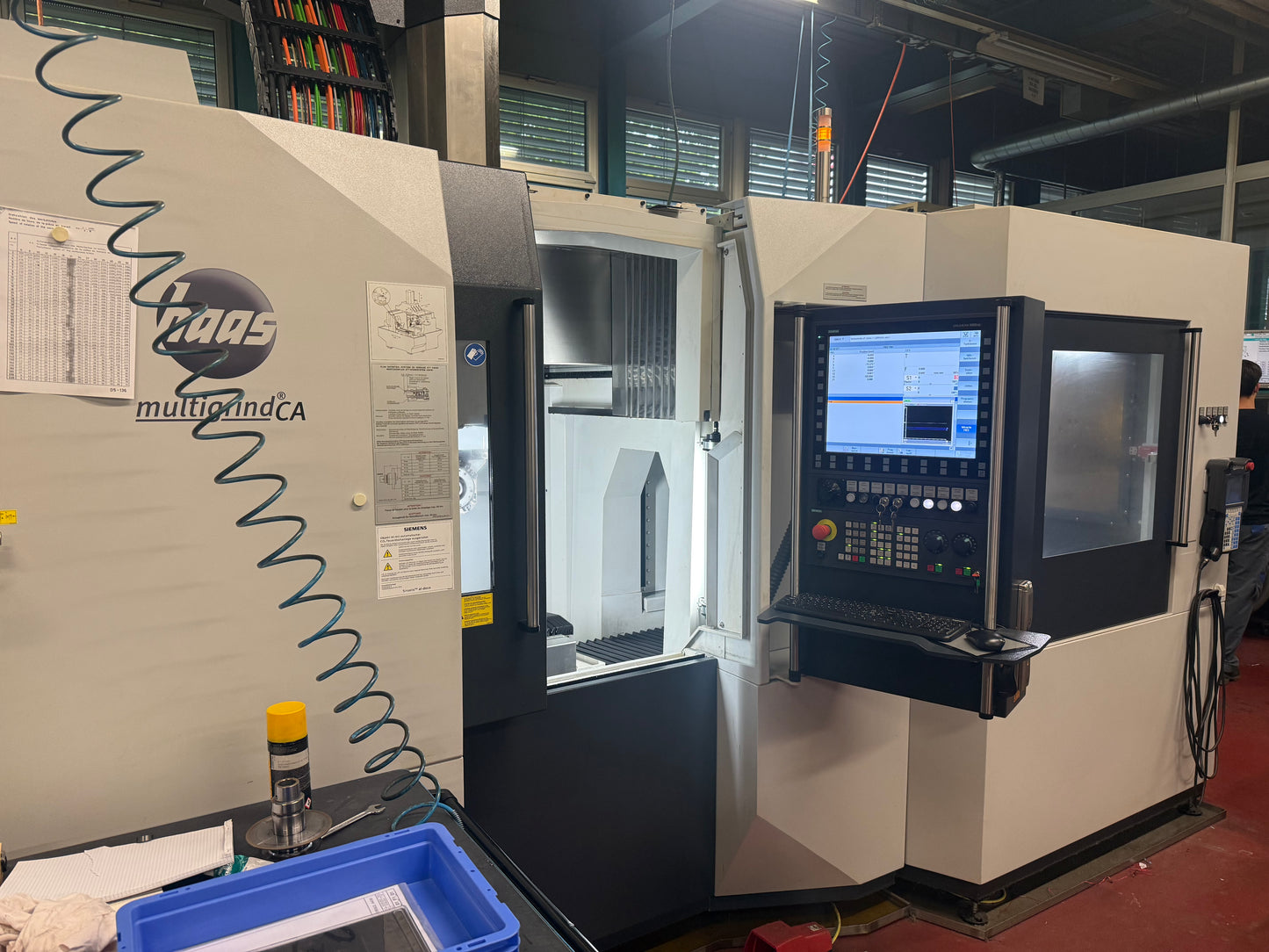

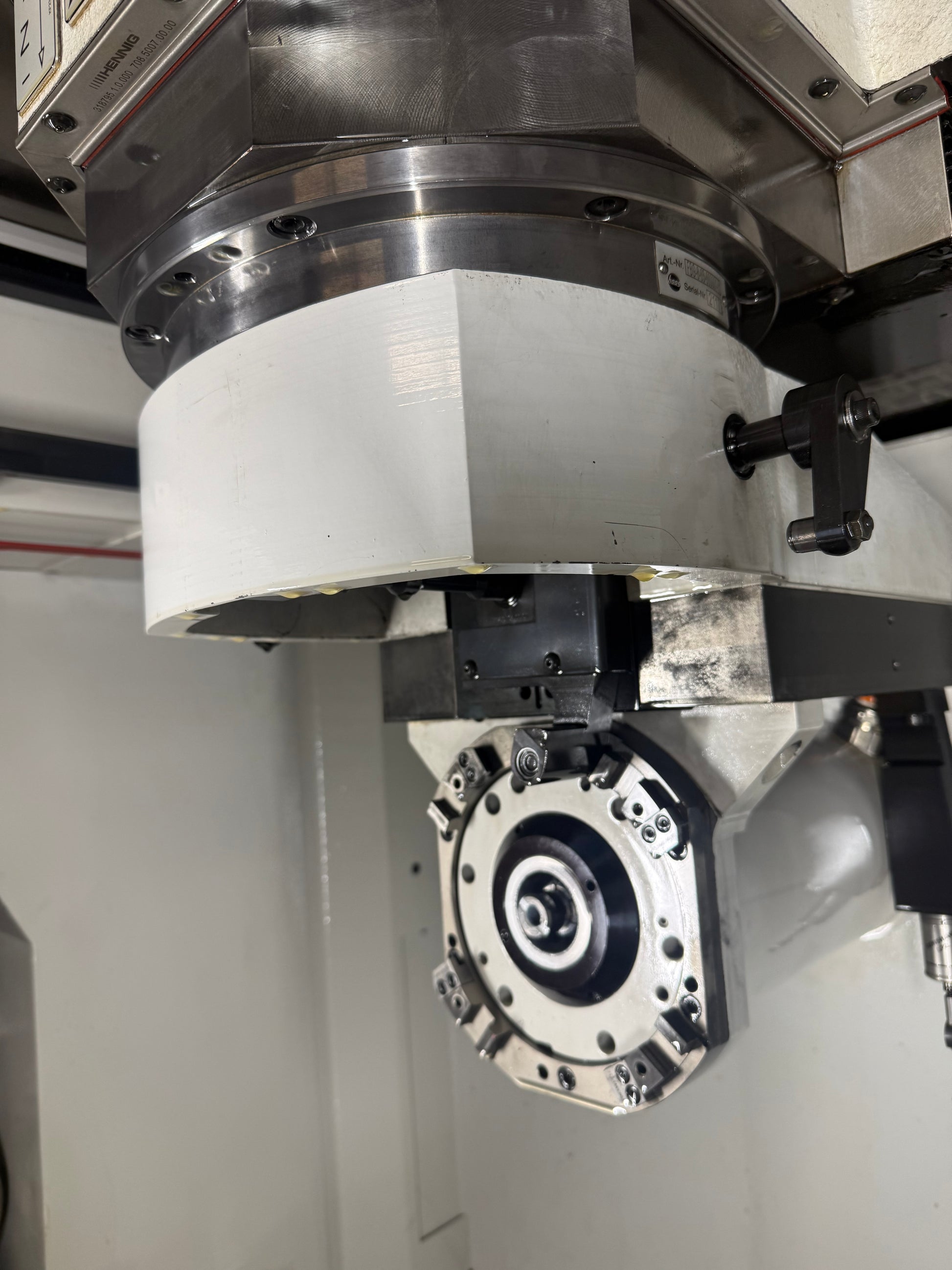

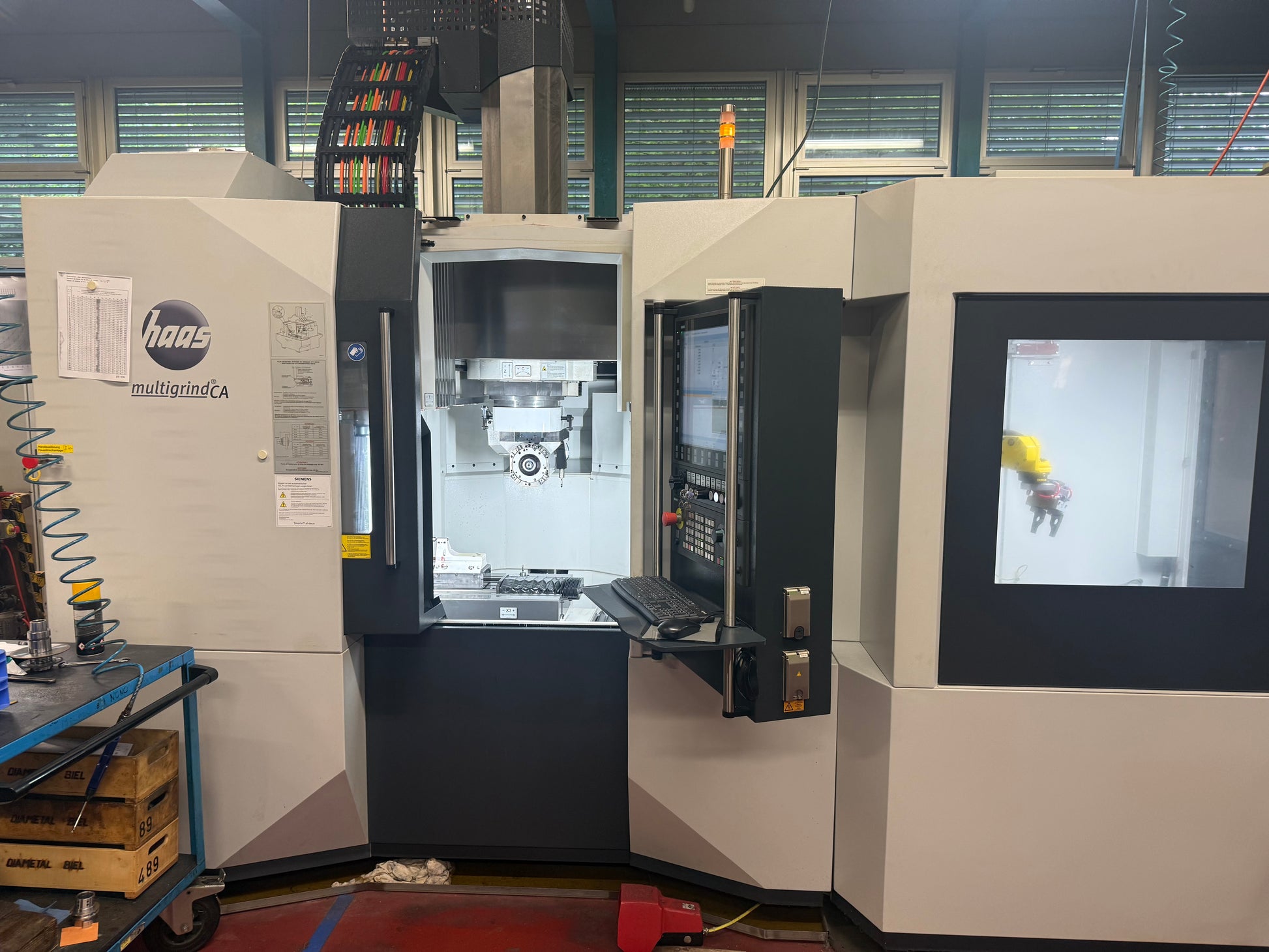

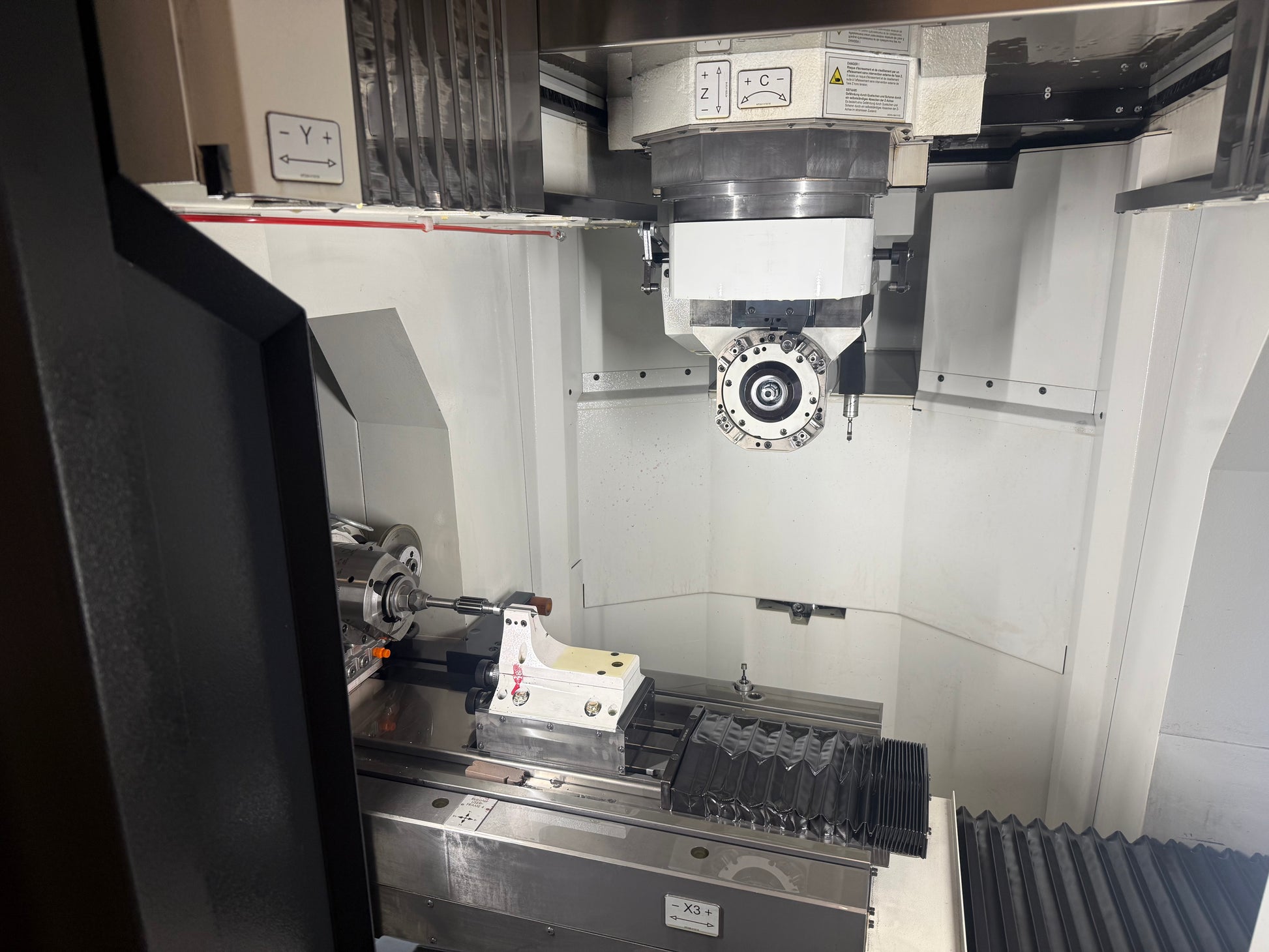

HAAS Schleifmaschinen MULTIGRIND CA is a Tool and cutter grinder CNC with precision, high accuracy and reliability. It features 5 axes with travels X 630 mm, Y 345 mm, Z 430 mm; grinding length 500 mm; grinding diameter 260 mm; max. grinding wheel diameter 250 mm; C axis (spindle) resolution 0.001° and swivel angle -225° to +70°; axis resolution 0.0001 mm. Voltage 50 Hz, 3x 400 V; machine weight about 8500 kg; overall dimensions L 2650 x W 2400 x H 3200 mm. Supplied with loading and unloading robot and a fire extinguishing system. Engineered to achieve tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.

Technical specifications are subject to change without notice
