WILLEMIN MACODEL W 408 B
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

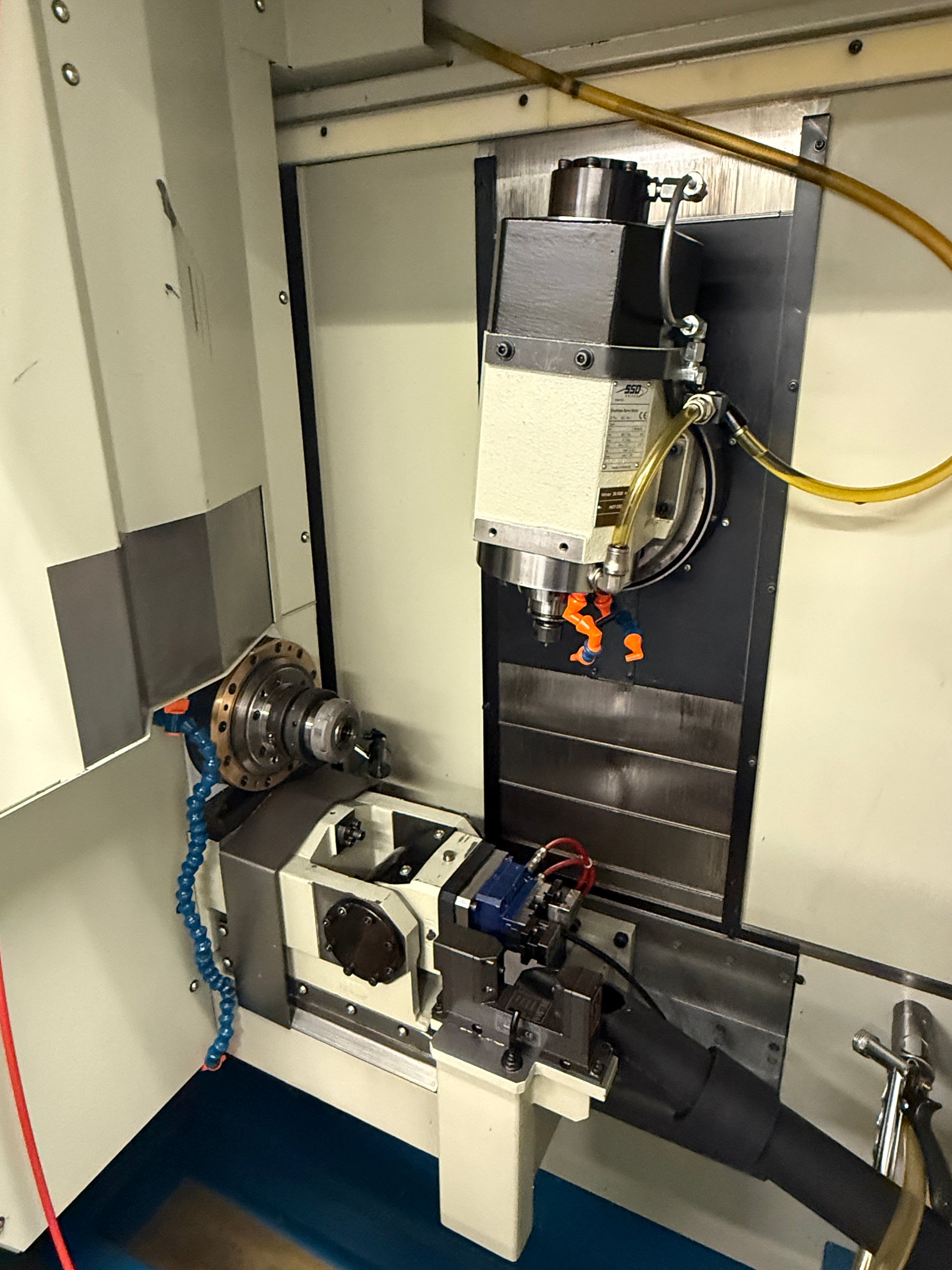

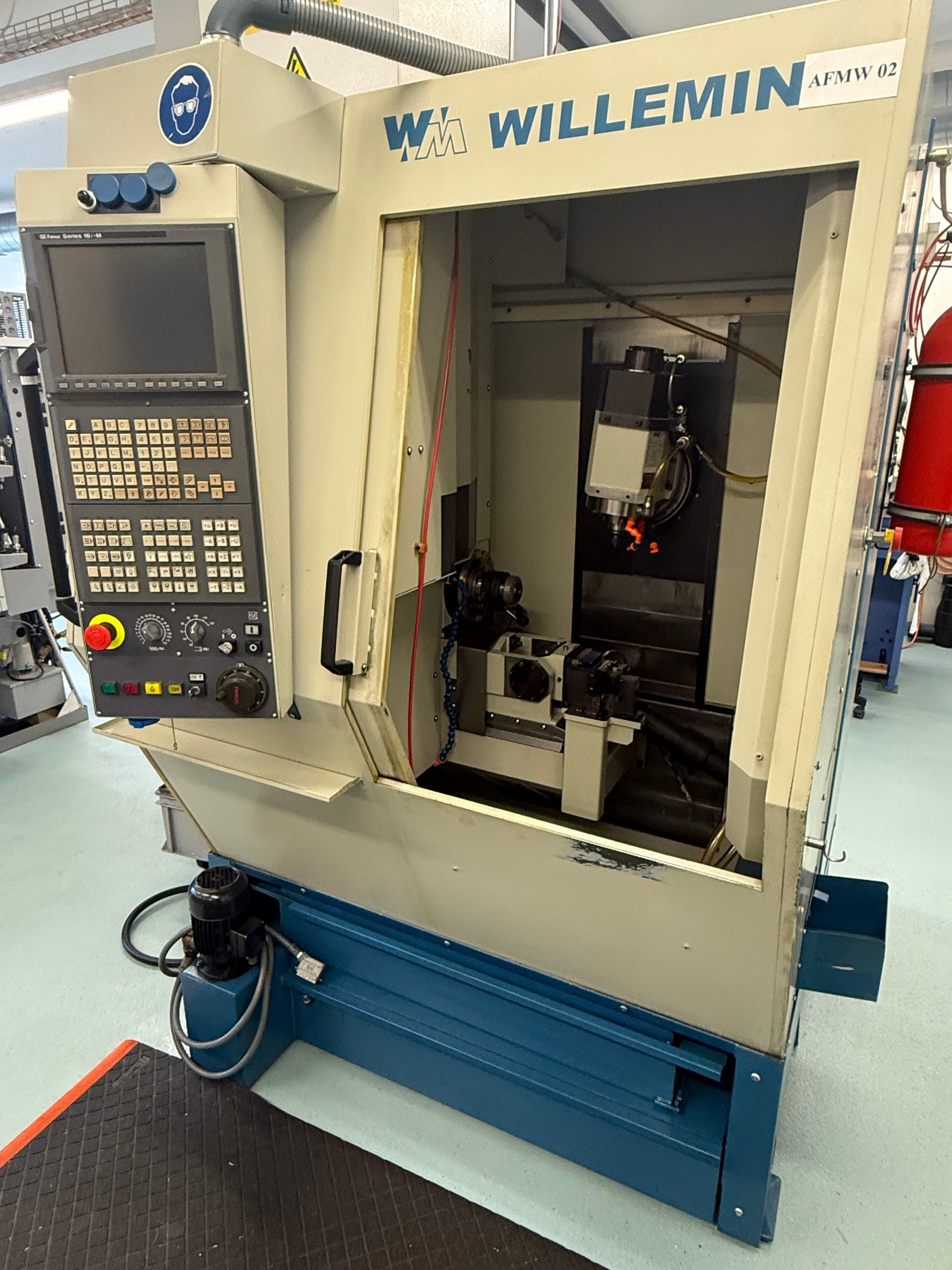

WILLEMIN MACODEL W 408 B is a 5‑axis machining center engineered for precision, high accuracy and reliability. Capacity: X250 Y200 Z300 mm; A360° B -10/+100°; res. 0.001. Spindle up to 30,000 rpm; 24 tools HSK E40; Ø50×L93 mm (1 kg); rapid traverse 30 m/min; 3x400V 50Hz, 18 kVA. Accessories: collets F‑35, BLUM Nano tool‑break control, spindle cooling, coolant system, automatic central lubrication, fire extinguishing system. Achieves tight tolerances; ideal for automotive, watchmaking, aerospace, medical.
Technical specifications are subject to change without notice
| Number of axis total | 5 |
| Number of axis simultaneous | 5 |
| Longitudinal travel (X-axis) | 250 mm |
| Transversal travel (y axis) | 200 mm |
| Vertical travel (z axis) | 300 mm |

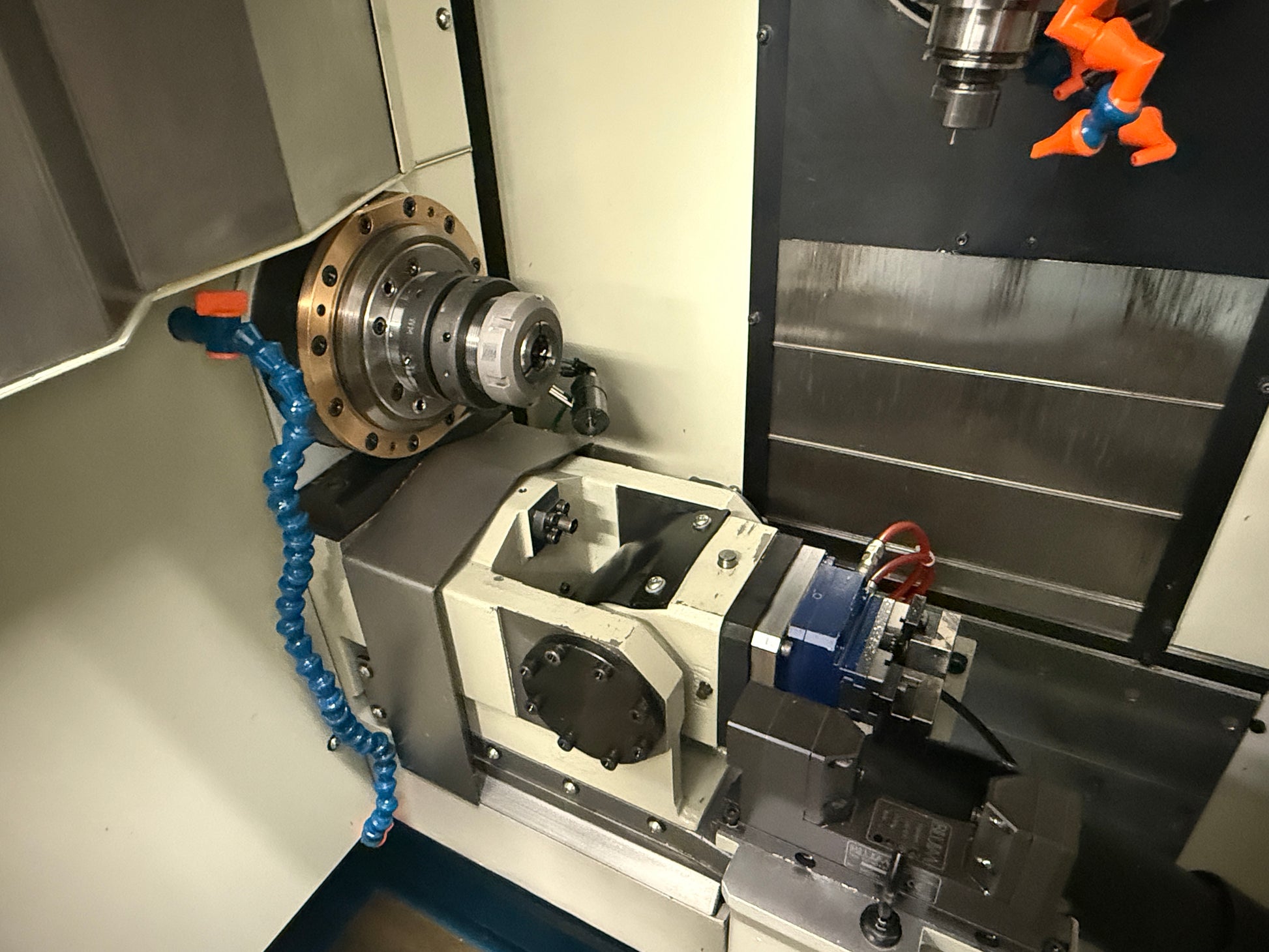

| A axis | 360° |
| Resolution | 0.001 |
| B axis | -10° / +100° |
| Resolution | 0.001 ° |

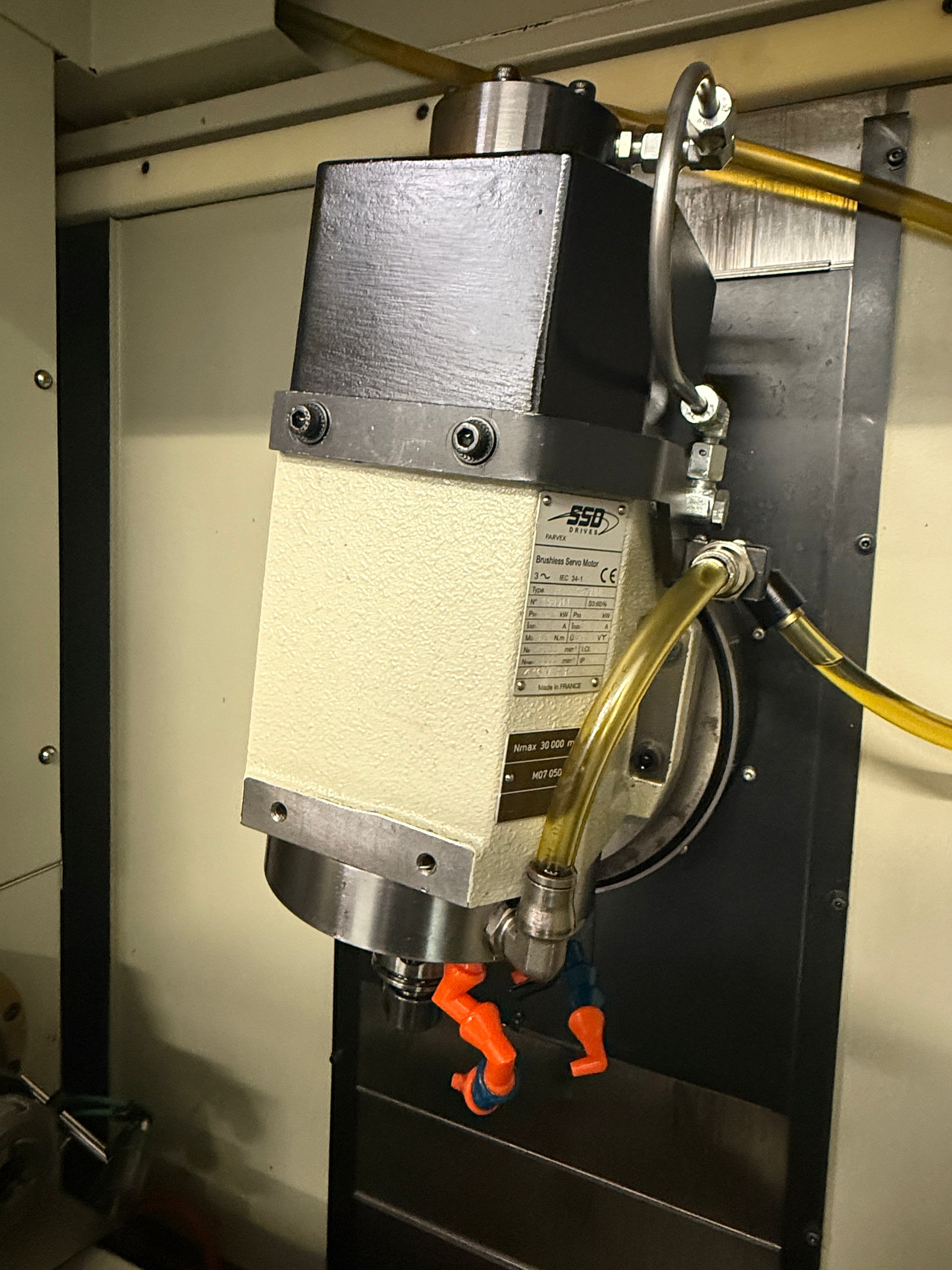

| Spindle speeds: | |

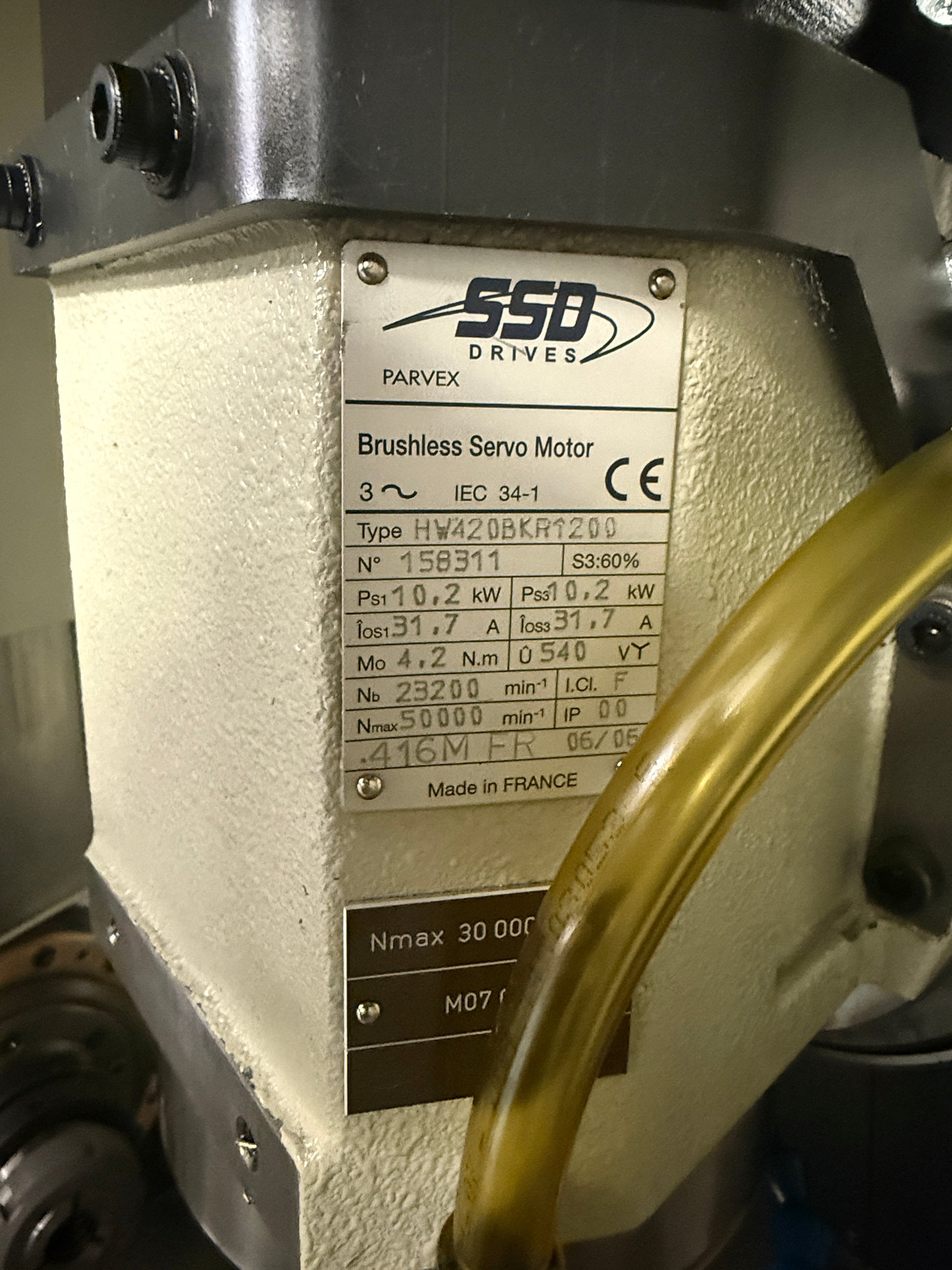

| up to | 30000 t/min |

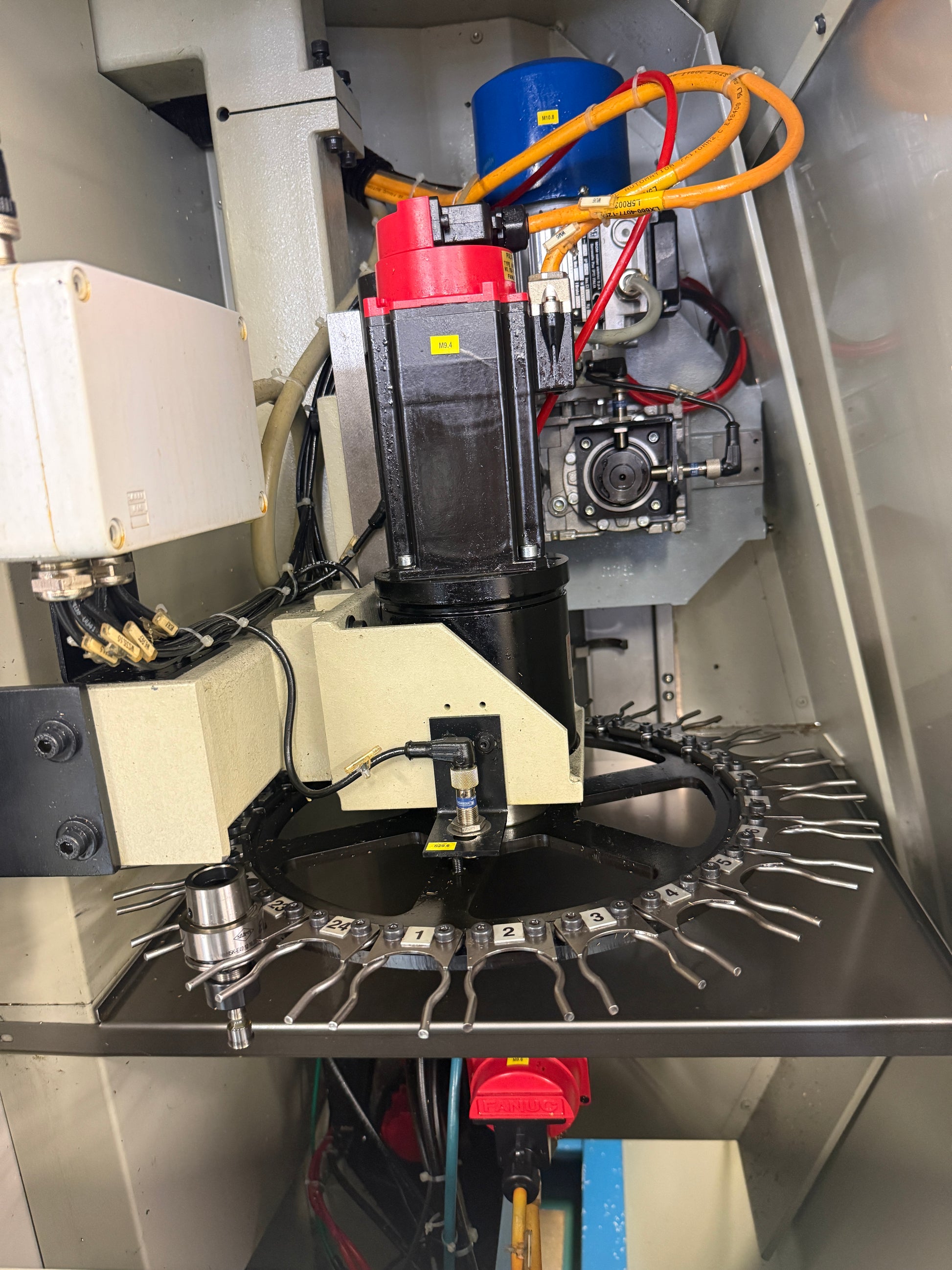

| Tool changer: | |
| number of tools | 24 |
| Spindle nose: HSK | E40 |
| Tool diameter | 50 mm |
| Tool lenght | 93 mm |
| Max. tool-weight | 1 kg |
| Rapid traverse: | 30 m/min |
| Max. Feed force | 3700 N |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 18 kVA |
| Machine's weight about | 1700 kg |
| Length | 1400 mm |
| Width | 1800 mm |
| Height | 2440 mm |
| Various accessories: | |

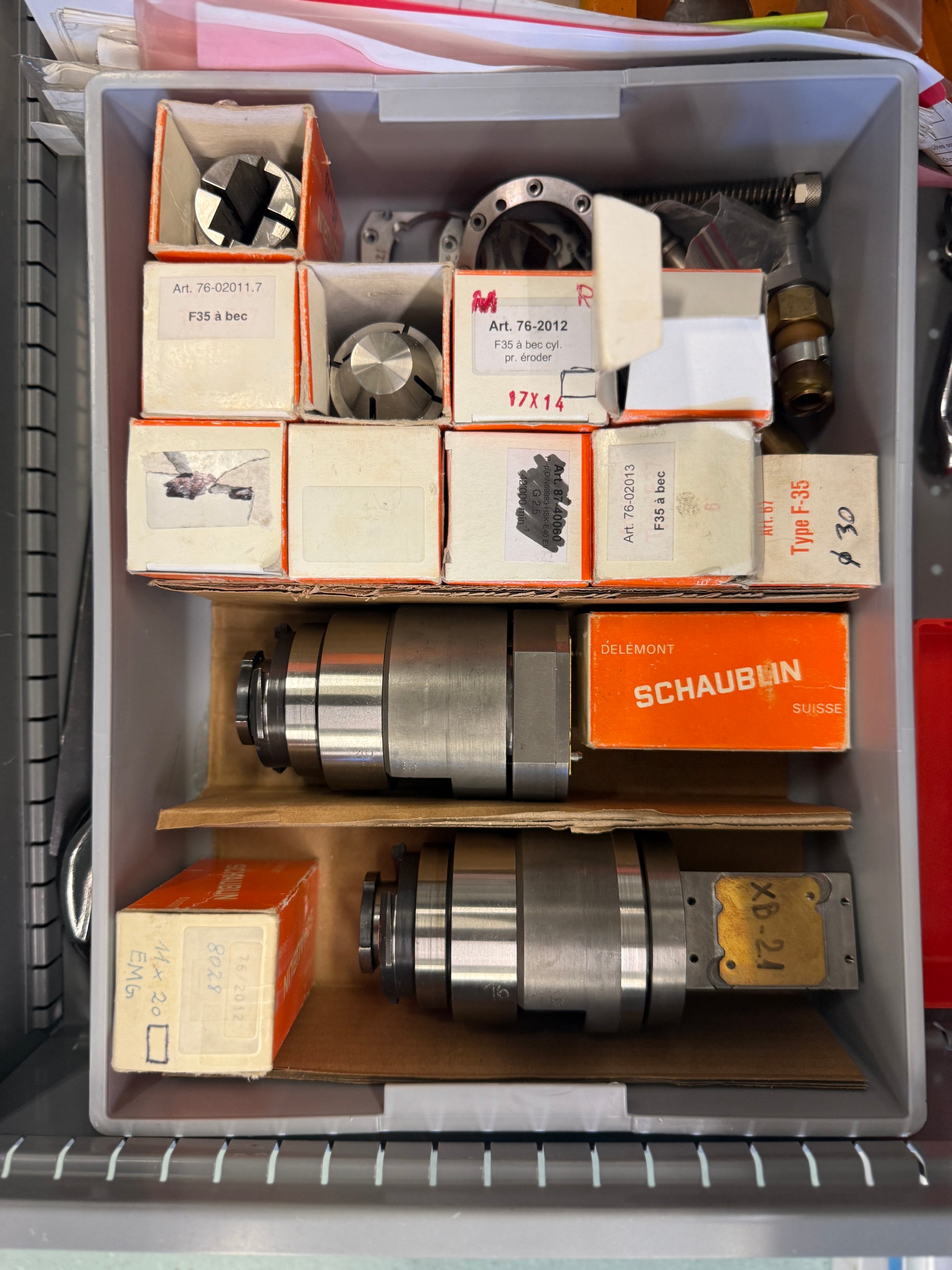

| Set of collets | F-35 |

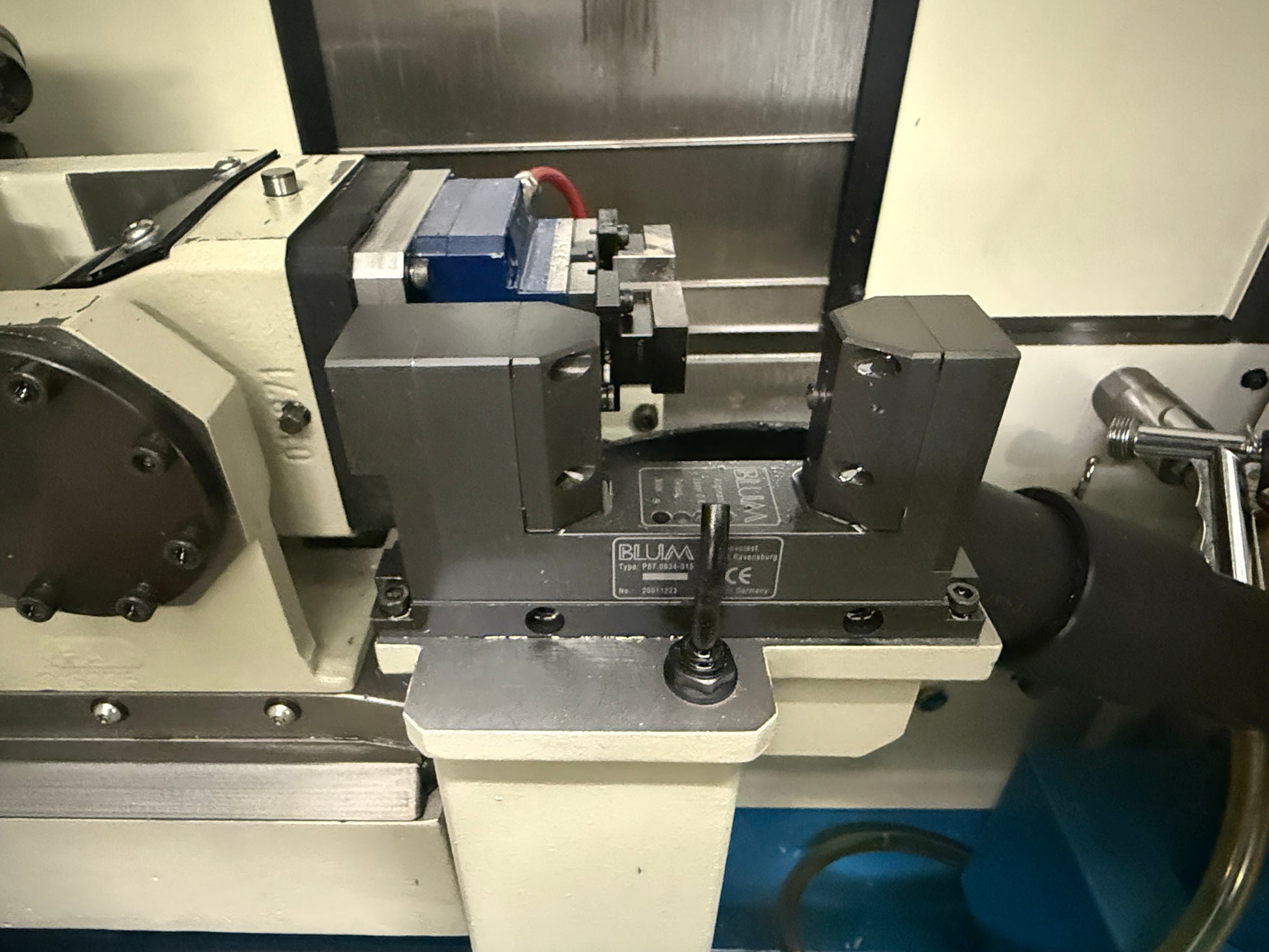

| Tool break control | BLUM Nano |
| Spindlecooling | |
| Coolant system | |
| Automatic central lubrication | |

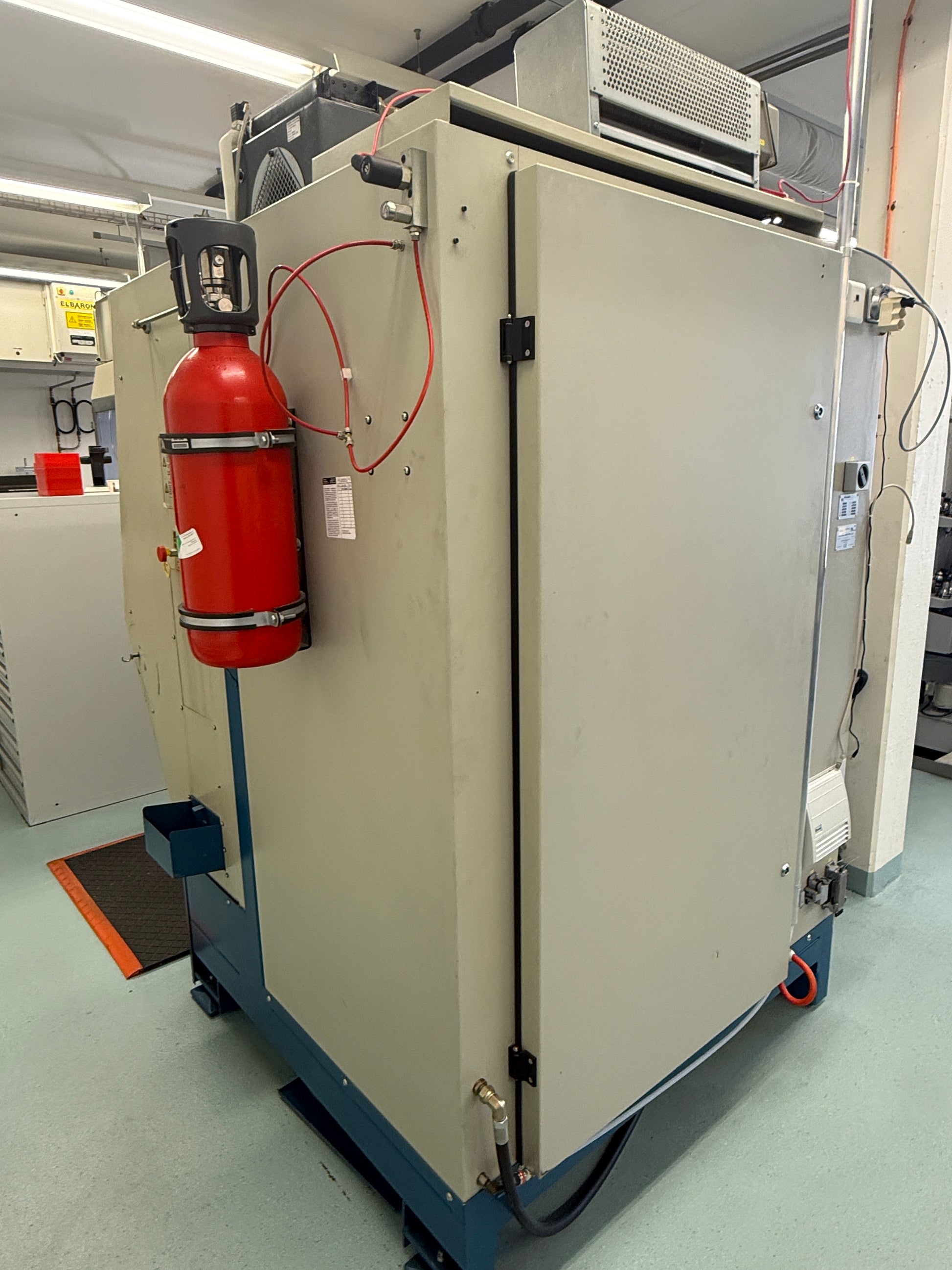

| Fire extinguishing system |
