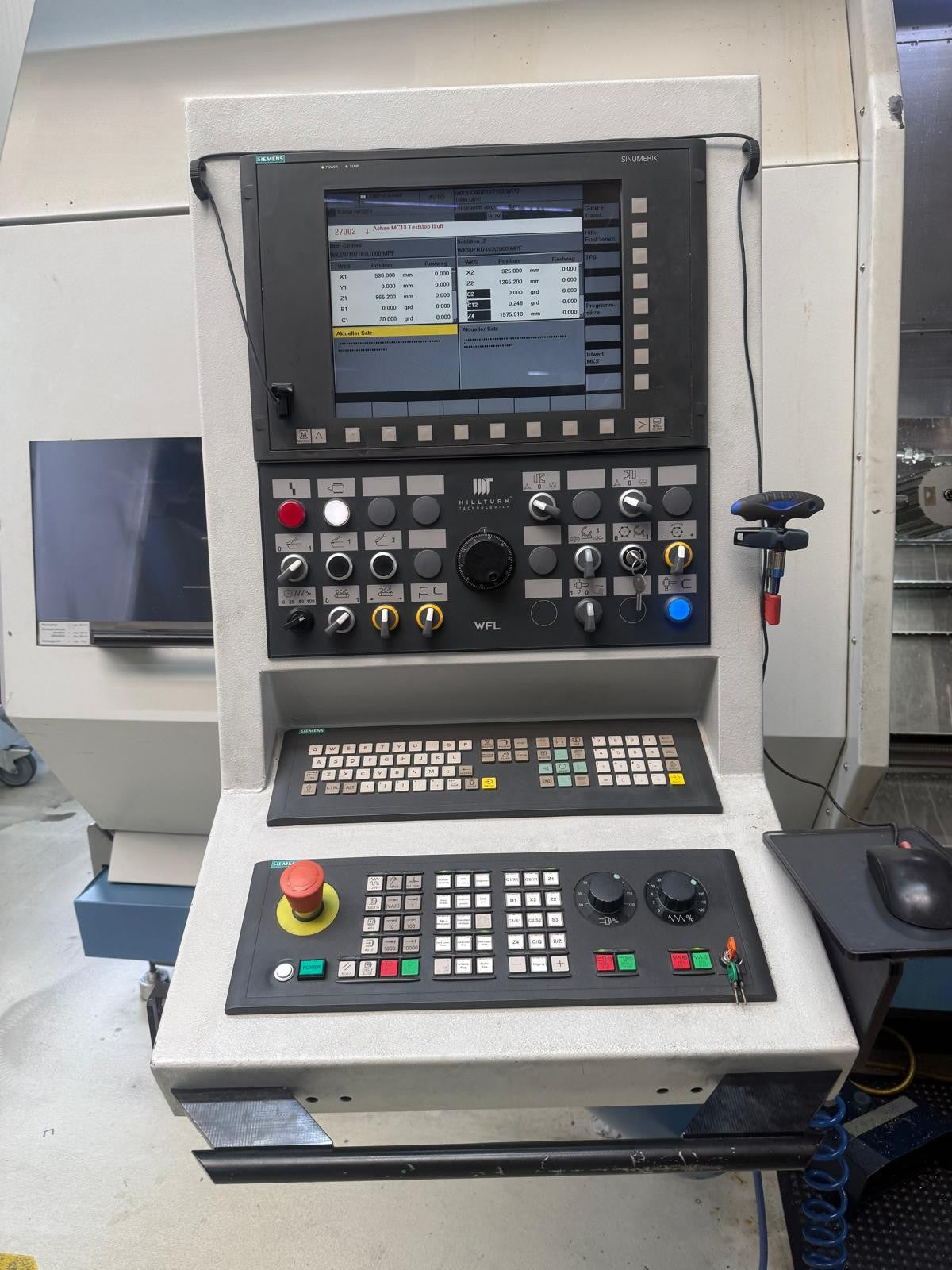

WFL M 35 G MILLTURN
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

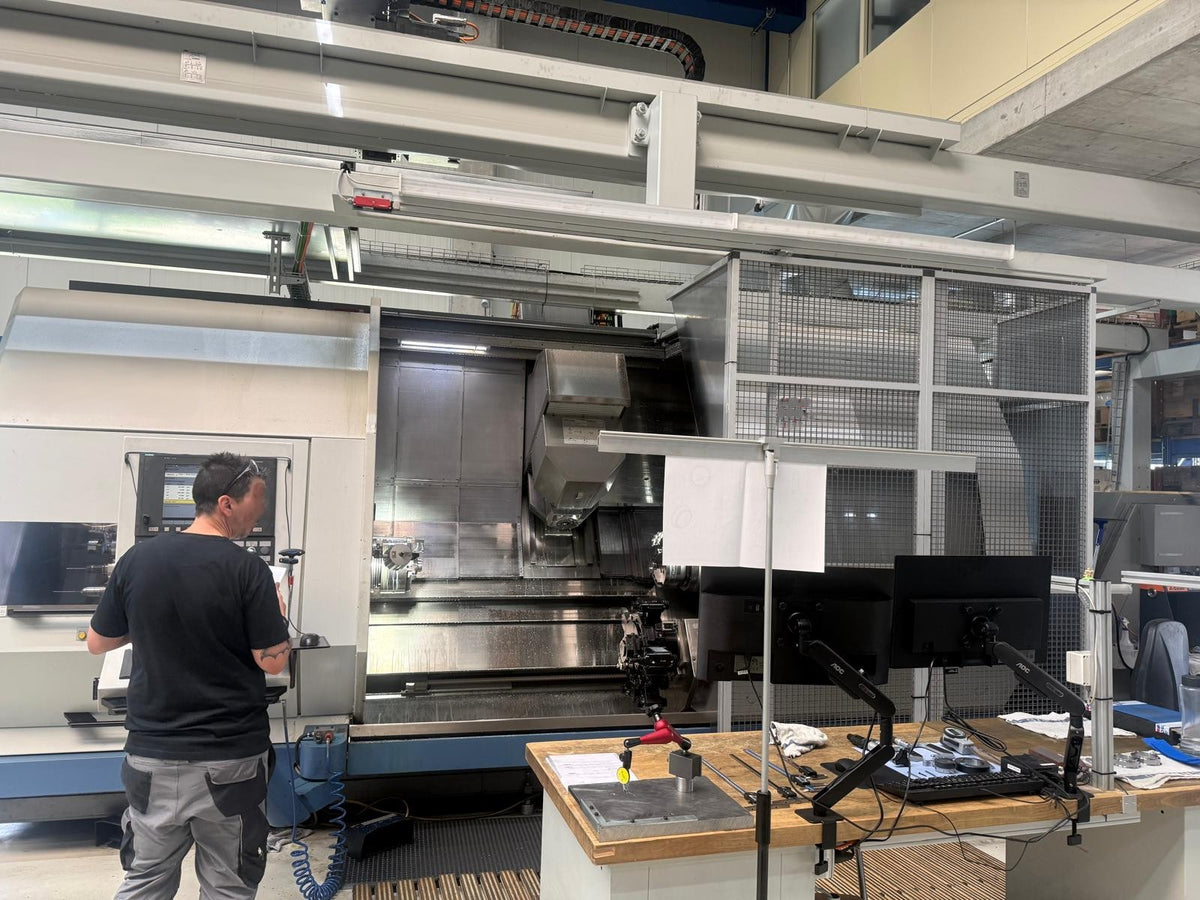

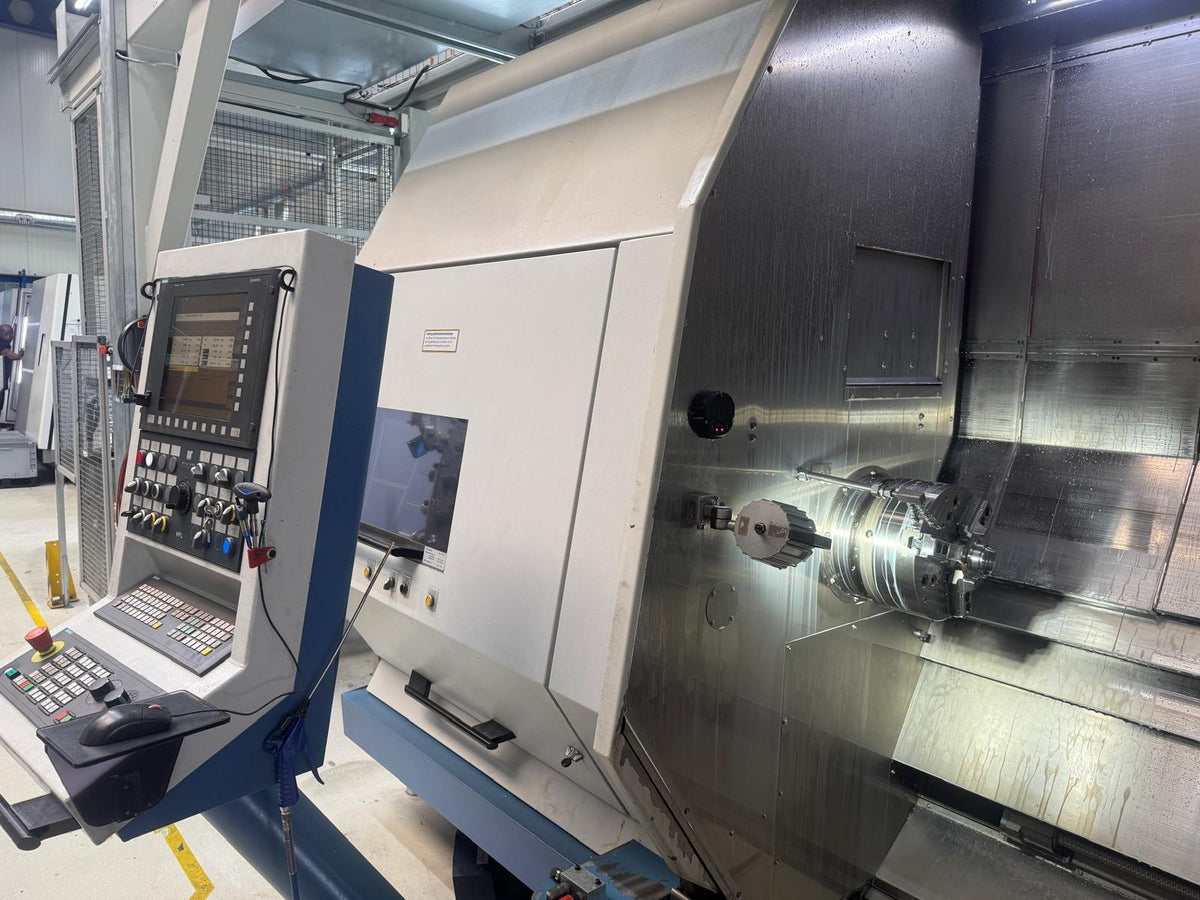

WFL M 35 G MILLTURN is a CNC Turning‑Milling‑Drilling Center delivering high precision, accuracy and reliability. Capacities: distance between centres 2000 mm, max turning Ø 520 mm, spindle bore 77 mm; travels Z1 1500 mm/X1 550 mm, Z2 1355 mm/X2 230 mm, Y 250(-100/+150), B 220°. Specs: main/back spindles up to 4000 rpm, 29/33 kW (551/630 Nm), driven tools 6/13 kW, milling spindle 9000 rpm 15/20 kW (165 Nm); rapid traverses Z 40 m/min X 30/10 m/min; weight ~20000 kg; size 7900×5700×3250 mm. Accessories: lamp, coolant system, paper filtration, oil mist extractor, chip conveyor, automatic load/unload, Renishaw measurement. Enables tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine‑tool sectors.
Technical specifications are subject to change without notice
| Distance between centres | 2000 mm |
| Swing over cross-slide | 520 mm |
| Spindle head | DIN 55026 FORM A Gr. 8 |
| Max. turning diameter | 520 mm |
| Carriage 1: | |
| Travels: | |
| Longitudinal travel (Z-axis) | 1500 mm |
| Transversal strocke (X axis) | 550 mm |
| Rapid traverse Z | 40 m/min |
| Rapid traverse X | 30 m/min |
| Carriage 2: | |
| Longitudinal travel (Z-axis) | 1355 mm |
| Transversal strocke (X axis) | 230 mm |
| Rapid traverse Z | 40 m/min |
| Rapid traverse X | 10 m/min |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 12 |
| Spindle speeds | 4000 t/min |
| Power of driven tools | 6 / 13 kW |
| Torque max. | 27 / 39 Nm |
| Spindle nose: VDI | 40 |
| Tool magazine number of tool places | 80 |
| Tool diameter max. | 90 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 450 mm |
| Max. tool-weight | 15 kg |

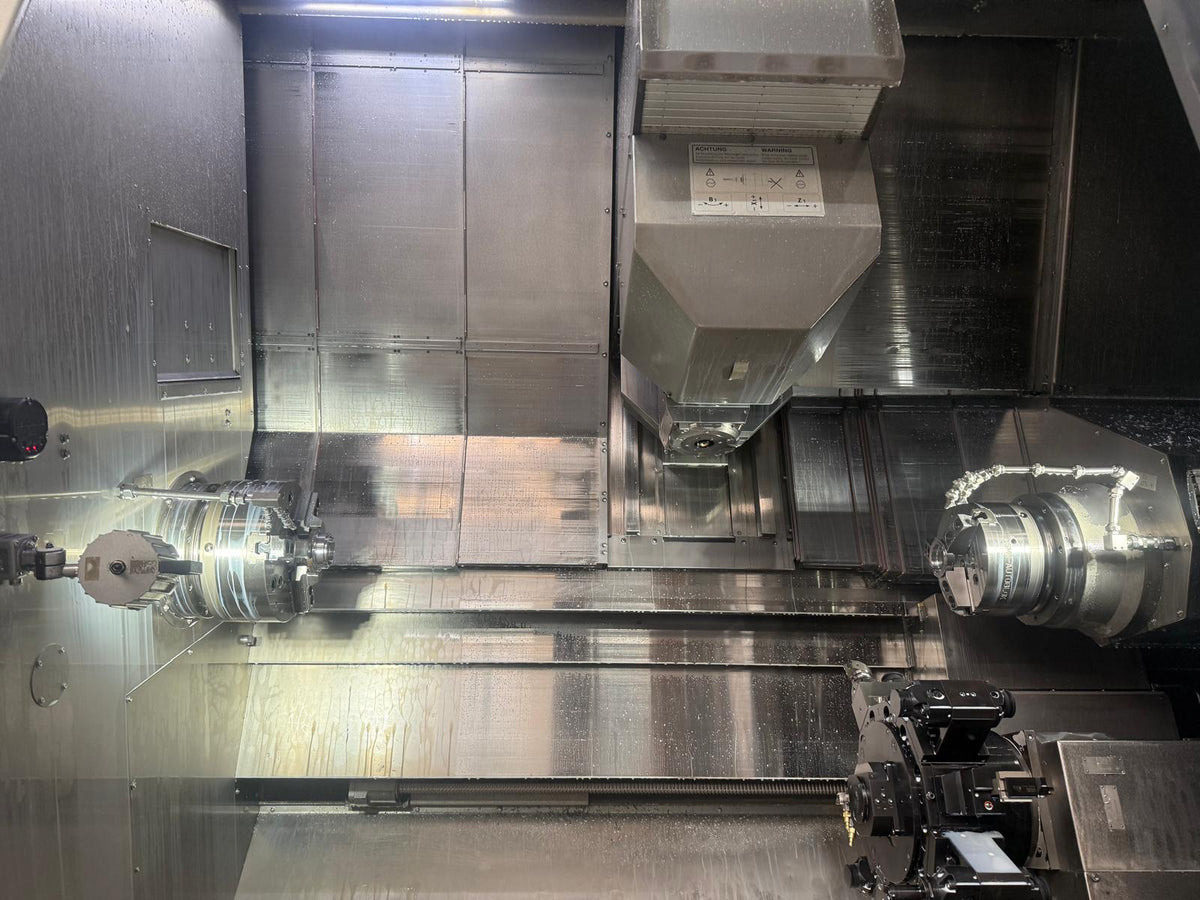

| Main spindle: | |
| Spindle hole | 77 mm |
| C axis | |
| Spindle speeds: | |
| up to | 4000 t/min |
| Spindle power | 29 / 33 kW |
| Torque max. | 551 / 630 Nm |
| Back spindle: | |
| Spindle hole | 77 mm |
| max. speed | 4000 t/min |
| Power of back spindle | 29 / 33 kW |
| Torque max. | 551 / 630 Nm |

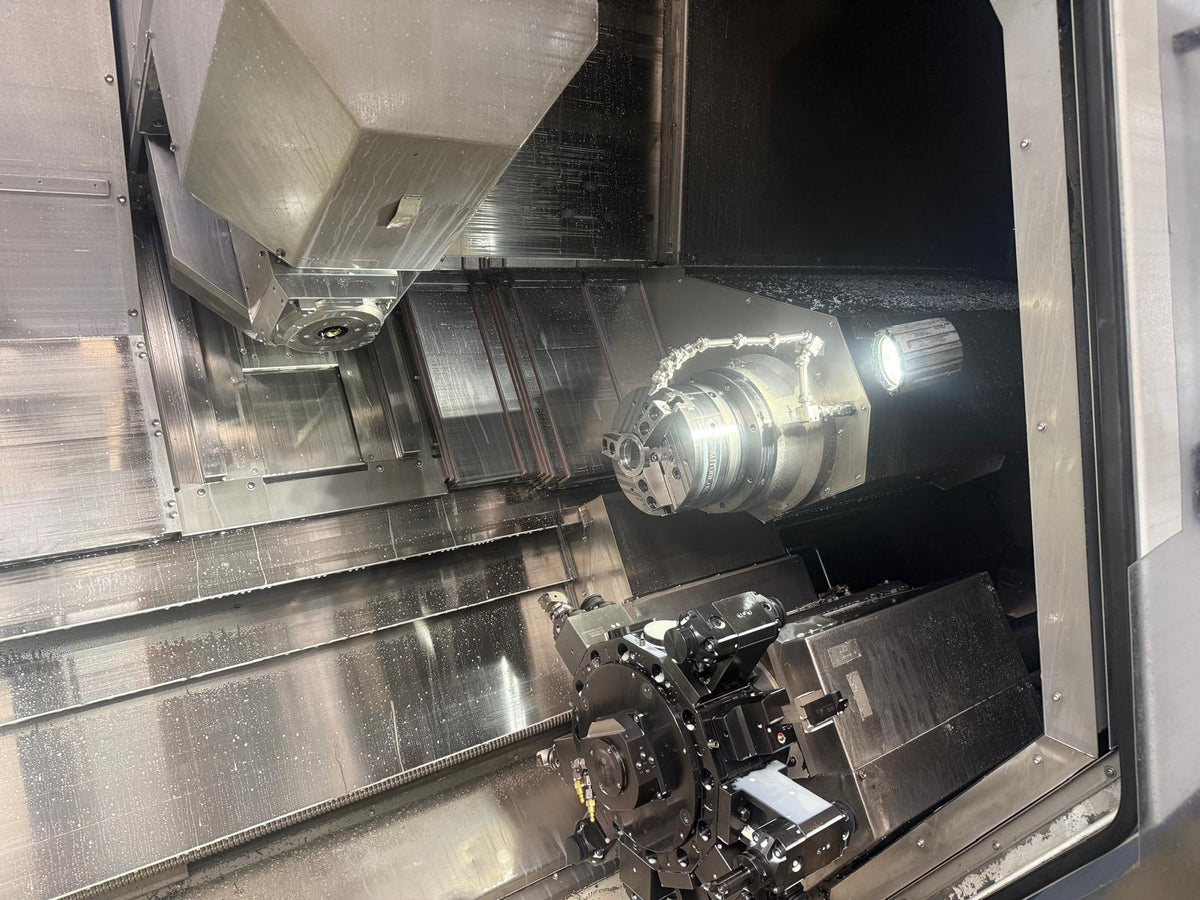

| Milling units: | |
| Y axis | 250 (-100 / +150) mm |
| Milling spindle receptacle | KM 63 KENNAMETAL |
| Milling cutter speeds | 9000 t/min |
| Spindle torque | 165 Nm |
| Drive milling spindle | 15 / 20 kW |
| B axis | 220° (-110° / +110°) |
| B axis resolution max. | 2.5 ° |
| Machine's weight about | 20000 kg |
| Overall dimensions machine: | |
| Length | 7900 mm |
| Width | 5’700 mm |
| Height | 3250 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Paper filtration system | |

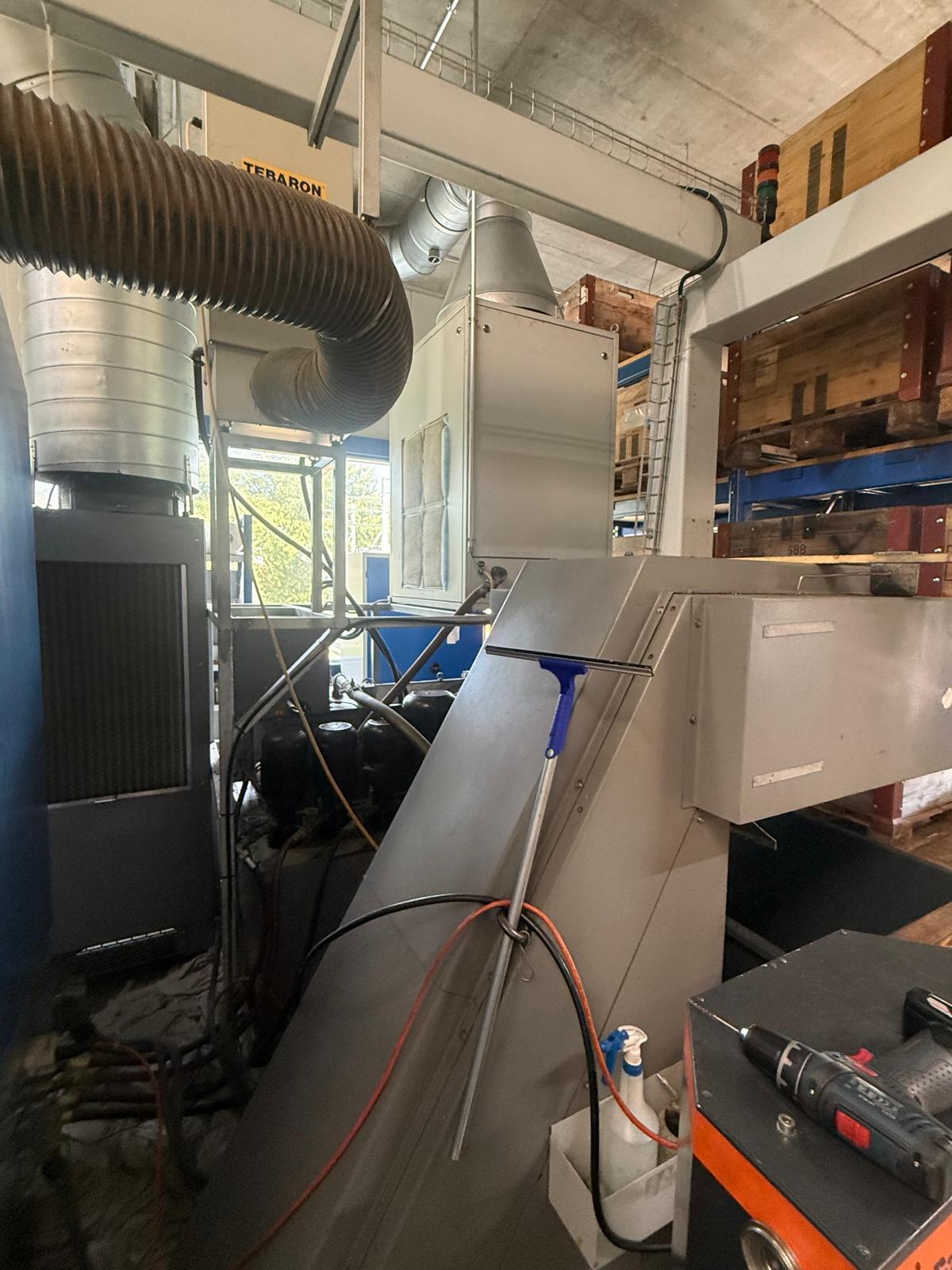

| Oil mist extractor | |
| Chip conveyor | |

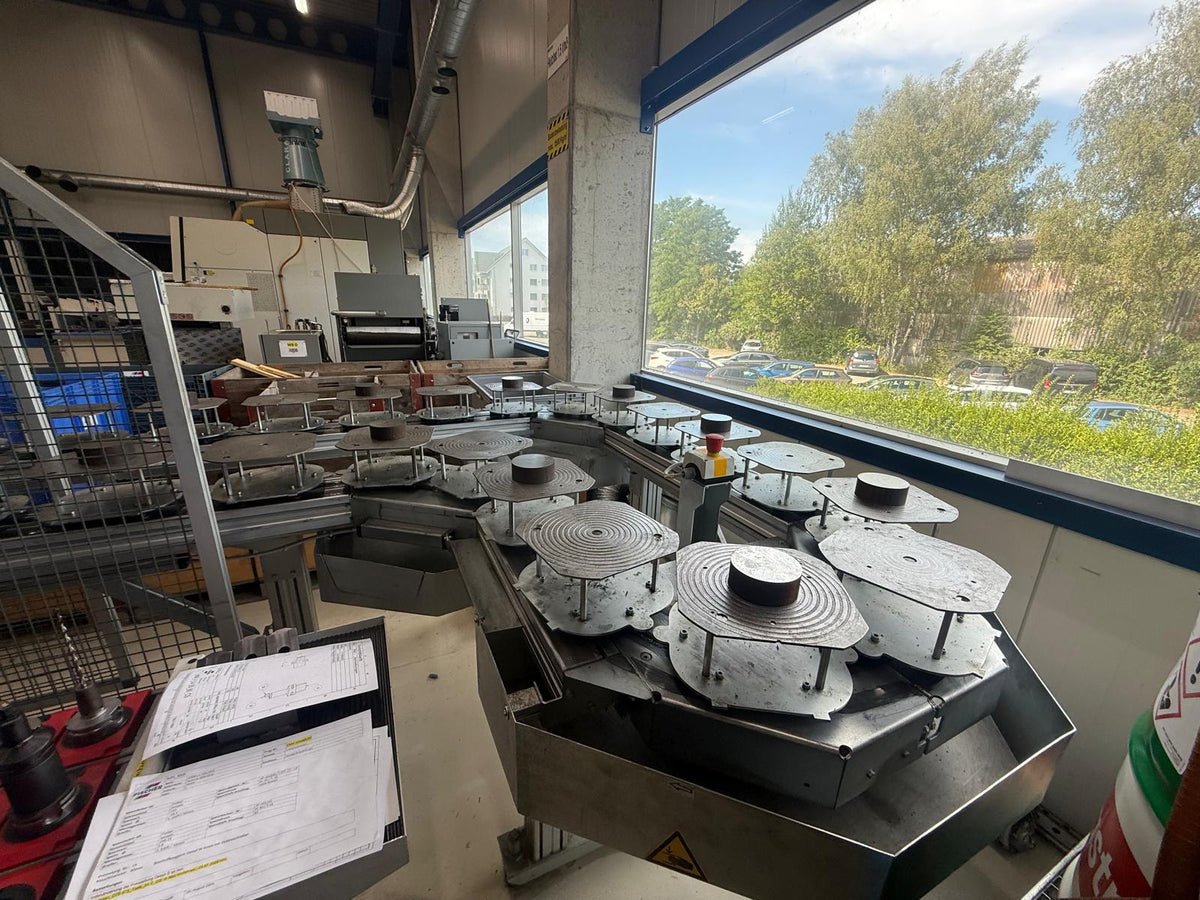

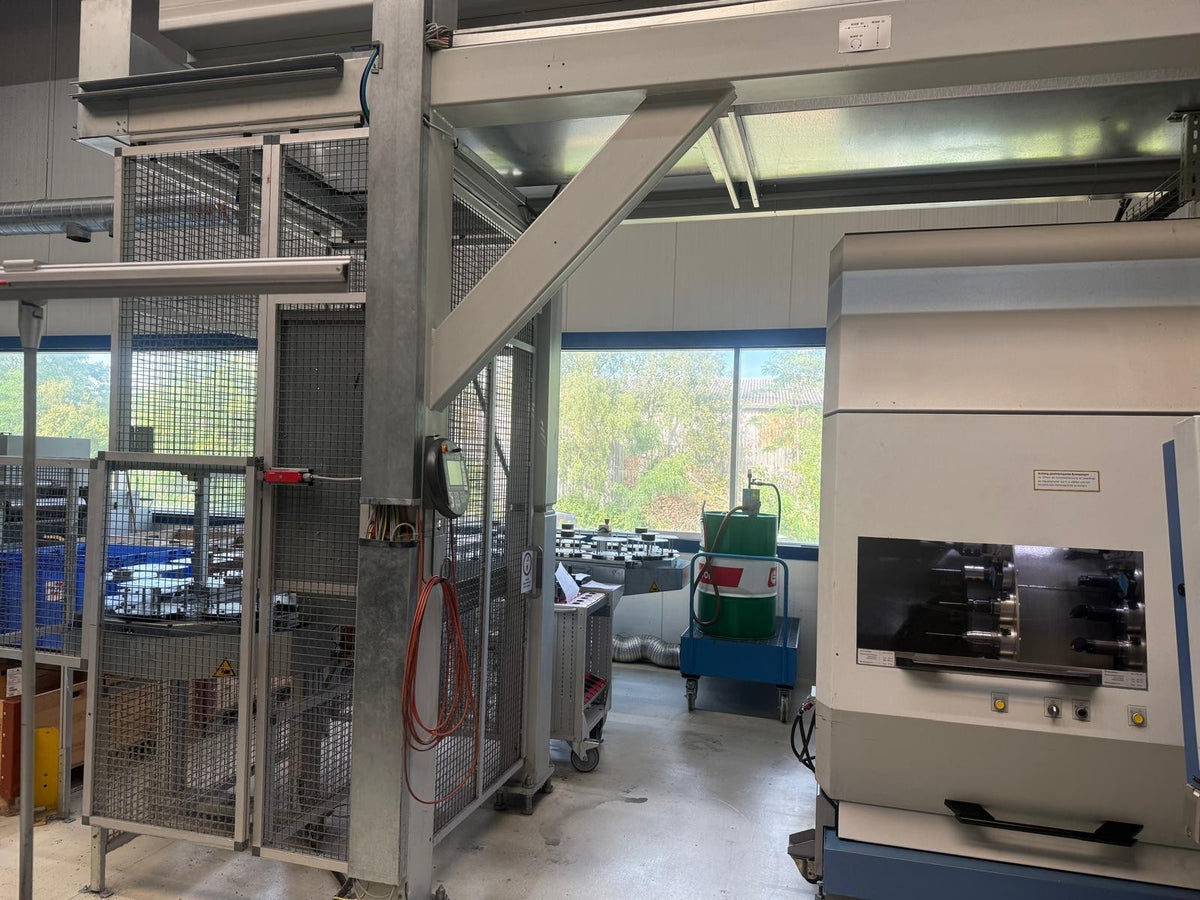

| Automatic loading and unloading unit | |
| Workpiece measurement Renishaw |
