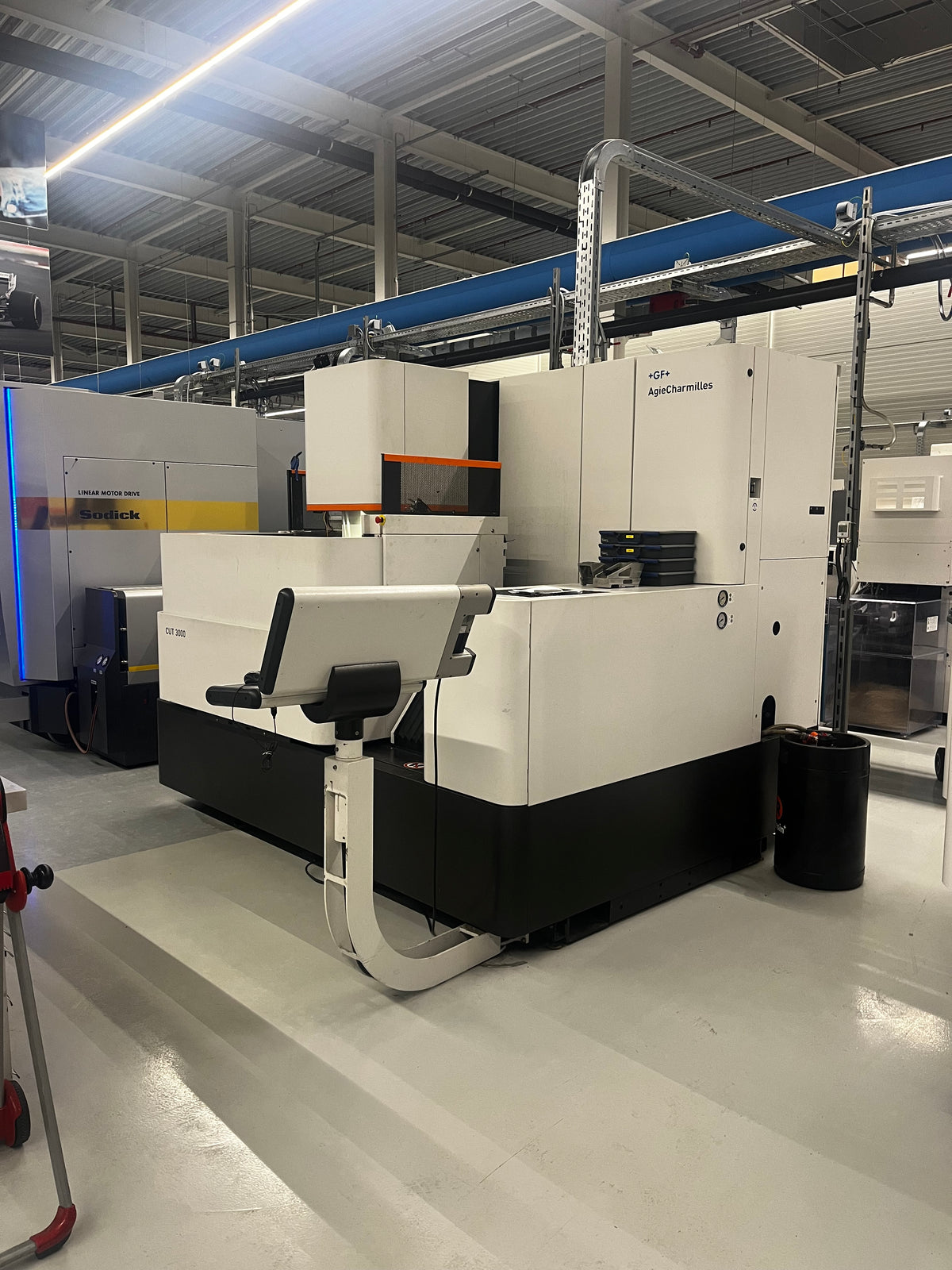

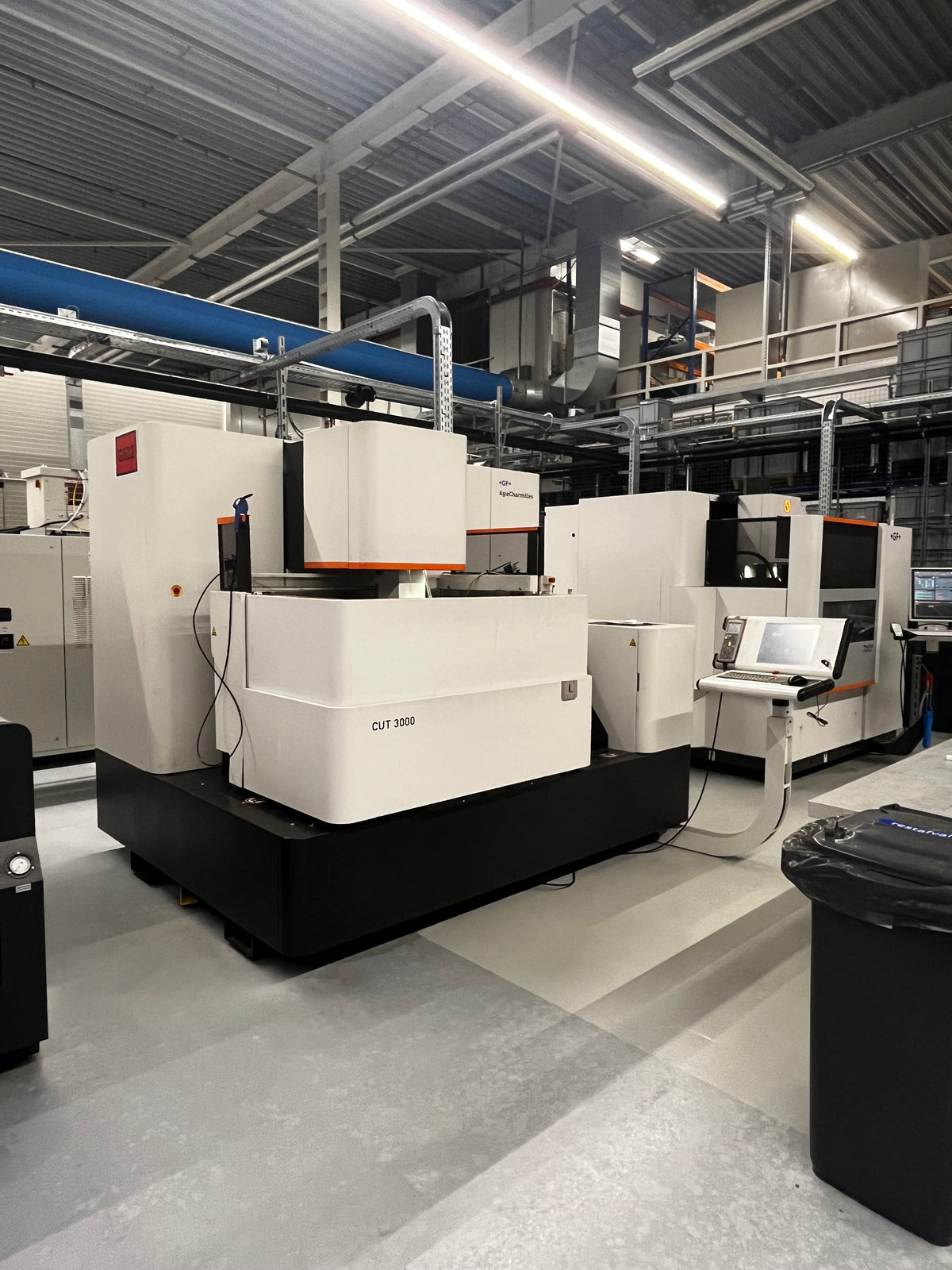

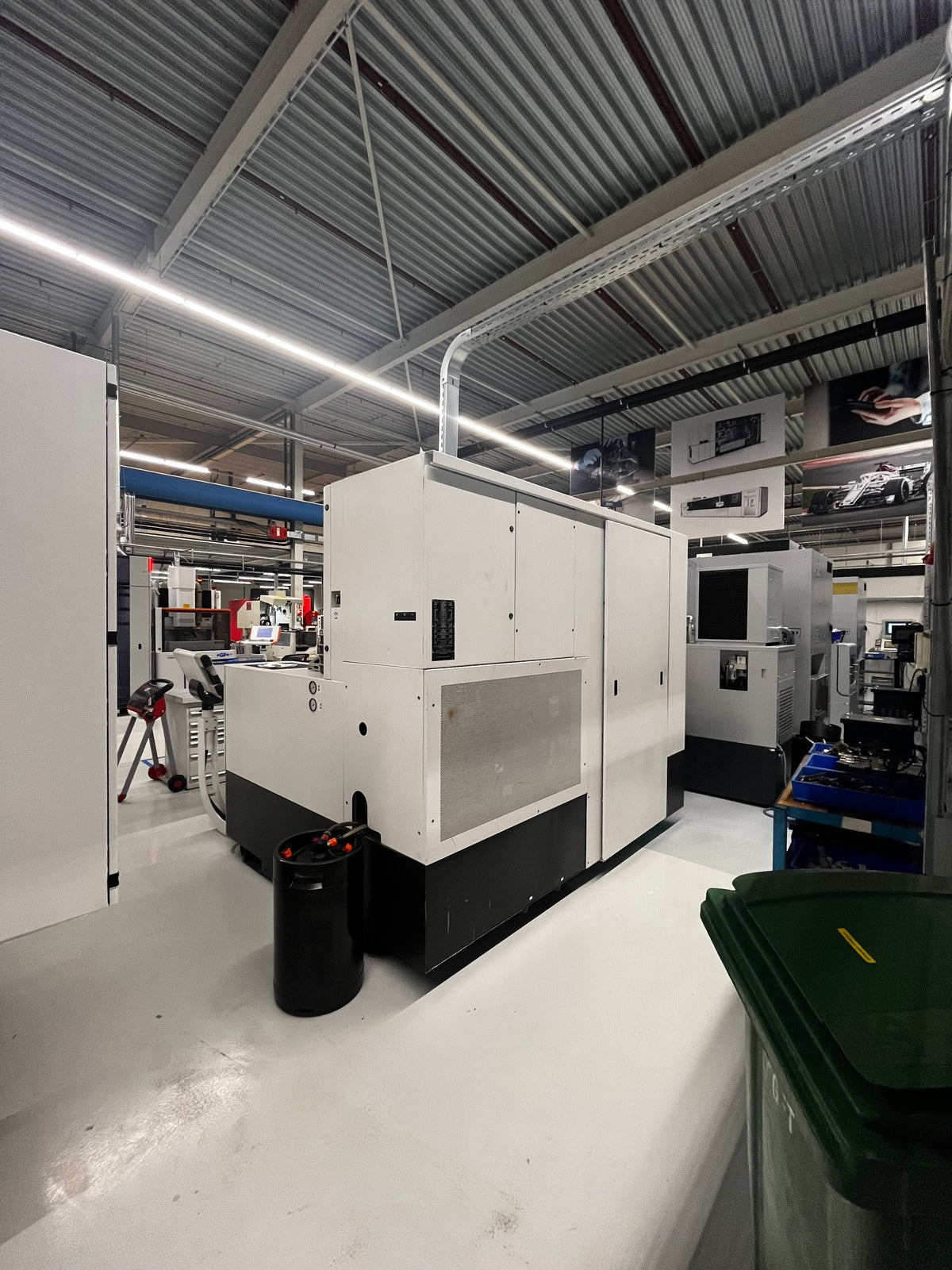

AGIE CHARMILLES CUT 3000
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
AGIE CHARMILLES CUT 3000 is a Wire cutting machine EDM engineered for precision, high accuracy and reliability. Capacities: table 850×550 mm; max workpiece 1050×650×250 mm; table load 800 kg (400 kg with bath); travels X 500 mm, Y 350 mm, Z 256 mm; taper ±30°; wire Ø 0.10–0.33 mm; Ra 0.05 µm; dielectric 1000 l. Specs: 5 axes; table height 1100 mm; air 6 bar; supply 3×400 V 50 Hz; total power 9 kVA; weight ≈3800 kg; footprint 2685×2115×2247 mm. Achieves tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical
Technical specifications are subject to change without notice
| Number of axis total | 5 |
| Working table: | |
| Length | 850 mm |
| Width | 550 mm |
| Max. dimensions of work piece: | |
| Length | 1050 mm |
| Width | 650 mm |
| Height | 250 mm |
| Table load max. | 800 kg |
| Table load max. with bath | 400 kg |
| Height of table above floor | 1100 mm |
| Longitudinal traverse (X-axis) | 500 mm |
| Cross traverse (Y-axis) | 350 mm |
| Vertical travel (Z axis) | 256 mm |
| Taper-cut +/- | 30 ° |
| Surface roughness in Ra | 0.05 µm |
| Diameter of electrode wire: | |
| from | 0.10 mm |
| up to | 0.33 mm |
| Total volume of dielektric | 1000 l |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 9 kVA |
| Machine's weight about | 3800 kg |
| Overall dimensions machine: | |
| Length | 2685 mm |
| Width | 2115 mm |
| Height | 2247 mm |
