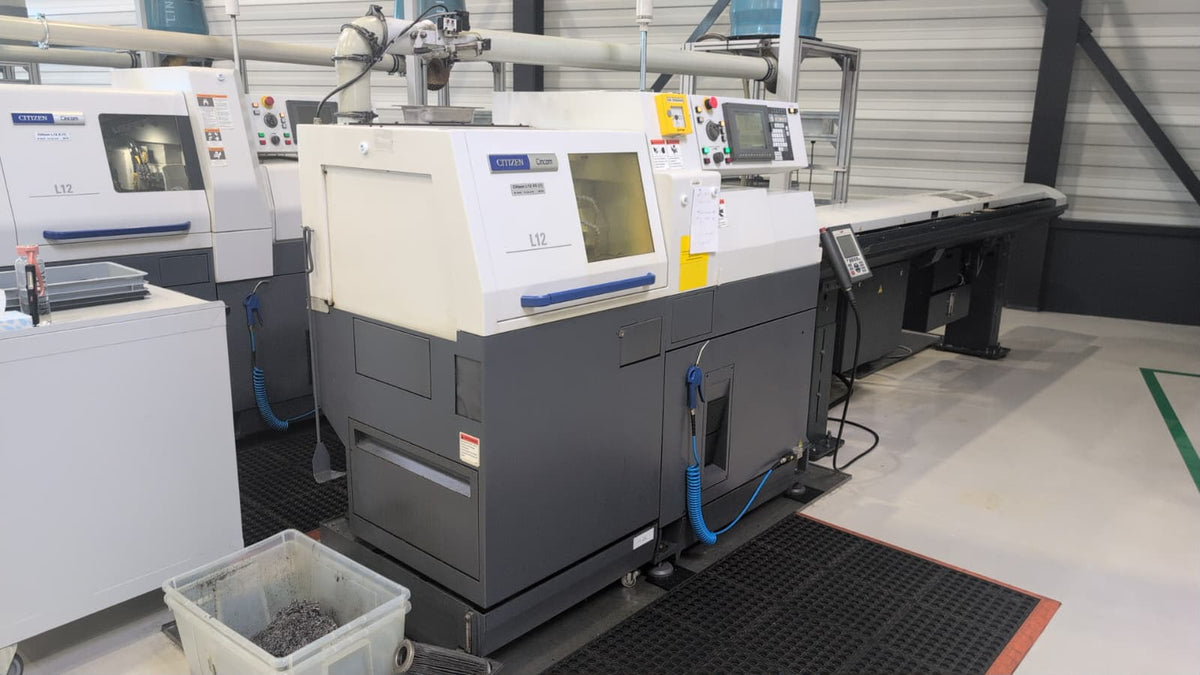

CITIZEN CINCOM L 12 VII
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Number of axis total | 7 |
| Max. turning diameter | 12 mm |
| Maximum turning length | 135 mm |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| up to | 15'000 t/min |
| C axis (spindle,resolution) | 0.001 ° |
| Carriage: | |
| Axial motion: | |
| X1 | 32 mm |
| X2 | 30 mm |
| Y1 | 40 mm |
| Z1 | 135 mm |
| Z2 | 30 mm |
| Number of positions | 27 |
| number of driven tools | 8 |
| Spindle speeds (turning tools) | 10'000 / 9'000 t/min |
| Power of driven tools | 0.75 kW |
| Back spindle: | |
| speeds: | |
| up to | 10'000 t/min |
| C axis (spindle,resolution) | 0.001 ° |
| Rapid traverse: | 35 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 6.1 kVA |
| Machine's weight about | 1700 kg |
| Overall dimensions machine: | |
| Length | 1760 mm |
| Width | 820 mm |
| Height | 1610 mm |
| Various accessories: | |

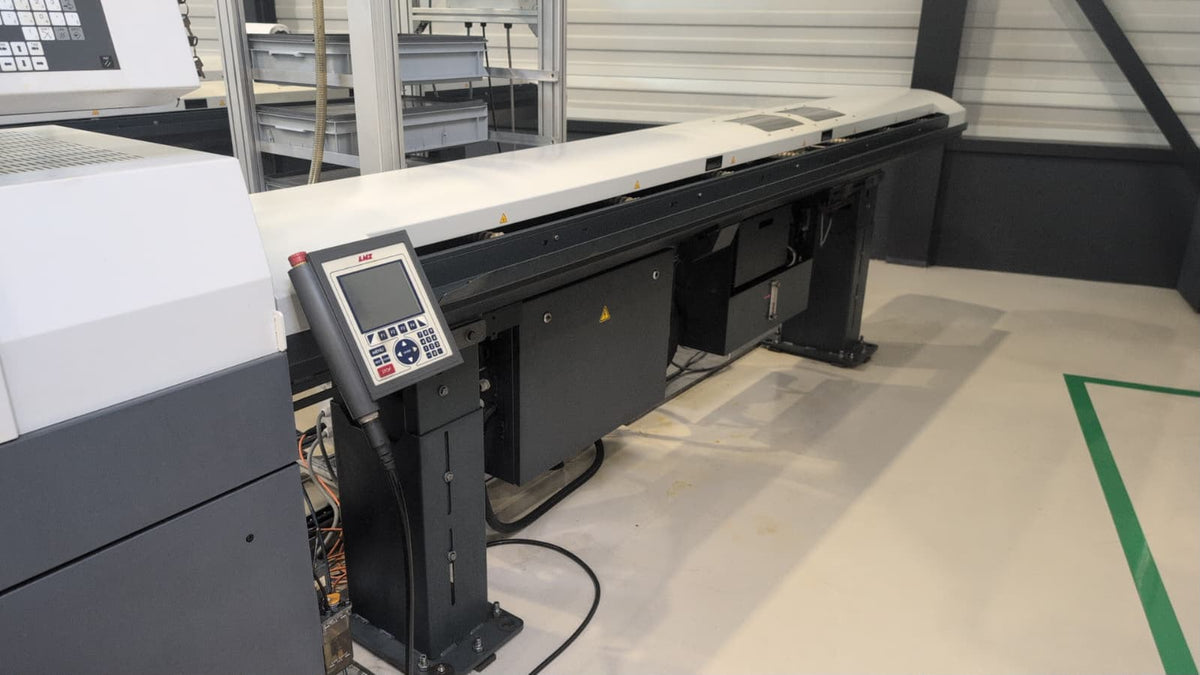

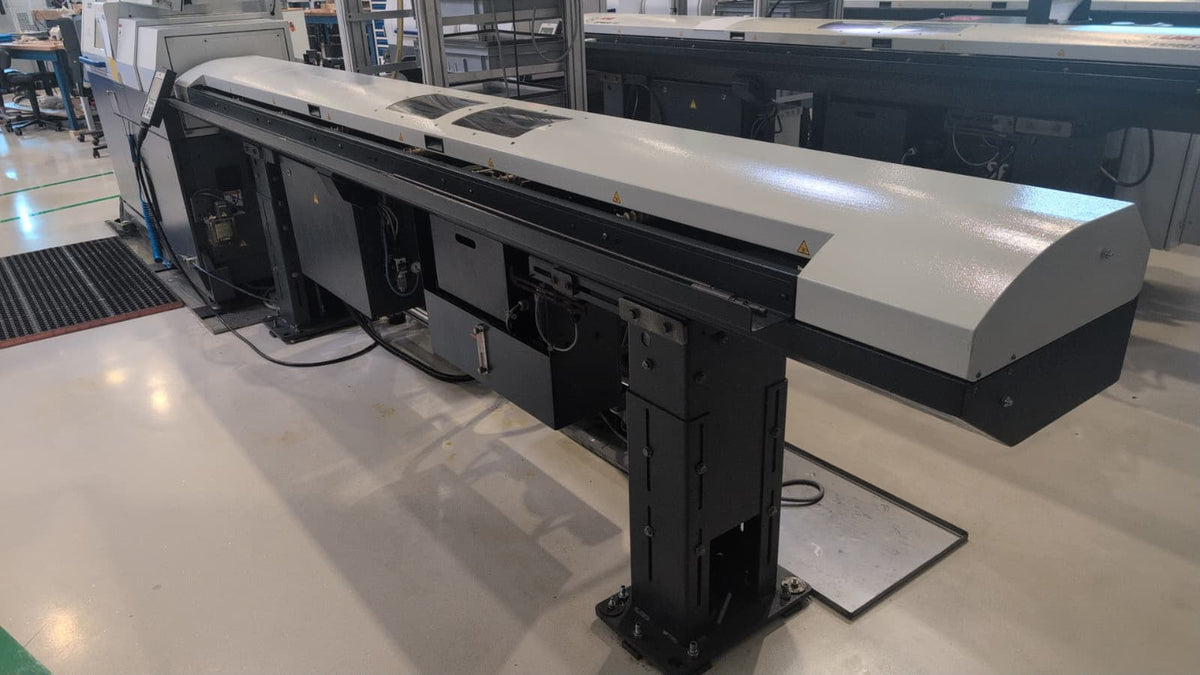

| Bar feeder | |
| Manufacturer | LNS |
| Type | EXPRESS 112 |
| Coolant system | |

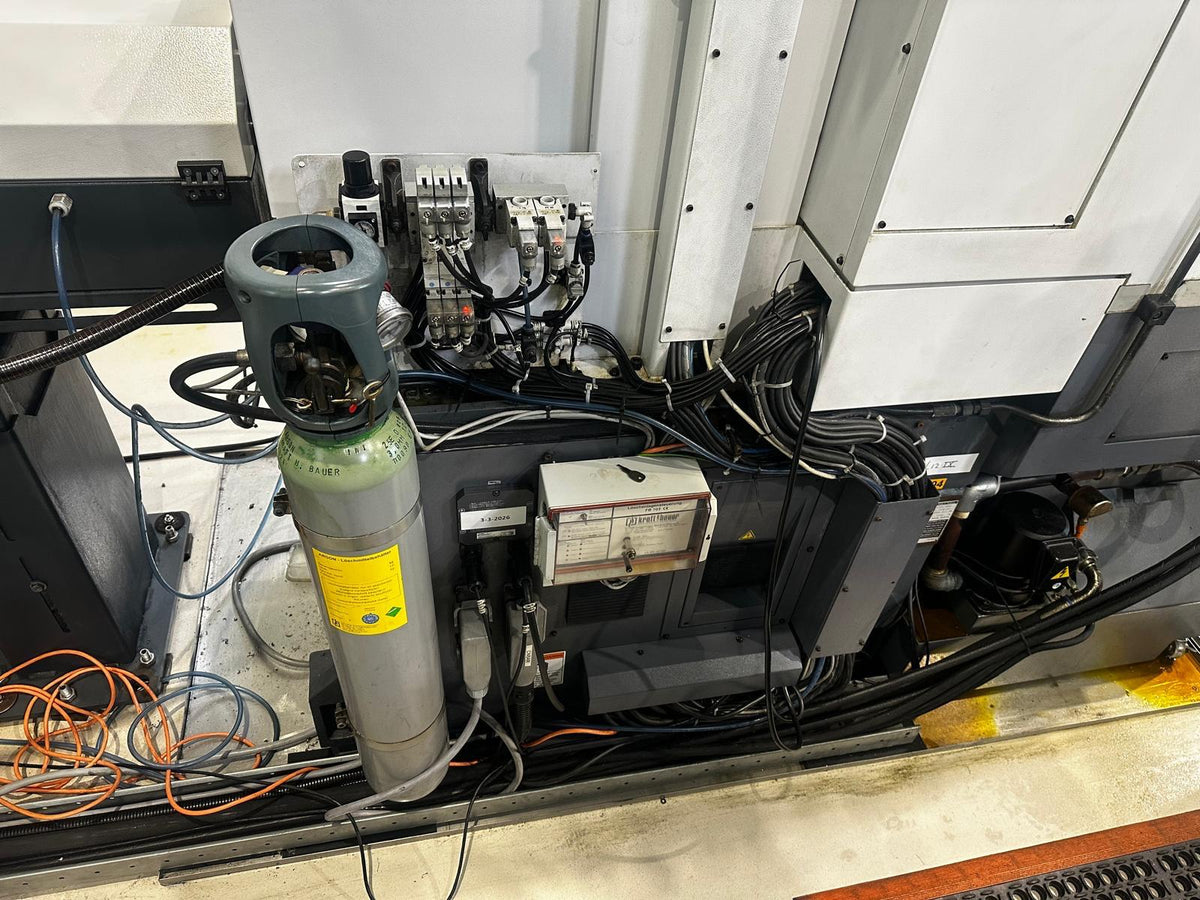

| Fire extinguishing system | KRAFT & BAUER |

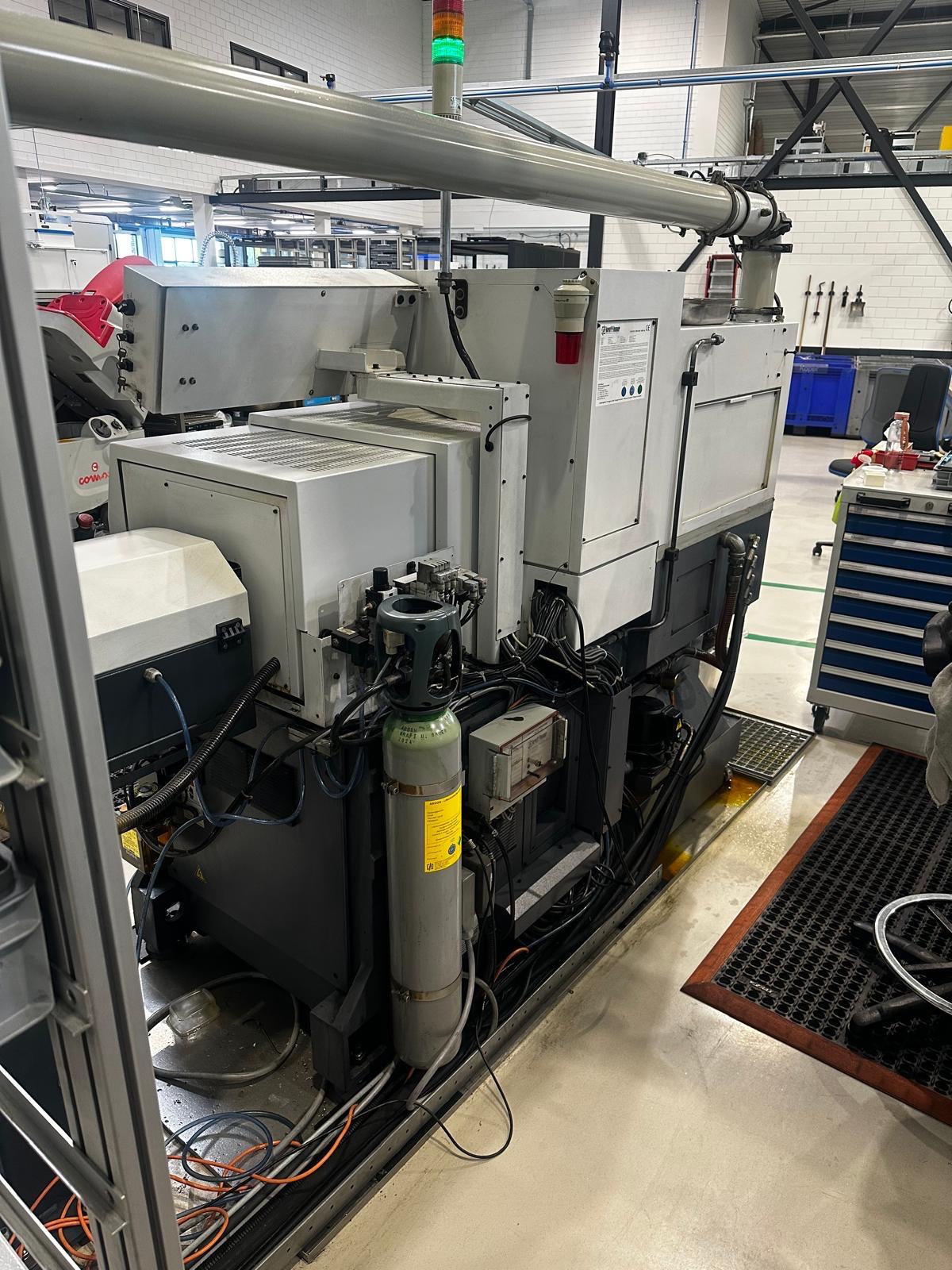

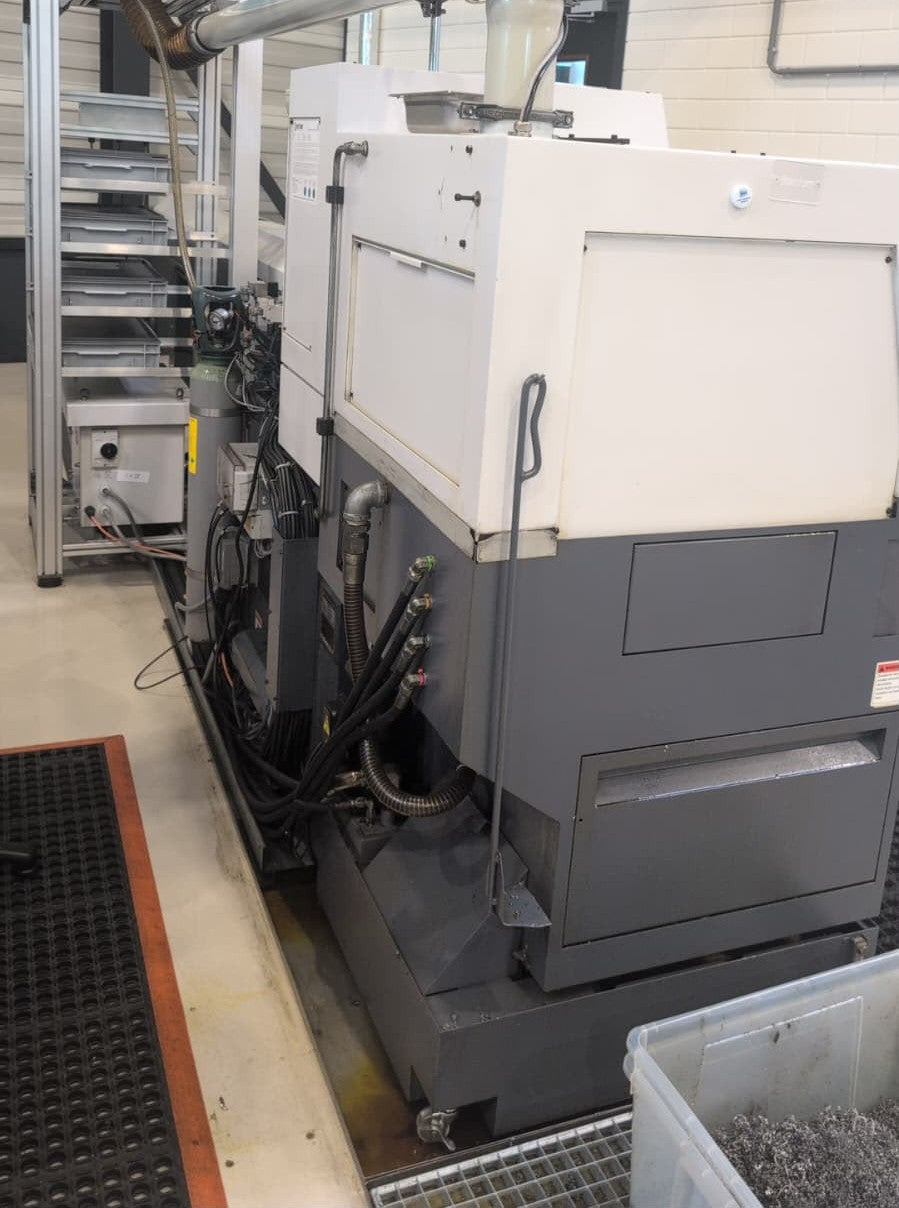

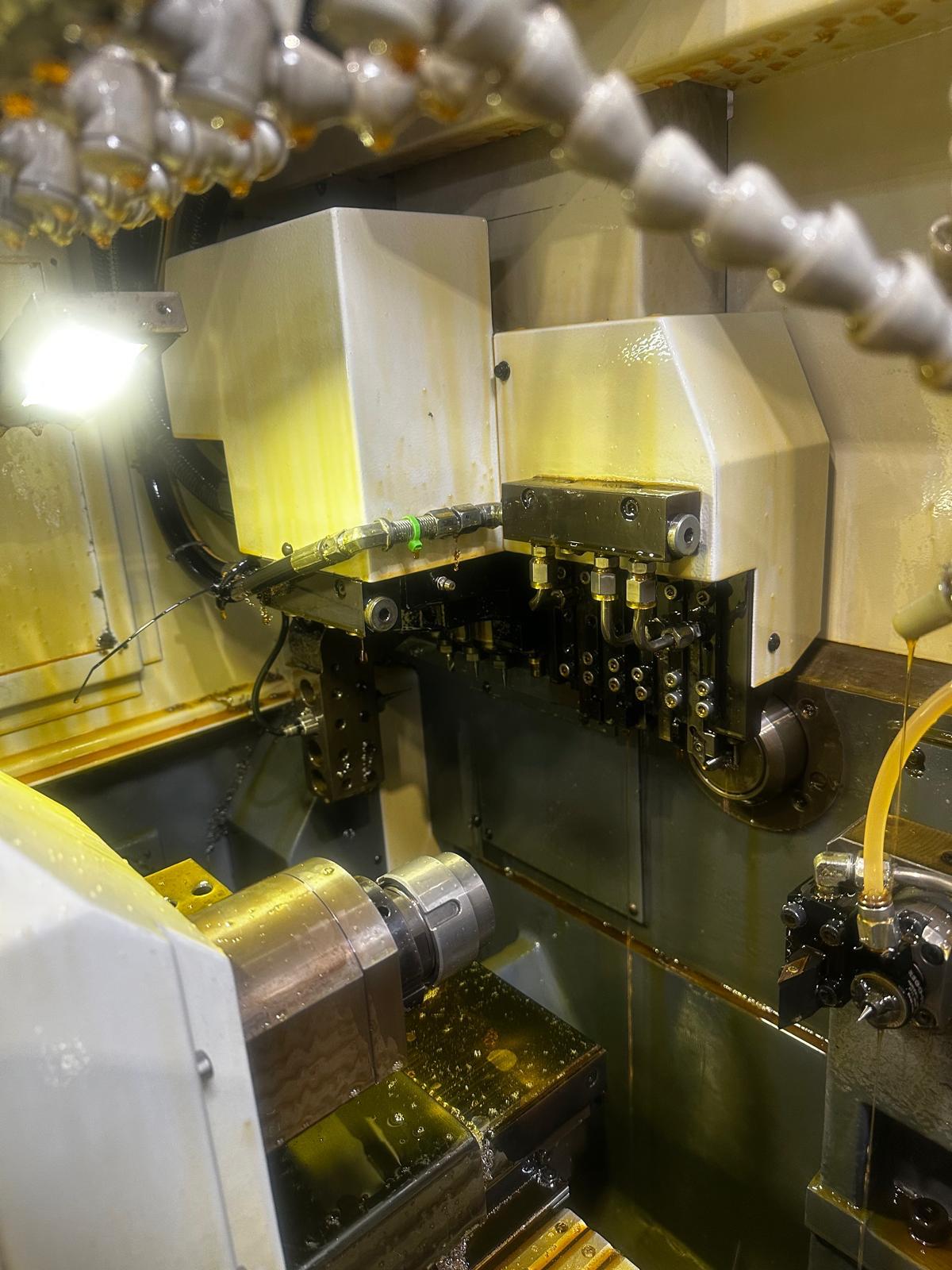

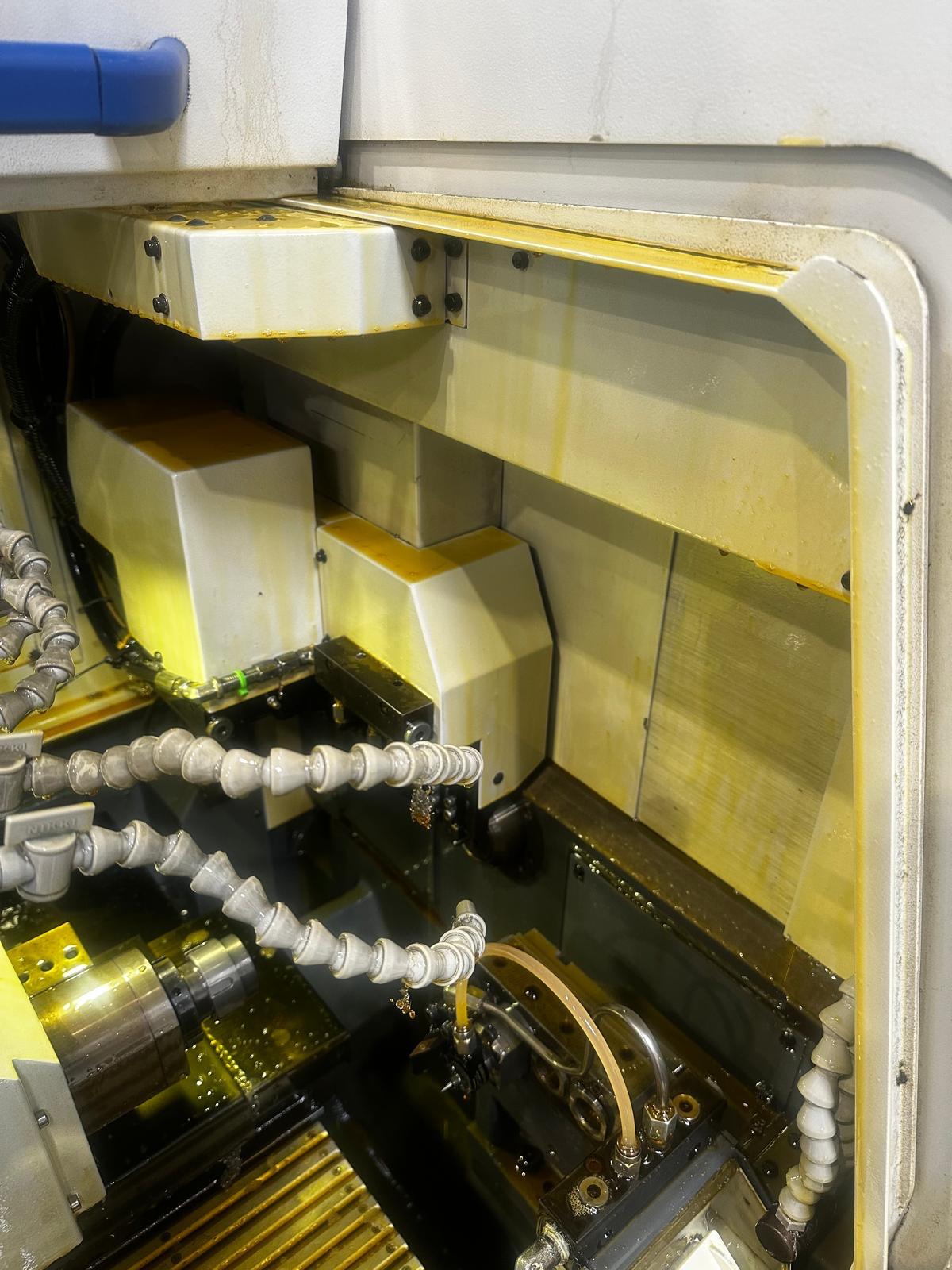

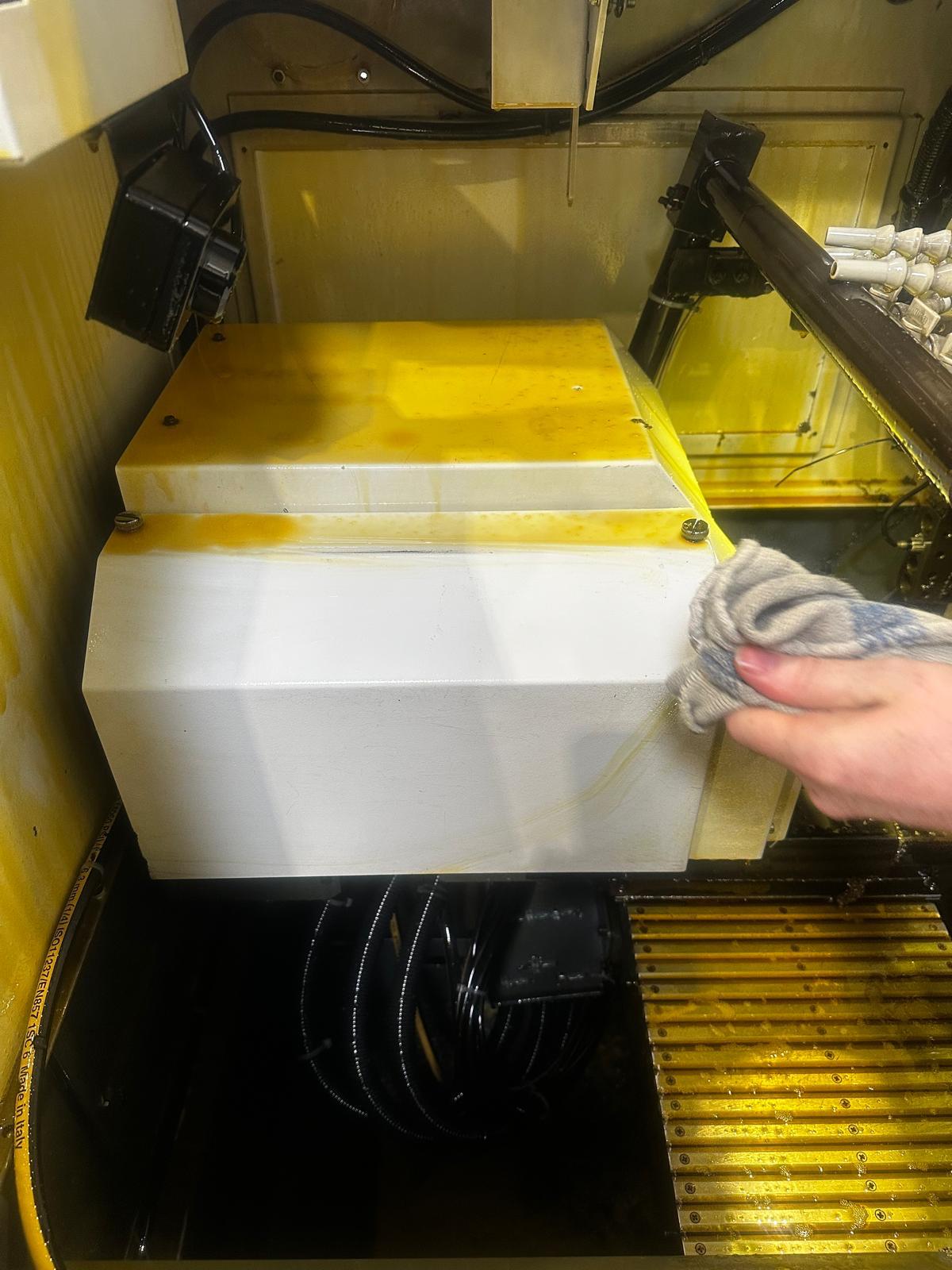

CITIZEN CINCOM L 12 VII is a CNC automatic lathe, designed for precision, high accuracy and reliability. Capacity: max turning Ø 12 mm, turning length 135 mm, spindle bore 20 mm; X1 32, X2 30, Y1 40, Z1 135, Z2 30; 27 positions, 8 driven tools. Specs: spindle up to 15'000 t/min, driven tools 10'000/9'000 t/min (0.75 kW), back spindle up to 10'000 t/min, C axis 0.001°, rapid traverse 35 m/min, 3×400 V 50 Hz, 6.1 kVA, weight 1700 kg, L1760×W820×H1610 mm. Accessories: bar feeder LNS EXPRESS 112, fire extinguishing system KRAFT & BAUER. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
