| Turning length | 220 mm |
| Internal spindle diameter | 65 mm |
| Spindle speeds: | |
| stepless | |
| up to | 5000 t/min |
| Carriage: | No 1 |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal travel (y-axis) | 140 mm |
| Carriage: | No 2 |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal travel (y-axis) | 140 mm |
| Back spindle: | |
| speeds: | |
| up to | 7000 t/min |
| Turret slide: | |
| numbers | 2 |
| number of tools | 10 / 8 |
| number of driven tools | 10 / 3 |
| Spindle speeds (turning tools) | 6000 t/min |
| C axis (spindle,resolution) | 0.001 ° |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 95 kW |
| Total power required | 80 kVA |
| Machine's weight about | 9000 kg |
| Overall dimensions machine: | |
| Length | 5480 mm |
| Width | 3100 mm |
| Height | 3200 mm |

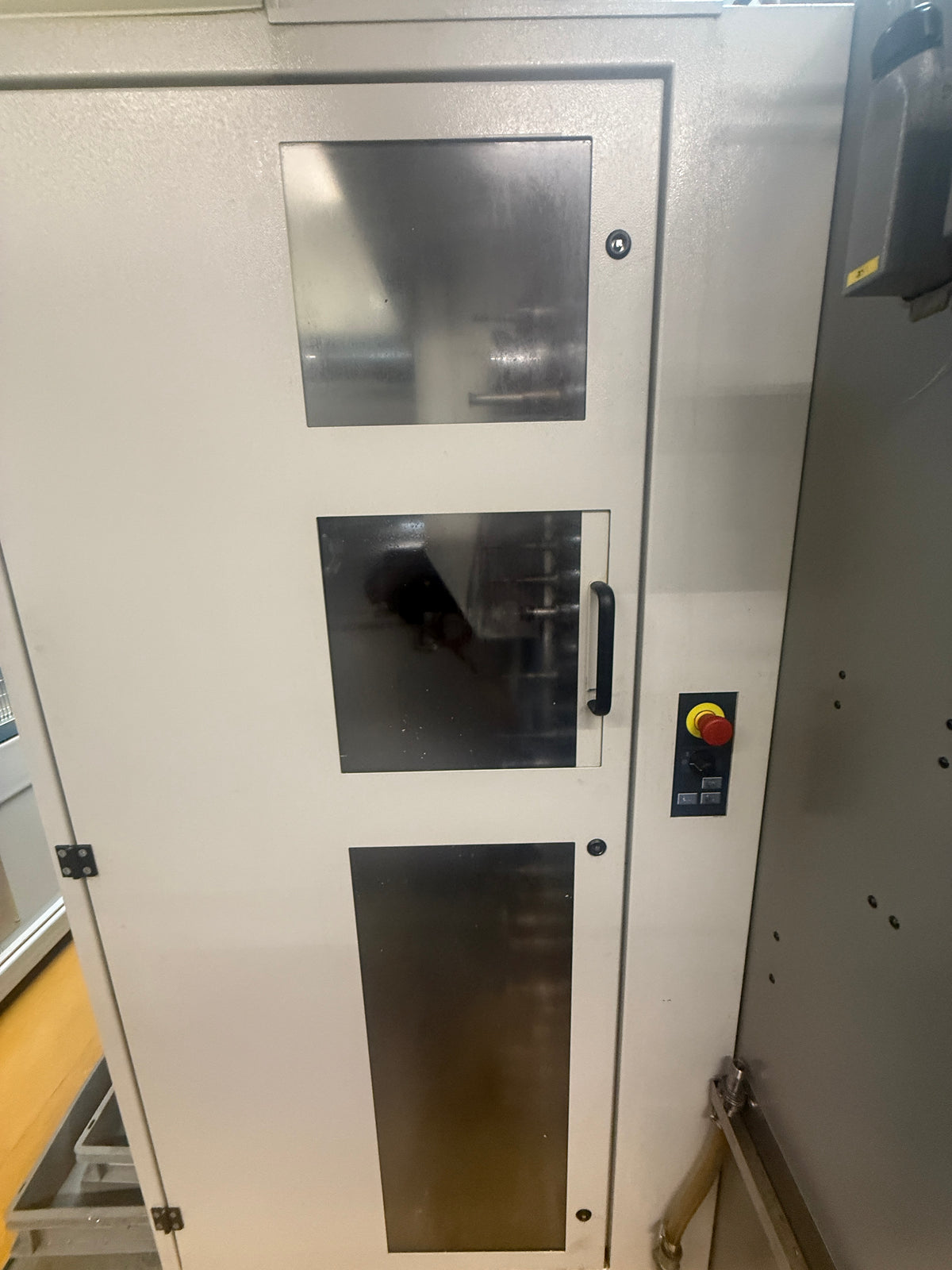

TRAUB TNX 65/42 is a CNC fixed headstock turning machine for precision, high accuracy and reliability. Turning length 220 mm; spindle bore 65 mm; Z 300 mm (2 slides), Y 140 mm. Spindle 5000 rpm; back spindle 7000 rpm. 2 turrets; tools 10/8, driven 10/3 (6000 rpm); C 0.001°. Supply 50Hz 3×400V; 95 kW (80 kVA). Weight ~9000 kg; L5480×W3100×H3200 mm. Suited for tight tolerances in automotive, watchmaking, tooling, aerospace and medical.
Technical specifications are subject to change without notice
