ESCO ESCOMATIC D 4
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

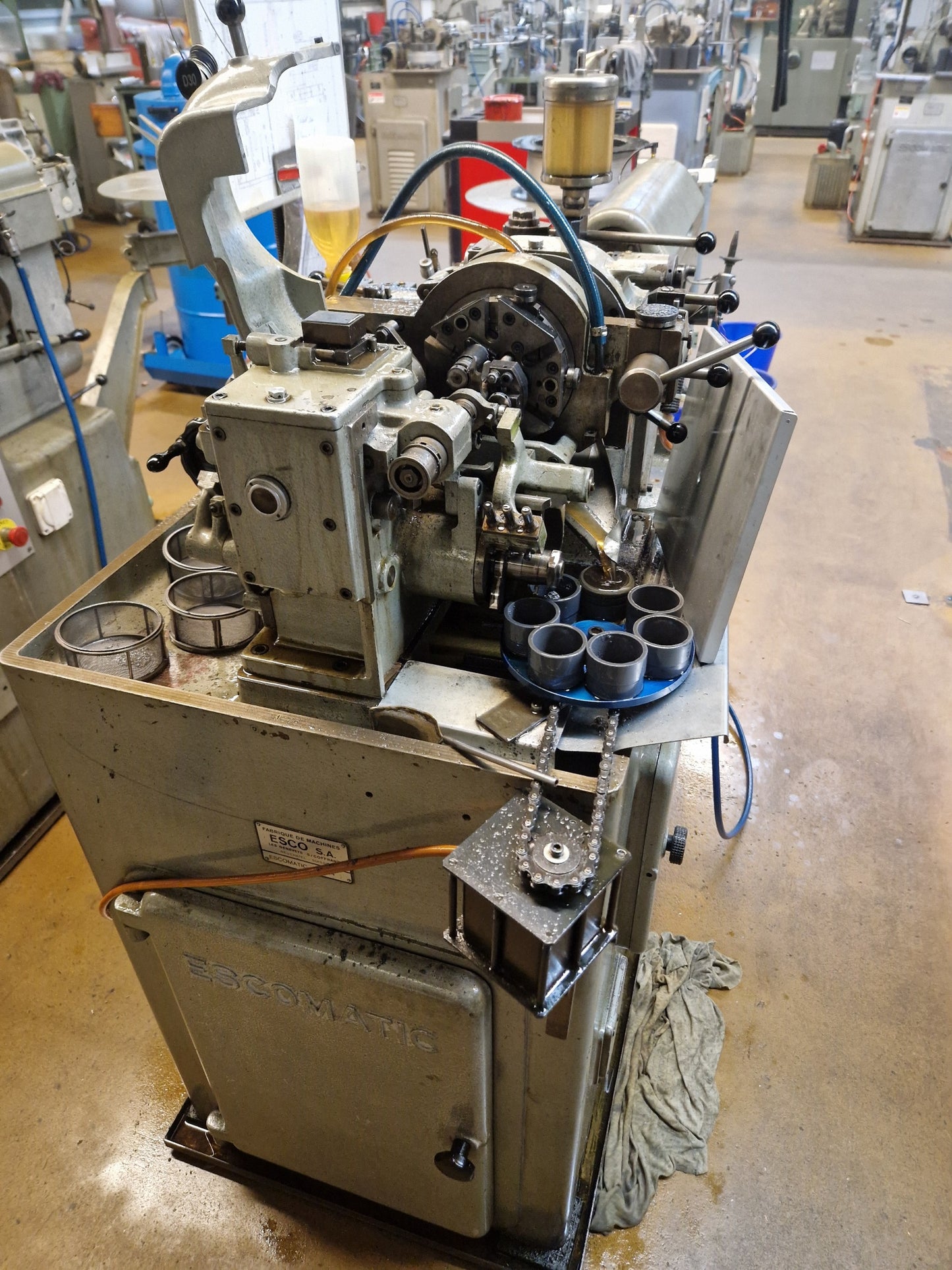

ESCO ESCOMATIC D 4 is an automatic lathe (mobile tailstock) engineered for precision, high accuracy and reliable production. Diameter of work admitted 4 mm; spindle hole 4 mm; with flat cames 24 mm; with feed device 1:1.2: 58 mm; 2 tool cutters. Main specs: 2 spindle speeds 4000–6000 rpm; voltage 3x 380 V 50 Hz; total power 0.8 CV; weight approx. 870 kg; dimensions L1400×W1000×H1500 mm. Accessories: decoiler and coolant system. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Diameter of work admitted | 4 mm |
| Max. turning length: | |
| with flat cames | 24 mm |
| with feed device 1:1.2 | 58 mm |
| Spindle hole | 4 mm |
| Number of tool cutters | 2 |
| Spindle speeds: | |
| Number of spindle speeds | 2 |
| from | 4000 t/min |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 0.8 CV |
| Machine's weight about | 870 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1000 mm |
| Height | 1500 mm |
| Various accessories: | |
| Decoiler | |
| Coolant system |
