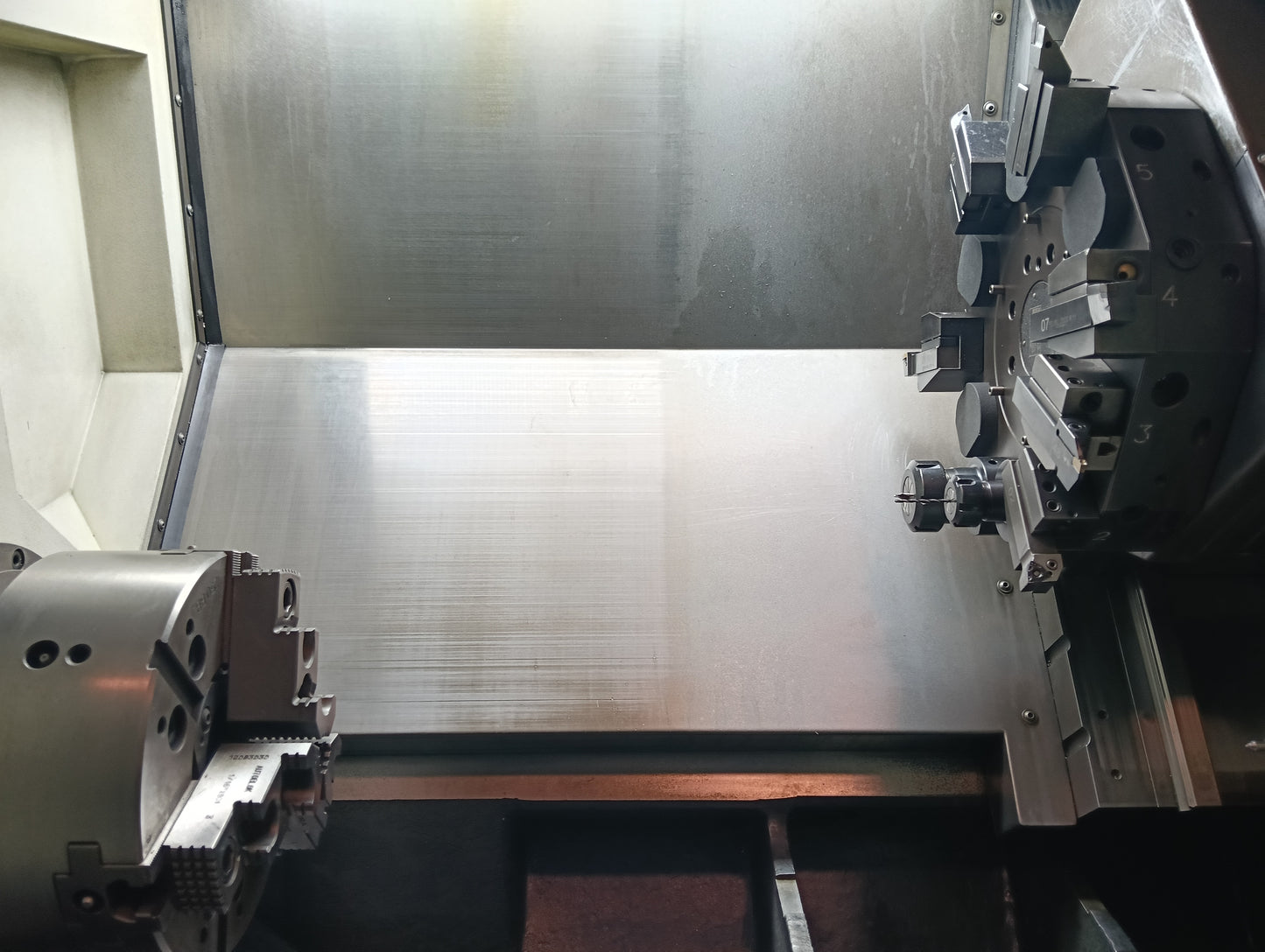

DMG NEF 400 is a CNC turning lathe engineered for precision machining, delivering high accuracy and reliability. Working capacities: swing over cross‑slide 350 mm, swing over bed 385 mm; maximum turning length 650 mm. Key specifications: 1 spindle, total 2 axes, spindle motor 5.5 kW, voltage 50 Hz 3x 400 V; machine weight approx. 3500 kg; overall dimensions L2700 × W2300 × H2650 mm. Capable of achieving tight tolerances; suited for automotive, aerospace, medical and precision engineering applications.
Technical specifications are subject to change without notice
| Number of axis total | 2 |
| Number of spindles | 1 |
| Swing over cross-slide | 350 mm |
| Swing over bed | 385 mm |
| Maximum turning length | 650 mm |
| Bar passage | 65 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 800 mm |
| Longitudinal travel (X-axis) | mm |
| Transversal strocke (X axis) | 255 mm |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 6 |
| Spindle nose: VDI | |
| Internal spindle diameter | 65 mm |
| C axis | |
| Spindle speeds: | |
| up to | 4500 t/min |
| Taper in tailstock: | |
| Morse taper | 4 CM |
| Spindle stroke | 680 mm |
| Spindle motor | 5.5 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 2300 mm |
| Height | 2650 mm |
| 3-jaw chuck | 250 |
| Coolant system | |
| Oil mist extractor | |
| Chip conveyor | |
| Tool measuring device | |
| Rinsing Guns |
