WILLEMIN MACODEL 508 S 2 LINEAR
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Number of axis total | 6 |
| Rotary table:diameter | 180 mm |
| Table load max. | 15 kg |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 385 mm |
| W axis | |
| B axis swivelling range | -100 / +30 ° |
| B axis | ° |
| Resolution | 0.0001 |
| C axis | |
| Resolution | 0.0001 ° |
| Table speeds: | |
| Table speed | 200 t/min |
| stepless | |
| Holding torque of the table | 400 Nm |
| Tool changer: | |
| Number of tools | 48 |
| Tool diameter max. | 50 mm |
| Diameter with free adjacent pockets | 80 mm |
| Tool lenght | 130 mm |
| Max. tool-weight | 1 kg |
| Time of tool changing | 0.8 s |
| Average chip-to-chip time | 3 s |
| Spindle nose: HSK | E40 |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 42000 t/min |
| Rapid traverse: | 60 m/min |
| Acceleration | 10 m/s |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 10 / 15 kW |
| Torque max. | 8 / 12 Nm |
| Total power required | 35 kVA |
| Machine's weight about | 5000 kg |
| Overall dimensions machine: | |
| Length | 1870 mm |
| Width | 2210 mm |
| Height | 22220 mm |
| Various accessories: | |
| Loading roboter | FANUC LR Mate 200iD/7L |
| Coolant system | |
| Coolant through spindle (cts) | |
| Tool setter | BLUM 3D type Z-MT |

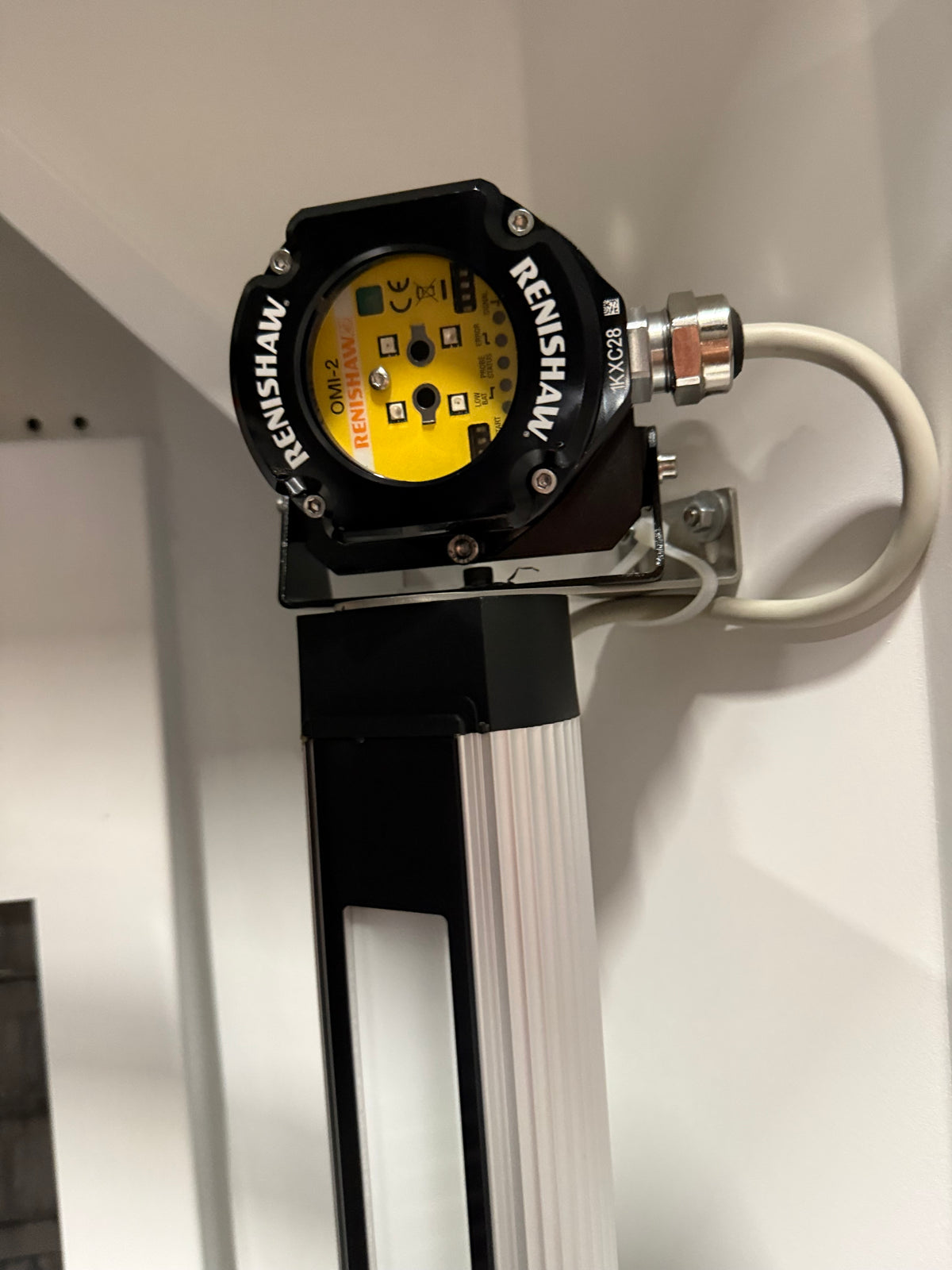

| Touch Probe Renishaw | OMP 400 |
| Tool break control | |
| Lamp | |
| Oil mist extractor | Donaldson DMC-MINI-MMA |
| Filter for coolant system | Turbo Separator type 10 |
| Spindlecooling | |
| Stabilisation coolant temperature | |
| Automatic central lubrication | |
| Fire extinguishing system | |
| Switch cabinet Air conditioner | |
| Foot pedal | |
| Status light |

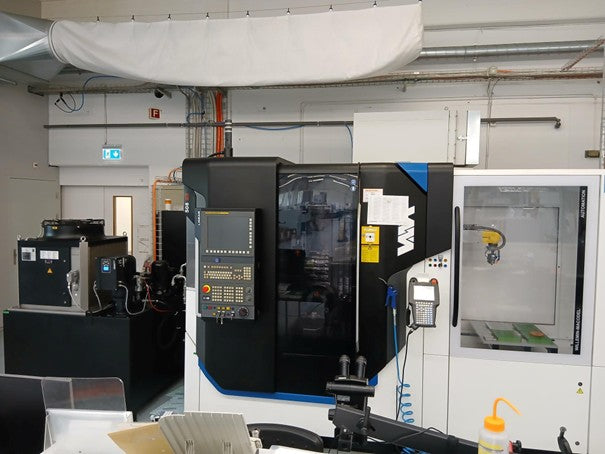

WILLEMIN MACODEL 508S2 is a vertical machining center delivering high precision, accuracy and reliability. Working capacities: 6 axes; rotary table Ø180 mm, table load max 15 kg; travels X400 Y200 Z385 mm; B -100/+30°; resolution 0.0001. Main specs: spindle HSK E40 50–42000 rpm; spindle power 10/15 kW; torque 8/12 Nm; rapid traverse 60 m/min; acceleration 10 m/s²; air 6 bar; supply 3×400V 50Hz; total power 35 kVA; weight ≈5000 kg. Equipment: BLUM 3D Z‑MT tool setter, Renishaw OMP400 probe, Donaldson oil‑mist extractor, Turbo Separator filter, automatic central lubrication. Achieves tight tolerances for automotive, watchmaking, aerospace, medical and machine‑tool sectors.
Technical specifications are subject to change without notice
