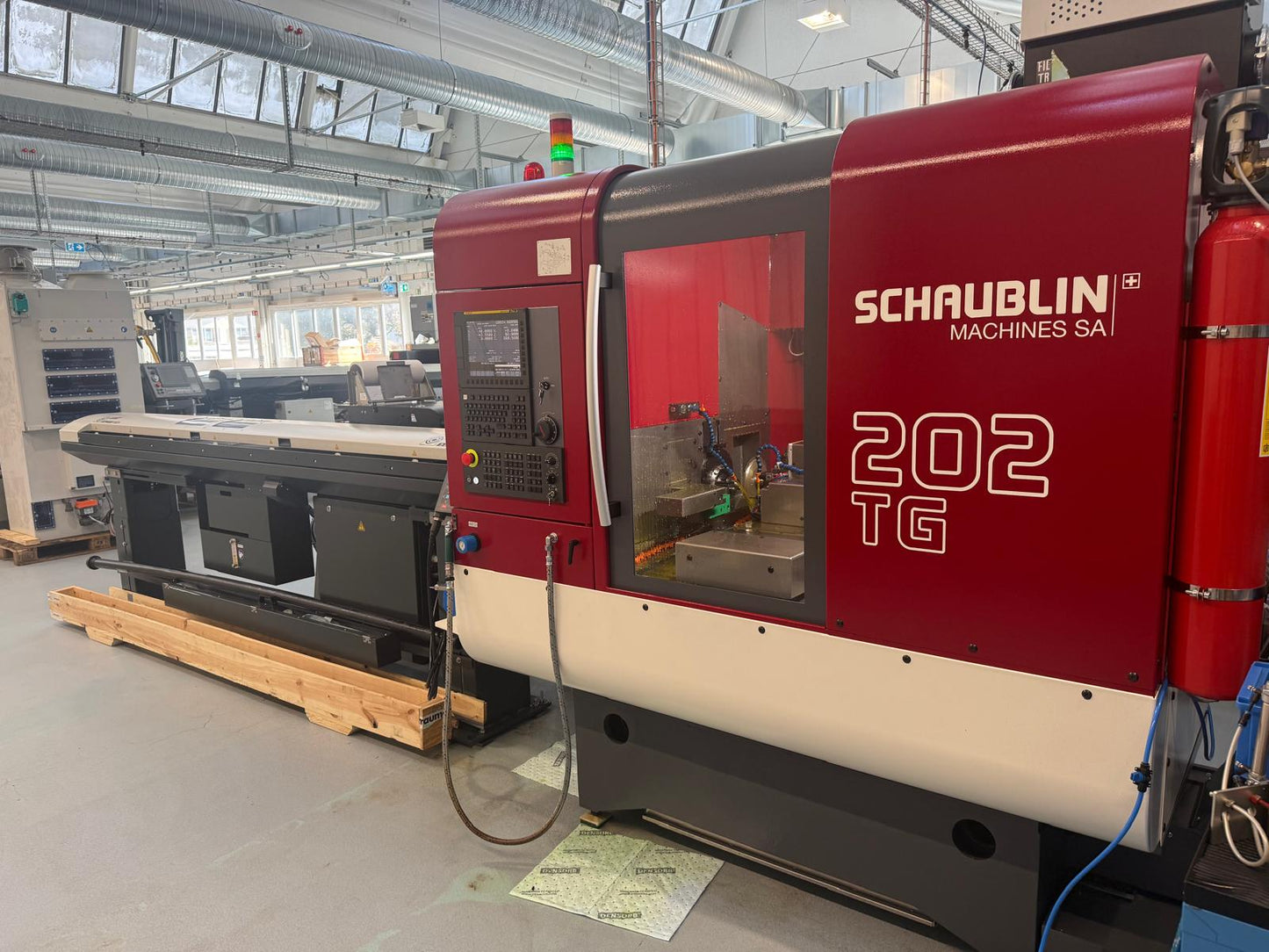

SCHAUBLIN 202 TG-CNC W25-0127 is a CNC turning, milling and grinding centre engineered for precision, high accuracy and reliability. Capacities: 3 axes, centre height 60 mm, travels Z 300 mm, X 150 mm, collet bore 19 mm (W25), resolution 0.0001 mm, C‑axis 0.0001°. Specs: spindle up to 7000 rpm, power 5/6 kW, max torque 26.1/35.1 Nm, rapid traverse 20 m/min, supply 3×400 V 50 Hz, weight ≈3000 kg, overall 1930×1300×2040 mm. Accessories: coolant, Ethernet, chip conveyor, parts catcher, loader LNS Express 112+, rinsing guns, fire extinguishing system. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.

Technical specifications are subject to change without notice
