ROSA LINEA IRON 11.6
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

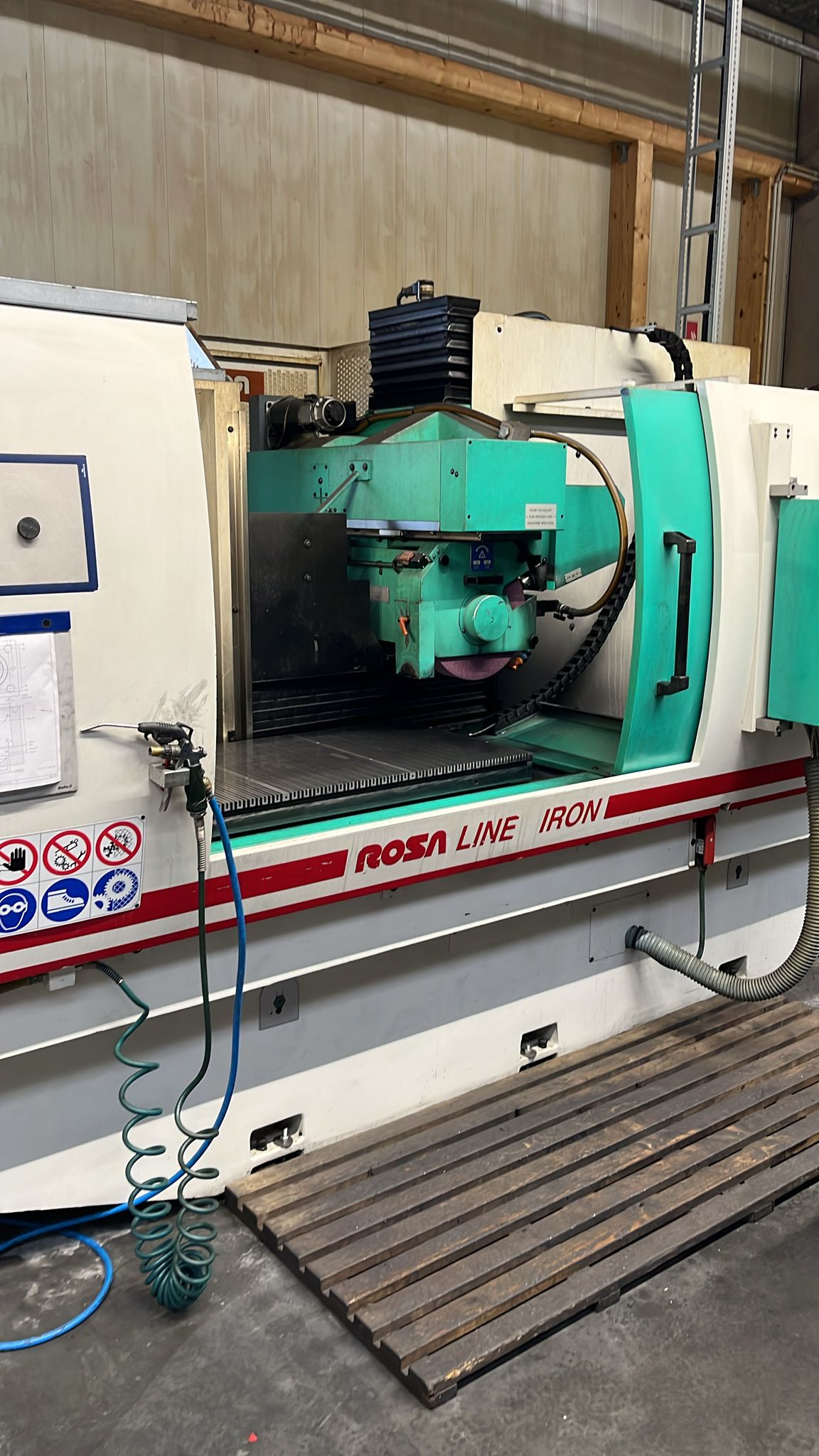

ROSA LINEA IRON 11.6 is a CNC surface grinder engineered for precision, high accuracy and reliable performance. Capacities: table 1100×500 mm; travels X 1350 mm, Z 650 mm; table load max 1100 kg; grinding length 1200 mm; width 650 mm; wheel Ø400×100 mm, bore 127 mm. Specs: wheel speed fixed 1500 t/min; table speed 1–40 m/min; automatic cross feed stepless 1–3 m/min; voltage 3x400 V 50 Hz; machine weight ≈6400 kg; dimensions 5500×2490×2600 mm. Accessories: coolant system, paper filtration, magnetic plate 1100×500 mm, grinding wheel with flange. Delivers tight tolerances; suited to automotive, aerospace, toolmaking, medical and watchmaking.
Technical specifications are subject to change without notice
| Table length | 1100 mm |
| Table width | 500 mm |
| Axial motion: | |
| Longitudinal travel (X-axis) | 1350 mm |
| Cross travel (z-axis) | 650 mm |
| Table load max. | 1100 kg |
| Grinding length | 1200 mm |
| Grinding width | 650 mm |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 100 mm |
| Bore | 127 mm |
| Grinding wheel speeds fix | 1500 t/min |
| Table speeds: | |
| from | 1 m/min |
| up to | 40 m/min |
| Automatic cross feed: | |
| stepless | |
| from | 1 m/min |
| up to | 3 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 6400 kg |
| Overall dimensions machine: | |
| Length | 5500 mm |
| Width | 2490 mm |
| Height | 2600 mm |
| Various accessories: | |
| Coolant system | |

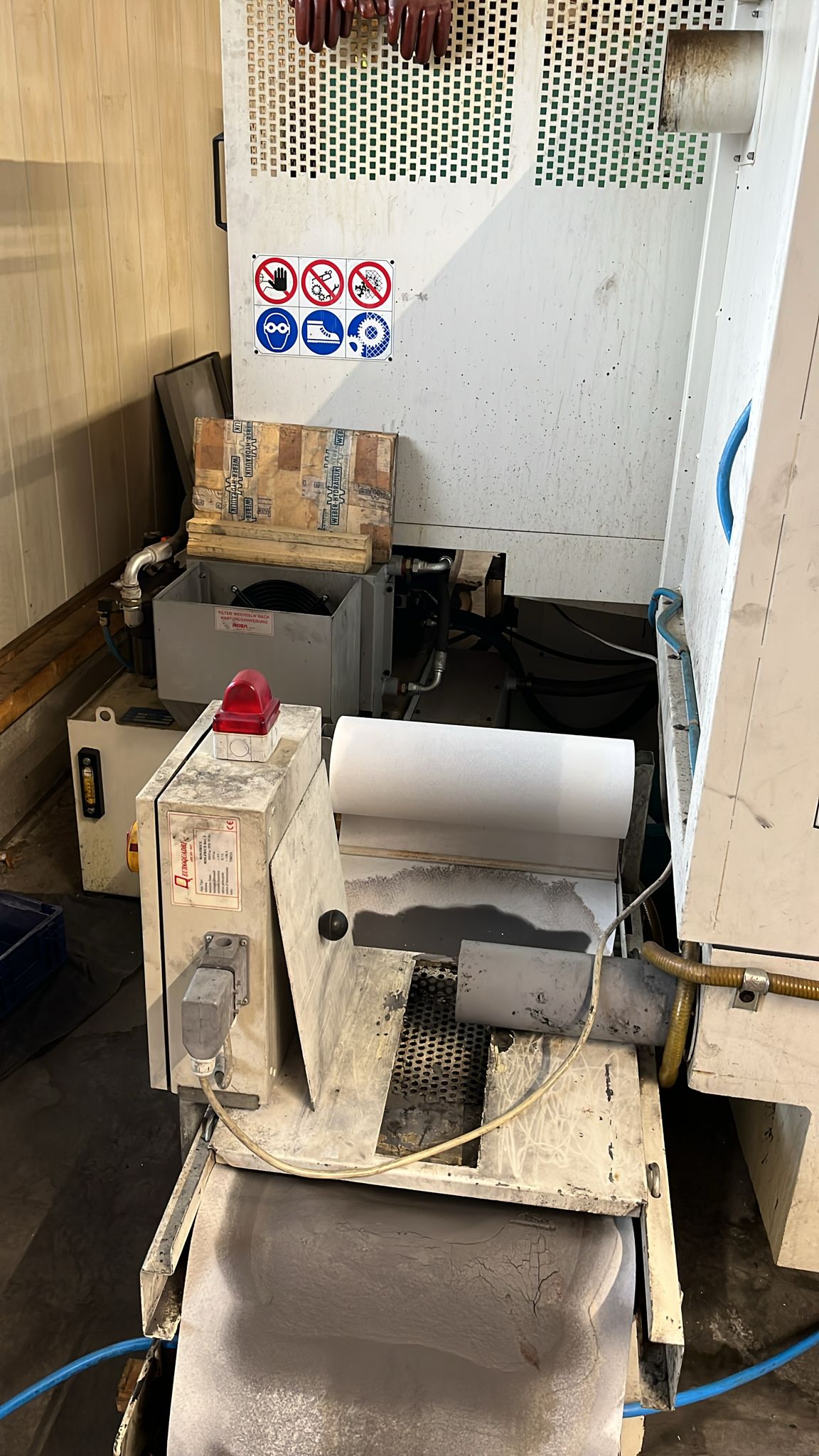

| Paper filtration system | |

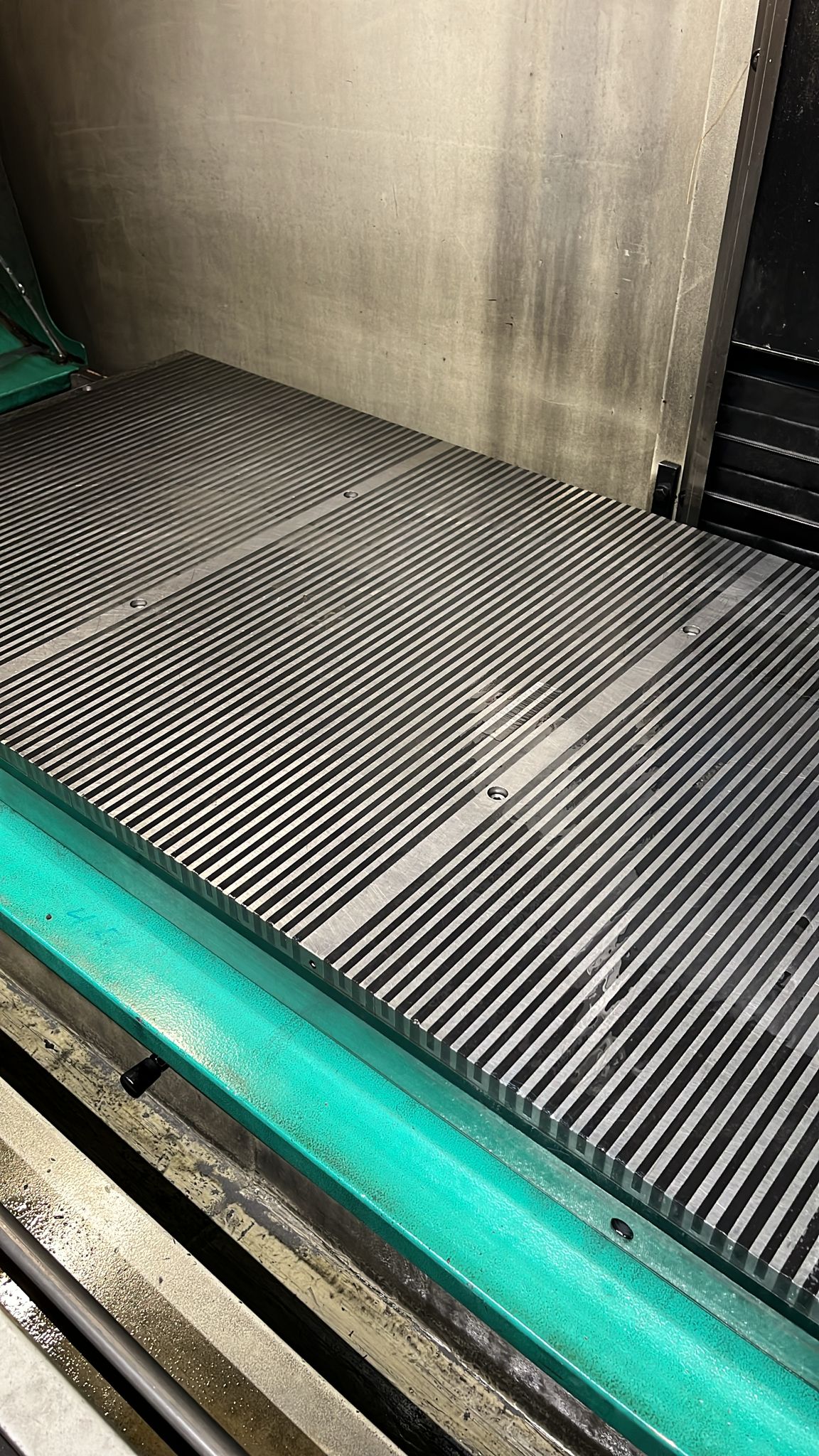

| Magnetic plate: | |
| Length | 1100 mm |
| Width | 500 mm |
| Grinding wheel with flange |
