WABECO F 1200 SK 30
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
WABECO F 1200 is a Universal milling machine designed for precision, high accuracy and reliable performance. Working capacities: 3 axes; table 450×180 mm with 3 T-slots 12 mm, 50 mm apart; travels X260 mm, Y150 mm, Z280 mm; spindle stroke 55 mm; spindle speeds 140–3000 t/min, taper SK30. Main specs: 50 Hz 3x 230 V supply; total power 1.4 kW; weight ~150 kg; footprint L650×W610×H1800 mm. Accessories: mechanical handwheels, vice, coolant system, set of toolholders, tool cabinet. Suited to achieve tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Number of axis total | 3 |
| Table length | 450 mm |
| Table width | 180 mm |
| Number of T-channels | 3 |
| T-channel width | 12 mm |
| Distance of the T-slots | 50 mm |
| Longitudinal travel (X-axis) | 260 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 280 mm |
| Spindle stroke | 55 mm |
| Spindle speeds: | |
| from | 140 t/min |
| up to | 3000 t/min |
| Taper in spindle: | SK30 |
| Voltage 50 Hz 3x | 230 Volt |
| Total power required | 1.4 kW |
| Machine's weight about | 150 kg |
| Overall dimensions machine: | |
| Length | 650 mm |
| Width | 610 mm |
| Height | 1800 mm |
| Various accessories: | |
| Digital calipers | |
| Tool cabinet / base unit | |

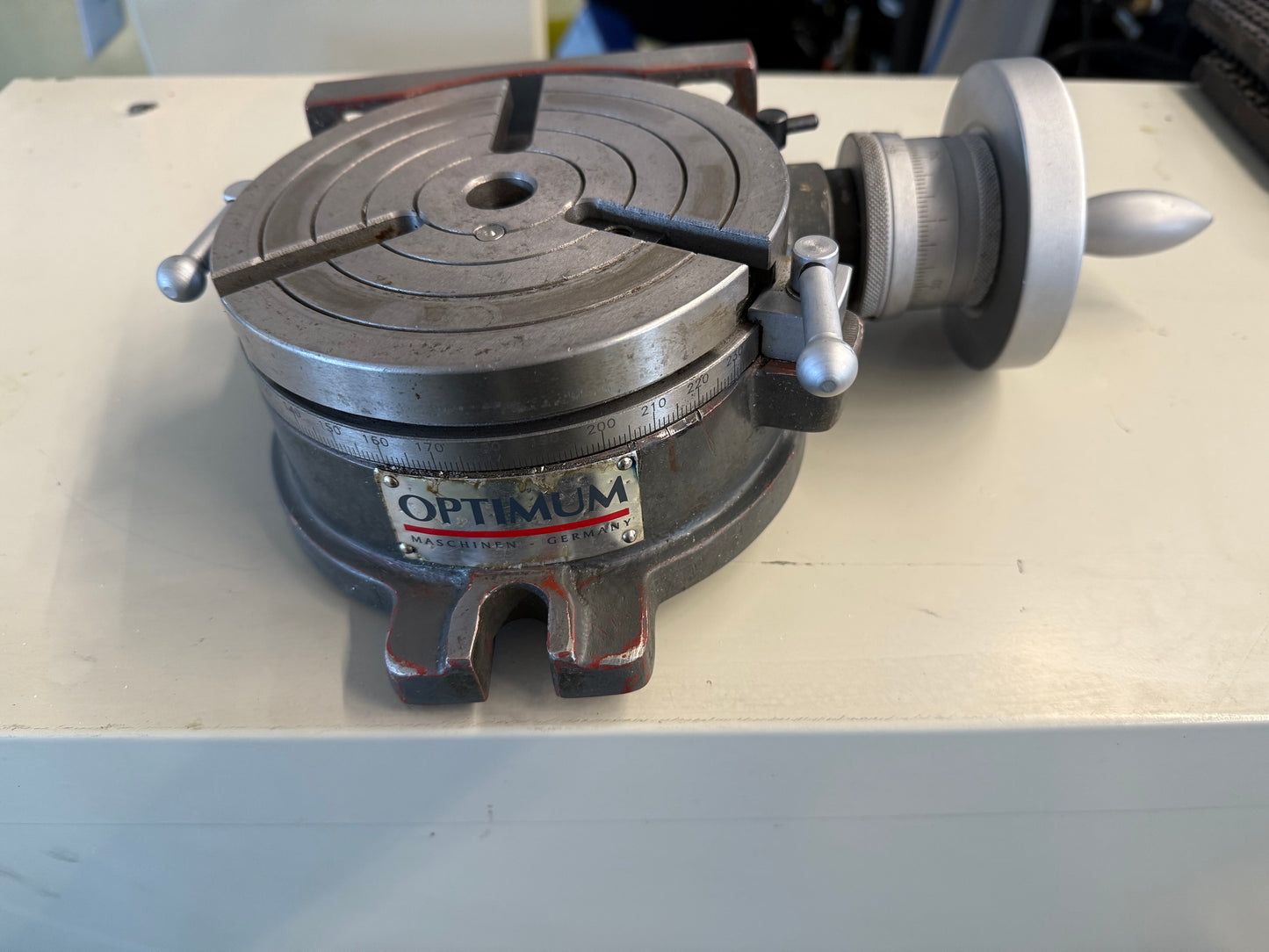

| Rotary table:diameter | 150 mm |
| Vice | |
| Coolant system | |
| Set of toolholders |
