TRAK / XYZ SLX 355
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

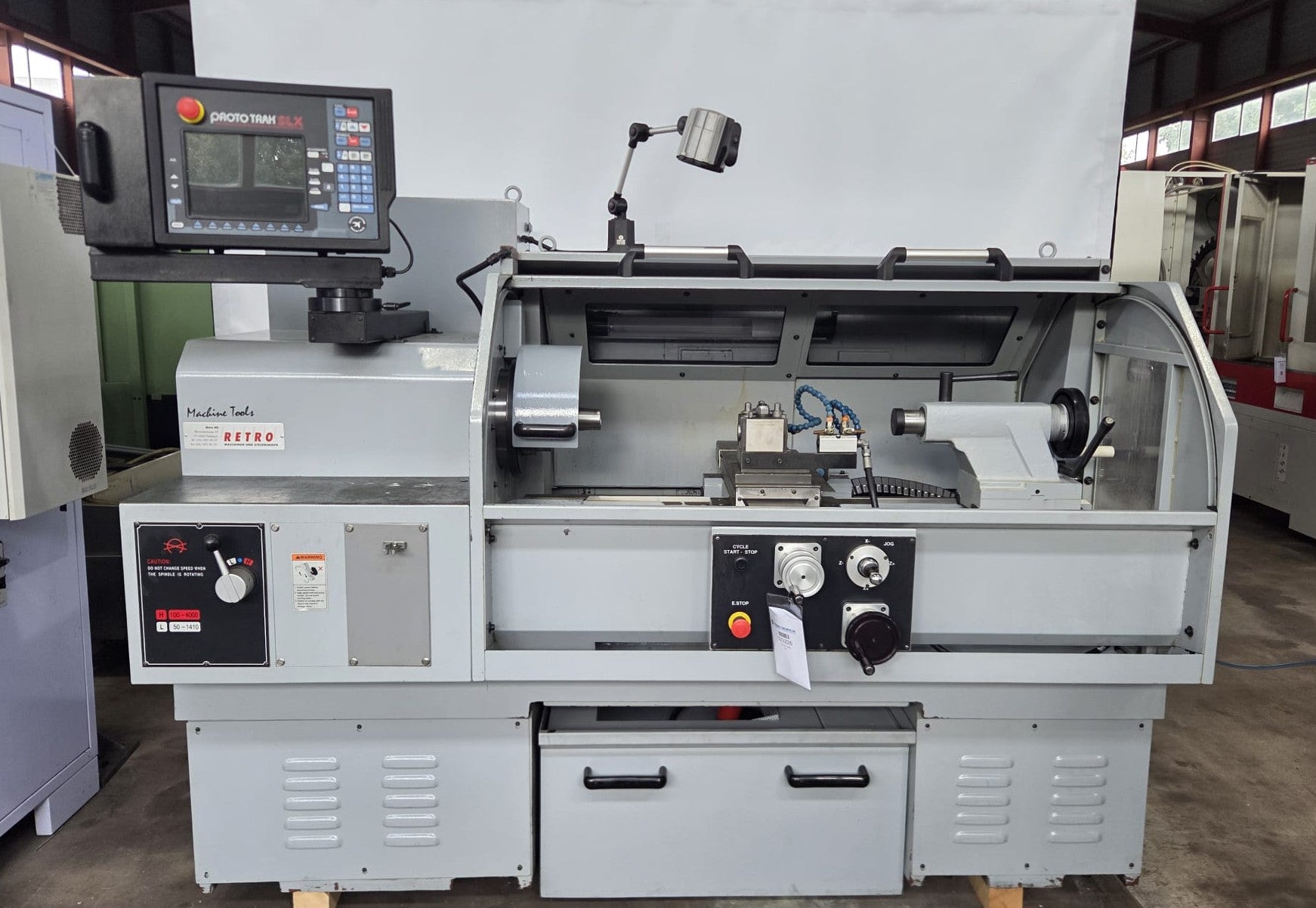

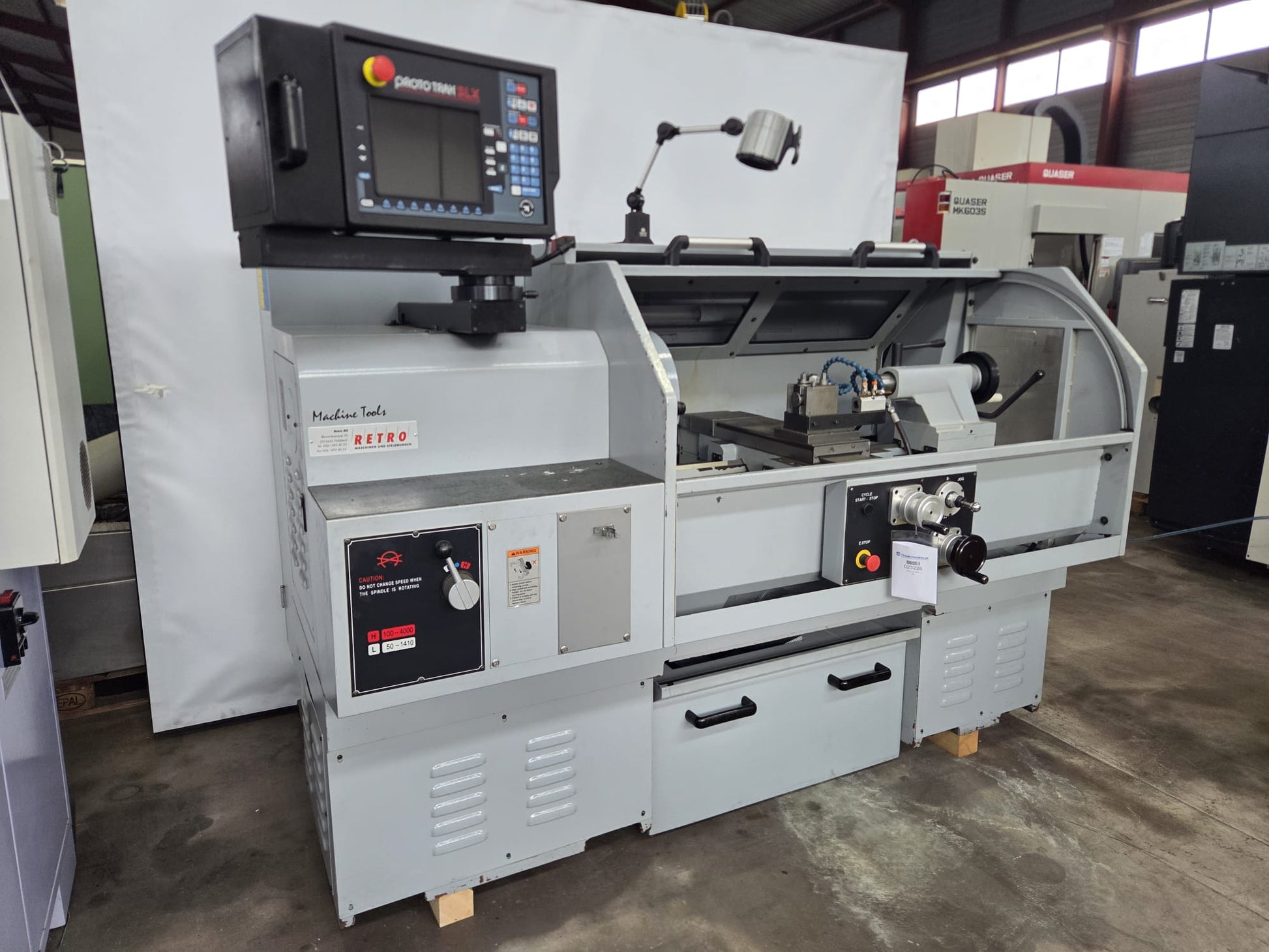

TRAK / XYZ SLX 355 is a CNC turning lathe of high precision, engineered for superior accuracy and reliability. It features 2 axes, centre height 360 mm, distance between centres 1000 mm and centre height over slide 225 mm; spindle hole 52 mm; Z travel 1000 mm and X travel 190 mm. Rapid traverse Z 4 m/min, X 3 m/min; spindle speeds 50–1410 and 100–4000 rpm. Spindle nose D1-6 Camlock and Morse taper MK4. Delivers tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine tool applications.
| Number of axis total | 2 |
| Centre height | 360 mm |
| Distance between centres | 1000 mm |
| Centre height over slide | 225 mm |

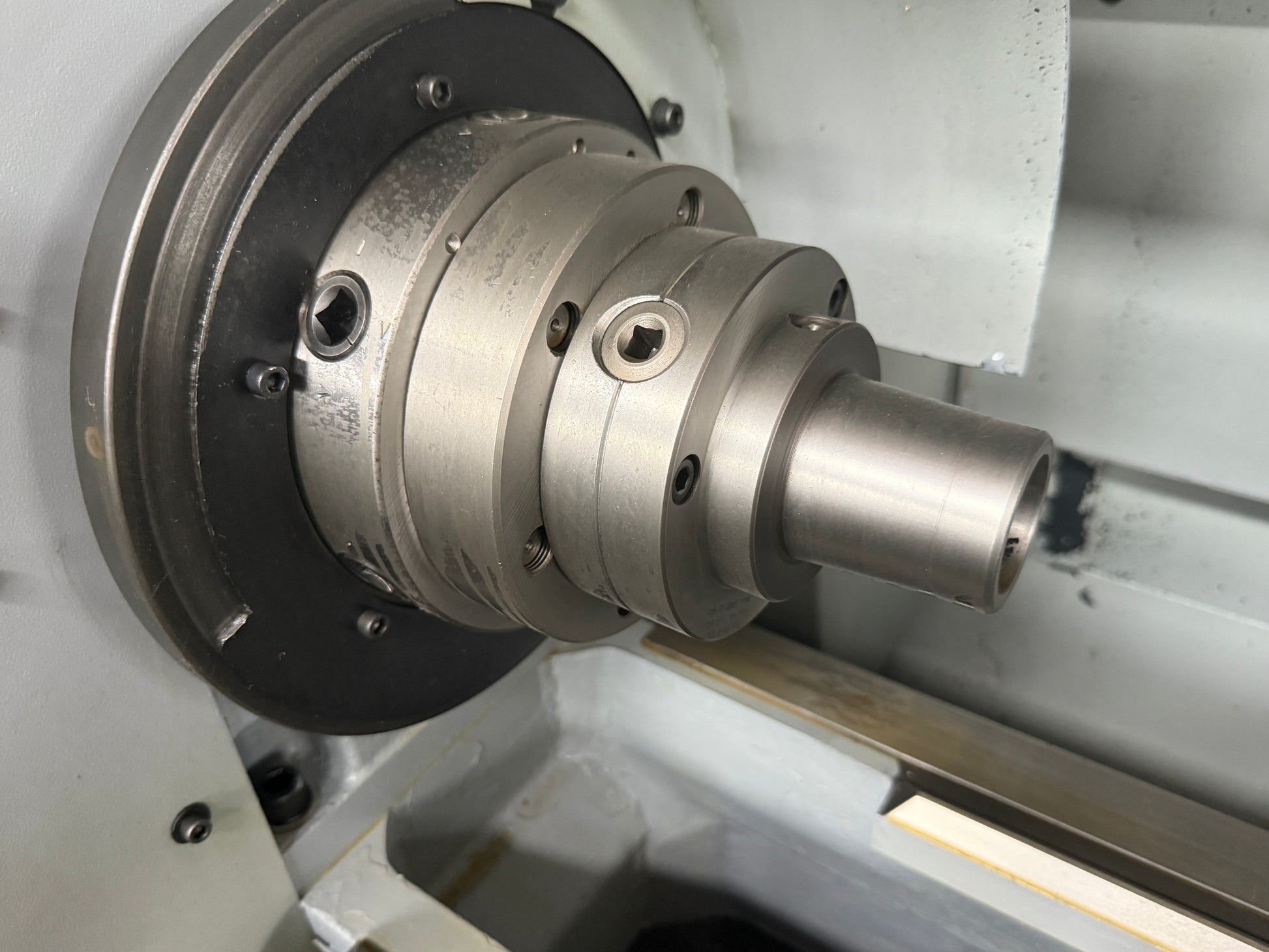

| Spindle nose | D1-6 Camlock |
| Spindle hole | 52 mm |
| Longitudinal travel (Z-axis) | 1000 mm |
| Cross travel (x-axis) | 190 mm |
| Rapid traverse Z | 4 m/min |
| Rapid traverse X | 3 m/min |
| Spindle speeds | 50 - 1410 t/min |
| Spindle speeds | 100 - 4000 t/min |

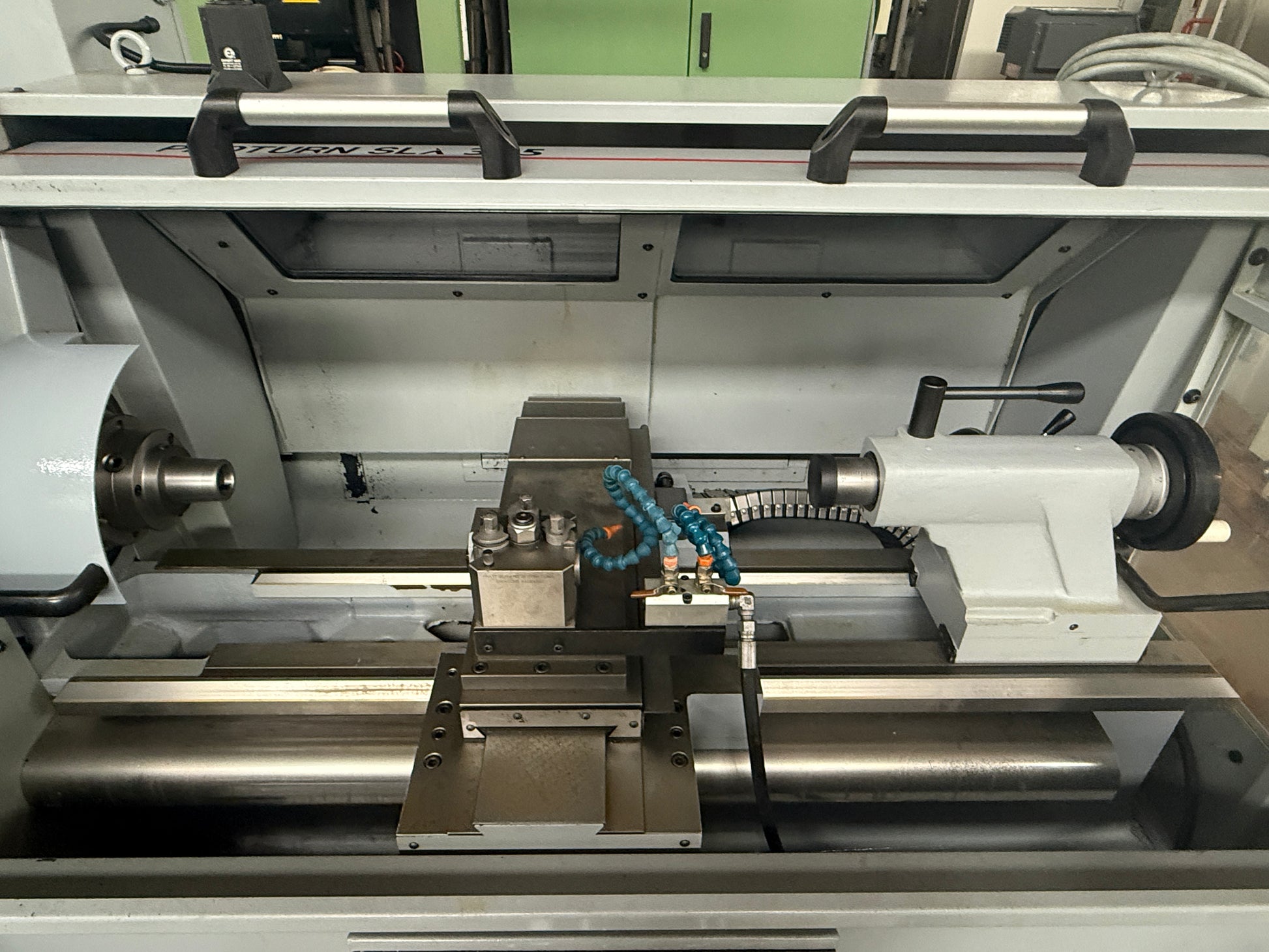

| Tailstock: | |
| Morse taper | MK4 CM |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 7 kVA |
| Machine's weight about | 1955 kg |
| Overall dimensions machine: | |
| Length | 2320 mm |
| Width | 1410 mm |
| Height | 1940 mm |

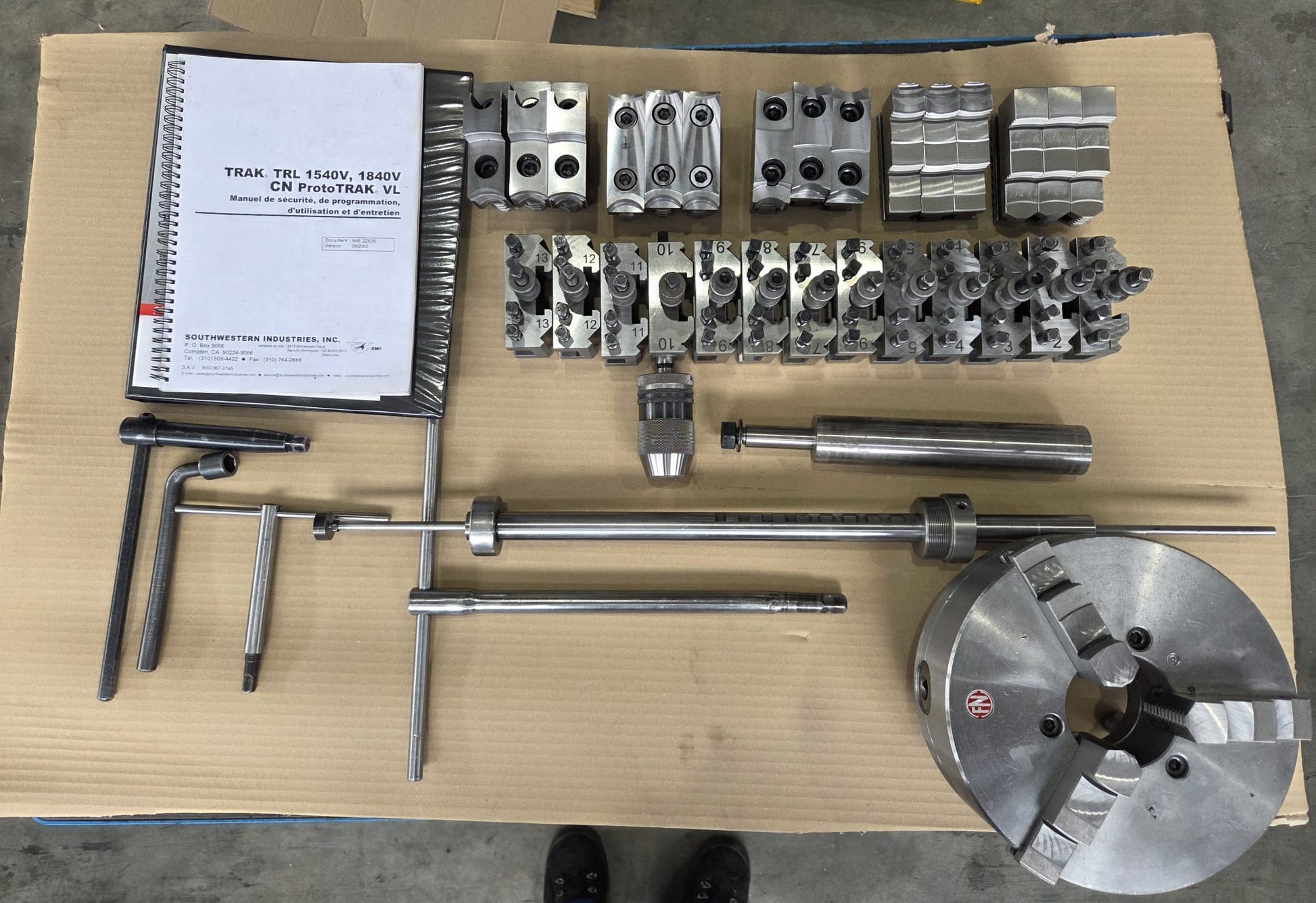

| Various accessories: | |
| 3-jaw chuck | |
| Set of soft jaws | |
| Set of hard jaws | |
| Coolant system | |

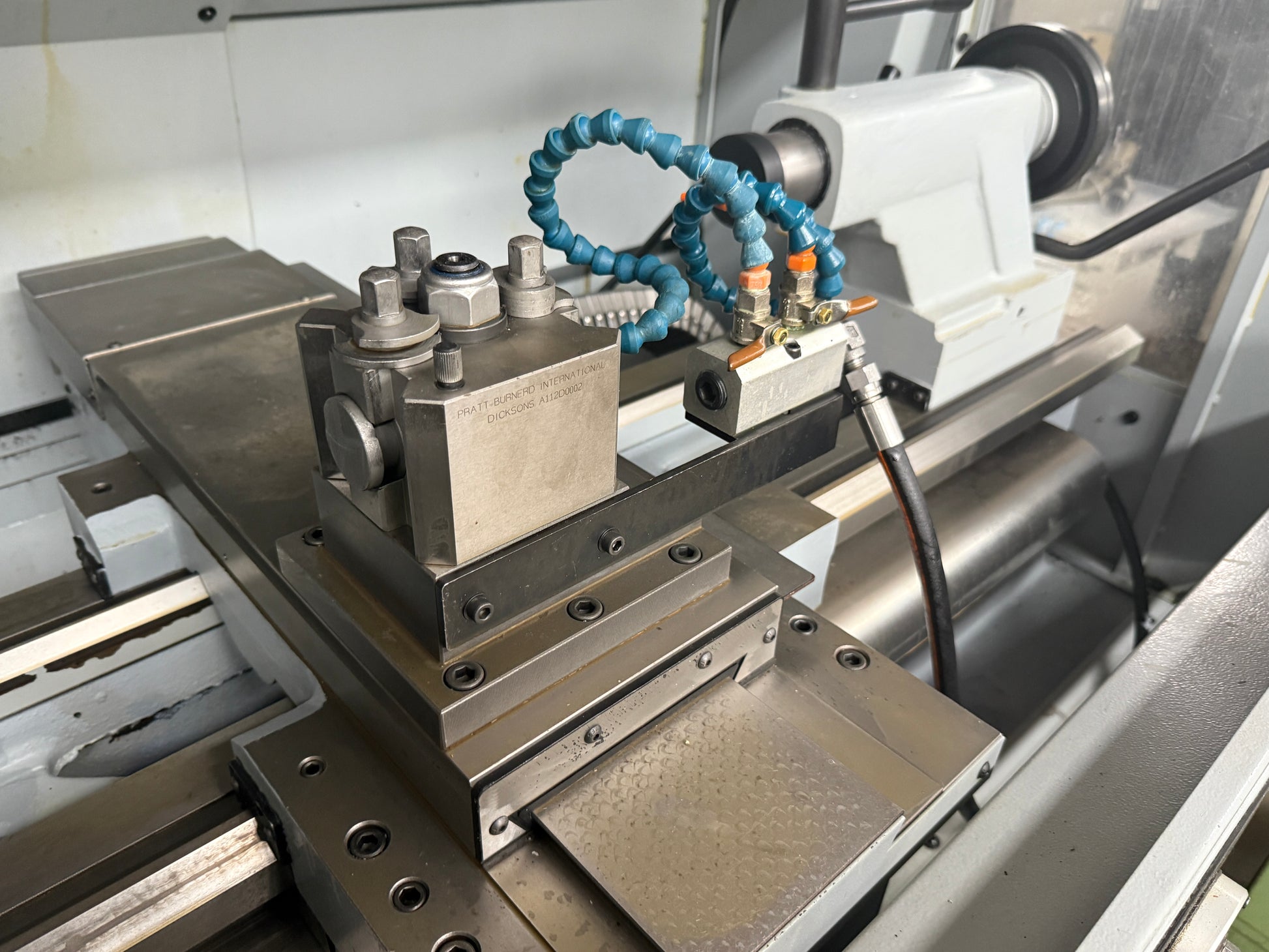

| Set of steel holders |
