UNBEKANNT is a Centre lathe for precision machining, with high accuracy and reliability. Centre height 140 mm, distance between centres 700 mm; spindle nose for collets W25; stepless speeds 48–1120 t/min. Voltage 3×380 V 50 Hz; weight ≈900 kg; dimensions L1850×W800×H1350 mm. Accessories: 4‑jaw faceplate Ø275 mm; 3‑jaw chucks Ø165 mm (x2); sets of hard/soft jaws; three‑jaw steady that folds open; quick‑change toolholder MULTIFIX Type A; sets of collets, centres, drill chuck, set of gears, drilling tailstock. Achieves tight tolerances; suitable for automotive, watchmaking, machine tool, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Centre height | 140 mm |
| Distance between centres | 700 mm |
| Spindel nose for collets | W25 |
| Spindle speeds: | |
| stepless | |
| from | 48 t/min |
| up to | 1120 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 900 kg |
| Overall dimensions machine: | |
| Length | 1850 mm |
| Width | 800 mm |
| Height | 1350 mm |

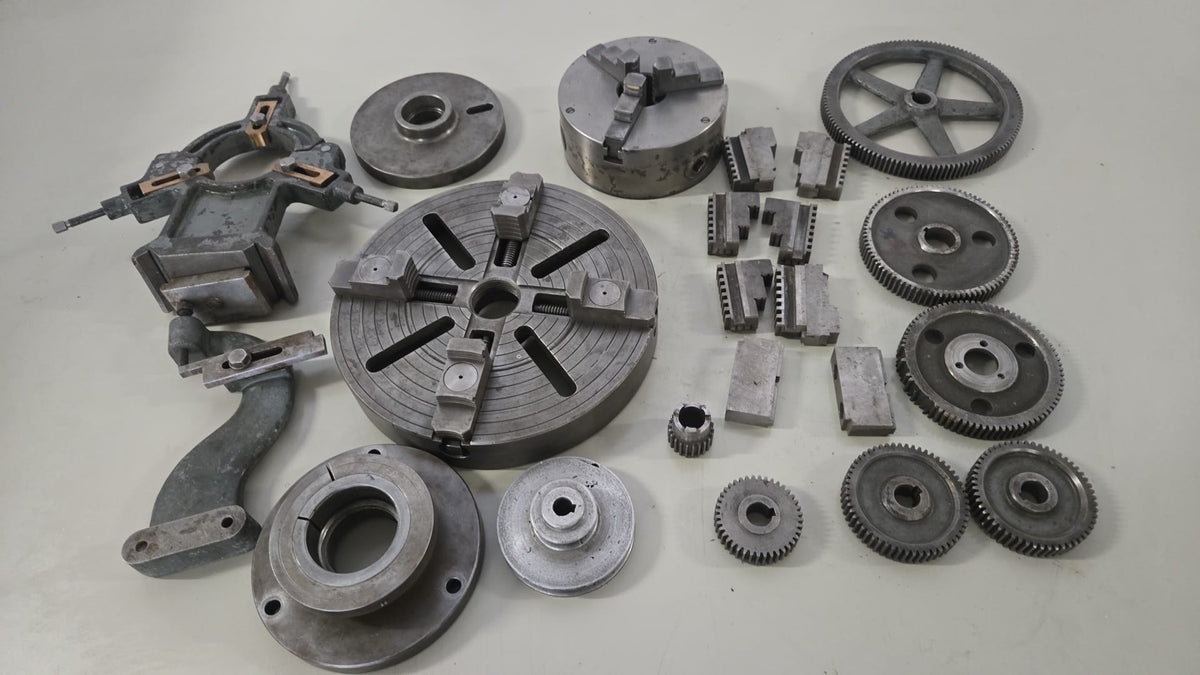

| Various accessories: | |
| 4-jaw face plate diameter | 275 mm |
| 3-jaw chuck diameter | 165 mm |
| 3-jaw chuck diameter | 165 mm |
| Set of hard jaws | |
| Set of soft jaws | |
| Three-jaw bezel folds open | |
| Steady | |
| Quick-change toolholder MULTIFIX | Type A |
| Set of collets | |
| Set of centers | |
| Drill chuck | |
| Set of gears | |
| Drilling tailstock |
