| Centre height | 102 mm |
| Distance between centres | 450 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | W20 |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 40 t/min |
| up to | 3000 t/min |
| Spindle motor | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 500 kg |
| Length | 1200 mm |
| Width | 600 mm |
| Height | 1300 mm |

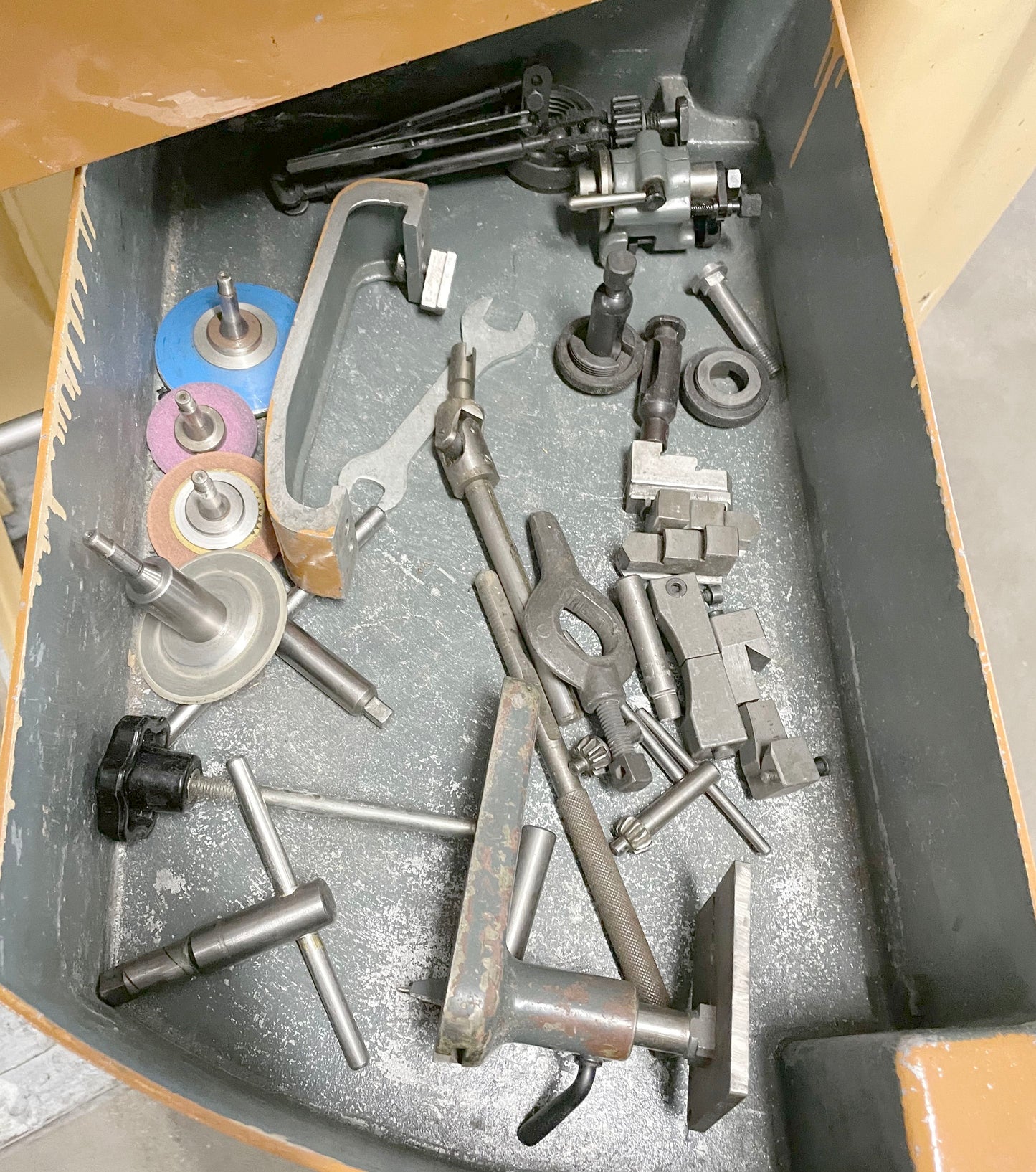

| Various accessories: | |
| Knee-operated reversing switch | |
| 2 drawers | |
| Lamp | |
| Driving system for milling and grinding attachment | |
| Belt-tensioning device for milling/grinding att. | |
| Headstock with reduction gear | |
| 3-jaw chuck diameter | 110 mm |
| Macnetic chuck diameter | 100 mm |
| Set of collets | |
| Set bell collets | |
| Tailstock with hand lever | |
| Rotary centre | |
| Drill chuck | |
| Quick change tool | MULTIFIX |
| Set of steel holders | |
| Hand rest |
