SCHAUBLIN 102 N is a Toolmakers lathe offering high precision, accuracy and reliability. Centre height 102 mm; distance between centres 375 mm; swing over cross-slide 120 mm; swing over bed 200 mm; inner taper 20 W. Spindle speeds 45–3100 rpm; spindle motor 0.5/0.9 kW; 3×380 V 50 Hz; weight ≈300 kg; overall dims 2000×800×1400 mm; bench 2000×800×900 mm. Features: 3 drawers, quick-change tool TRIPAN. Enables tight tolerances; typical applications: watchmaking, toolmaking, aerospace and medical.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| from | 45 t/min |
| up to | 3100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 / 0.9 kW |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Various accessories: | |
| Execution: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
| pedal-operadet reversing switch | |
| Drawer(s) | 3 |
| Pneum. quick closing attach. | |

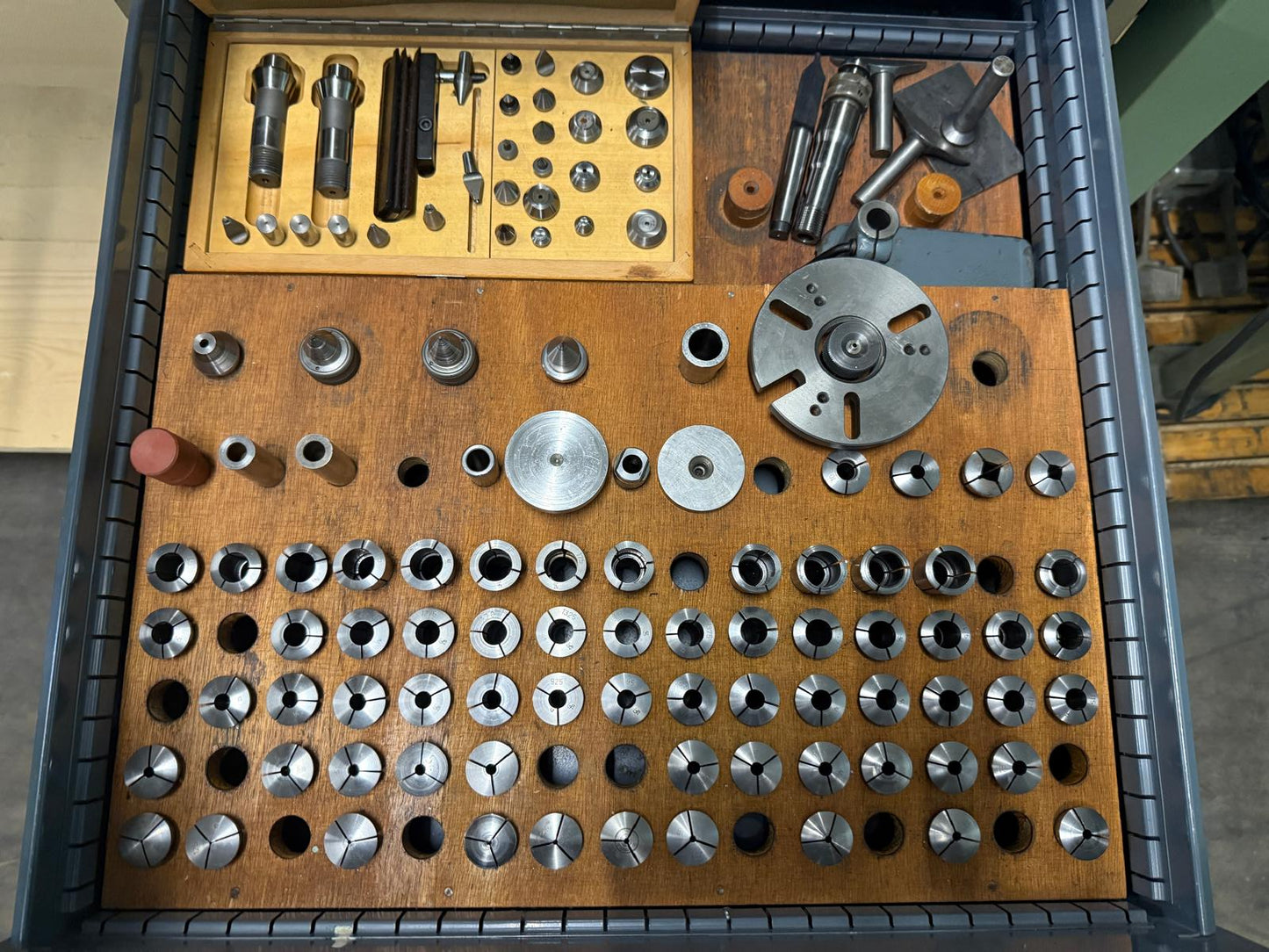

| Set of collets | |
| Drilling tailstock | |
| Set of centres | |
| Quick change tool | TRIPAN |
