STÄHLI DLM 700 is a 2-wheels flat honing machine, designed for precision, high accuracy and reliability. Capacities: 4–8 rotor discs, max wheel Ø 650 mm, max workpiece height 100 mm, continuous load 600 daN, wheel and work drive speeds 0–100 t/min. Specs: main motor 4 kW, pin‑ring and disc drives 2 kW, total installed power 18 kW, 3×400 V 50 Hz, air 7–8 bar, weight ~3000 kg, footprint 2100×1750×2100 mm. Accessories: set of rotor discs, tool cabinet, oil mist extractor, lamp, loading/unloading table, rinsing gun. Enables tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Execution: | |
| two wheels | |
| with pin ring | |
| Number of rotor discs | 4 - 8 pce |
| Max. wheel diameter | 650 mm |
| Max. work-piece height | 100 mm |
| Speeds upper wheel: | |
| from | 0 t/min |
| up to | 100 t/min |
| Speeds lower wheel: | |
| from | 0 t/min |
| up to | 100 t/min |
| Speeds work-piece mechanism: | |
| from | t/min |
| up to | 100 t/min |
| Load on workpiece stepless | 600 daN |
| Voltage 50 Hz 3x | 400 Volt |
| Air connect | 7 - 8 bar |
| Motor capacity: | |
| Main motor | 4 kW |
| pin ring mechanism | 2 kW |
| Disc drive power | 2 kW |
| Total power required | 18 kW |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 2100 mm |
| Width | 1750 mm |
| Height | 2100 mm |

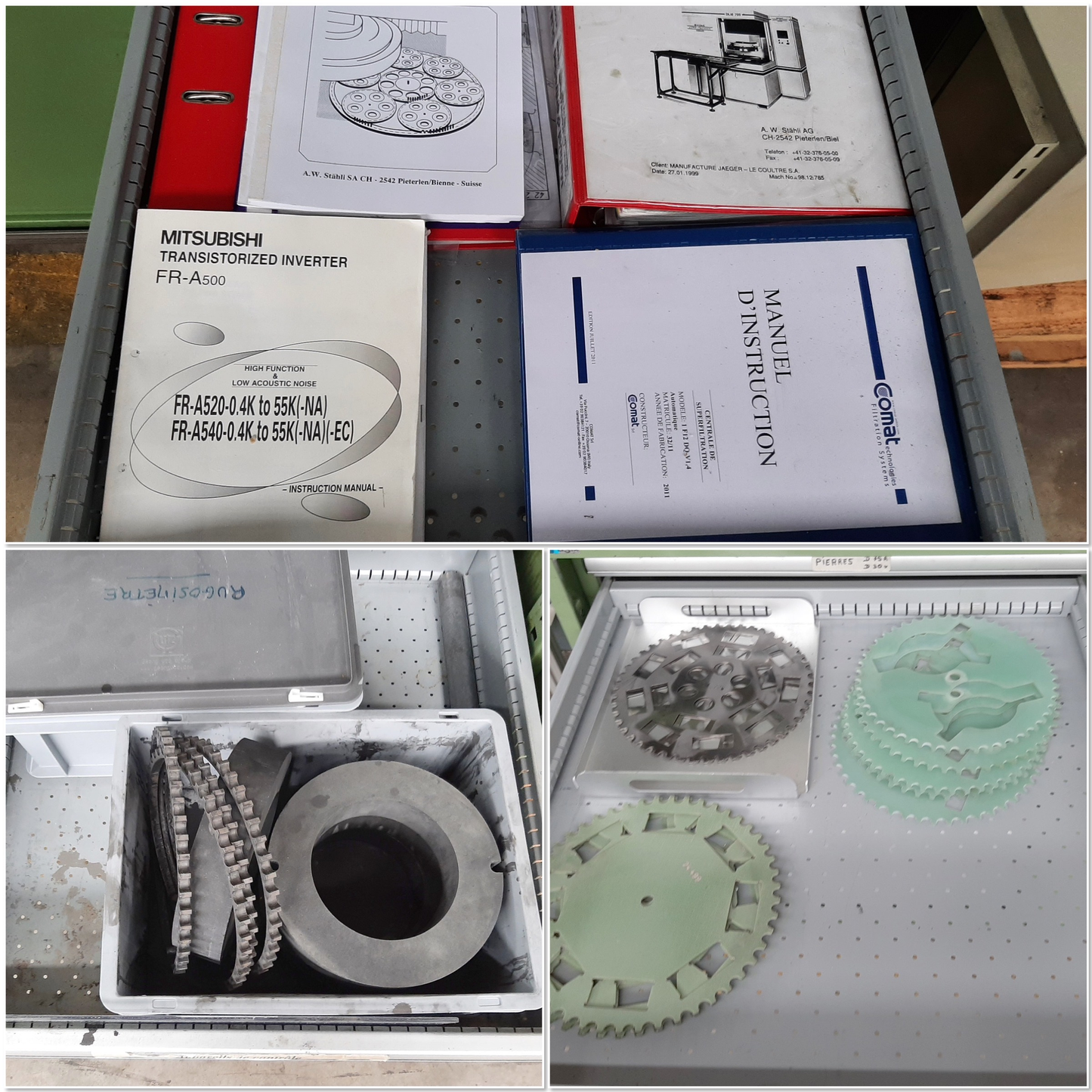

| Various accessories: | |
| Set of rotor discs | |
| Tool cabinet | |
| Oil mist extractor | |
| Lamp | |
| Loading and unloading table | |
| Rinsing Guns |
