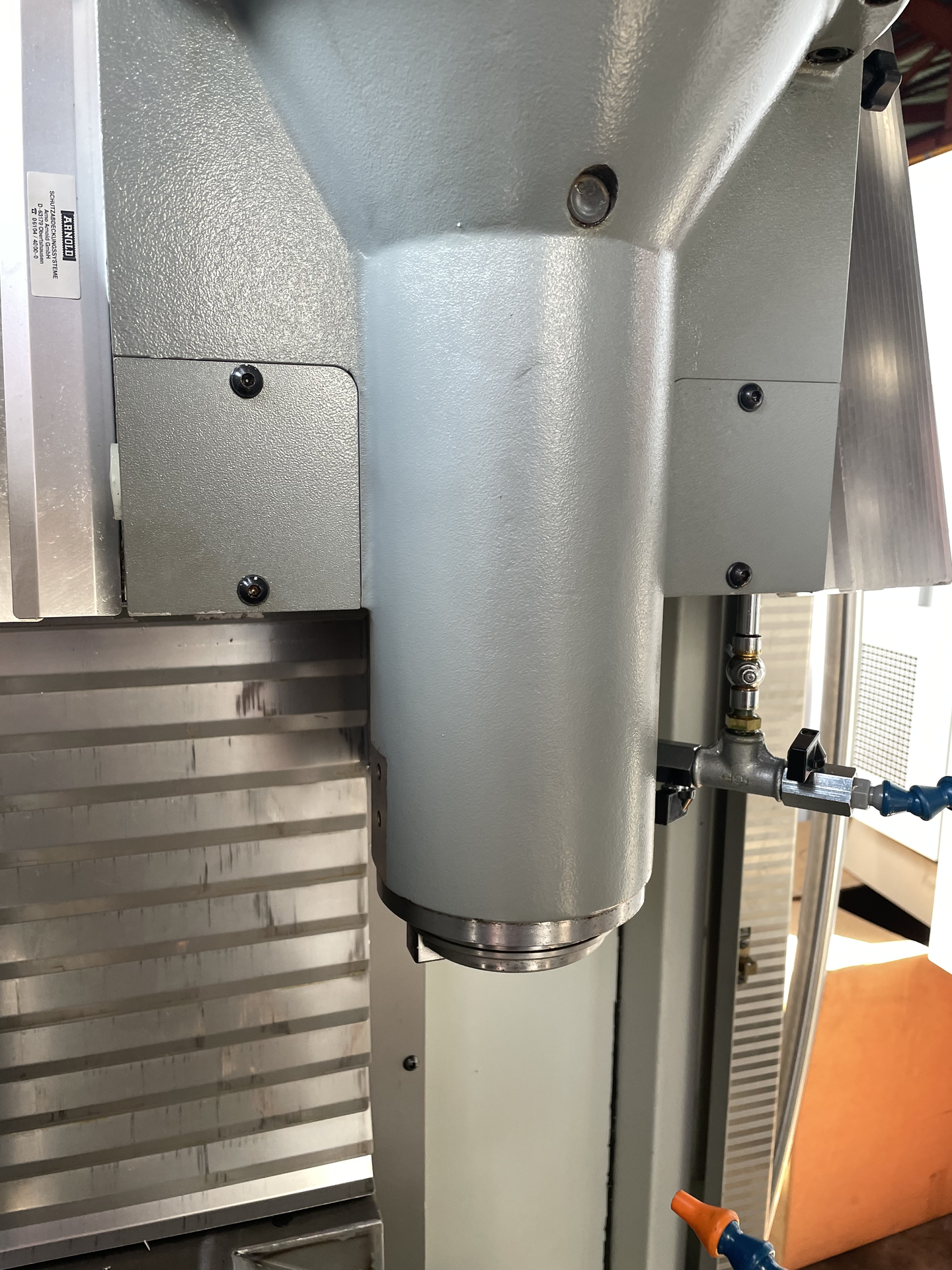

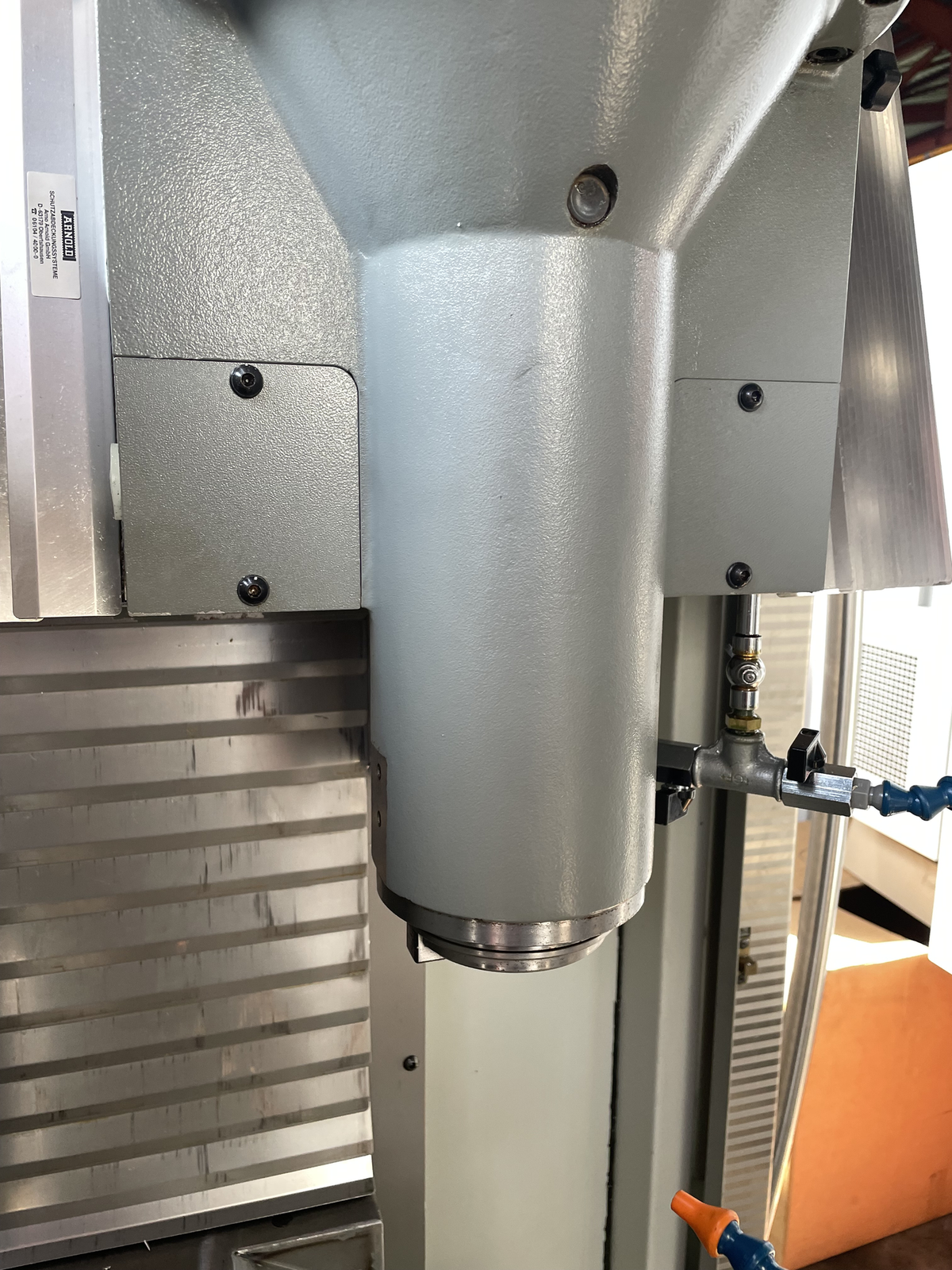

DMG DMU 35M is a CNC vertical milling machine with 5 axes (3+2), engineered for high-precision, excellent accuracy and reliable performance. Working capacities: table 400×280 mm, 5 T-slots 12H7 mm at 50 mm pitch, centering bore 30H6 mm, rotation 360°, swivel +105/-15°, table load max. 100 kg; travels X350 Y240 Z340 mm. Main specs: stepless spindle 20–6300 t/min, spindle nose SK40 DIN 69871, pull-studs DIN 69872, milling spindle motor 6.3/10 kW; feeds 5000 mm/min, rapid traverse 5 m/min; air 6 bar; 3x400 V 50 Hz; total power 15 kVA; weight ≈1600 kg; overall L1860×W1700×H2100 mm. Accessories: 4+5 axis manual, electronic handwheel, coolant system, lamp. Achieves tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors
| Number of axis total | 5 (3+2) |
| Table length | 400 mm |
| Table width | 280 mm |
| Number of T-channels | 5 |
| T-channel width | 12H7 mm |
| Distance of the T-slots | 50 mm |
| Centering bore diameter | 30H6 mm |
| Rotation range | 360 ° |
| Swivelling range | + 105 / -15 ° |
| Table load max. | 100 kg |
| Longitudinal travel (X-axis) | 350 mm |
| Transversal travel (y axis) | 240 mm |
| Vertical travel (z axis) | 340 mm |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 6300 t/min |
| Spindle nose SK | 40 DIN 69871 |
| Pull-Studs | DIN 69872 |
| Feeds (X, Y, Z) | 5000 mm/min |
| Rapid traverse: | 5 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 6.3 / 10 kW |
| Total power required | 15 kVA |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1860 mm |
| Width | 1700 mm |
| Height | 2100 mm |
| Various accessories: | |
| 4+5 axis manual | |
| Handwheel electroinic | |
| Coolant system | |
| Lamp |
