TSUGAMI HS 207-5AX
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

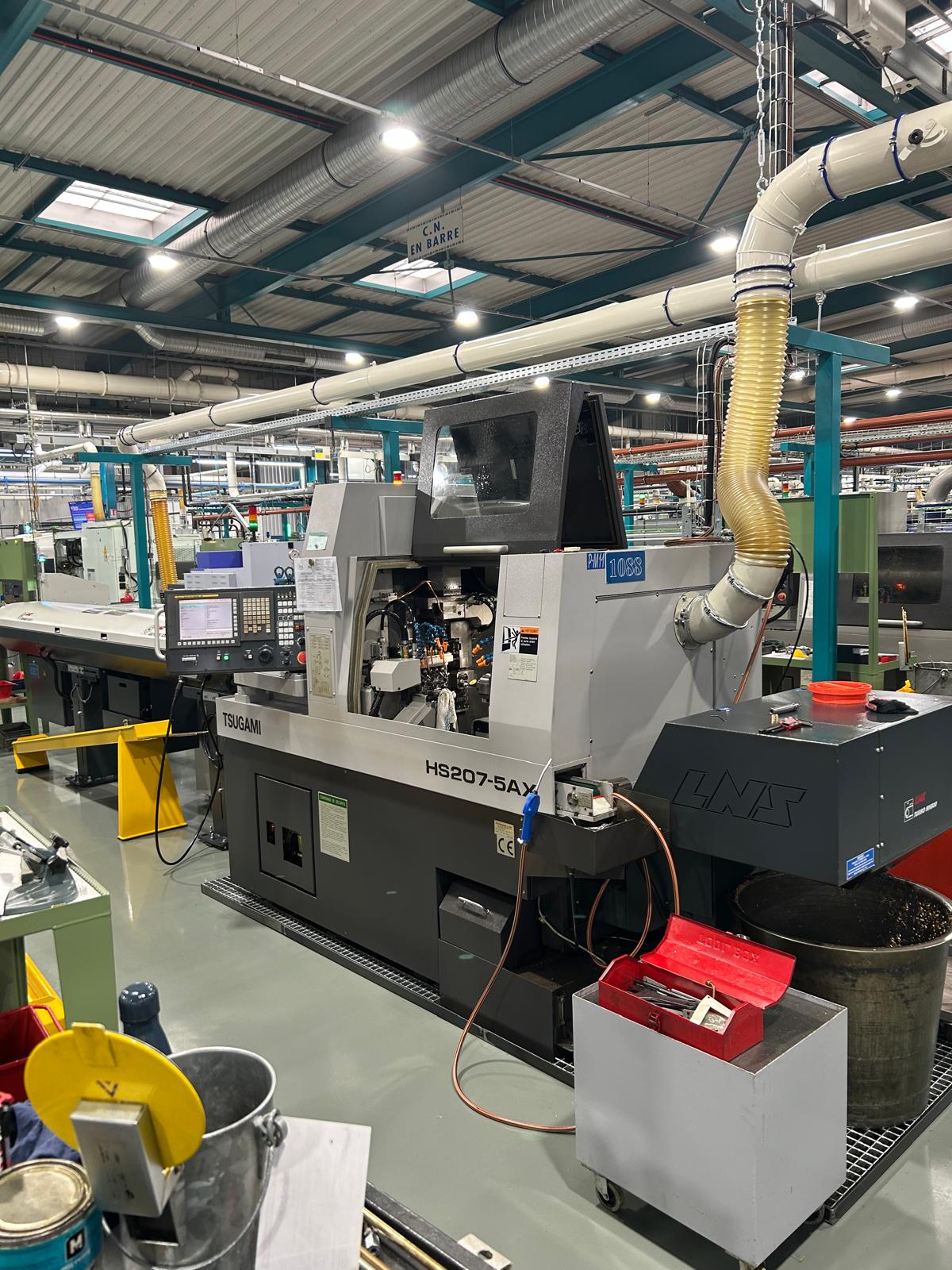

TSUGAMI HS 207-5AX is a CNC automatic lathe / Swiss-type lathe with high precision, excellent accuracy and reliability. 5 axes, 2 spindles; turning diameter 3–20 mm; max turning length 250 mm; internal spindle diameter 20 mm. Spindle speeds 200–10,000 t/min; spindle power 3.7 kW; back spindle 2.2 kW; 35 tools; rapid traverse 32 m/min; power 50 Hz 3x400 V; total installed 14.6 kVA; weight ~3300 kg; footprint 2110×1200×1885 mm. Bar feeder LNS EXPRESS 320. Built to achieve tight tolerances on precision components.
| Number of axis total | 5 |
| Number of spindles | 2 |
| Turning diameter | 3 - 20 mm |
| Max. turning diameter | mm |
| Maximum turning length | 250 mm |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Spindle power | 3.7 kW |
| Back spindle: | |
| from | 200 t/min |
| up to | 10000 t/min |
| number of tools | 35 |
| Rapid traverse: | 32 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power of back spindle | 2.2 kW |
| Total power required | 14.6 kVA |
| Machine's weight about | 3300 kg |
| Overall dimensions machine: | |
| Length | 2110 mm |
| Width | 1200 mm |
| Height | 1885 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | EXPRESS 320 |
