KUNZMANN WF 400 M
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

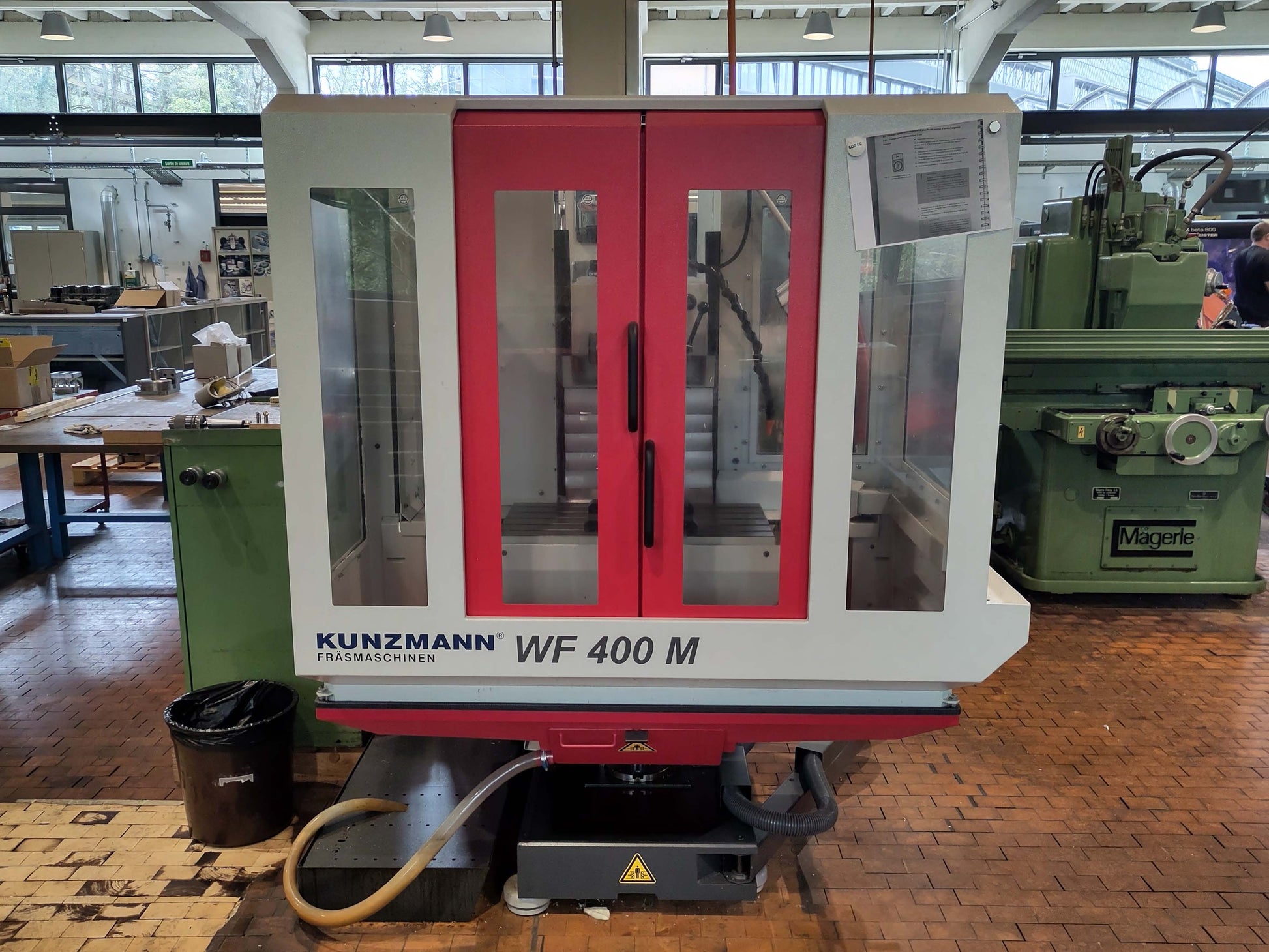

KUNZMANN WF 400 M is a CNC milling machine for precision, high accuracy and reliability. Table 650×350 mm, table load 250 kg; travels X/Y/Z 400/350/400 mm; head ±90°. Spindle SK40 1–4000 t/min, 5.5 kW; axes X/Y 5 m/min Z 4 m/min; 3×400 V, 12 kVA; coolant 75 l; automatic central lubrication; interfaces RS232/Ethernet/USB. Suited to tight tolerances in automotive, aerospace and medical sectors.
| Number of axis total | 3 |
| Table length | 650 mm |
| Table width | 350 mm |
| Number of T-channels | 5 |
| T-channel width | 14 mm |
| Table load max. | 250 kg |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y axis) | 350 mm |
| Vertical travel (z axis) | 400 mm |
| Spindle speeds: | |
| from | 1 t/min |
| up to | 4000 t/min |
| Swivel range Vertical milling head | +/- 90 ° |
| Spindle nose SK | 40 |
| X axis | 5 m/min |
| Y axis | 5 m/min |
| Z axis | 4 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 5.5 kW |
| Total power required | 12 kVA |
| Machine's weight about | 1700 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1800 mm |
| Height | 2000 mm |
| Various accessories: | |
| Handwheel electroinic | |
| Full splash cabin | |
| Coolant system | 75 l |
| Automatic central lubrication | |
| Machine lamp | |
| Interface: | |
| Interface serial port RS 232-C, V 24 | |
| Interface Ethernet | |
| Interface USB |
