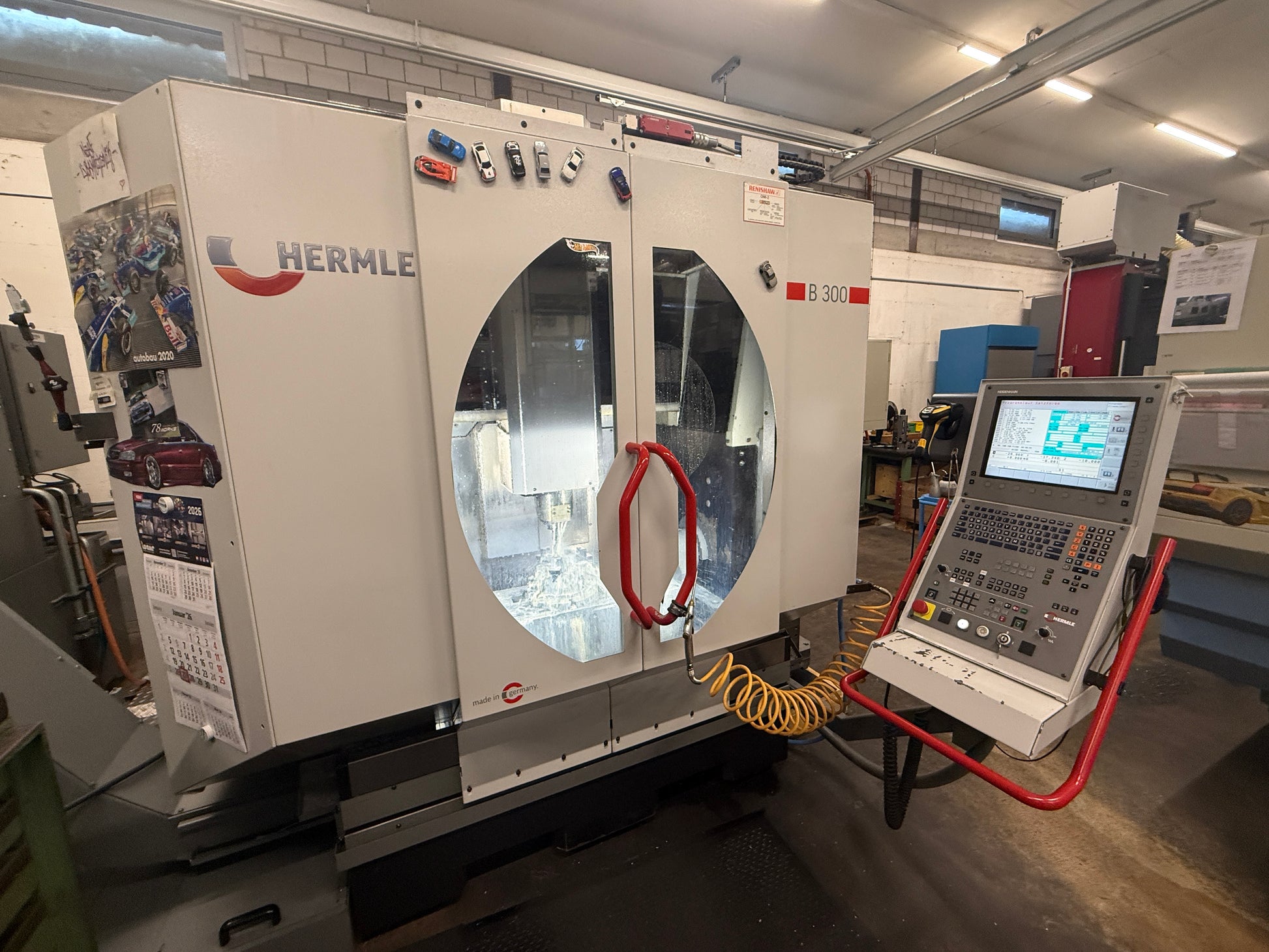

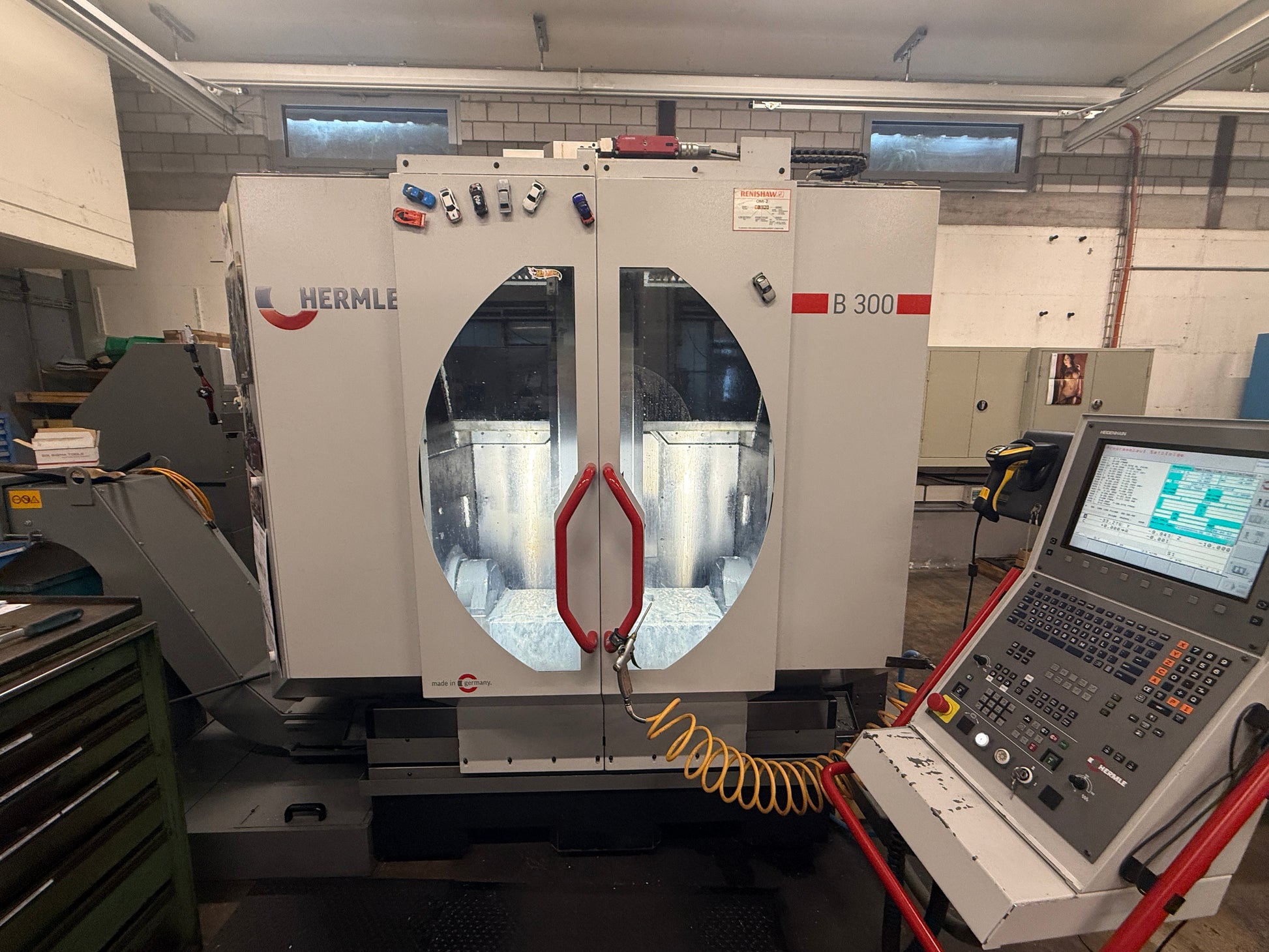

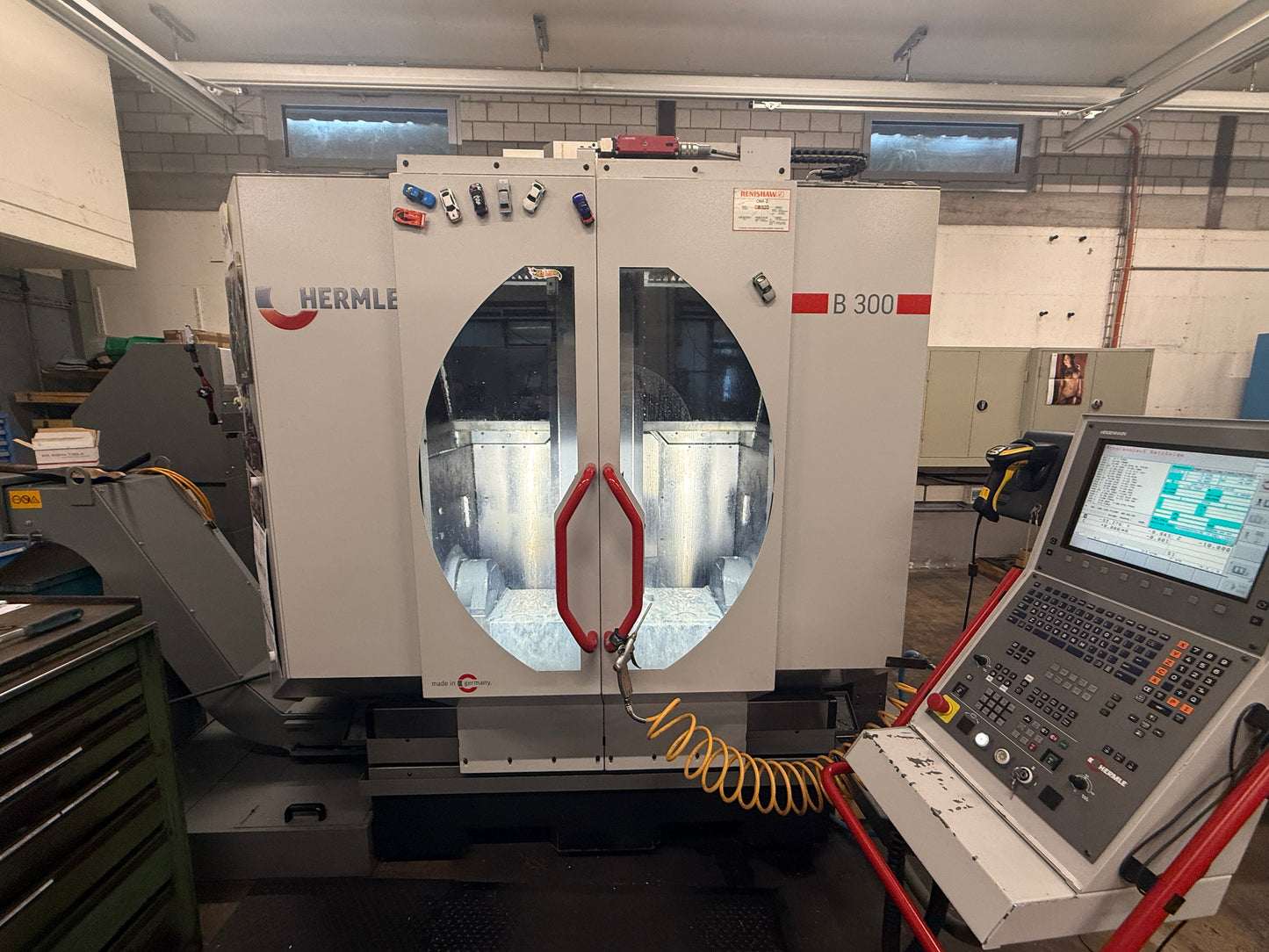

HERMLE B 300 is a 5‑axis machining center engineered for precision, high accuracy and production reliability. Working capacities: travels X 800 mm, Y 600 mm, Z 500 mm; table load max 250 kg; A‑axis ±110°; C‑axis 360°; max tool Ø 125 mm, tool length 300 mm, max tool weight 8 kg. Key specs: spindle taper HSK‑A63; spindle speed 20–15,000 rpm; spindle power 10 / 19 kW; rapid traverse 30 m/min; acceleration 5 m/s; max feed force 8,000 N; supply 3x400 V 50 Hz; total power 31 / 43 kVA; machine weight ≈ 8,500 kg. Equipment: 30‑position tool magazine, 1,000 L coolant system, BLUM tool breakage monitoring. Delivers tight tolerances; suited to automotive, watchmaking, aerospace, medical and toolmaking.
| Number of axis total | 5 |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 600 mm |
| Vertical travel (z axis) | 500 mm |
| Position accuracy | 0.008 mm |
| Table load max. | 250 kg |
| Swivel angle (a-axis) | +/- 110 ° |
| Swivelling range | (C-Achse) 360 ° |
| Clamping torque C-axis | 1.2 Nm |
| Tool diameter max. | 125 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 8 kg |

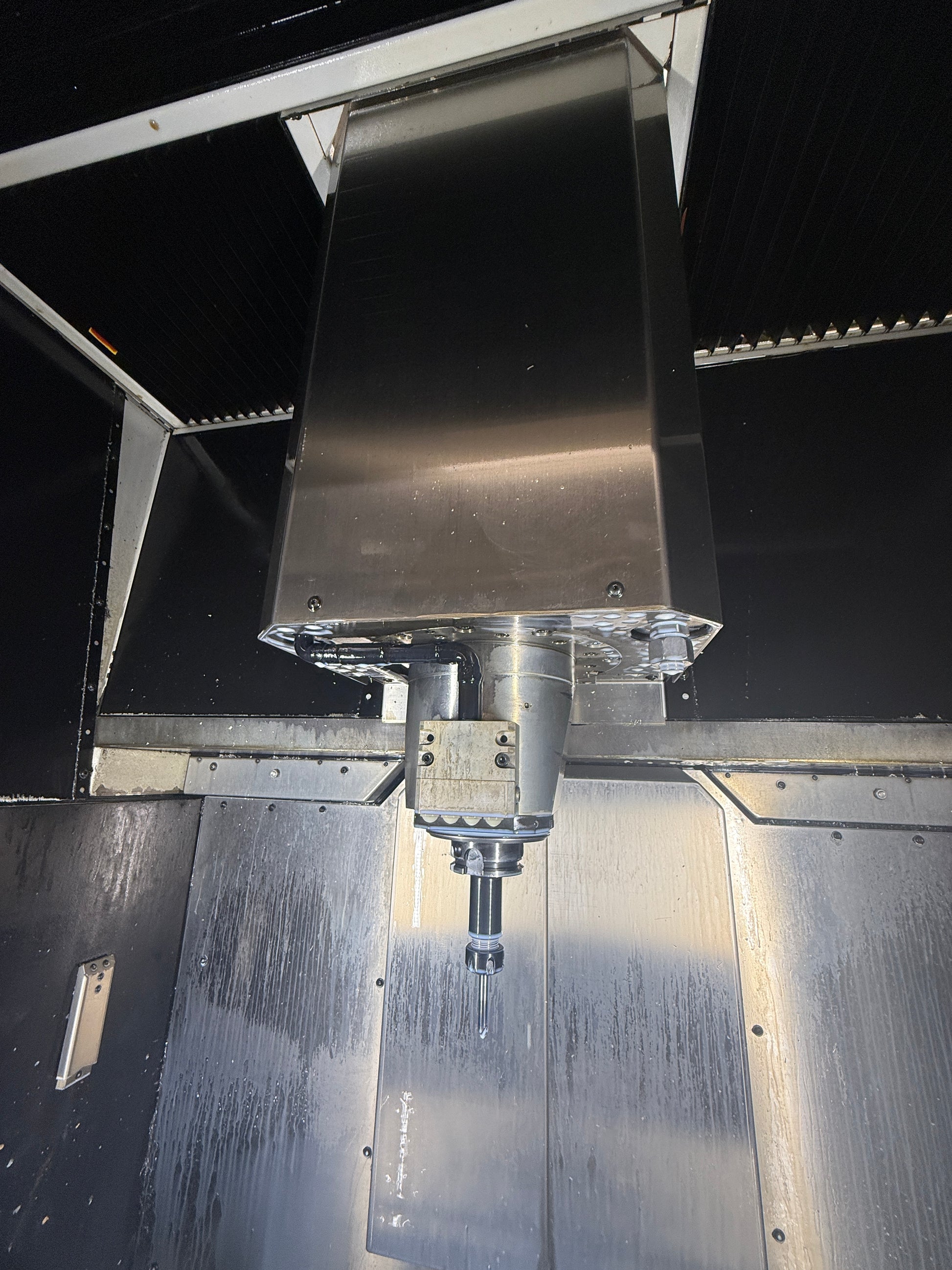

| Spindle nose: | |
| Spindle nose: HSK-A | 63 |
| stepless | |
| from | 20 t/min |
| up to | 15000 t/min |
| Rapid traverse: | 30 m/min |
| Acceleration | 5 m/s |
| Max. Feed force | 8000 N |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 10 / 19 kW |
| Total power required | 31 / 43 kVA |
| Machine's weight about | 8500 kg |

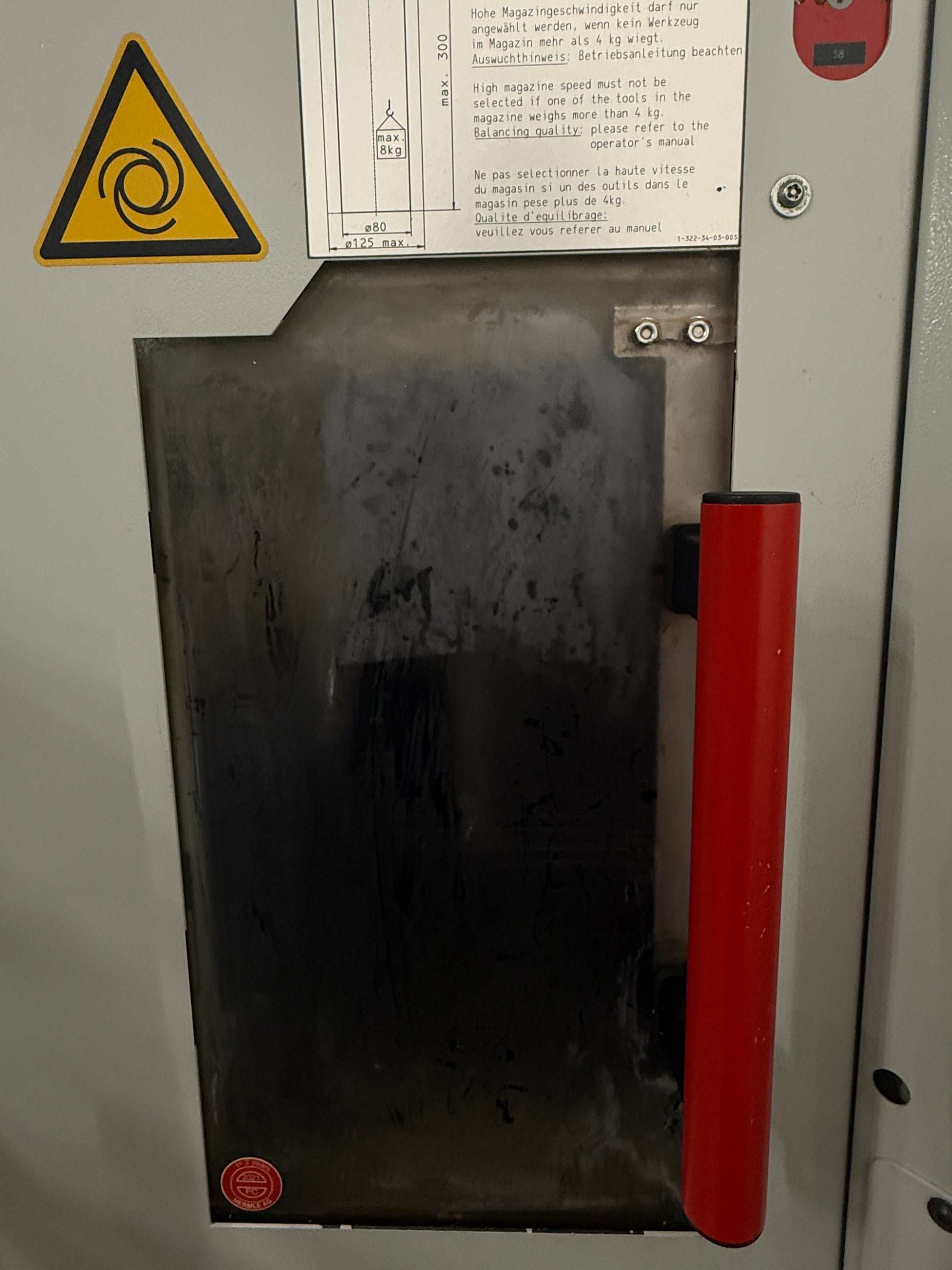

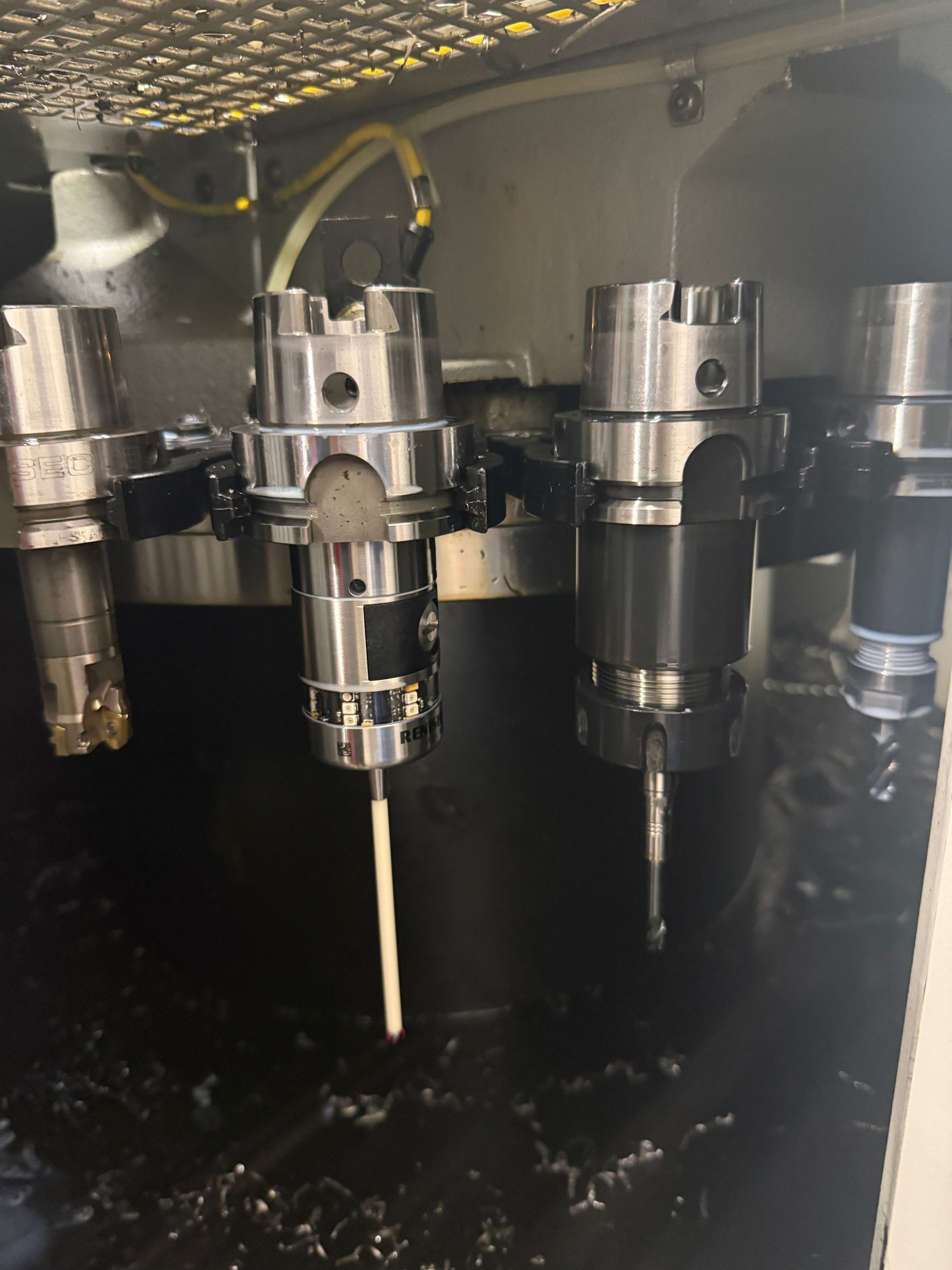

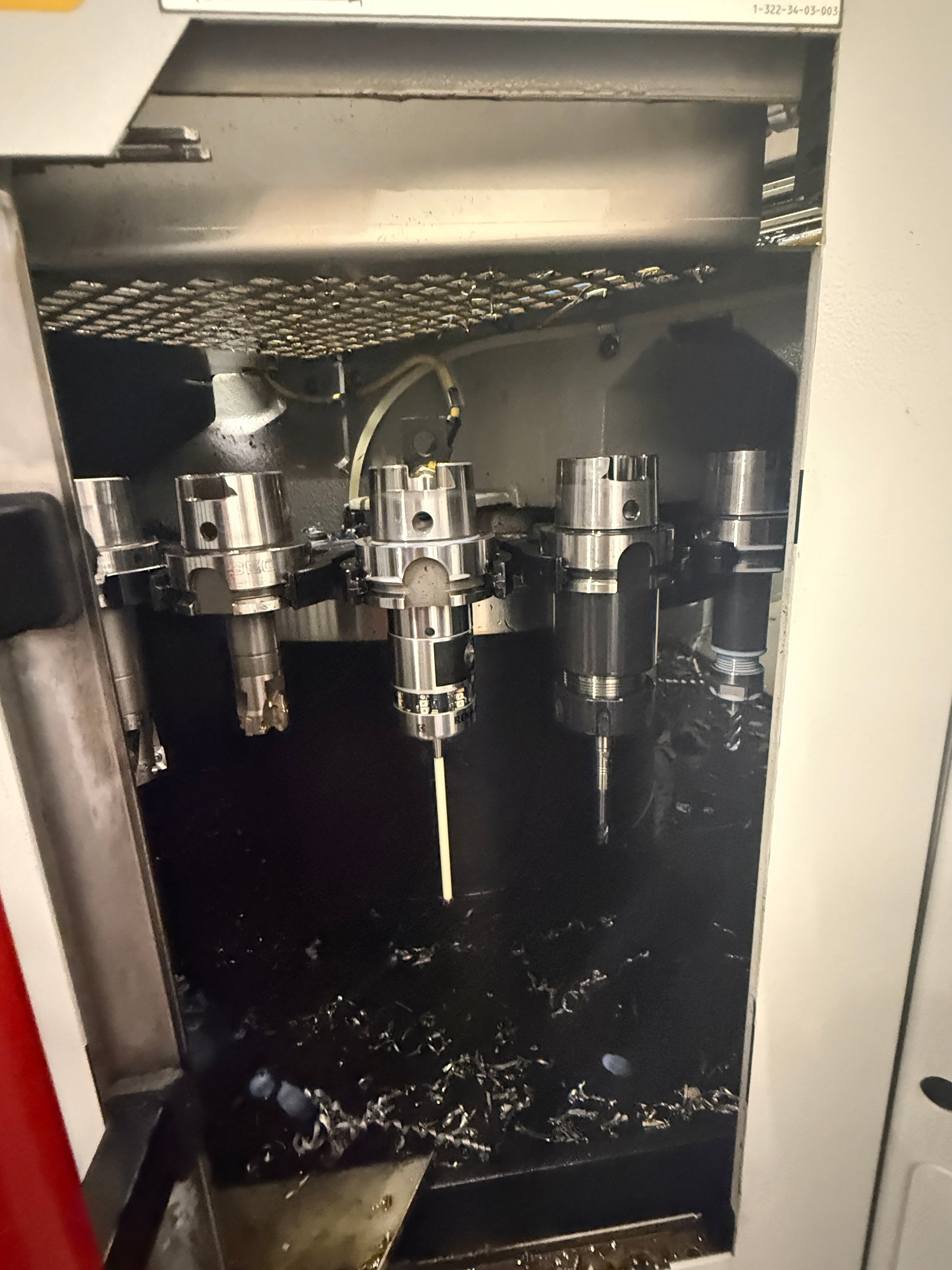

| Tool changer: | |
| Number of tools | 30 |

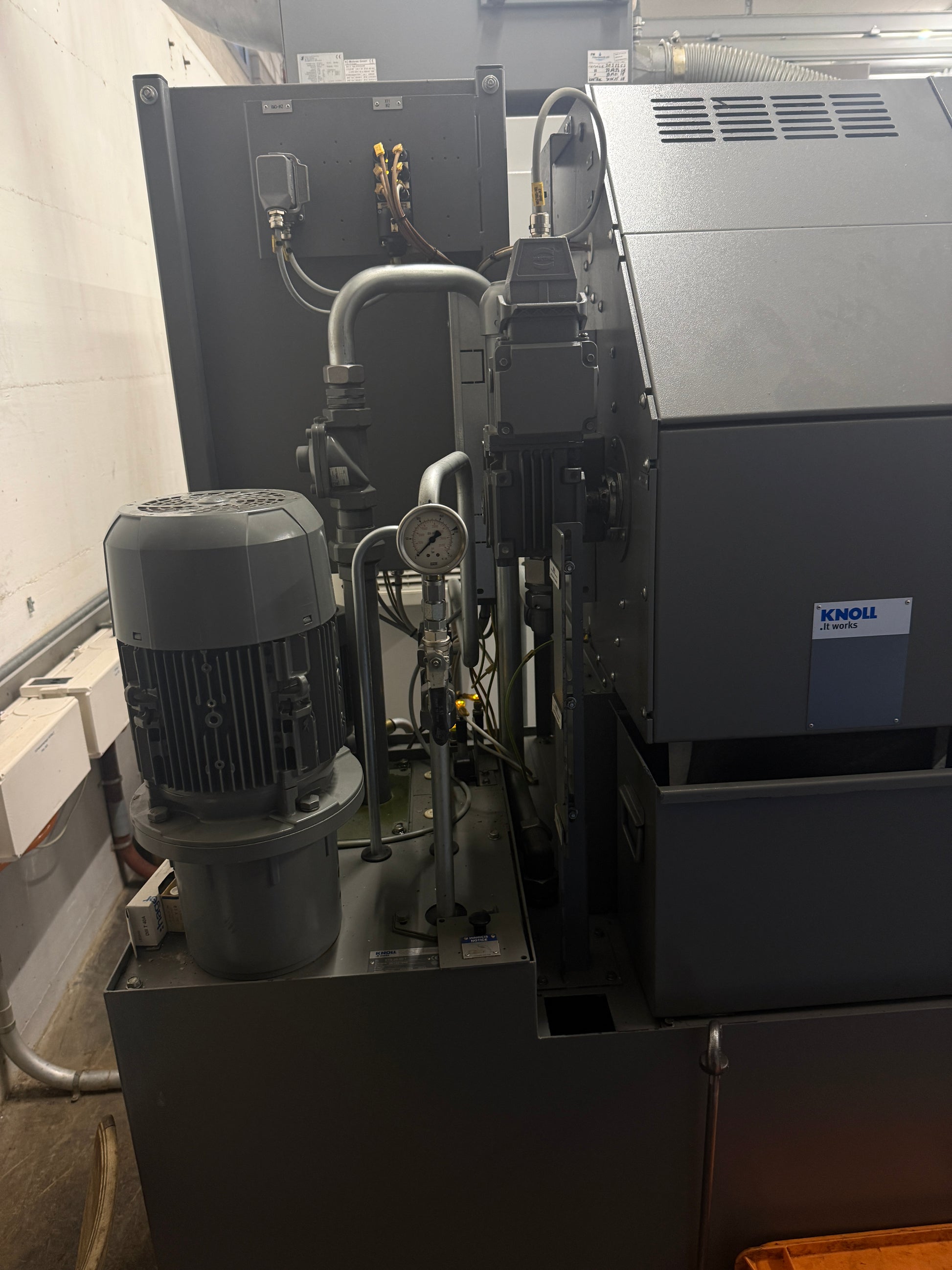

| Coolant system | 1000 l |
| Coolant through spindle (cts) | |

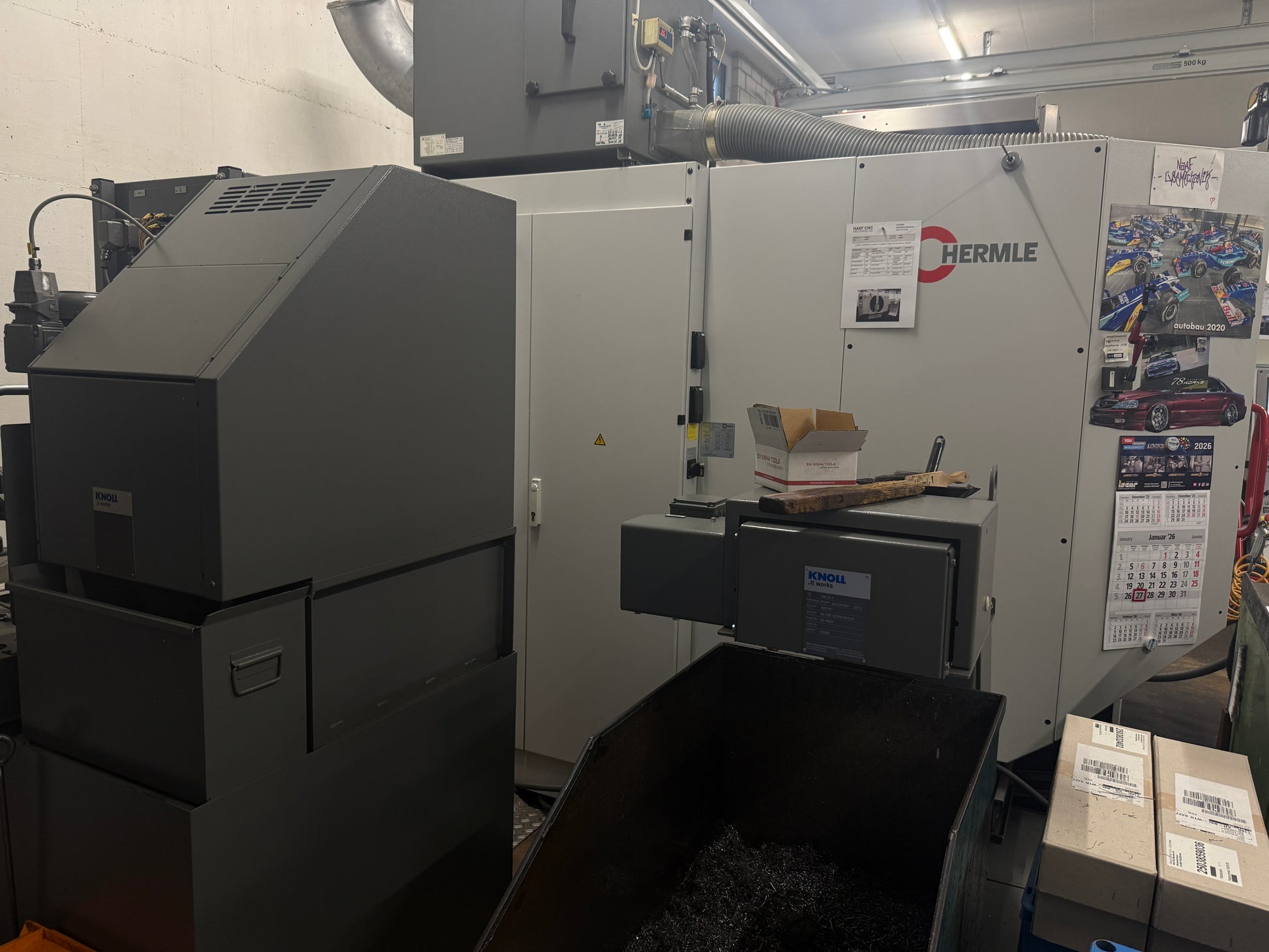

| Paper filtration system | |
| Tool break control | BLUM |

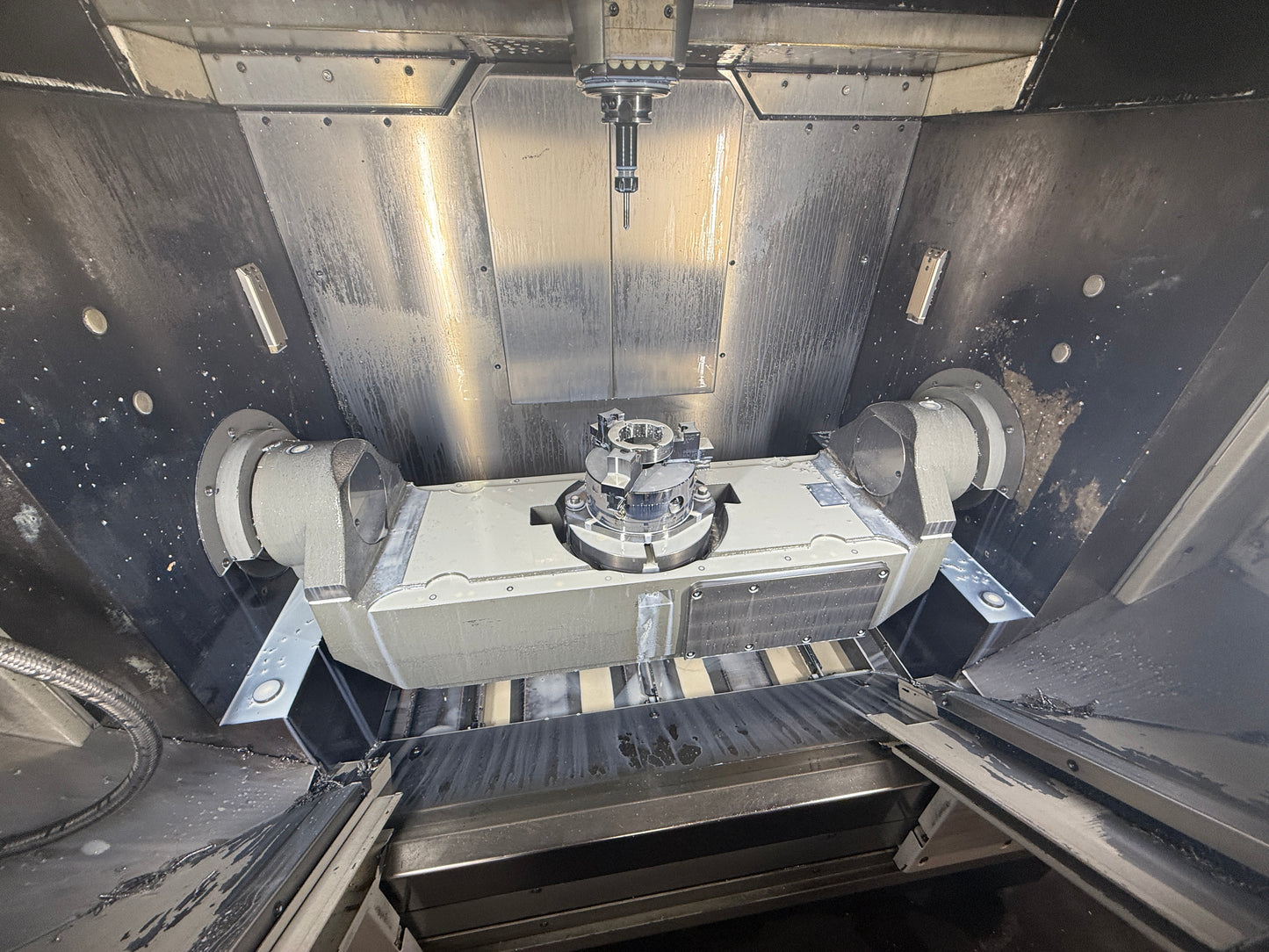

| CN rotary table | |
| Handwheel electroinic | |
| Oil mist extractor |
