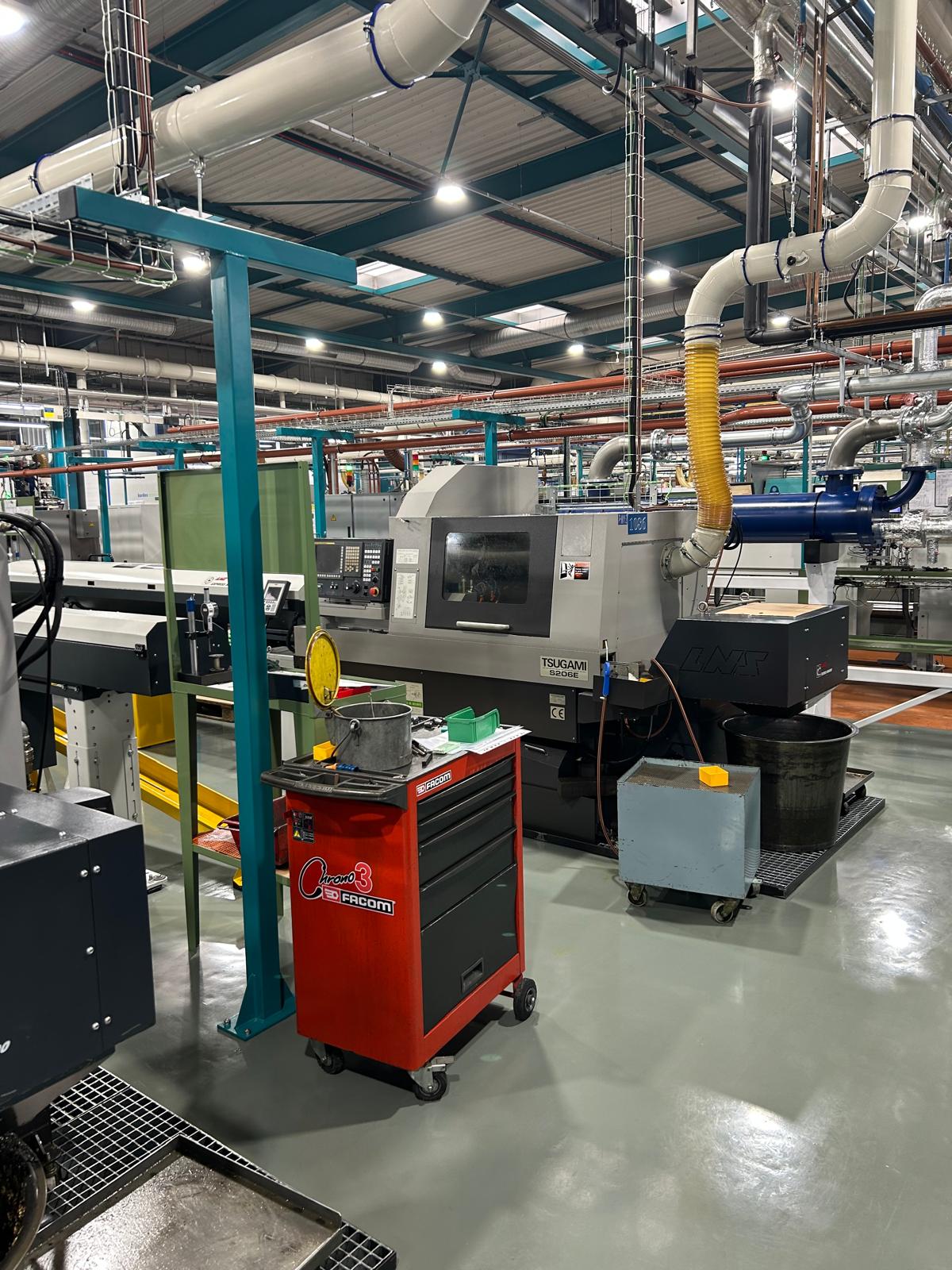

TSUGAMI S 206 E is a CNC automatic lathe / CNC Swiss type lathe designed for precision, high accuracy and reliable performance. Capacities: turning diameter 6–20 mm, maximum turning length 210 mm, internal spindle diameter 20 mm; 6 axes, 2 spindles, 25 tools. Key specs: spindle speeds 200–10,000 rpm, spindle power 3.7 kW, rapid traverse 35 m/min, voltage 50 Hz 3x400 V, machine weight ~3300 kg, dimensions L2110×W1200×H1885 mm. Accessory: LNS bar feeder EXPRESS 320. Enables tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
| Number of axis total | 6 |
| Number of spindles | 2 |
| Turning diameter | 6 - 20 mm |
| Maximum turning length | 210 mm |
| number of tools | 25 |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Spindle power | 3.7 kW |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Rapid traverse: | 35 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3300 kg |
| Overall dimensions machine: | |
| Length | 2110 mm |
| Width | 1200 mm |
| Height | 1885 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | EXPRESS 320 |
