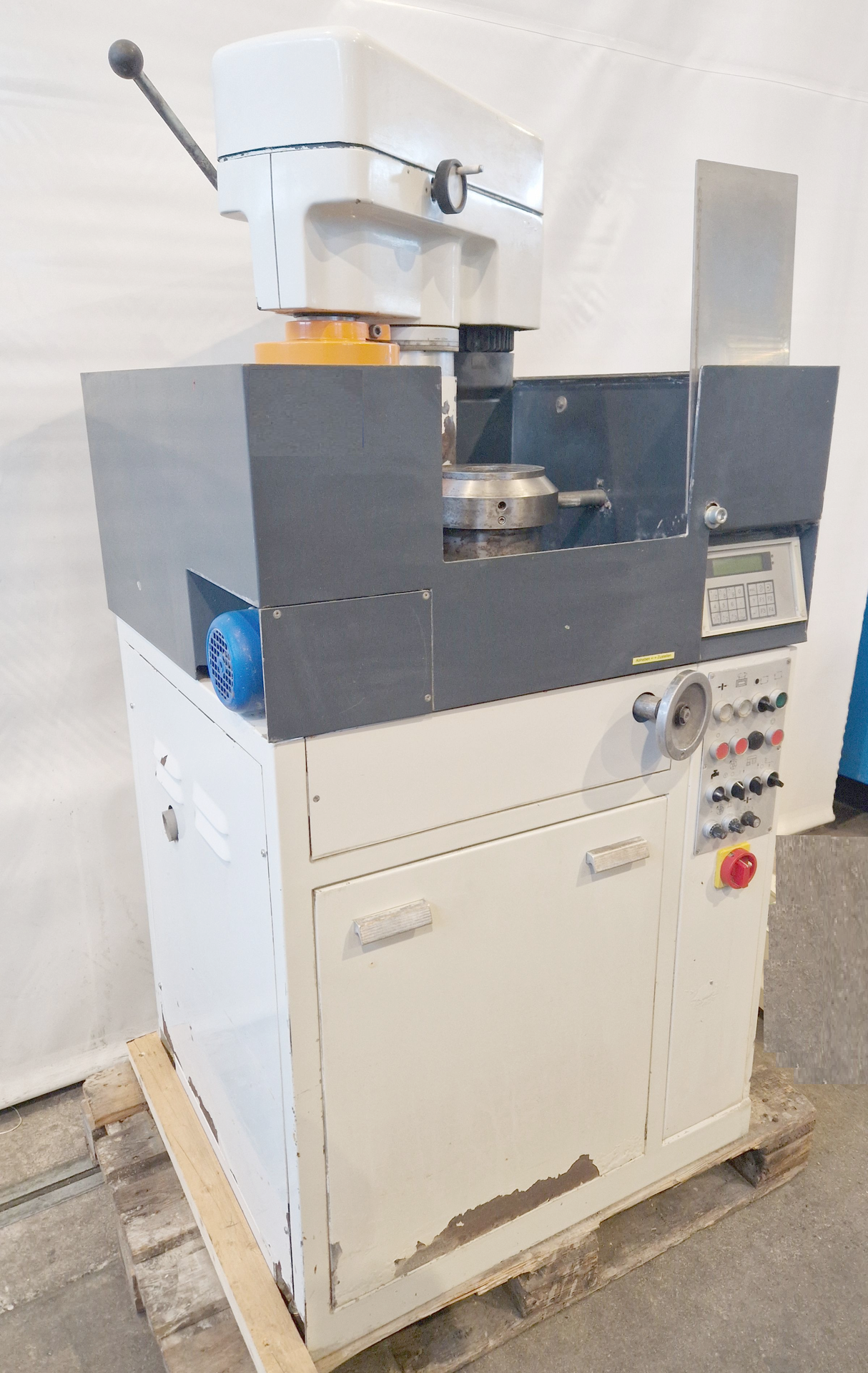

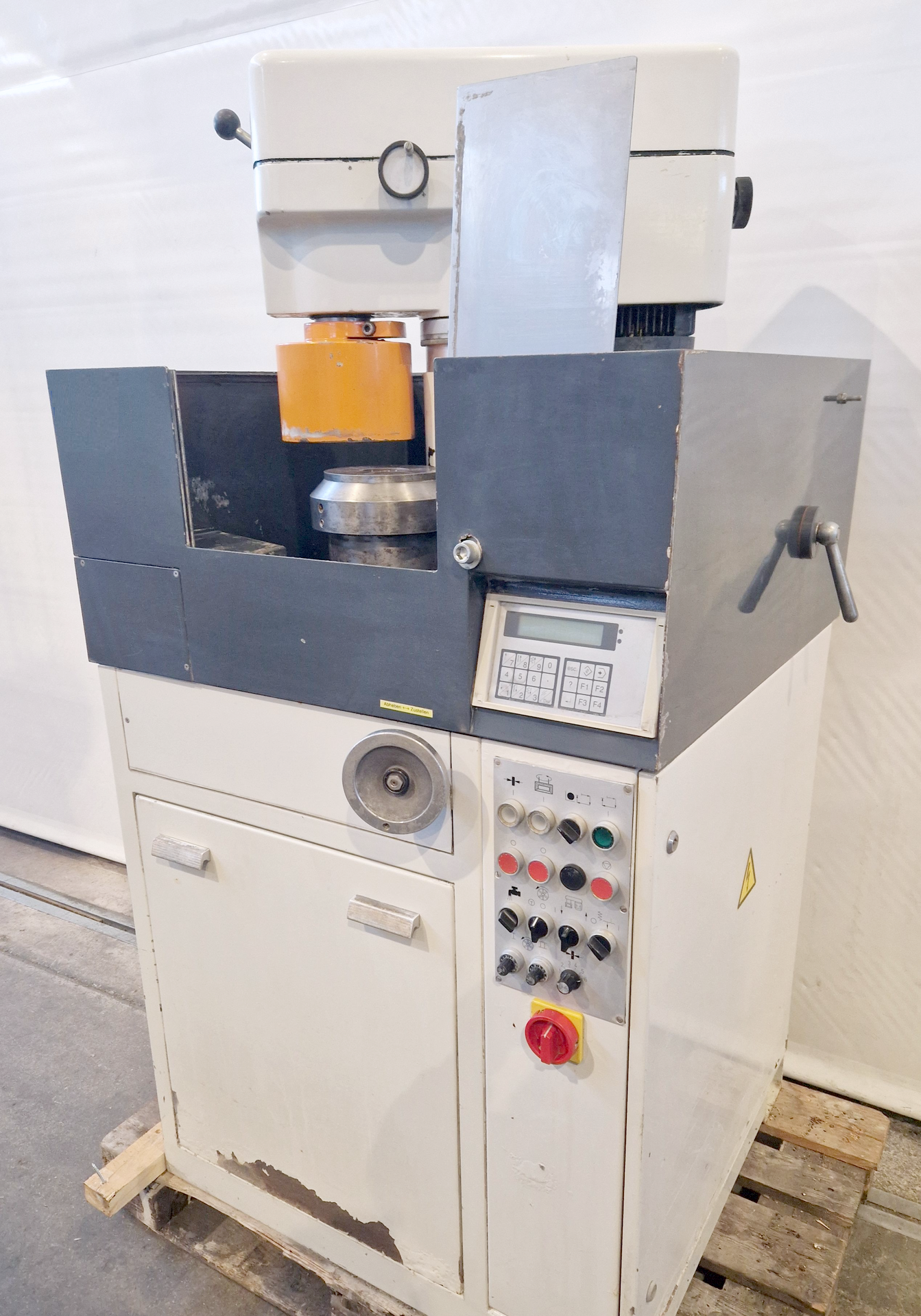

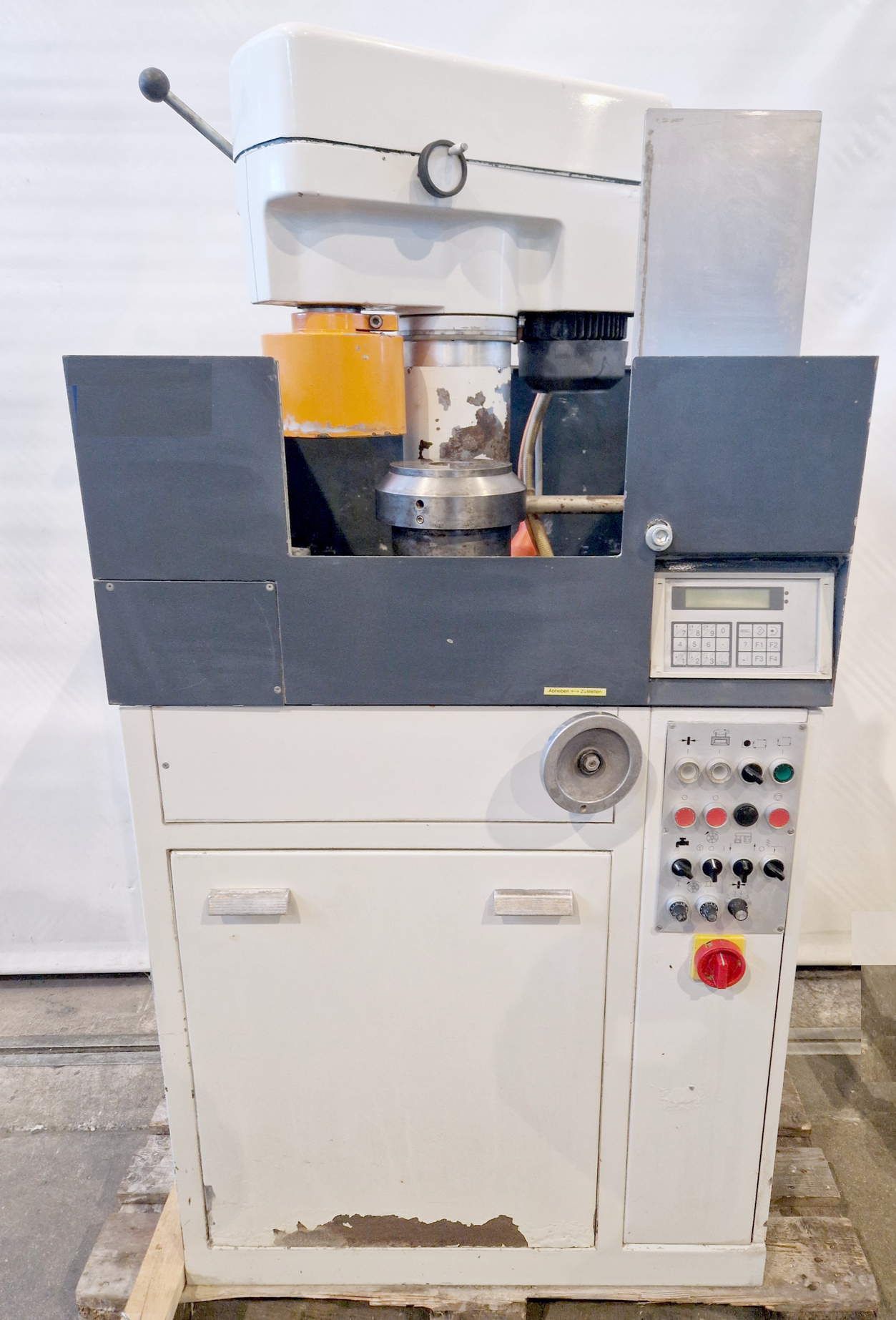

G&N MPS2-R300 is a Bell-disc grinder for precision, high accuracy and reliability. Capacities: wheel Ø175 mm; grinding height 170 mm; magnetic chuck Ø95 mm; max workpiece Ø300 mm; table up to 30 t/min; vertical travel 165/12 mm. Specs: spindle 2870 t/min; 50 Hz 3×400 V; 3 kVA; weight ~560 kg; dims 950×865×1730 mm. Prepared for coolant. Achieves tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Throwing wheel diameter | 175 mm |
| Circulary table diameter | 160 mm |
| Grinding height over table | 170 mm |
| Grinding height over | |

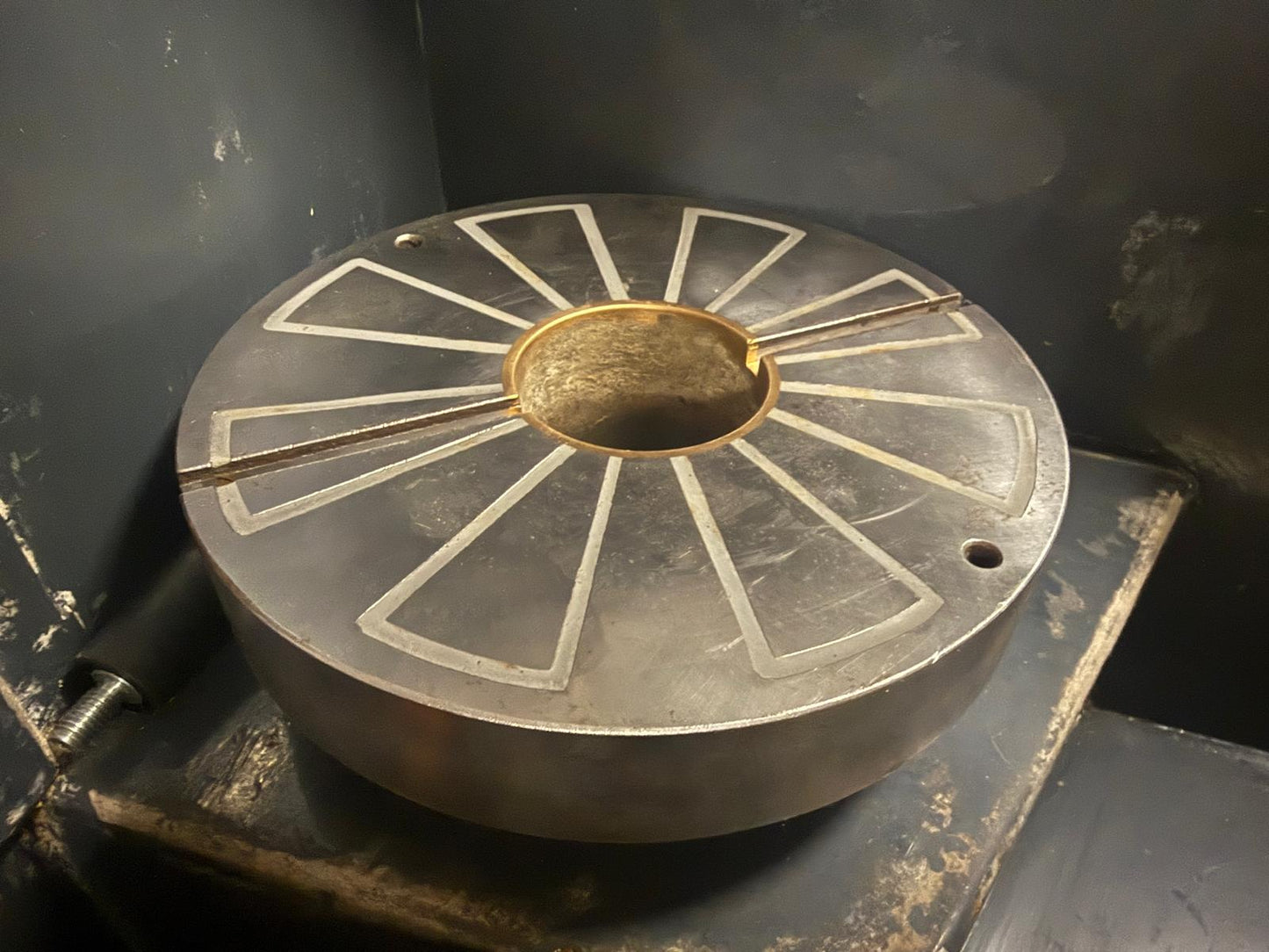

| Magnetic chuck | 95 mm |
| Max. work piece diameter | 300 mm |
| Table speeds: | |
| from | t/min |
| up to | 30 t/min |
| Grinding spindle speeds | 2870 t/min |
| Vertical adjustment rough | 165 mm |
| Vertical adjustment fine | 12 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 3 kVA |
| Machine's weight about | 560 kg |
| Overall dimensions machine: | |
| Length | 950 mm |
| Width | 865 mm |
| Height | 1730 mm |

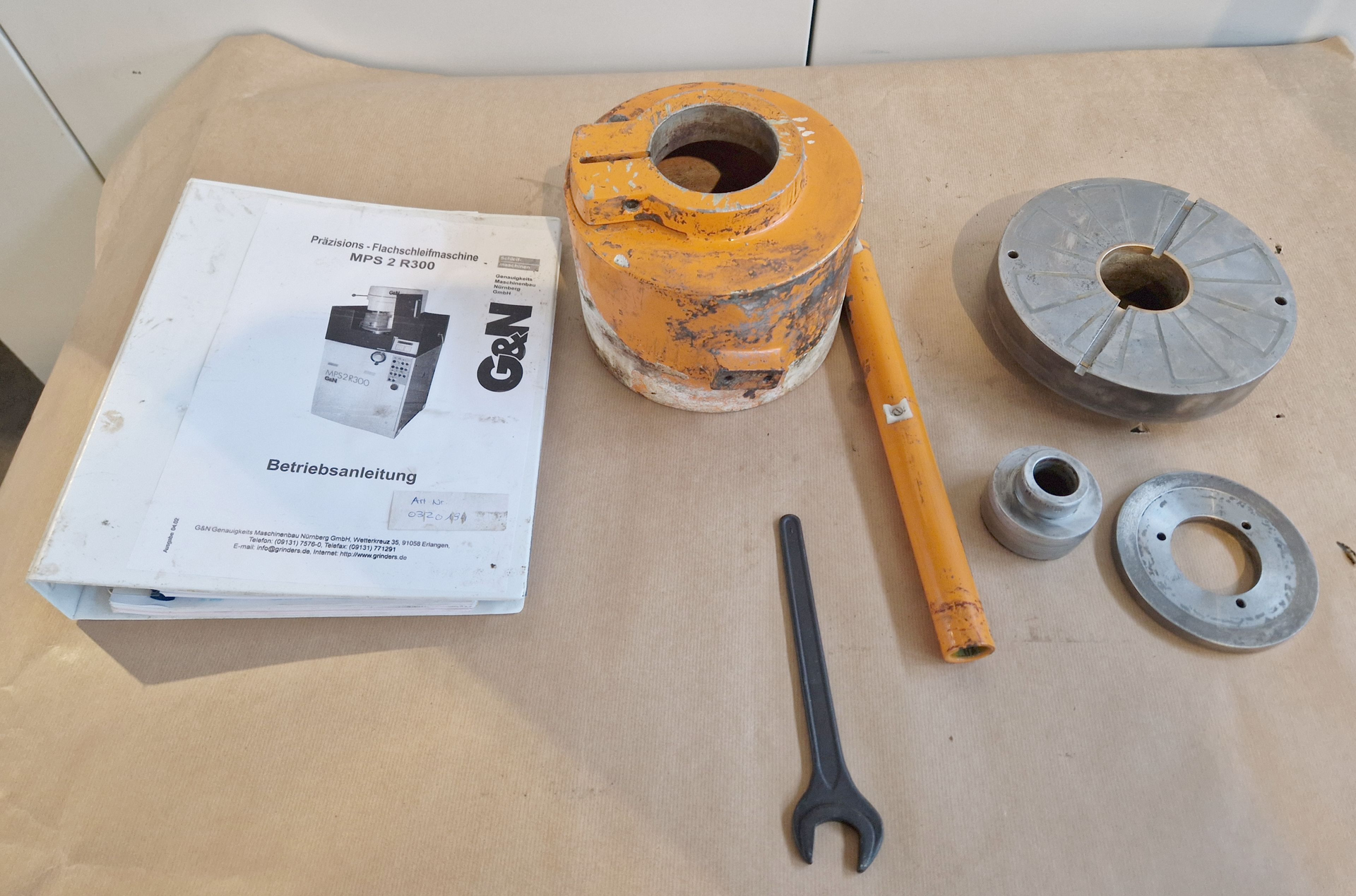

| Various accessories: | |
| Preparation for coolant device |
