EWAG RS 15 is a tool and cutter grinder designed for precision, high accuracy and reliability. Capacities: table 155×205 mm; X 490 mm, Y 130 mm; spindle inclination A -10/+27°; B axis 260°; oscillation 0–70 mm at 30/60 min⁻¹; radius (Z) 0–115 mm; support travel 60 mm; pneumatic swivel lock 40 Nm; contact pressure 0–400 N. Specs: grinding spindle stepless 1,000–8,000 rpm; spindle motor 2.2 kW; supply 3×400 V 50 Hz; total power 5 kVA; weight ≈1800 kg; machine 1630×1250×1900 mm; control 1000×400×960 mm; Z-axis accuracy not stated. Accessories: 3‑axis digital readout, 2 dividing attachments, redressing device, adjustable projector, cold light, central lubrication. Achieves tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical.
Technical specifications are subject to change without notice
| Table length | 155 mm |
| Table width | 205 mm |
| X axis | 490 mm |
| Y axis | 130 mm |
| Spindle inclination (A-axis) | -10 / +27 ° |
| B axis swivelling range | 260 ° |
| Oscillation size | 0 - 70 mm |
| Oscillation | 30 / 60 min-1 |
| Grinding spindle speeds: | |
| stepless | |
| from | 1000 t/min |
| up to | 8000 t/min |
| Workpiece carriage: | |
| Radius adjustment (Z-axis) | 0 - 115 mm |
| Adjustment accuracy of the Z axis | mm |
| Cross table clamping surface | 155 x 205 mm |
| Courses support | 60 mm |
| Pneumatic swivel lock | 40 Nm |
| Contact pressure variable | 0 - 400 N |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 2.2 kW |
| Total power required | 5 kVA |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 1630 mm |
| Width | 1250 mm |
| Height | 1900 mm |
| Dimensions of the control: | |
| Length | 1000 mm |
| Width | 400 mm |
| Height | 960 mm |
| Various accessories: | |
| Digital readout number of axis: | 3 |

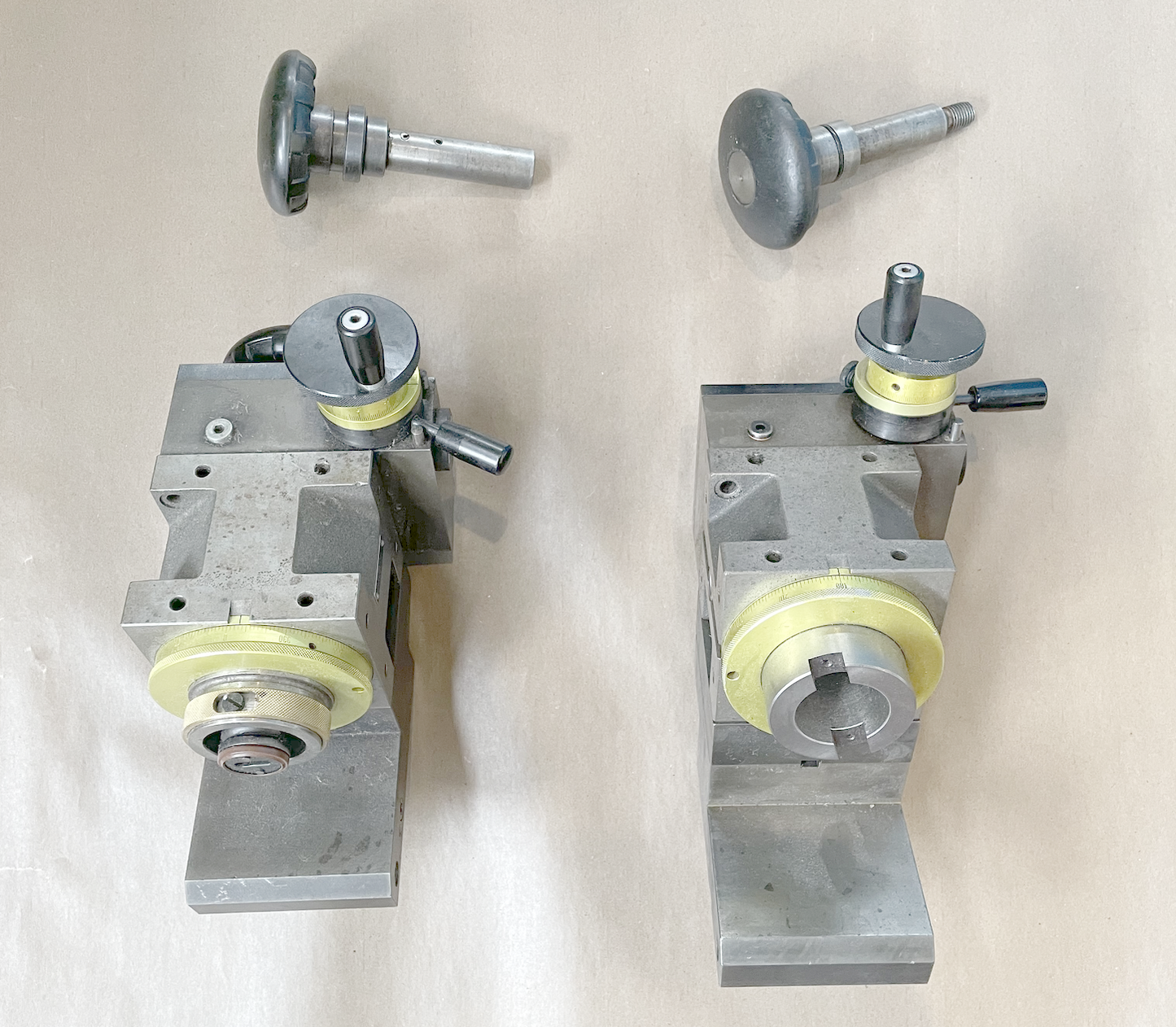

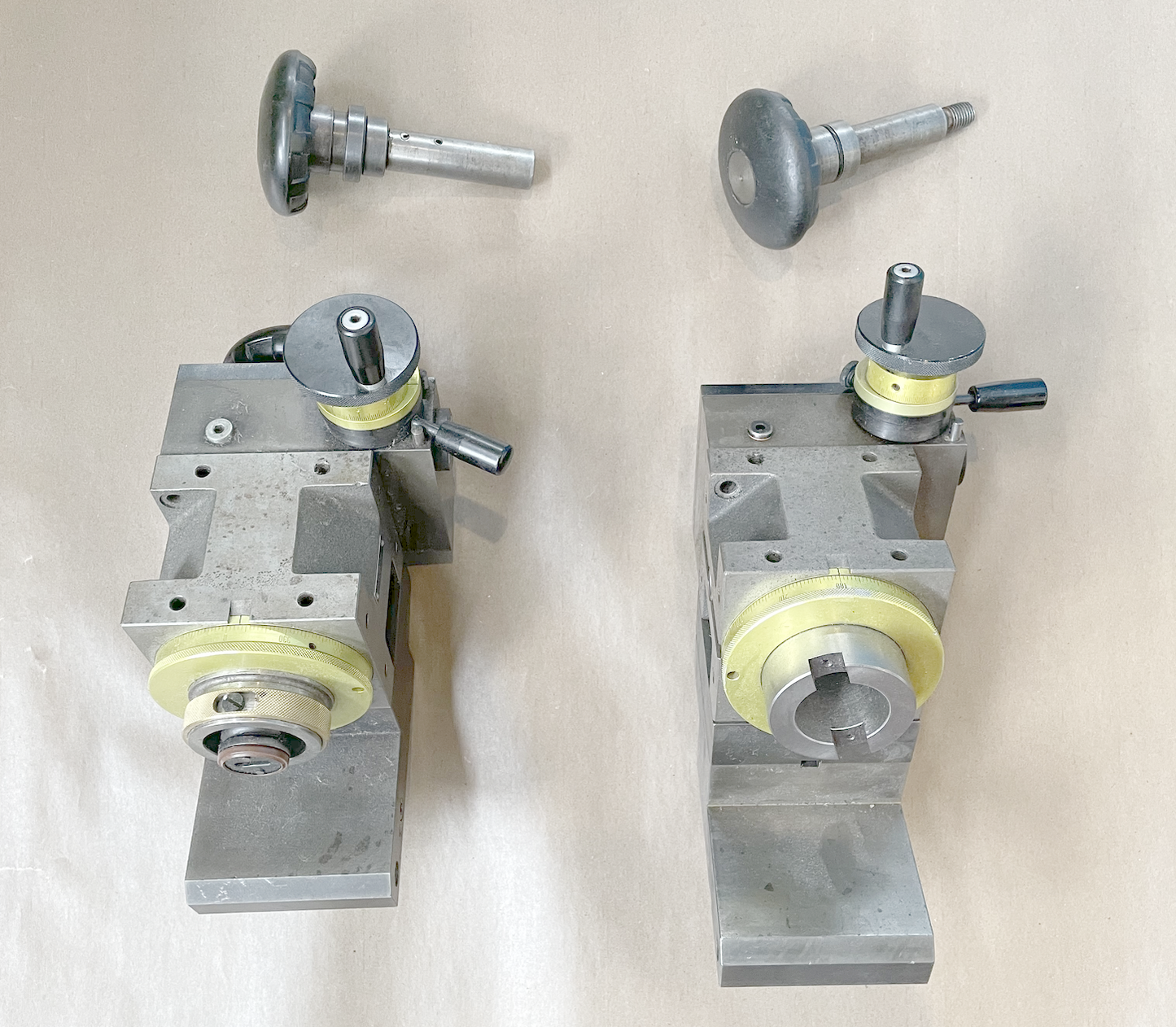

| Dividing attachment | 2x |
| Redressing device | |
| Adjustable projector | |
| Cold light | |
| Central lubrification |
