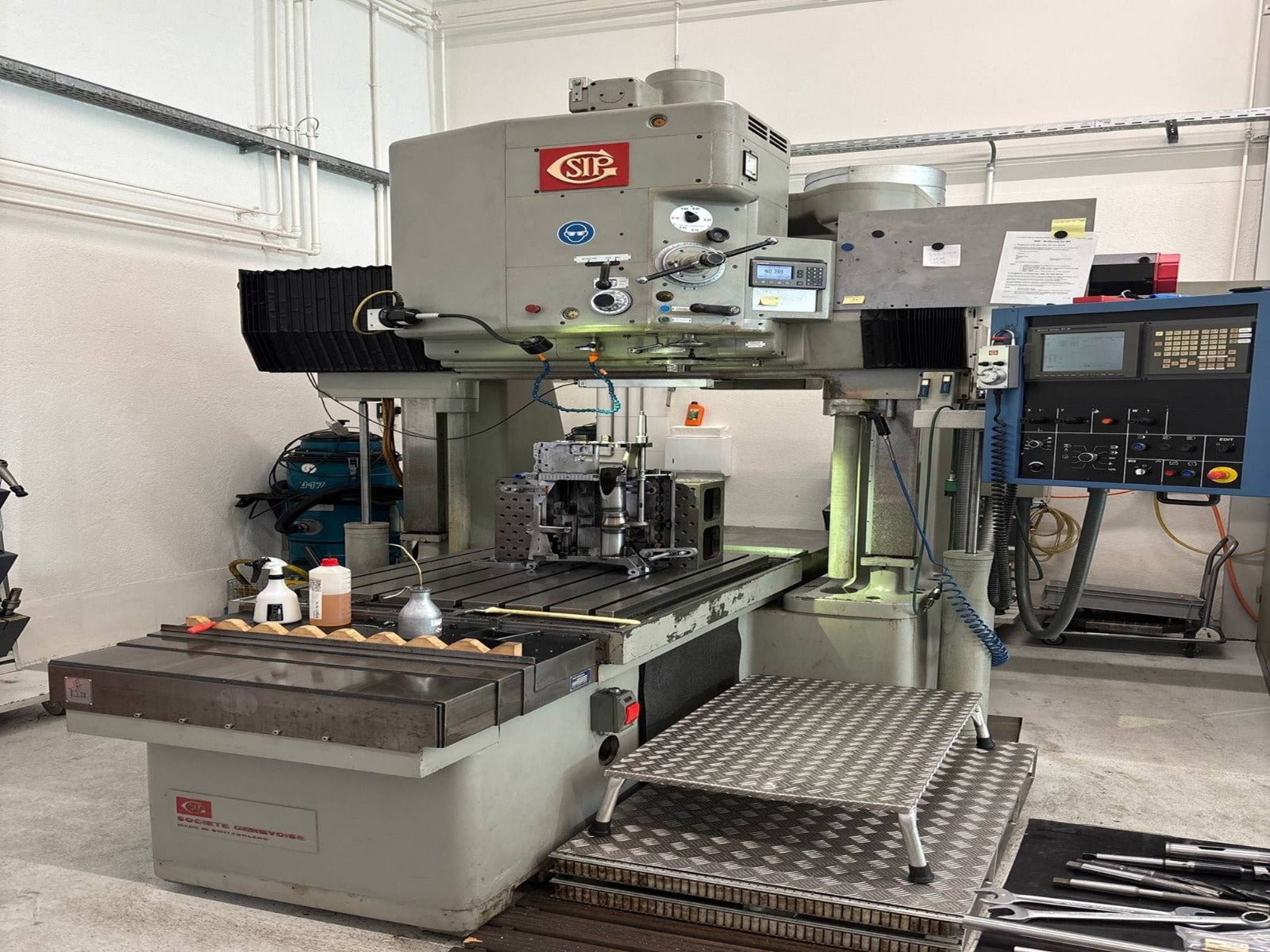

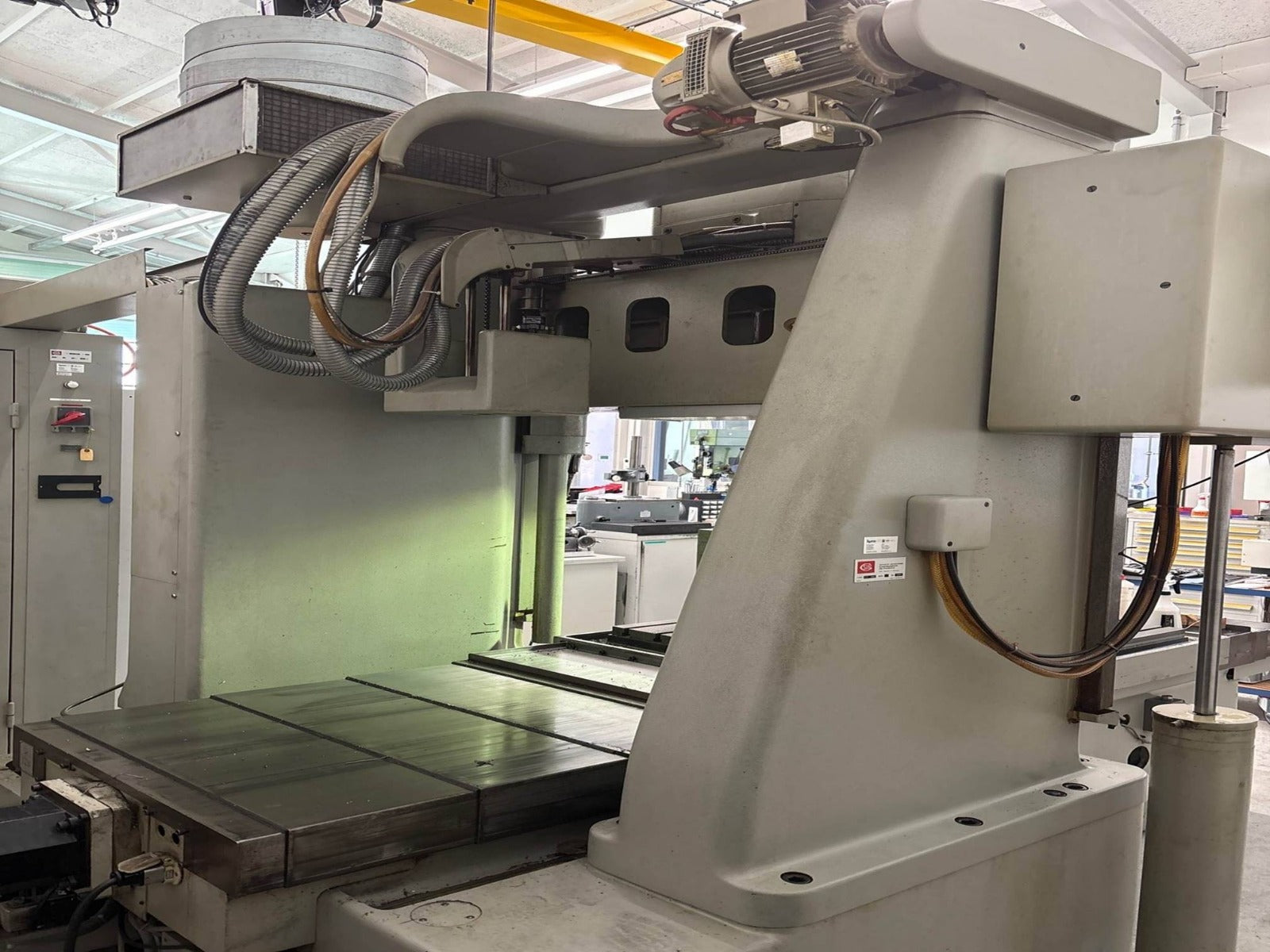

SIP 600 is a jig boring machine of high precision, accurate and reliable. Capacities: table 1100×842 mm (T16), load 1500 kg; travels X1000 Y700 Z300 mm; spindle Ø135 mm; column span 1100 mm; spindle‑to‑table 1000 mm. Specs: MT4; 40–2000 t/min; feeds 1–6000 mm/min; slide 0.04–0.35 mm/t; 3x380V 50Hz; spindle motor 8 CV (5.9 kW); 12 kVA; weight ≈10000 kg; size 2930×3480×3235 mm. Accessories: set of toolholders. Suited to tight tolerances in automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Table length | 1100 mm |
| Table width | 842 mm |
| T-channel width | 16 mm |
| Table load max. | 1500 kg |
| Longitudinal travel (X-axis) | 1000 mm |
| Transversal travel (y-axis) | 700 mm |
| Vertical travel (z axis) | 300 mm |
| Taper in spindle: MT | 4 |
| Diameter of drilling spindle | 135 mm |
| Spindle speeds: | |
| from | 40 t/min |
| up to | 2000 t/min |
| Feeds: | |
| number (steps) | |
| from | 1 mm/min |
| up to | 6000 mm/min |
| Drill spindle slide: | |
| from | 0.04 mm/t |
| up to | 0.35 mm/t |
| Distance between columns | 1100 mm |
| Distance between spindle | |
| and table | 1000 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 8 CV |
| Spindle motor | 5.9 kW |
| Total power required | 12 kVA |
| Machine's weight about | 10000 kg |
| Overall dimensions machine: | |
| Length | 2930 mm |
| Width | 3480 mm |
| Height | 3235 mm |
| Various accessories: | |

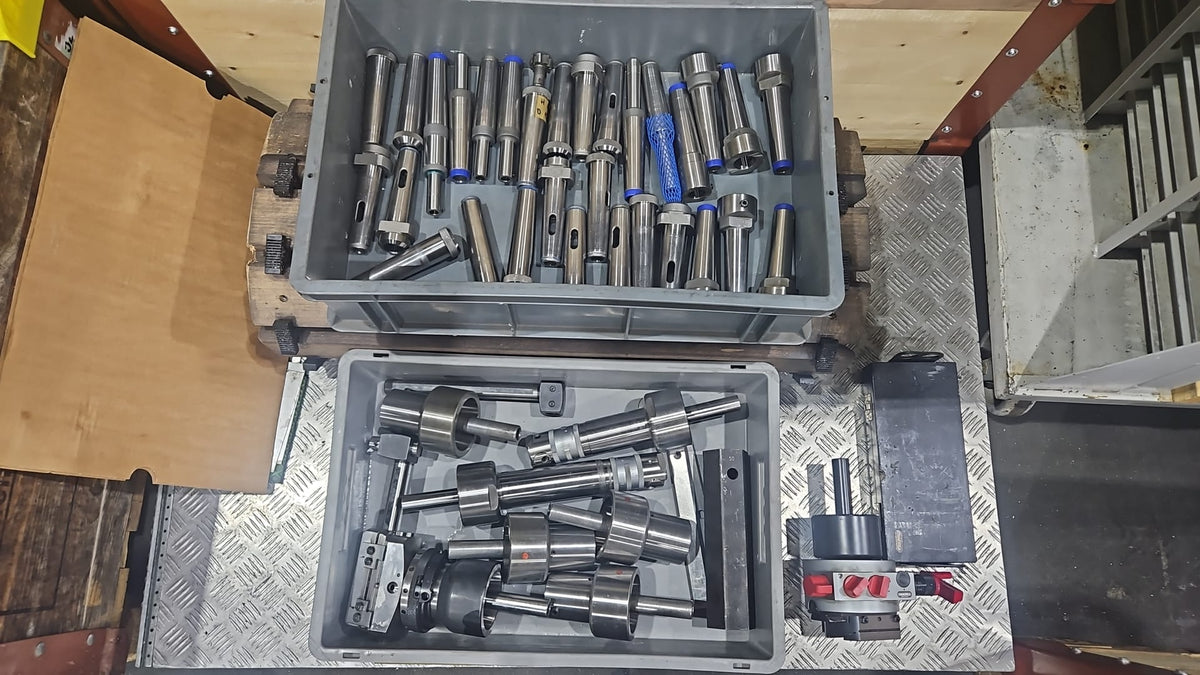

| Set of toolholders |
