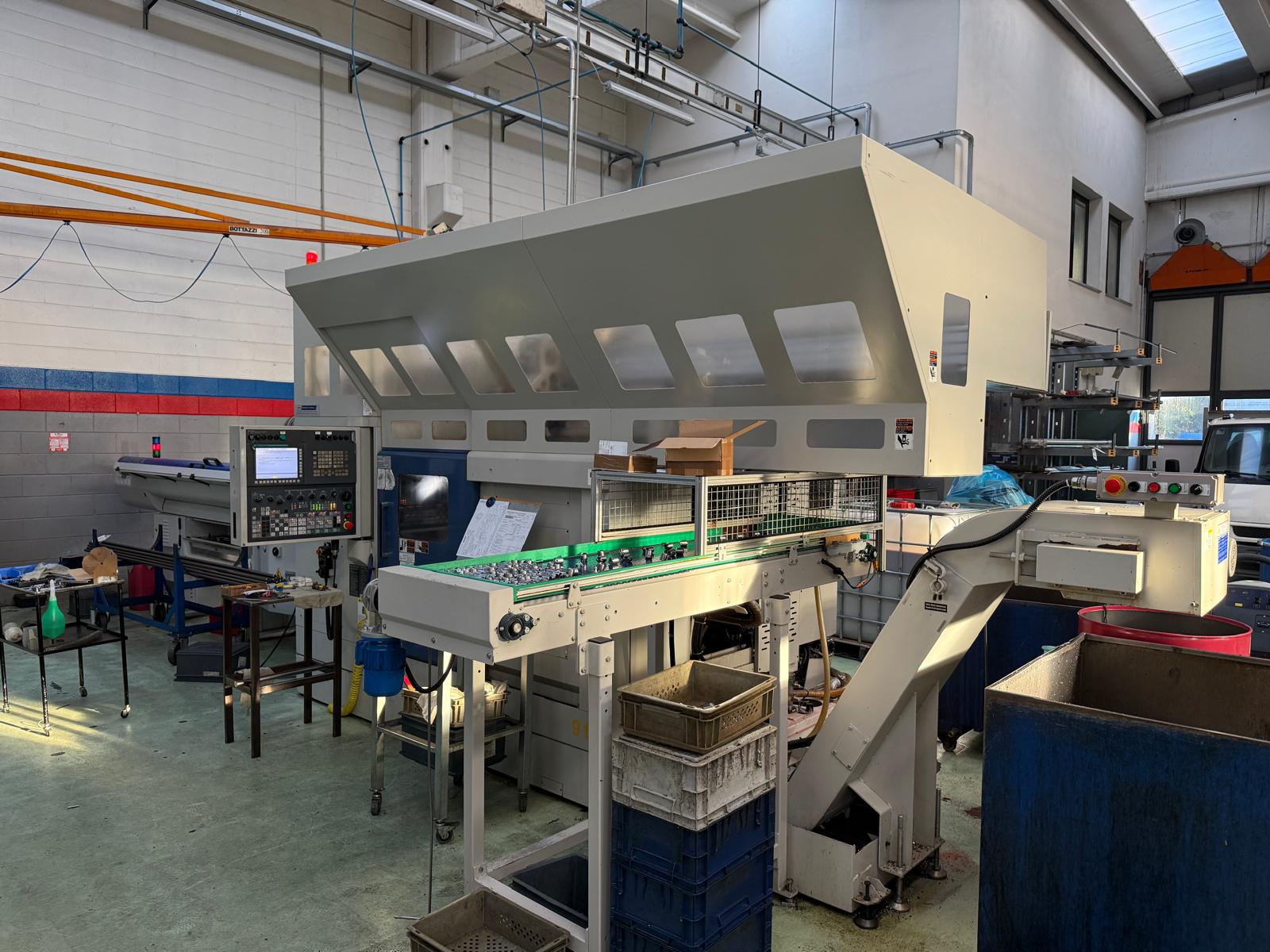

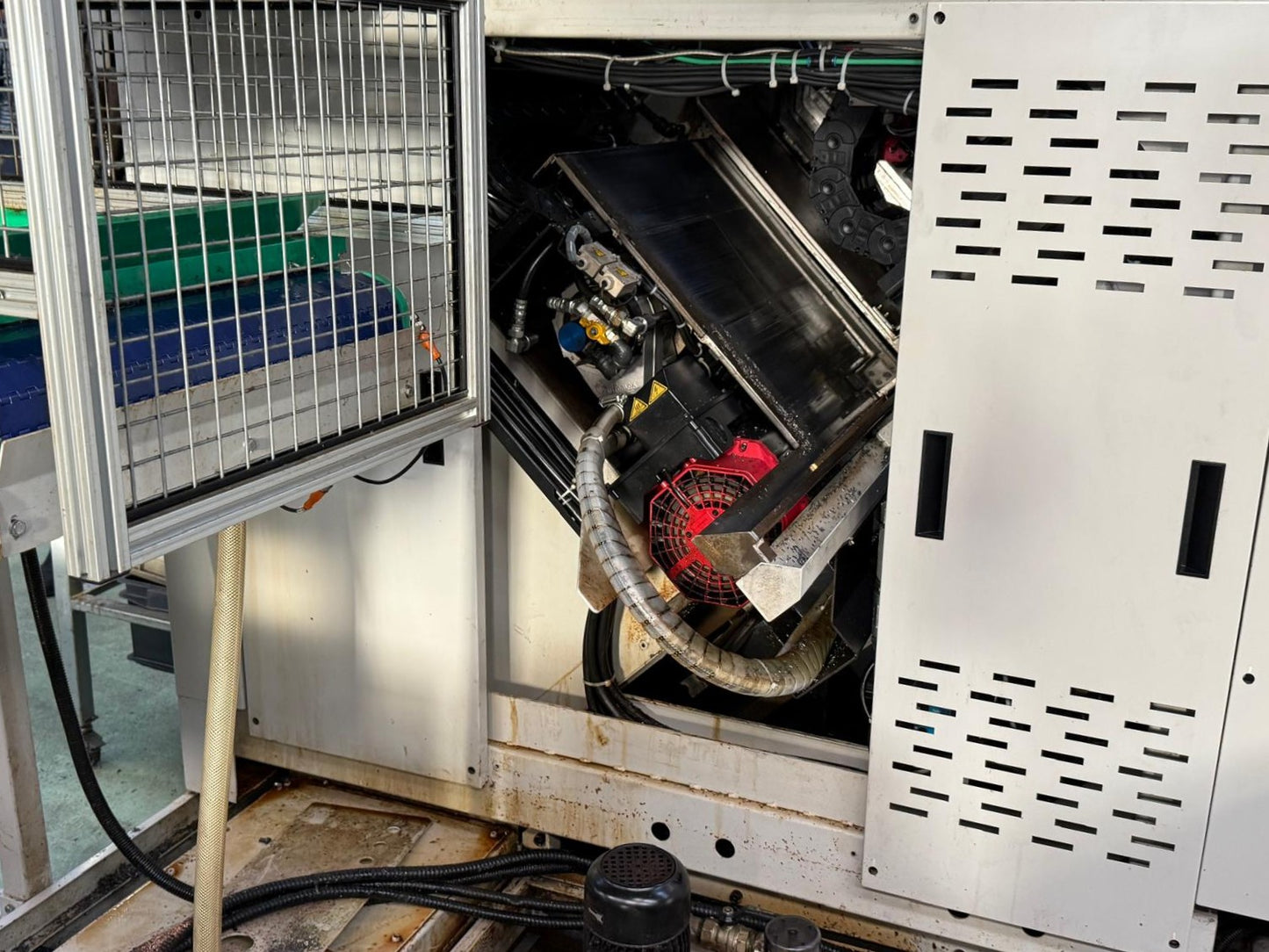

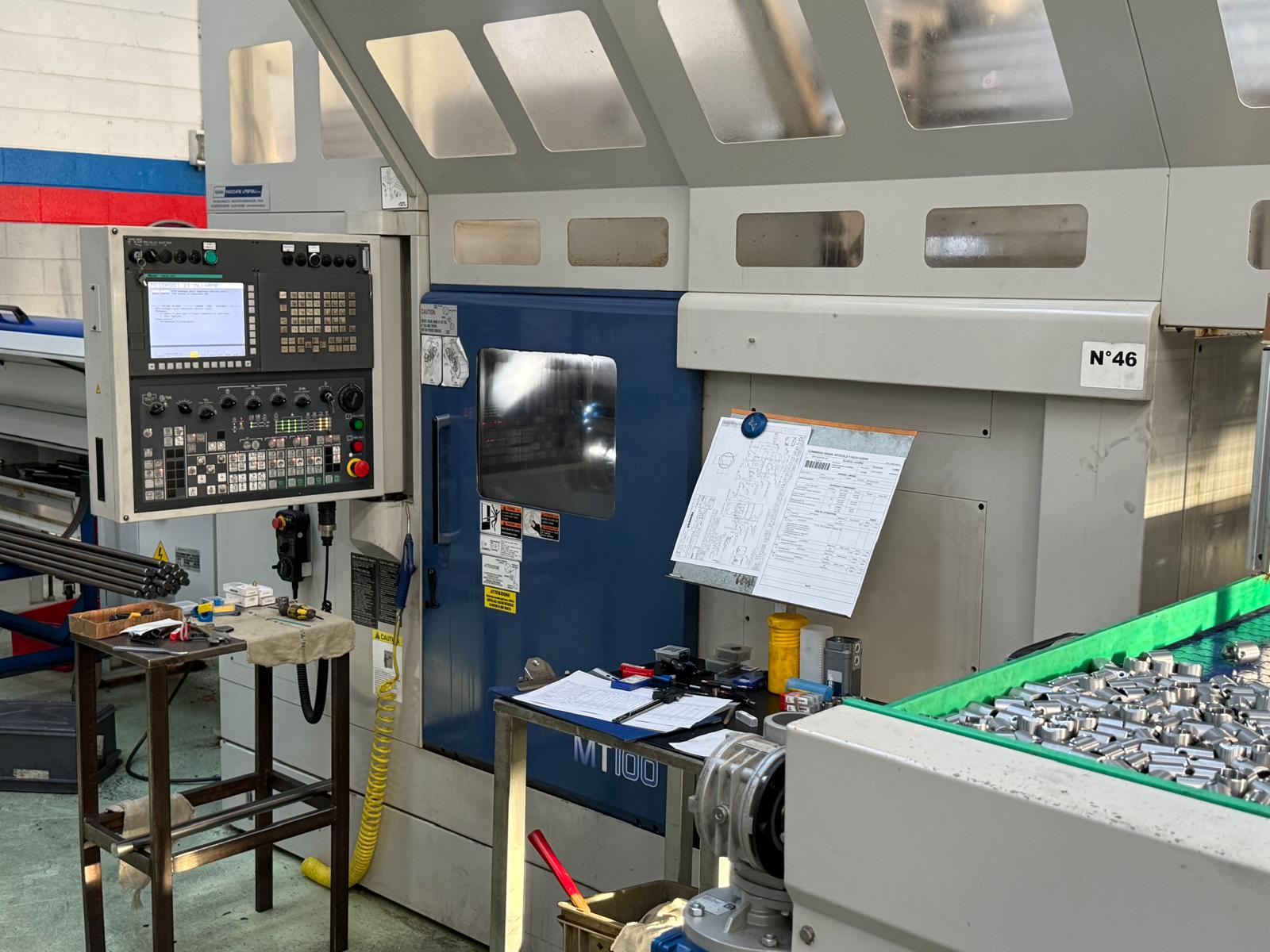

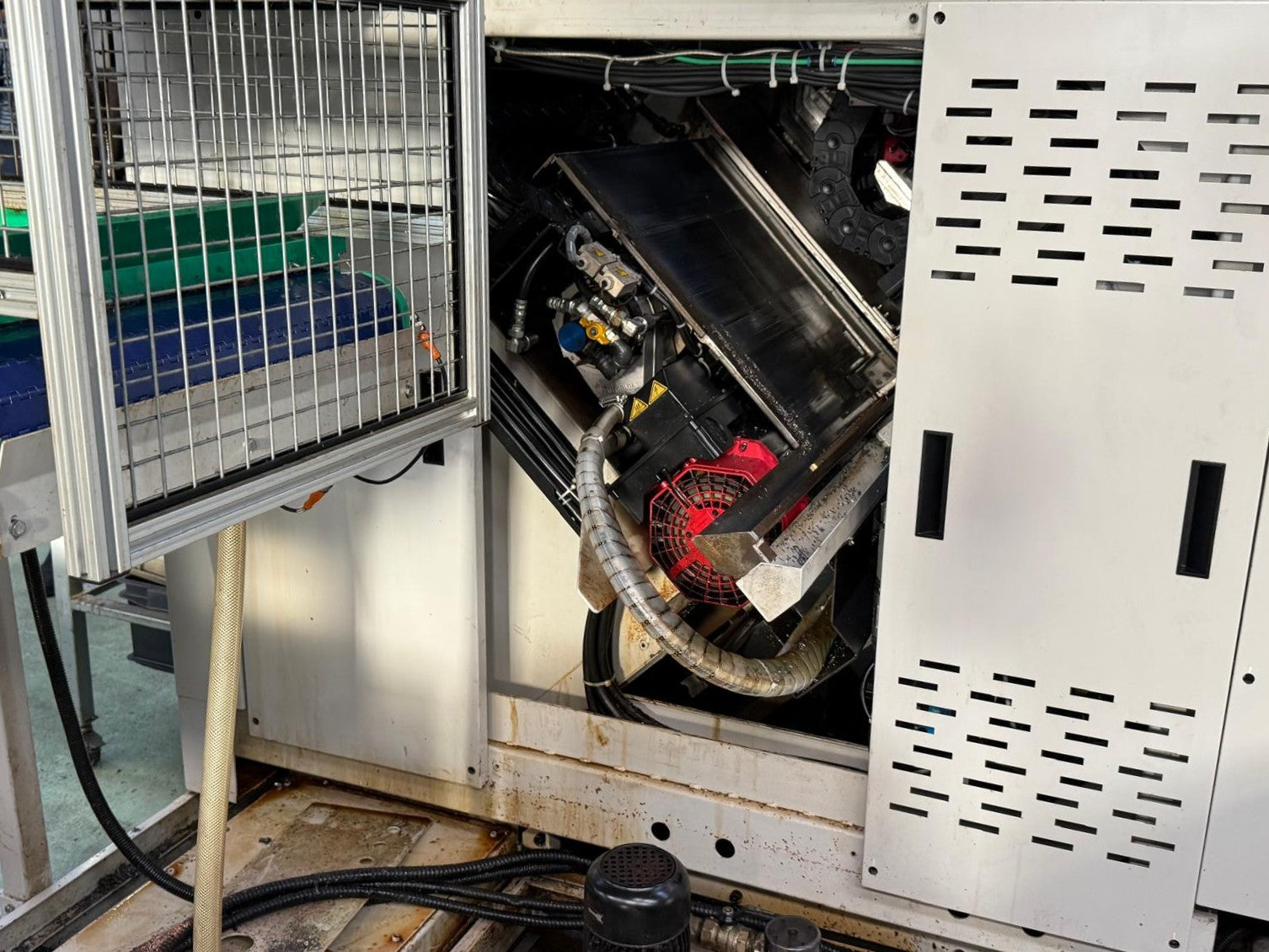

MURATEC MT 100 is a CNC double spindle lathe designed for precision, high accuracy and reliability. Capacities: swing 190 mm, max bar Ø 51 mm; 2 spindles; 2 turrets with 15 positions each. Travels X 150 mm, Y ±30 mm, Z 620 mm; back spindle stroke 680 mm. Specs: stepless main spindle 0–6000 rpm, back spindle max 6000 rpm; driven tools up to 6000 rpm (2.2 kW); spindle motor 11/7.5 kW; rapid X 24 / Z 40 / Y 12 m/min; 3x400 V 50 Hz; weight ~8000 kg; size 4120×2130×2815 mm. Equipment: IEMCA BOSS 552 bar feeder, coolant, collet set, toolholder set, chip conveyor, electronic handwheel, C axis. Delivers tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine tool industries
| Number of turning spindles | 2 |
| Number of revolvers | 2 |
| Swing diameter | 190 mm |
| Spindle nose | JIS A2-5 mm |
| Max. bar diameter | 51 mm |
| Turret slide: number | 2 |
| Number of positions turret 1 | 15 |
| Number of positions turret 2 | 15 |
| Driven tools turret | 6000 |
| Power of driven tools | 2.2 kW |
| Upper turret head: | |
| X axis | 150 mm |
| Y axis | + / -30 mm |
| Z axis | 620 mm |
| Lower turret head: | |
| X axis | 150 mm |
| Y axis | + / -30 mm |
| Z axis | 620 mm |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 6000 t/min |
| Back spindle mobile: | |
| max. speed | 6000 t/min |
| Back spindle stroke | 680 mm |
| Rapid traverse X | 24 m/min |
| Rapid traverse Z | 40 m/min |
| Rapid traverse Y | 12 m/min |
| Spindle motor | 11 / 7.5 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 4120 mm |
| Width | 2130 mm |
| Height | 2815 mm |
| Various accessories: | |
| Set of collets | |

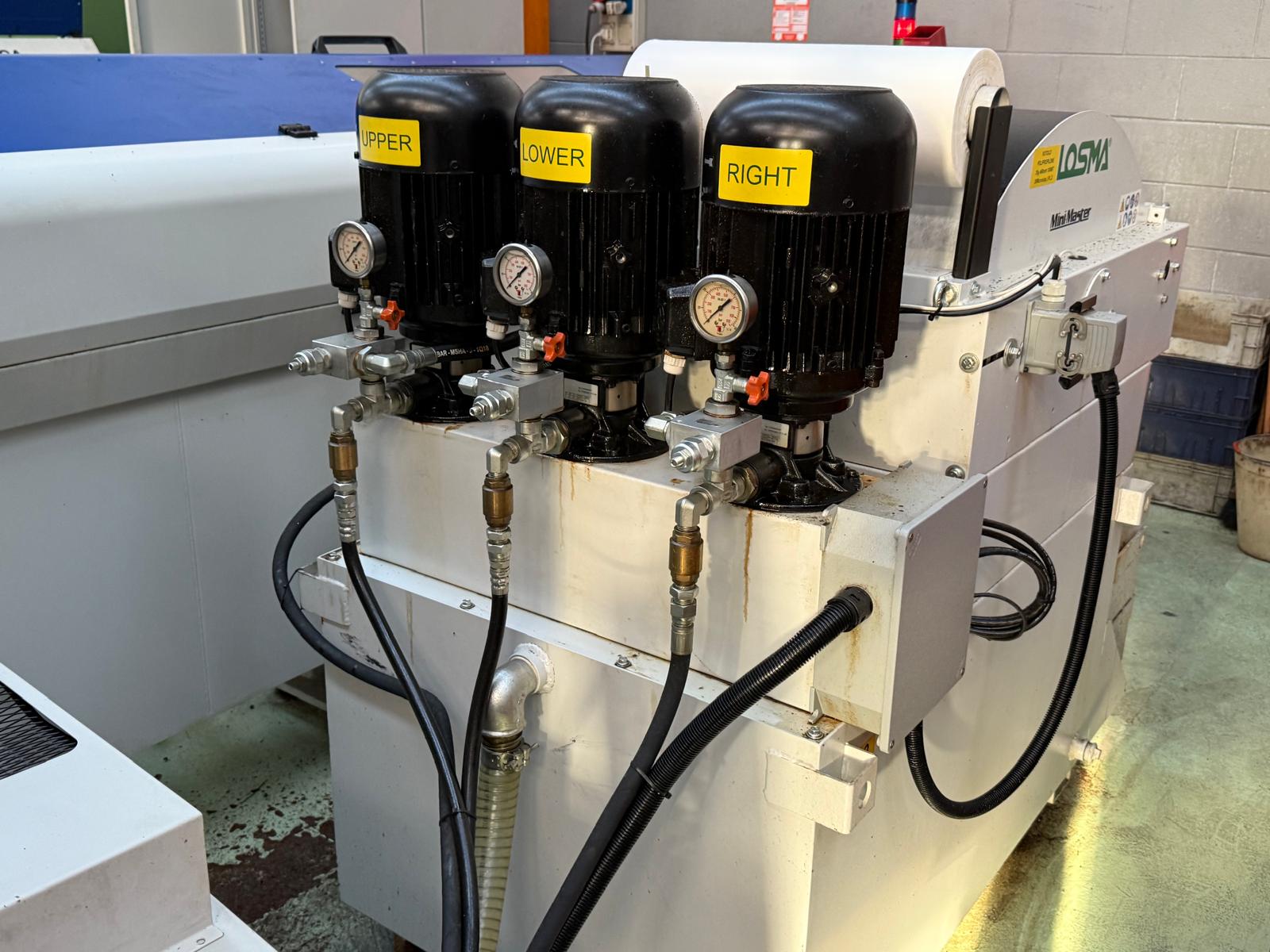

| Coolant system | |

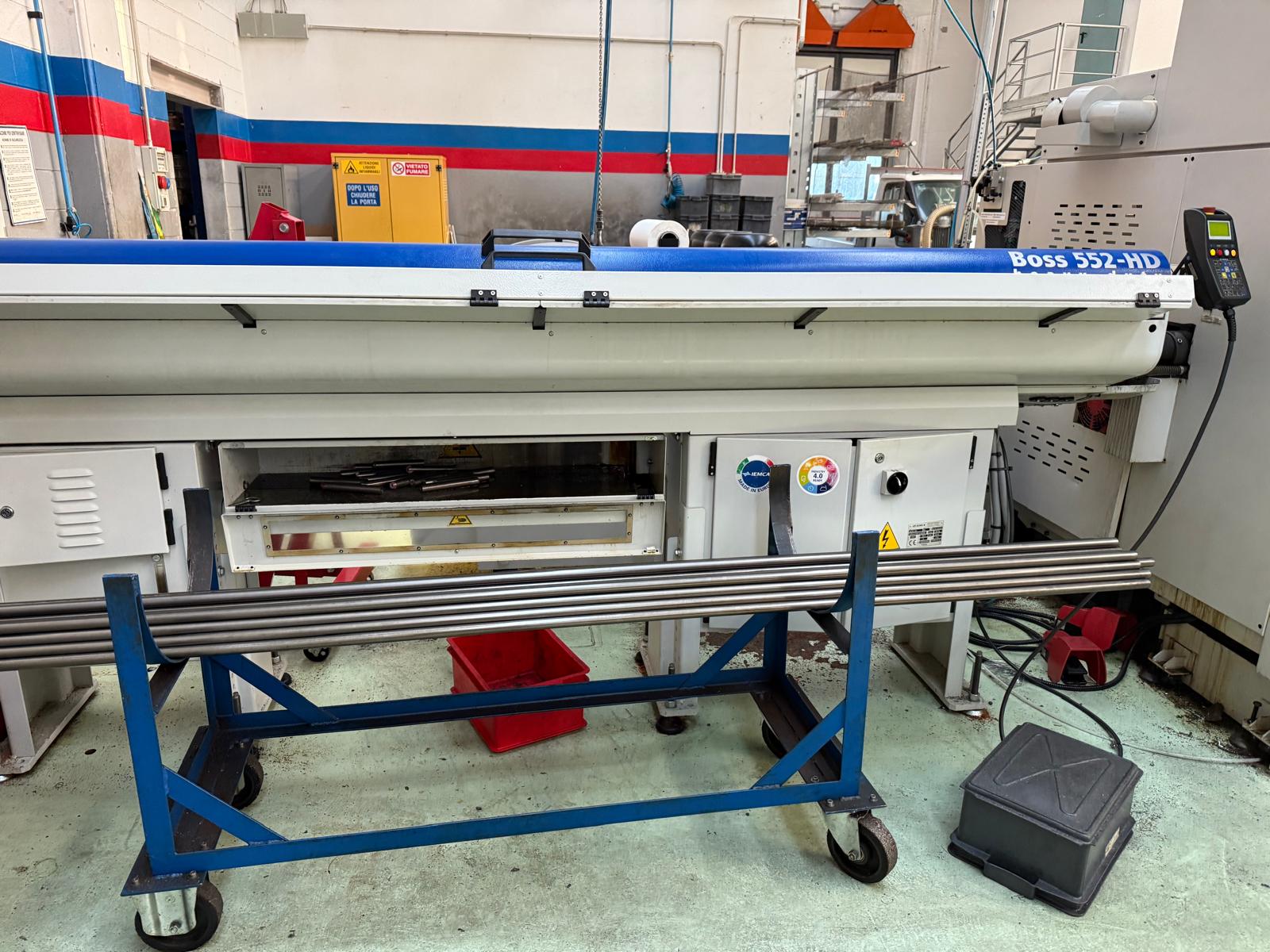

| Bar feeder | IEMCA |
| Type | BOSS 552 |

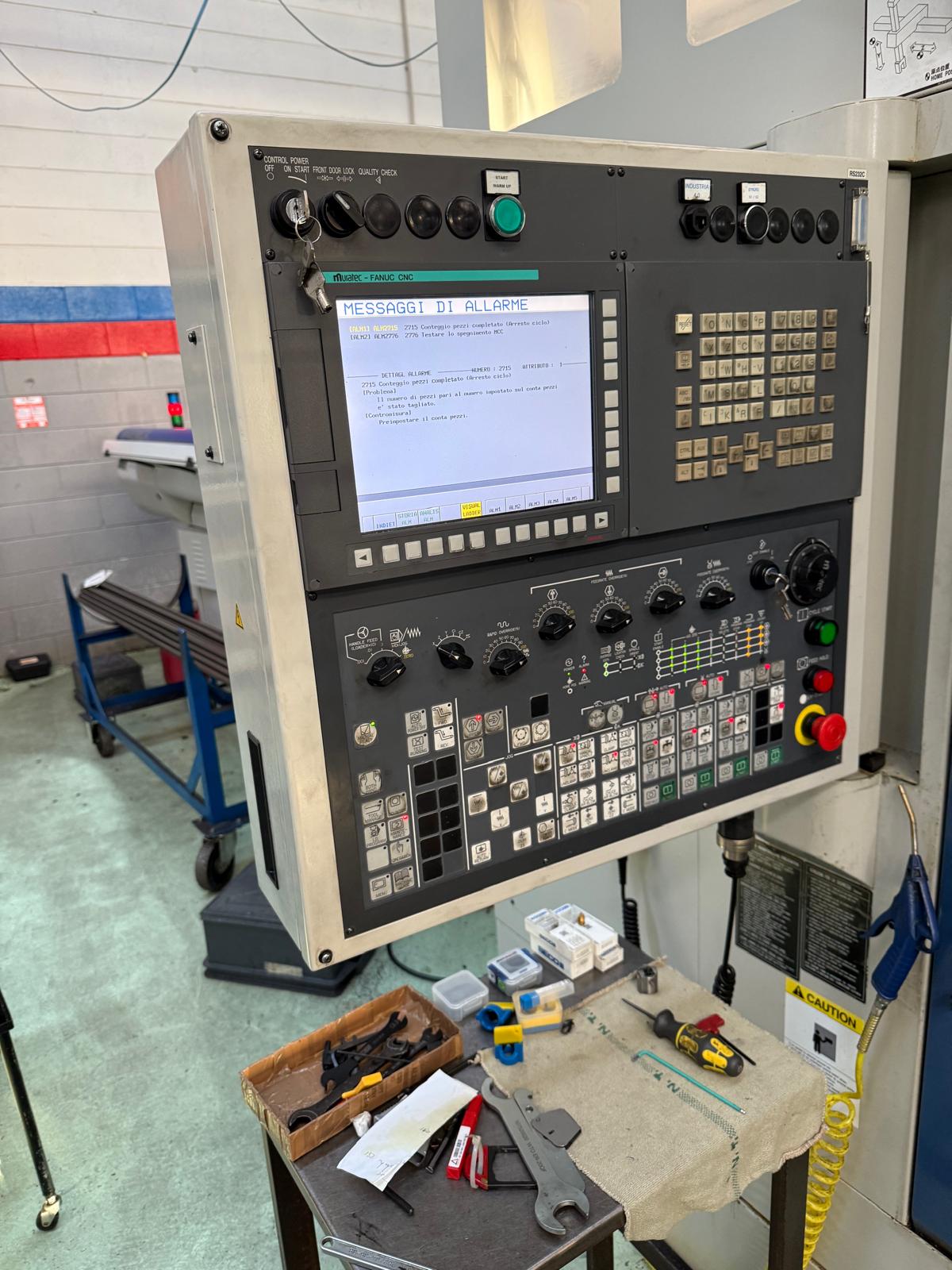

| Handwheel electroinic | |
| C axis | |
| Chip conveyor | |

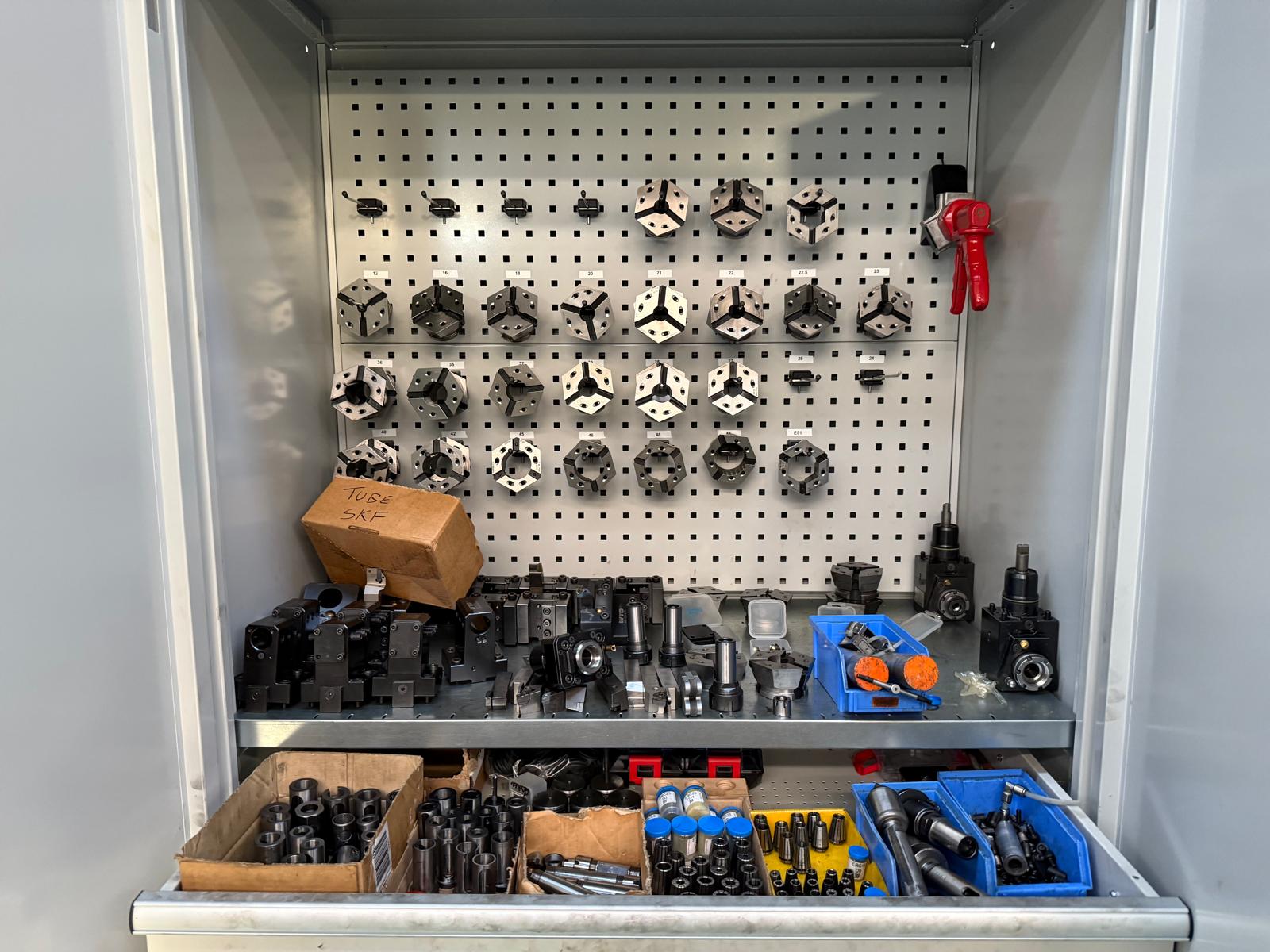

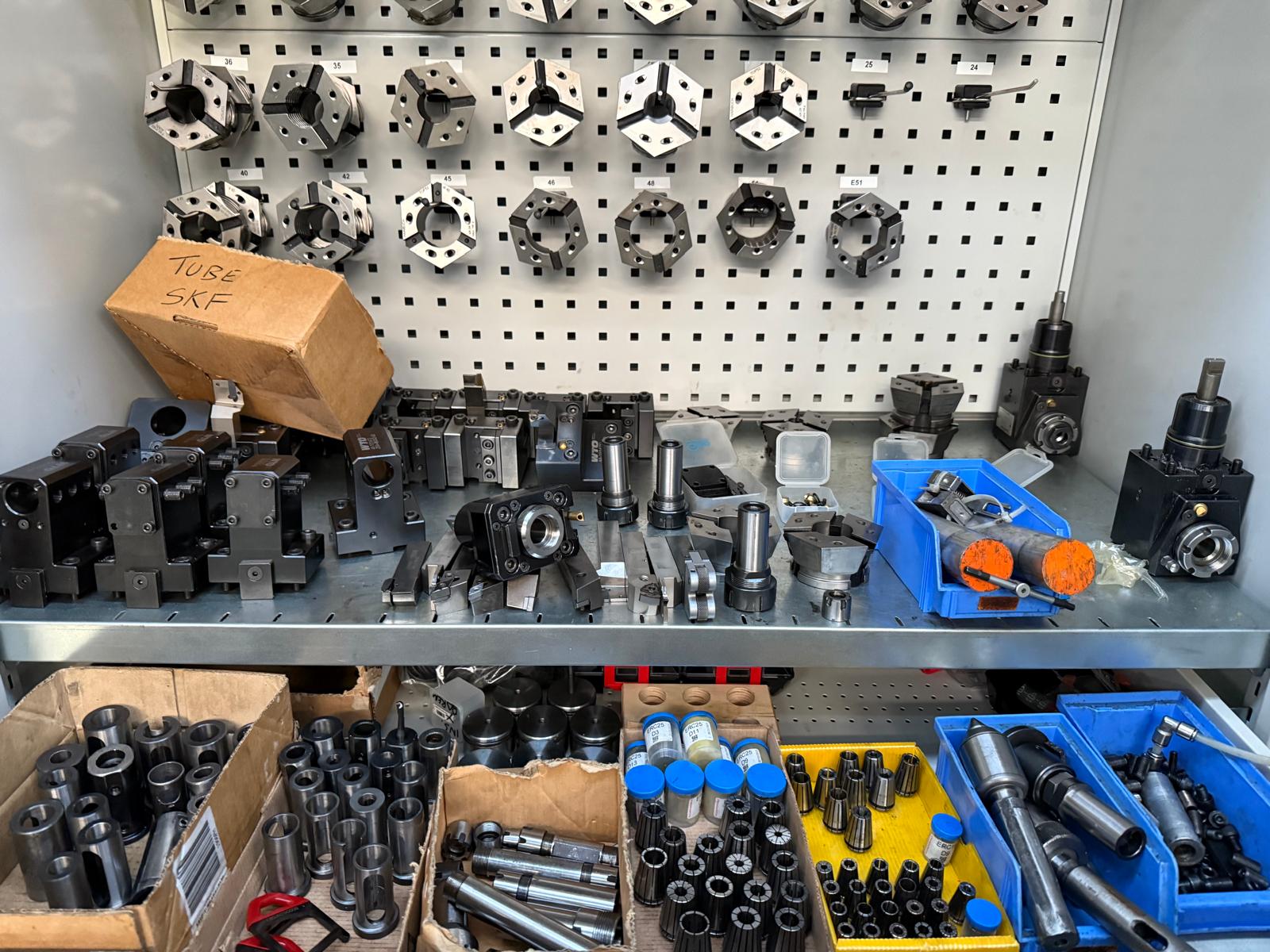

| Set of toolholders |
