KELLENBERGER KEL-VISTA UR 175/1000
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Centre height | 175 mm |
| Distance between centres | 1000 mm |
| Workpiece weight on centres max. | 100 kg |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 63 mm |
| Bore | 127 mm |
| Rotatable grinding spindle head (b-axis) | +10/-210 man. ° |
| Peripheral speed | 35 m/s |
| Work piece spindle head (B-axis) | Manuel |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 8 t/min |
| up to | 800 t/min |
| rotatable | +100 / -10 man. ° |
| taper in spindle: MT | ASA 5/ MK 5 |
| Taper in tailstock: | 4 CM |
| Tailstock travel of barrel | 50 mm |
| Table speed: | |
| stepless | |
| Rapid motion | 12 m/min |
| Max. table angular displacement | 9 ° |
| Grinding spindle motor | 5 kW |
| Overall dimensions machine: | |
| Length | 3200 mm |
| Width | 1700 mm |
| Height | 2000 mm |
| Various accessories: | |
| Coolant system | |

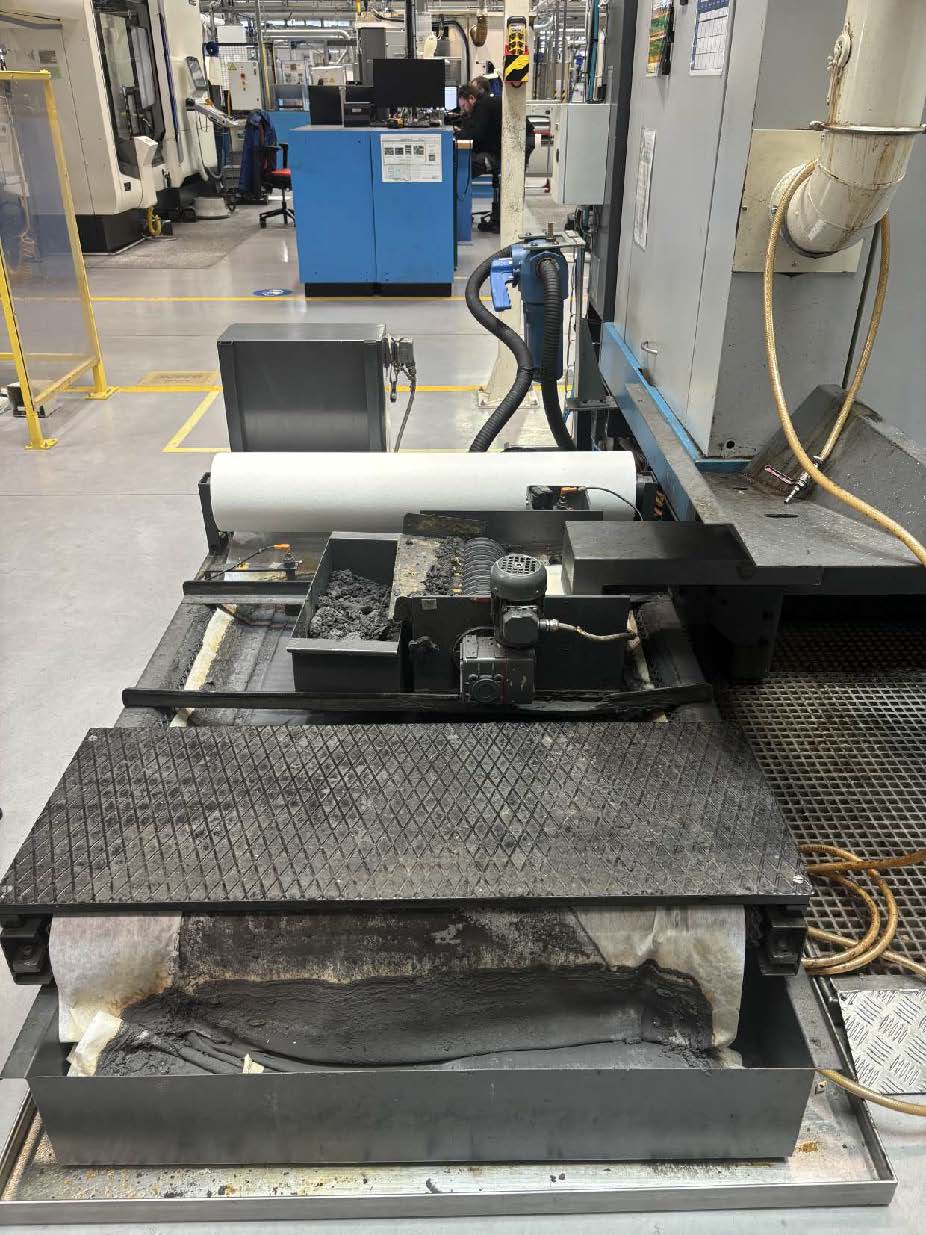

| Paper filtration system | |
| Set of grinding wheels |
KELLENBERGER KEL‑VISTA UR 175/1000 is a CNC cylindrical grinder, engineered for precision, high accuracy and reliability. Capacities: centre height 175 mm, distance between centres 1000 mm, max workpiece 100 kg; grinding wheel Ø400×63 mm, bore 127 mm; tailstock travel 50 mm, max table tilt 9°. Specs: wheel peripheral speed 35 m/s, spindle speeds 8–800 t/min (stepless), grinding spindle motor 5 kW, rapid feed 12 m/min, spindle taper ASA5/MK5, overall L3200×W1700×H2000 mm. Accessories: coolant system, paper filtration, set of grinding wheels. Delivers tight tolerances; ideal for automotive, aerospace, machine tools and medical sectors.
Technical specifications are subject to change without notice
