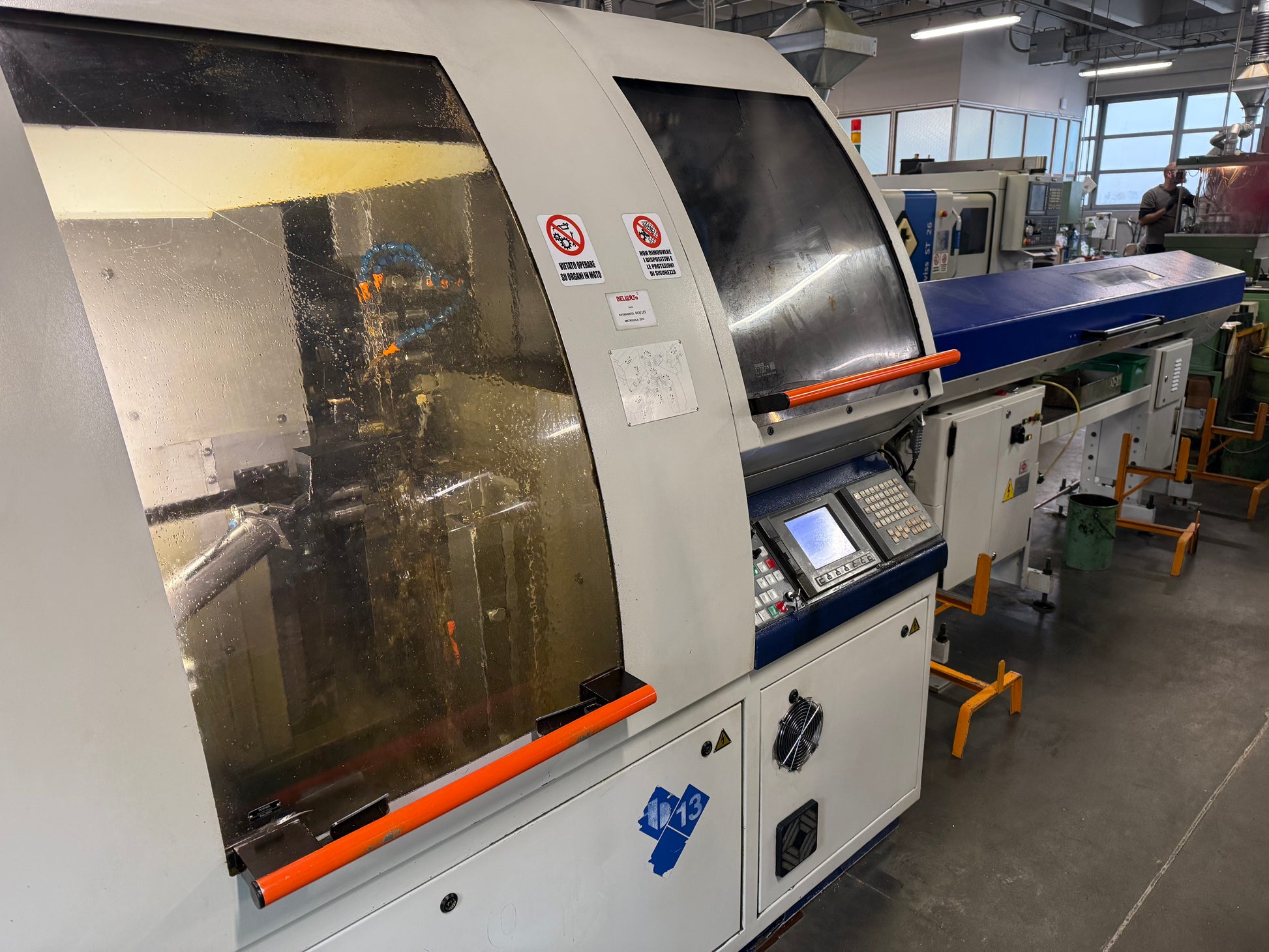

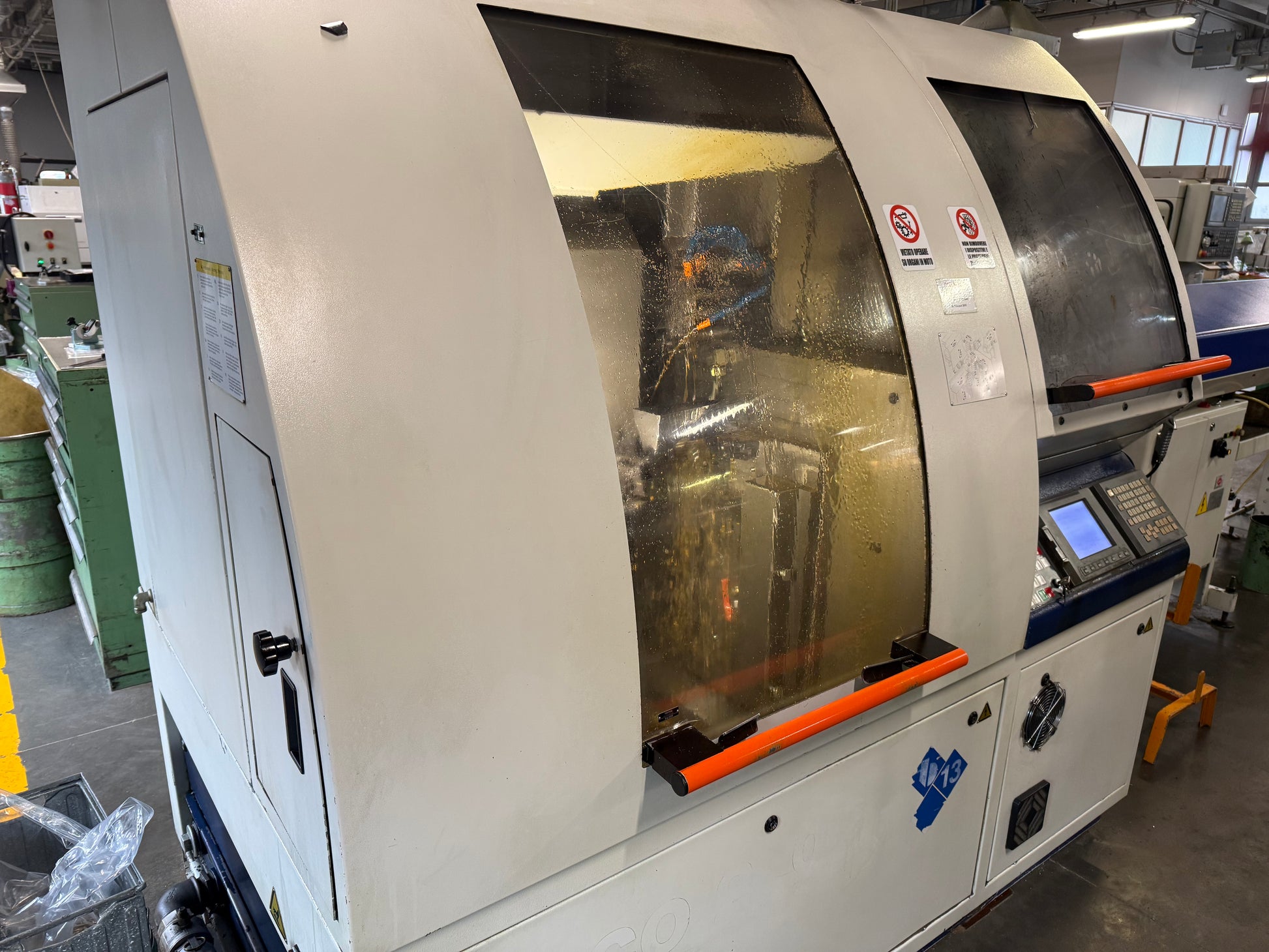

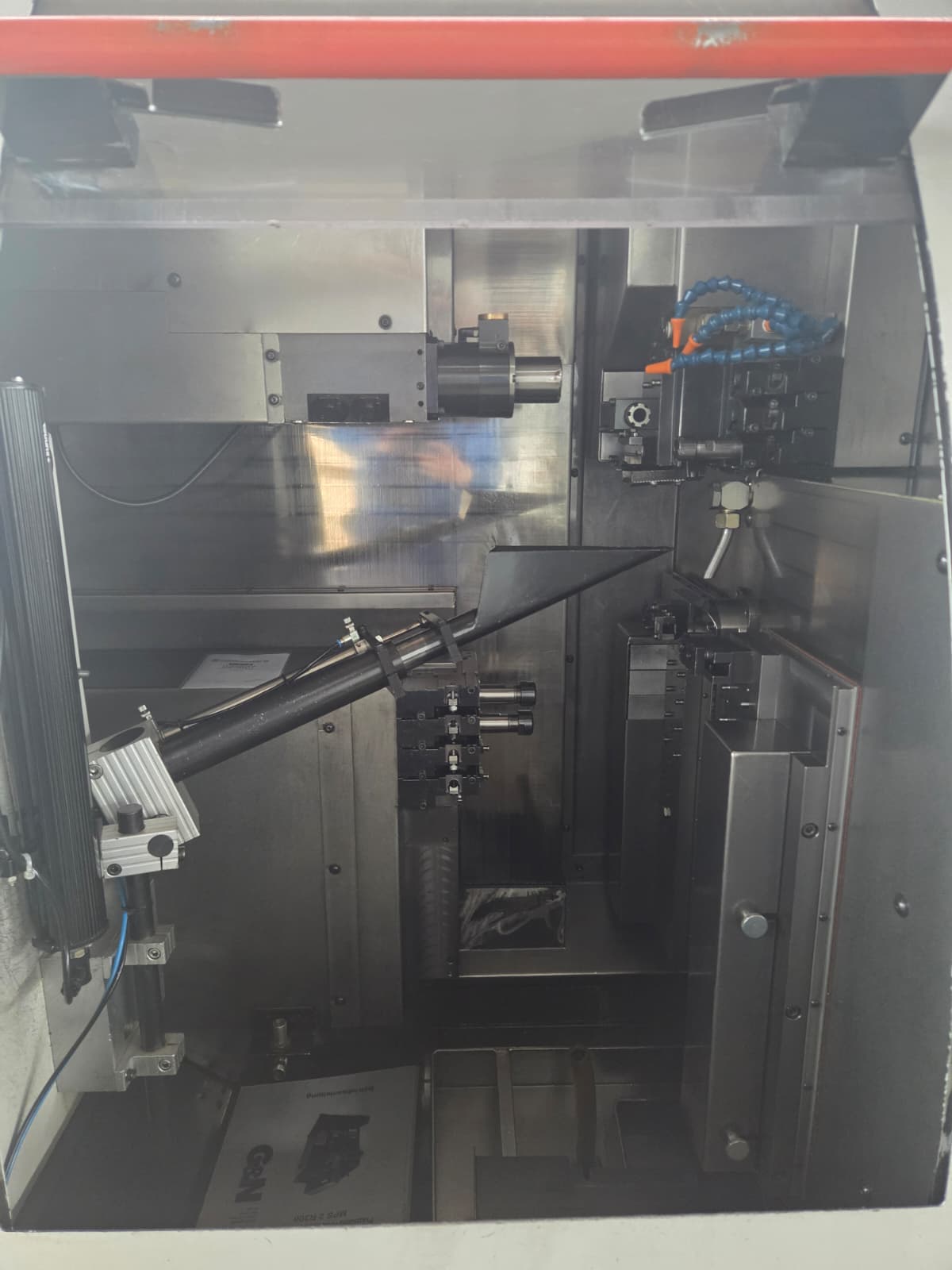

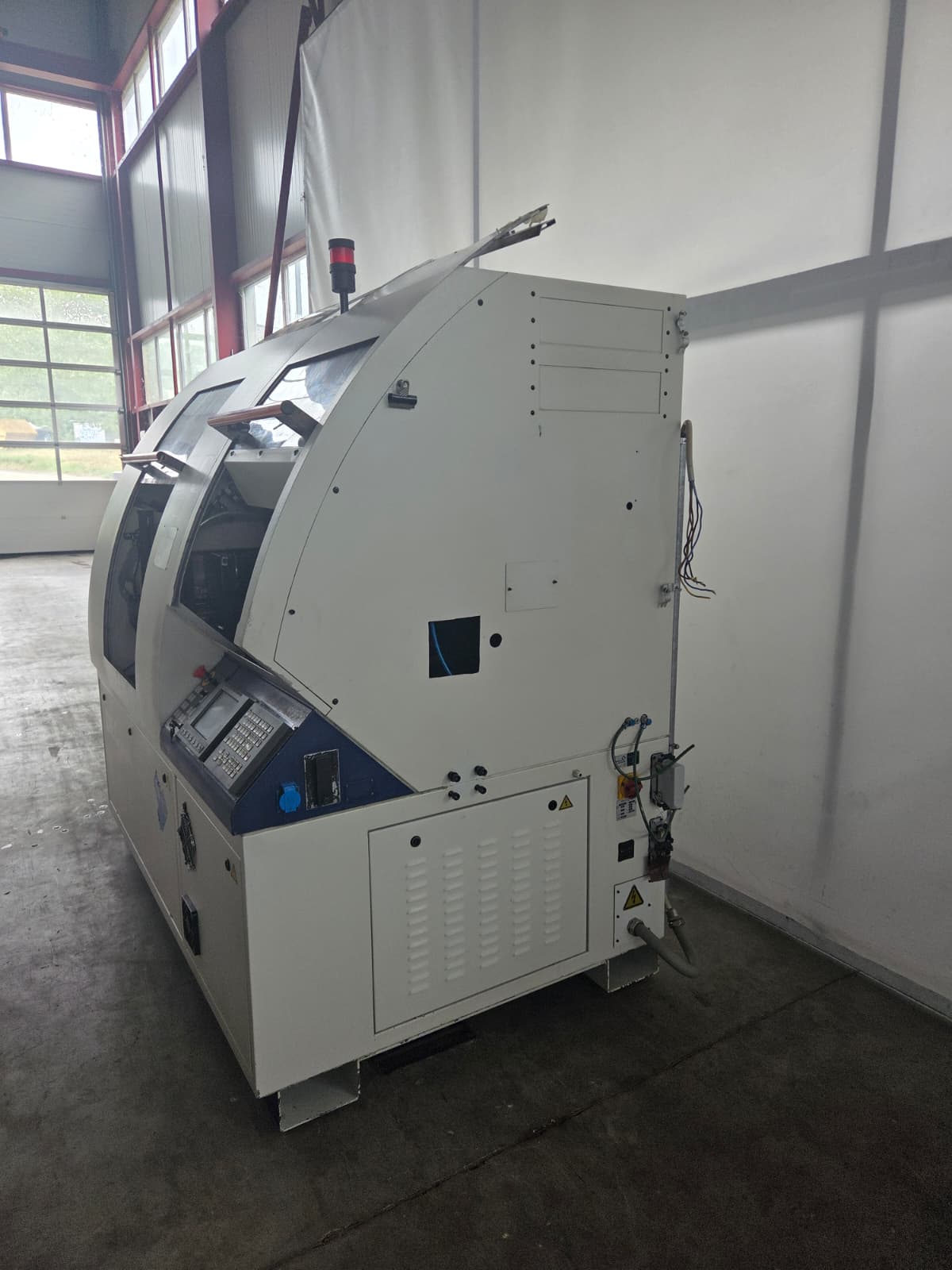

TORNOS DECO 2000/13
Type: DECO 2000/13
Manufacturer: TORNOS
Group: CNC automatic lathe
Subgroup: CNC automatic lathe
Year: 2001
Stock: 023607
TORNOS DECO 2000/13 is a CNC automatic lathe engineered for precision machining, high accuracy and dependable reliability. Key capacities: 10 axes; max workpiece length 180 mm; internal spindle diameter 13 mm; spindle speeds 100-12000 t/min; back spindle 100-8000 t/min. Main specs: 50 Hz 3x400 V supply; spindle motor 2.2 kW; total power 11 kVA; weight approx. 2550 kg; footprint L2000×W1260×H1950 mm. Equipment: bar feeder IEMCA GENIUS 226/32, chip conveyor, coolant system, oil mist extractor. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Number of axis total | 10 |
| Workpiece length max. | 180 mm |
| Internal spindle diameter | 13 mm |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| from | 100 t/min |
| up to | 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 kW |
| Total power required | 11 kVA |
| Machine's weight about | 2550 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1260 mm |
| Height | 1950 mm |
| Various accessories: | |

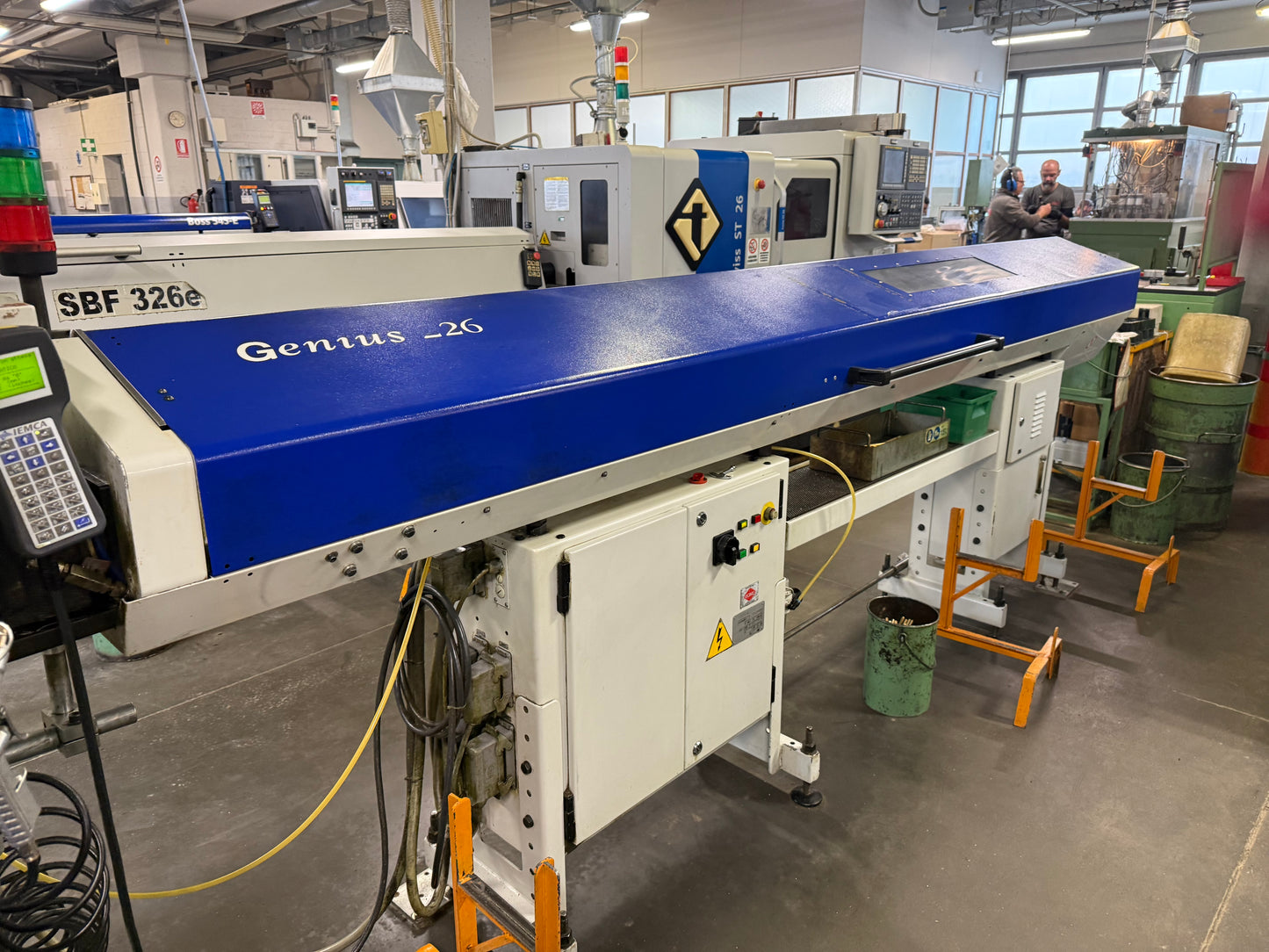

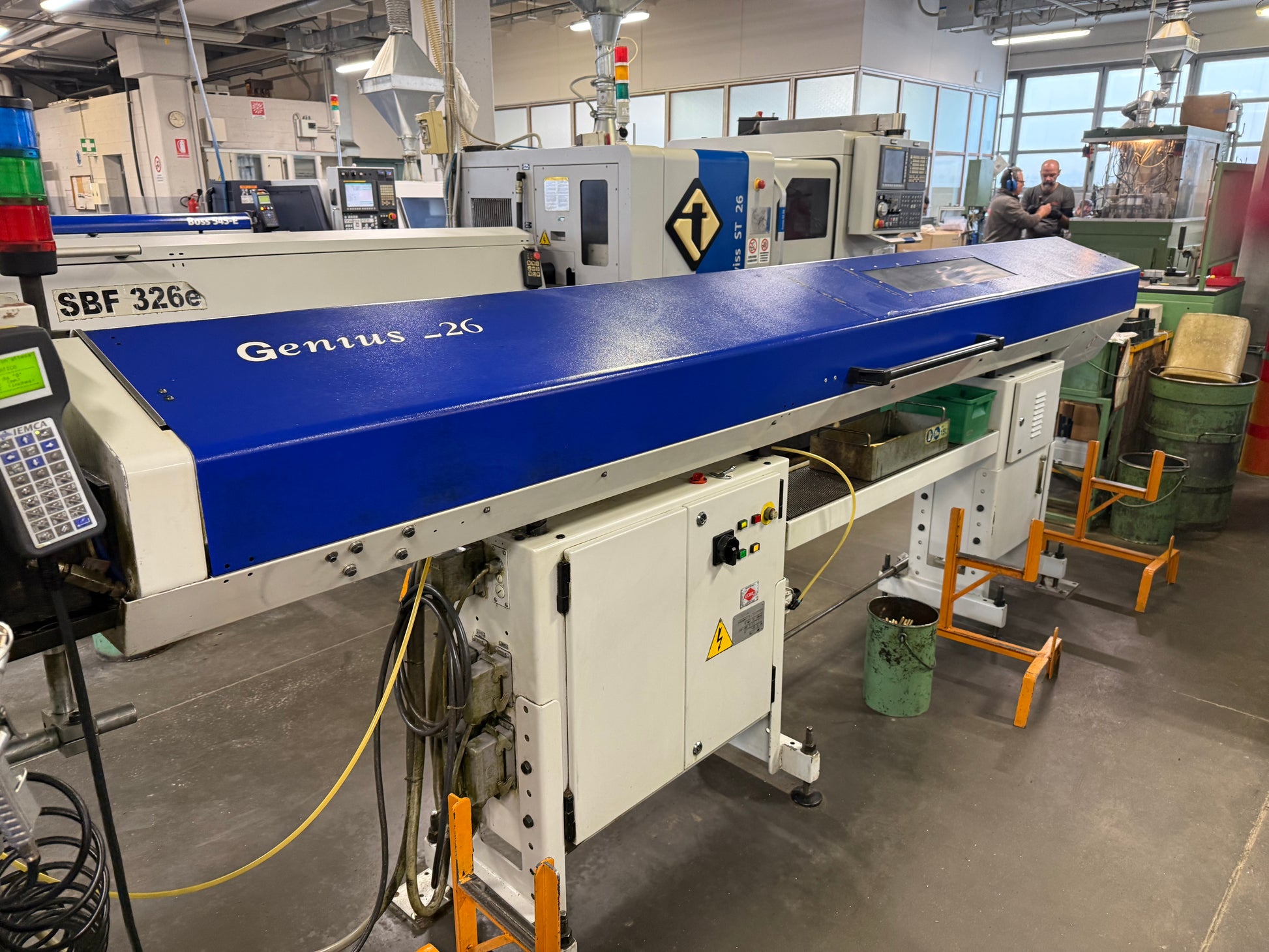

| Bar feeder | |
| Manufacturer | IEMCA |
| Type | GENIUS 226/32 |
| Chip conveyor | |
| Coolant system | |
| Oil mist extractor |
