TORNOS Multi Alpha - 8x20
Type: Multi Alpha - 8x20
Manufacturer: TORNOS
Group: Multi-spindle turning lathe
Subgroup: CNC Multi-spindle turning lathe
Control: FANUC 30i-MODEL A
Year: 2007
Stock: 023292
TORNOS Multi Alpha - 8x20 is a CNC multi-spindle turning lathe for precision, high accuracy and reliability. Capacity: bar Ø22 mm, workpiece length max 100 mm; 37 axes, 8 spindles, 2 back spindles, 6 cross slides, 8 longitudinal slides. Specs: 0–8000 rpm, back spindle 8000 rpm, 3x400V 50Hz, 11.2 kW, weight ~12 t, L9104×W1740×H2625 mm. Accessories: automatic bar loader, coolant system, chip conveyor, spindle cooling, lamp, fire extinguishing system Kraft Bauer. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 37 |
| Number of cross slides | 6 |
| Plain turning slide number | 8 |
| Number of spindles | 8 |
| Number back spindle | 2 |
| Spindles with independent speed | |
| Number of tools max. back spindle | 10 |
| Capacity round bar | 22 mm |
| Workpiece length max. | 100 mm |
| Longitudinal carriage way | 80 mm |
| Transversal slide: | |
| Cross way | 50 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 8000 t/min |
| Back spindle: | |
| Spindle speeds | 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 11.2 kW |
| Machine's weight about | 12000 kg |
| Overall dimensions machine: | |
| Length | 9104 mm |
| Width | 1740 mm |
| Height | 2625 mm |

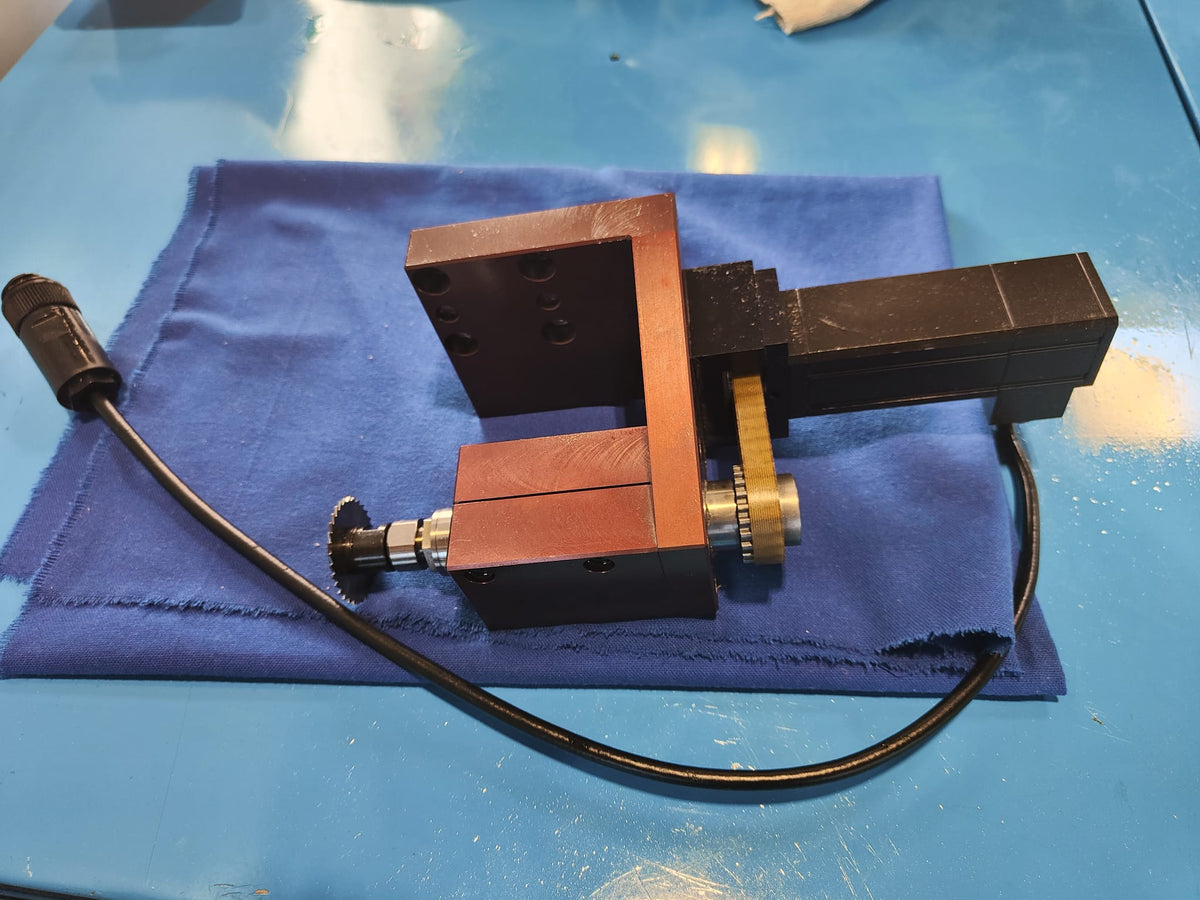

| Various accessories: | |
| Automatic bar loader (num. bars) | |
| Coolant system | |
| Chip conveyor | |
| Spindlecooling | |
| Lamp | |
| Fire extinguishing system | Kraft Bauer |
