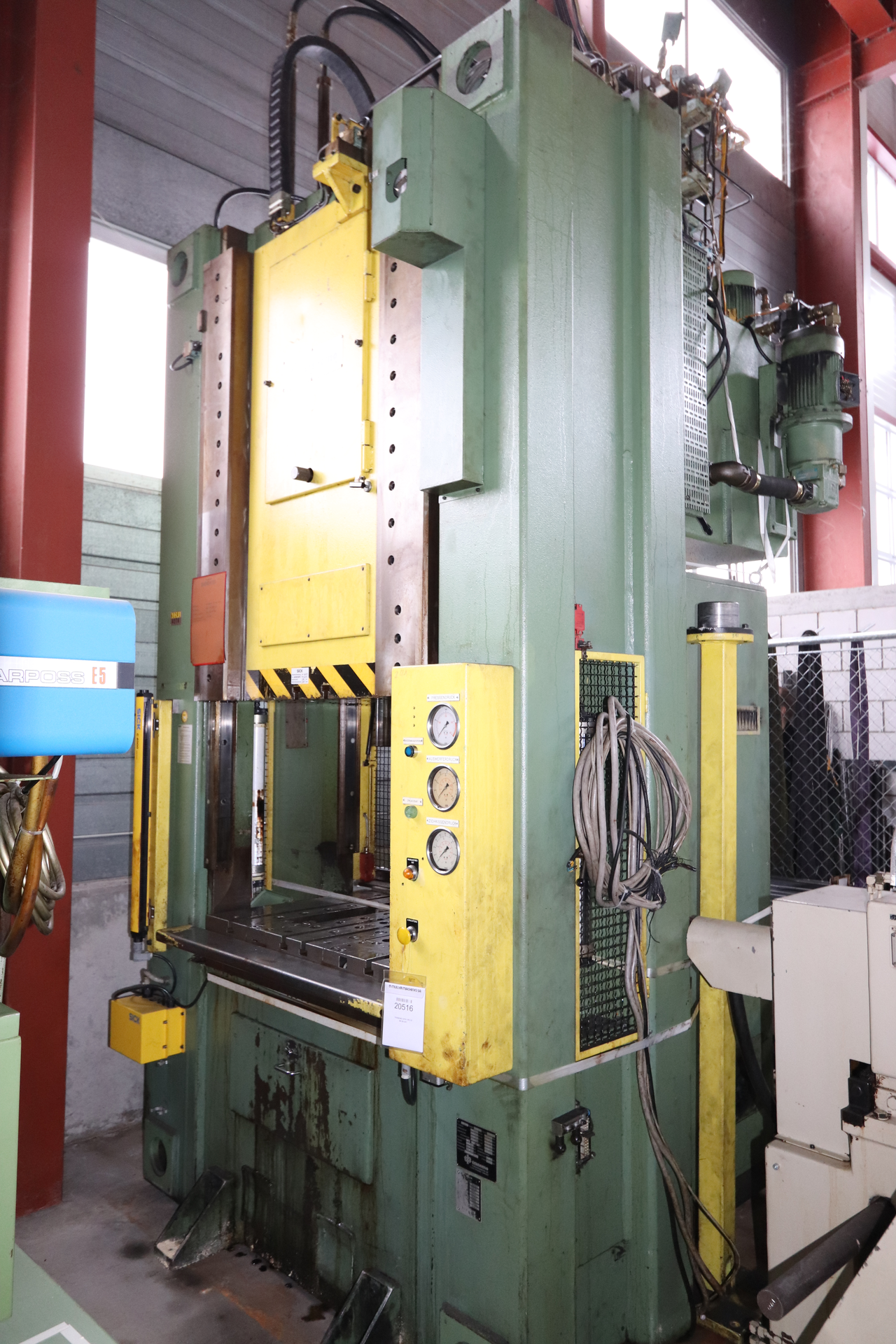

TRANEMO DPA-160-10
Type: DPA-160-10
Manufacturer: TRANEMO
Group: Hydraulic press
Subgroup: Hydraulic press
Stock: 020516
Special Price
CHF 20 000
Special offer machines are sold as-is, without any warranty or inspection from us.
TRANEMO DPA-160-10 is a Hydraulic press engineered for high-precision, high-accuracy and reliable production. Working capacities: pressing force 1600 kN; total stroke 500 mm; table 1000×700 mm; slide diameter 70 mm; longitudinal/front travel 1000 mm; rapid traverse 530 mm/s; press stroke 23 mm/s; return 580 mm/s; ejector force 300 kN, ejector stroke 250 mm; die cushion hydraulic 800 kN, stroke 200 mm. Key specs: 3x 380 V 50 Hz supply; motor 45 kW; overall dimensions 2700×2200×3900 mm. Delivers tight tolerances; suited to automotive, aerospace, medical, tooling and precision engineering sectors
| Shearing force | 1600 kN |
| Total stroke | 500 mm |

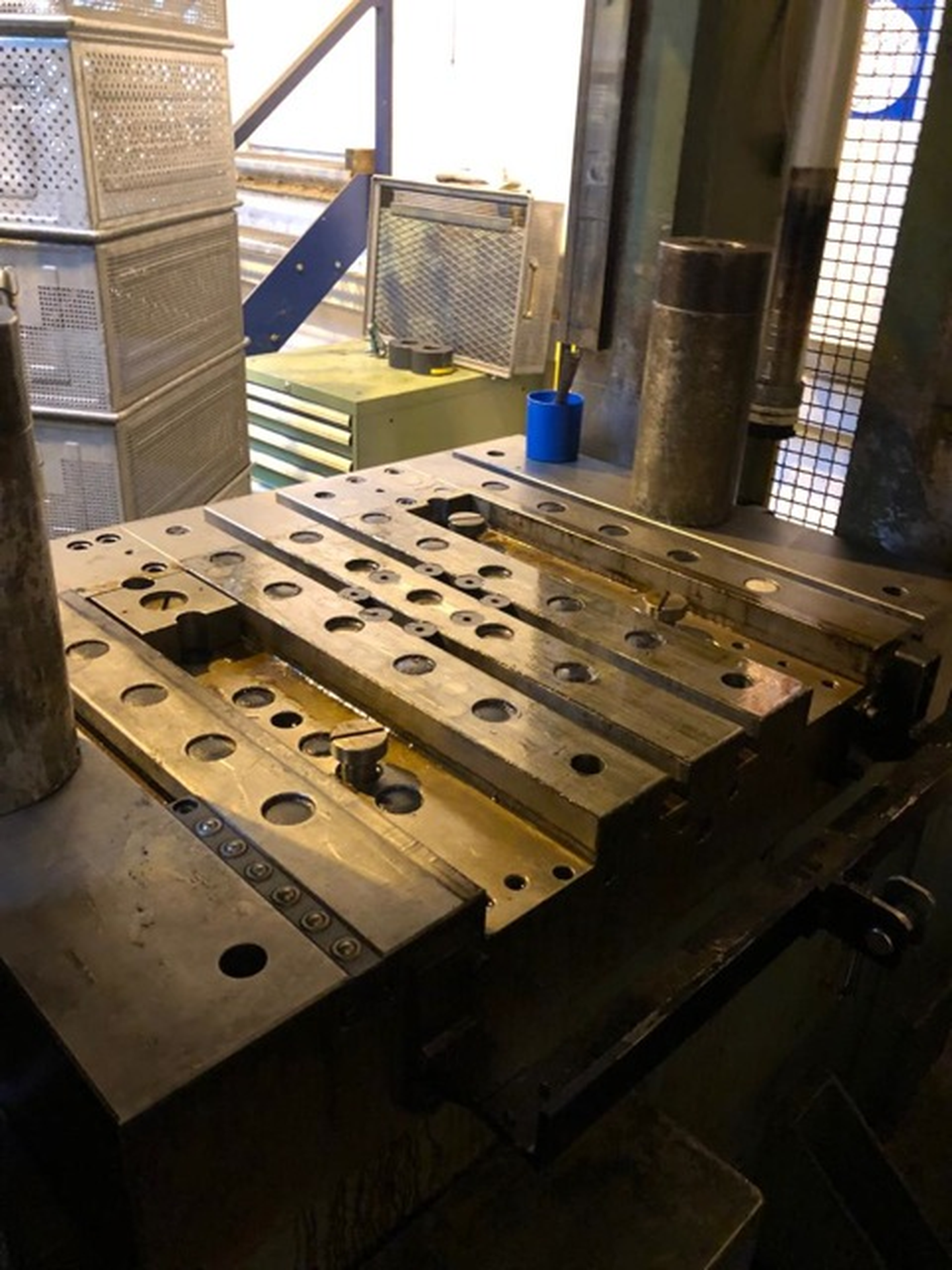

| Table surface: | |
| Length | 1000 mm |
| Width | 700 mm |
| Slide diameter | 70 mm |
| longitudinal | 1000 mm |
| Close traverse speeds: | |
| Rapid traverse | 530 mm/s |
| Press stroke | 23 mm/s |
| Return traverse speeds | 580 mm/s |
| Force max s'opposant à la descente | 300 kN |
| Stroke length ejector | 250 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 45 kW |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 2200 mm |
| Height | 3900 mm |
| Various accessories: | |
| Die cushion hydraulic: | |
| Force du cylindre | 800 kN |
| Total stroke | 200 mm |
