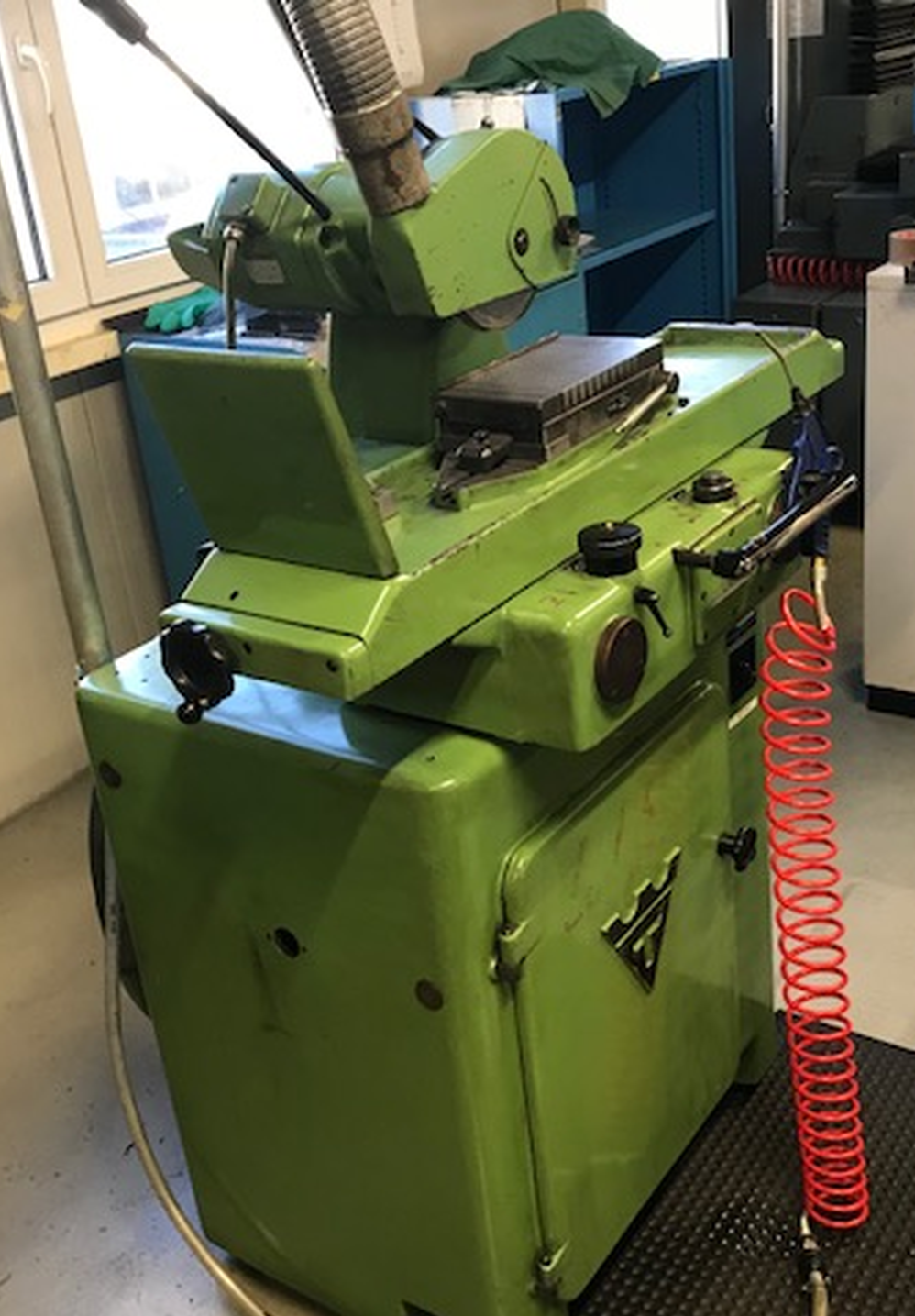

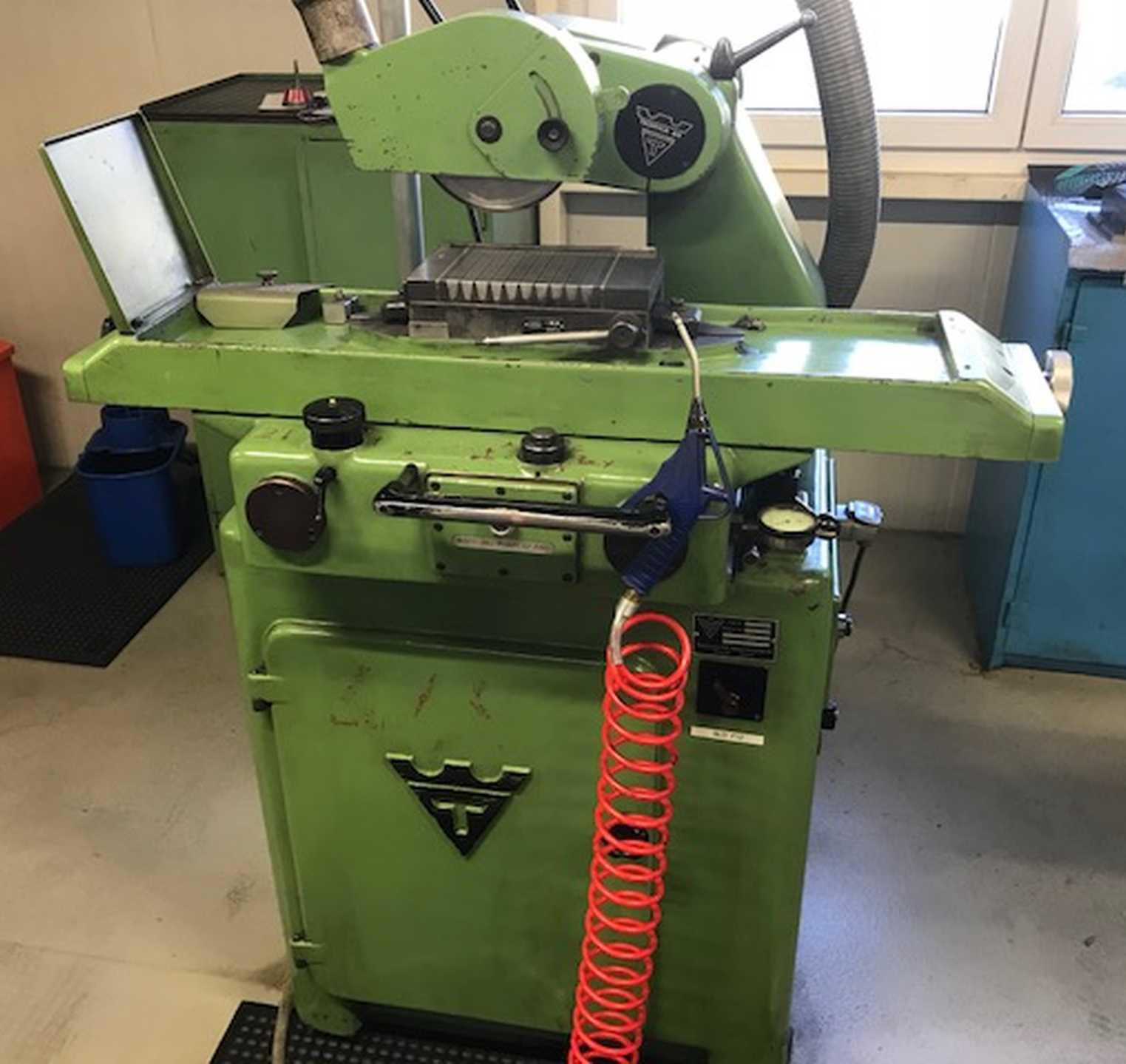

020218 - TECHNICA 1300/175
Download technical sheet (PDF)
Message us on WhatsApp
| Table length | 275 mm |
| Table width | 110 mm |
| Max. distance from table | |
| to spindle-centreline | 170 mm |
| Grinding wheel speeds: | |
| up to | 2800 t/min |
| Diameter of grinding wheel | 175 mm |
| Width of the grinding wheel | 13 mm |
| Drilling cap. of grind.wheel | 32 mm |
| Grinding spindle motor | 0.7 CV |
| Machine's weight about | 560 kg |
| Overall dimensions machine: | |
| Length | 1300 mm |
| Width | 1000 mm |
| Height | 1700 mm |
| Various accessories: | |
| Magnetic plate: | |
| Length | 240 mm |
| Width | 125 mm |
| Dust extraction |
