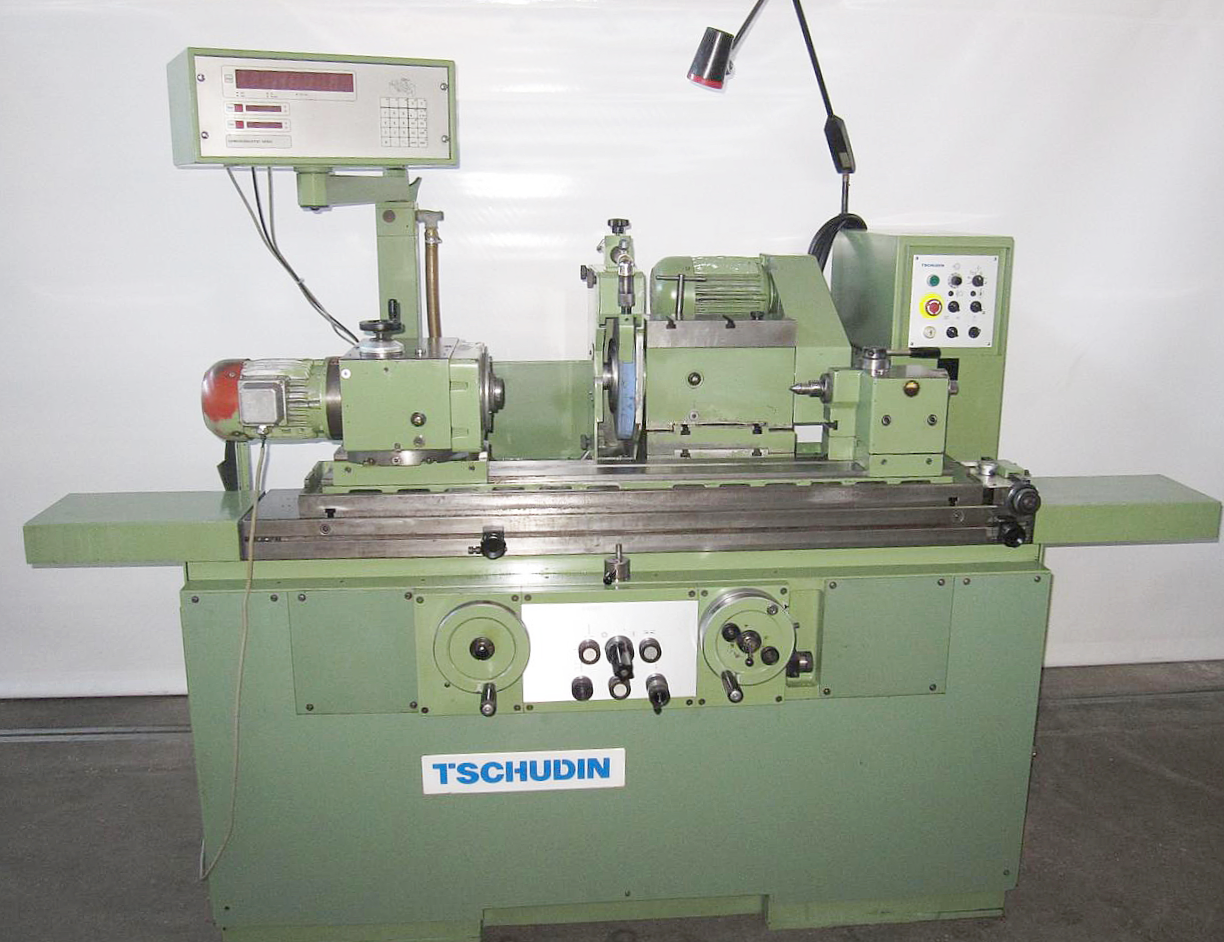

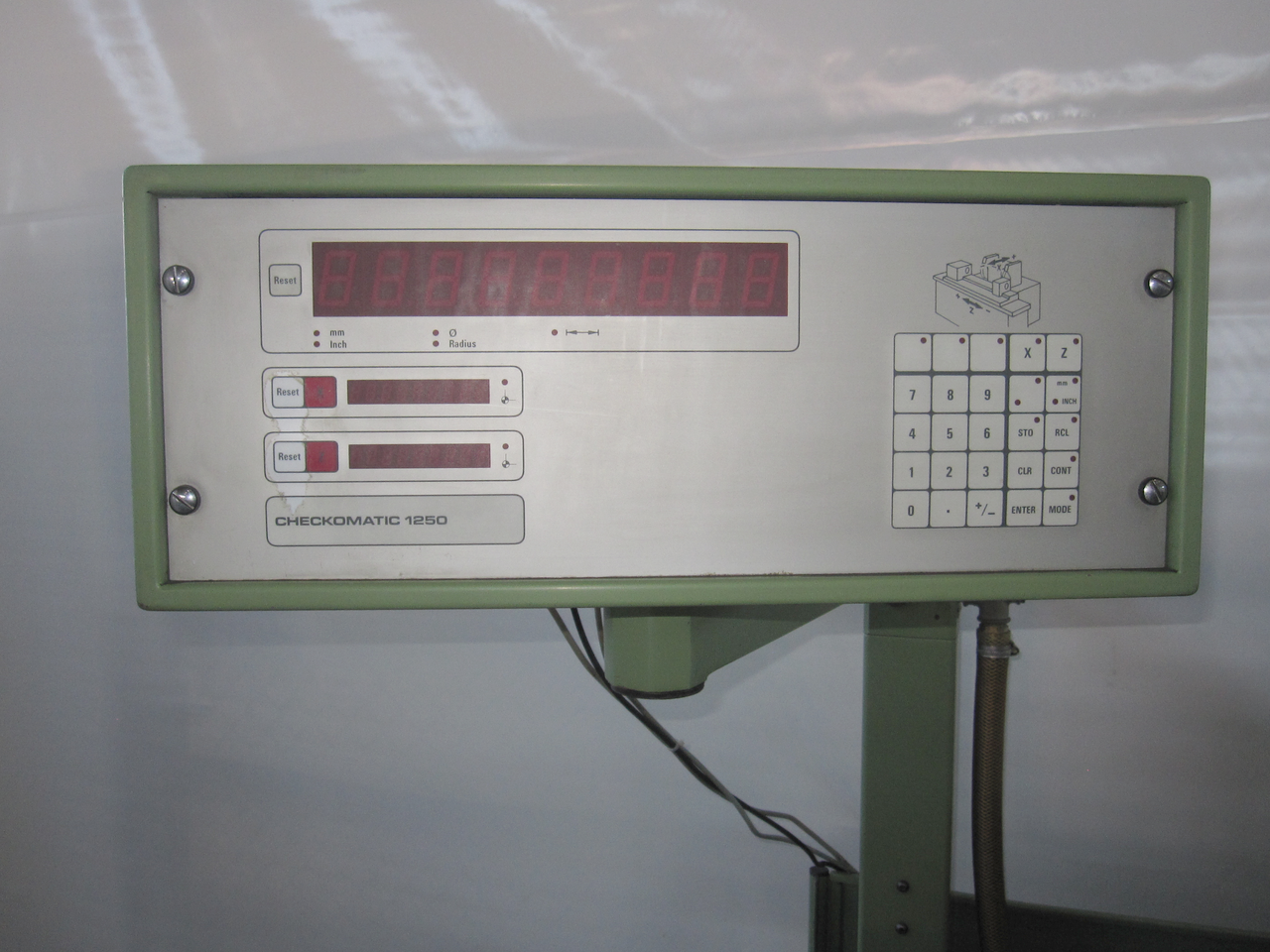

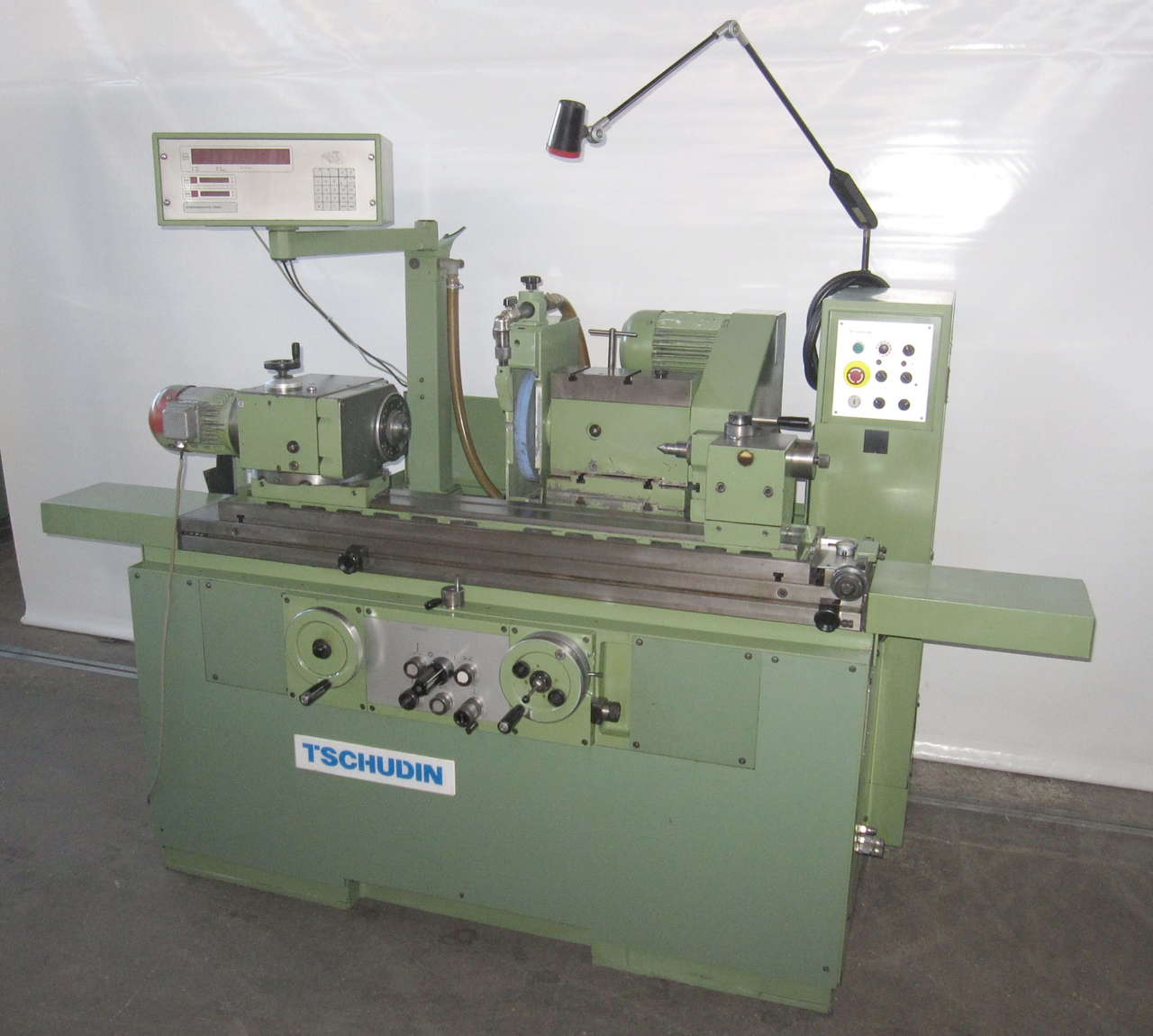

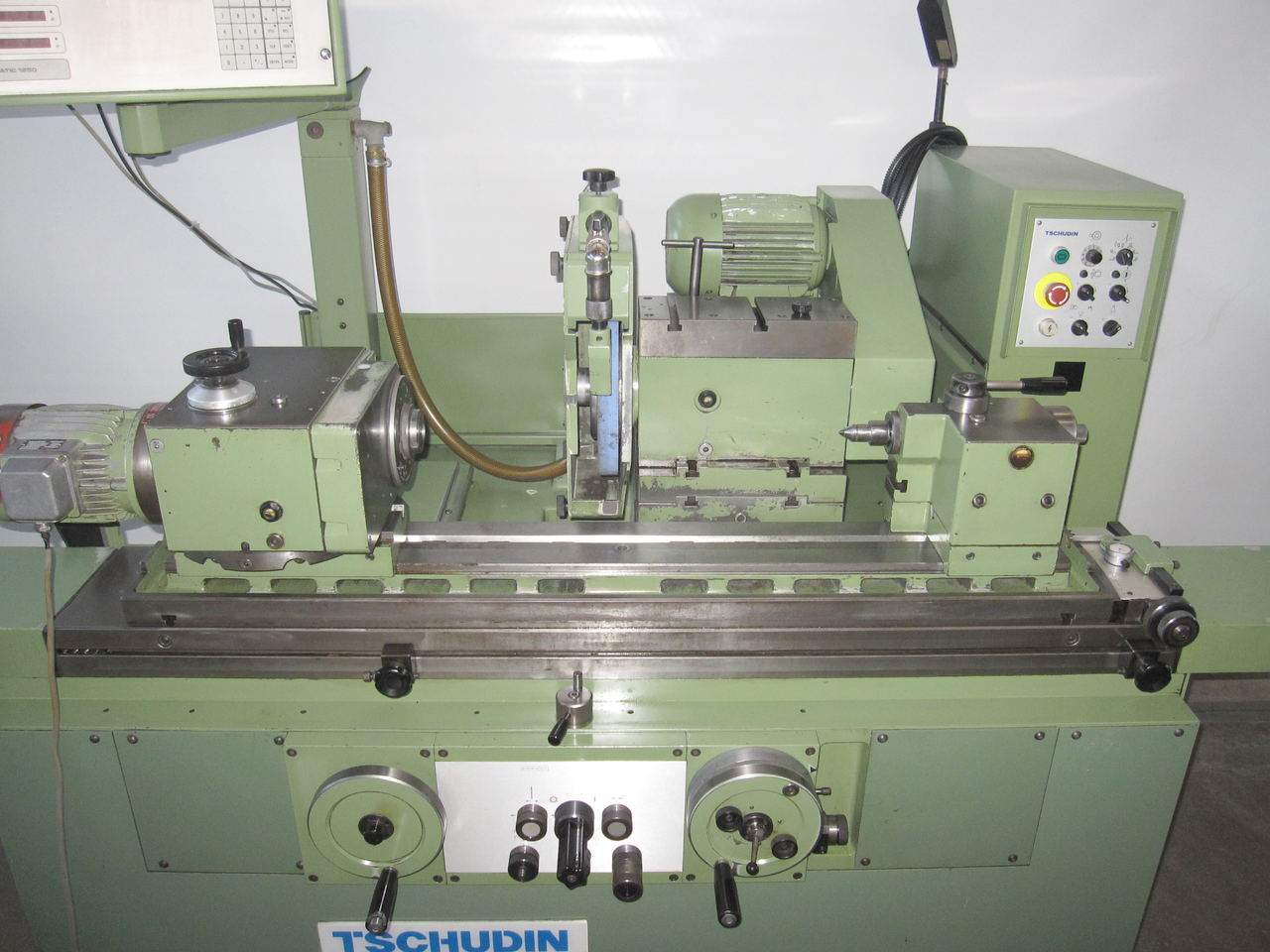

TSCHUDIN HTG 610.10 is a Cylindrical grinder engineered for precision, high accuracy and reliability. Working capacities: centre height 150 mm, distance between centres 680 mm, max longitudinal travel 620 mm; grinding wheel Ø350 mm, bore 127 mm, wheel width 50 mm. Key technical specifications: wheel speeds 3 steps 1640–2300 rpm; workpiece spindle stepless 65–500 rpm, rotatable 360°; spindle taper 5 CM, tailstock taper 3 CM; table angular displacement 8°; table speed stepless up to 5 m/min; power 50 Hz 3x380 V; external wheel motor 4.0 CV; total power 7 CV; weight ≈2500 kg; overall L2700×W1800×H1900 mm. Accessories: digital readout 2 axes, paper filtration system, sparking-out attachment, lamp, raising block for centres 50 mm, full automatic working cycle, infeed and intermittent grinding left/right/both, preselected spark out time. Enables tight tolerances; suitable for automotive, aerospace, machine tools, medical and watchmaking.
