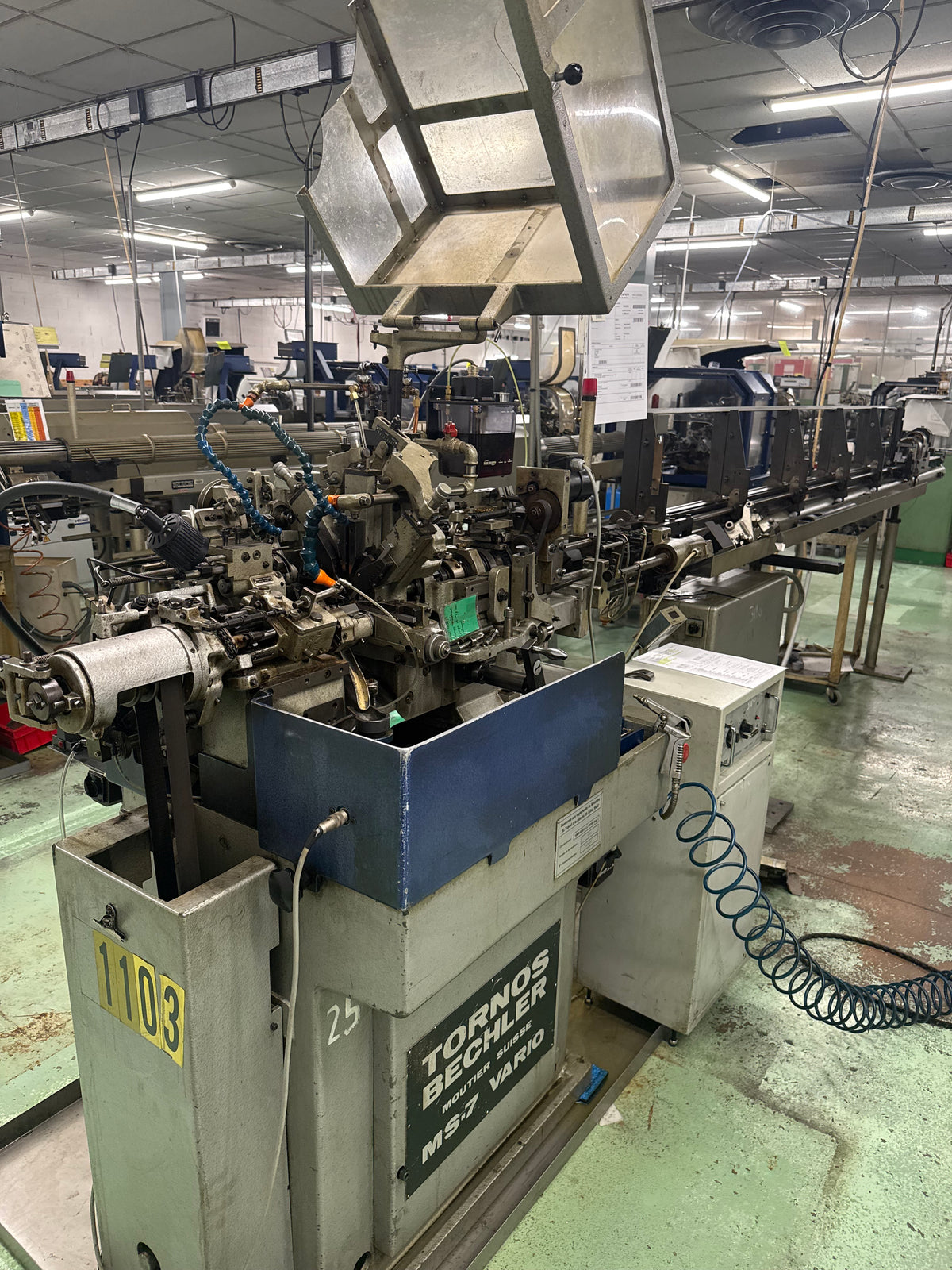

TORNOS MS 7 (arrêtage contrôlé)
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Diameter of work admitted | 7 mm |
| Max. turning length: | |
| Turning length | mm |
| with flat cames | 60 mm |
| Max. treading diameter | 8 M |
| Number of tool cutters | 6 |
| Spindle speeds: | |
| Number of spindle speeds | 20 |
| from | 1400 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 2 CV |
| Machine's weight about | 520 kg |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1400 mm |
| Various accessories: | |
| Loader Barboy |
TORNOS MS 7 (arrêtage contrôlé) is an Automatic lathe offering precision, high accuracy and reliable operation. Capacity: bar diameter 7 mm; with flat cames 60 mm; max threading diameter 8 M. Specs: 20 spindle speeds 1,400–10,000 rpm; 3×380 V 50 Hz; power 2 CV; 6 tool cutters; size 1200×700×1400 mm; weight ≈520 kg. Loader: Barboy. Achieves tight tolerances; suited to automotive, watchmaking, medical, aerospace and precision engineering.
Technical specifications are subject to change without notice
