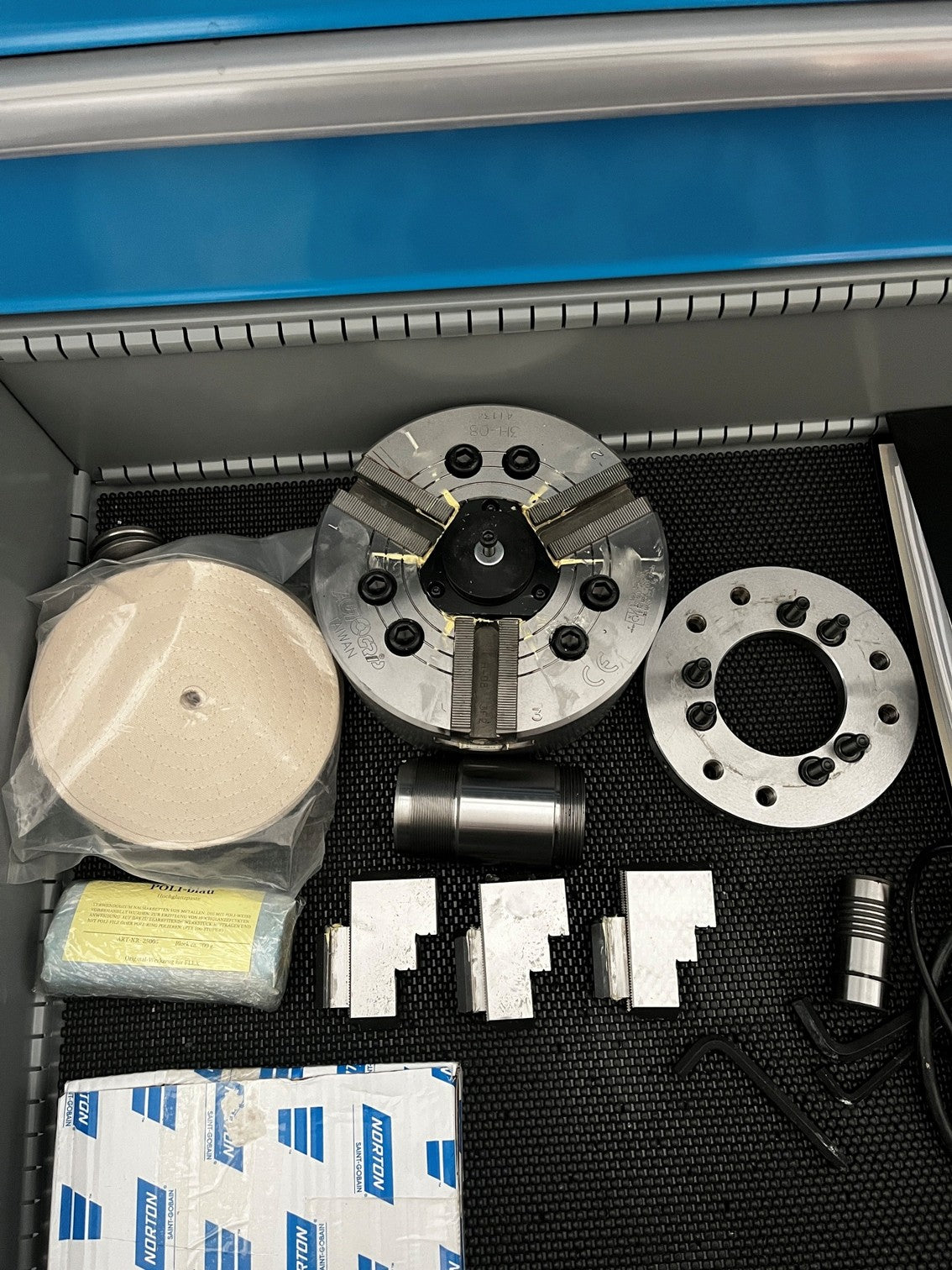

DMG MORI EcoTurn 310 is a CNC turning lathe of high precision, built for excellent accuracy and reliable performance. Working capacities: 3 axes; swing over bed 330 mm, over carriage 260 mm; max turning diameter 200 mm; bar passage 51 mm; travels Z 455 mm, X 182.5 mm; rapid traverse X/Z 30 m/min. Technical specs: 12‑position turret with 12 driven tools; spindle speeds 4,500 rpm (stepless up to 5,000 rpm); spindle nose VDI 30; Morse taper 4 CM; total power 21 kVA; weight ≈3,400 kg; dimensions L4400×W2400×H2100 mm. Accessories: 3‑jaw chuck, REGO‑FIX ER25 collet set, lamp, coolant system. Enables tight tolerances in sectors such as automotive, aerospace, medical, watchmaking and machine tools.

Technical specifications are subject to change without notice
