| Centre height | 175 mm |
| Distance between centres | 650 mm |
| Max. grinding diameter | 348 mm |
| Grinding weehl left side: | |
| Diameter | 500 mm |
| Width | 63 mm |
| Grinding wheel right side: | |
| Diameter | 400 mm |
| Width | 63 mm |
| Turret grinding tool holder num. of spindles | 2 |
| Grinding wheel speeds: | |
| stepless | |
| from | 1400 t/min |
| up to | 3200 t/min |
| Rotatable grinding spindle head (b-axis) | -15 / +195 ° |
| Resolution | 1° HIRTH |
| Longitudinal slide: | Z |
| Max. travel | 800 mm |
| Resolution of the scale | mm |
| Feed speed up | 0.001 - 10000 mm/min |
| Transversal slide: | X |
| Max. travel | 254 mm |
| Feed speed up | 0.001 - 5000 mm/min |
| Resolution of the scale | mm |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 1 t/min |
| up to | 1300 t/min |
| C axis | 0.0001° |
| Spindle hole | 26 mm |
| taper in spindle: MT | 4 |
| Tailstock: | |
| Taper in tailstock: | 3 CM |
| Tailstock travel of barrel | 35 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Workpiece spindle motor | 3 kW |
| Total power required | 23 kVA |
| Machine's weight about | 5200 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 2200 mm |
| Height | 2100 mm |
| Various accessories: | |
| Paper filtration system | |
| Coolant filter system | |
| C axis | 0.0001° |
| Internal grinding attachment: | |
| Number of spindles | 1 |
| Grinding wheel speeds: | |
| up to | 60'000 t/min |
| Lamp | |
| Electronic hand held control | |
| Grinding wheel right and left hand | |
| Machine refurbished | 2017 |

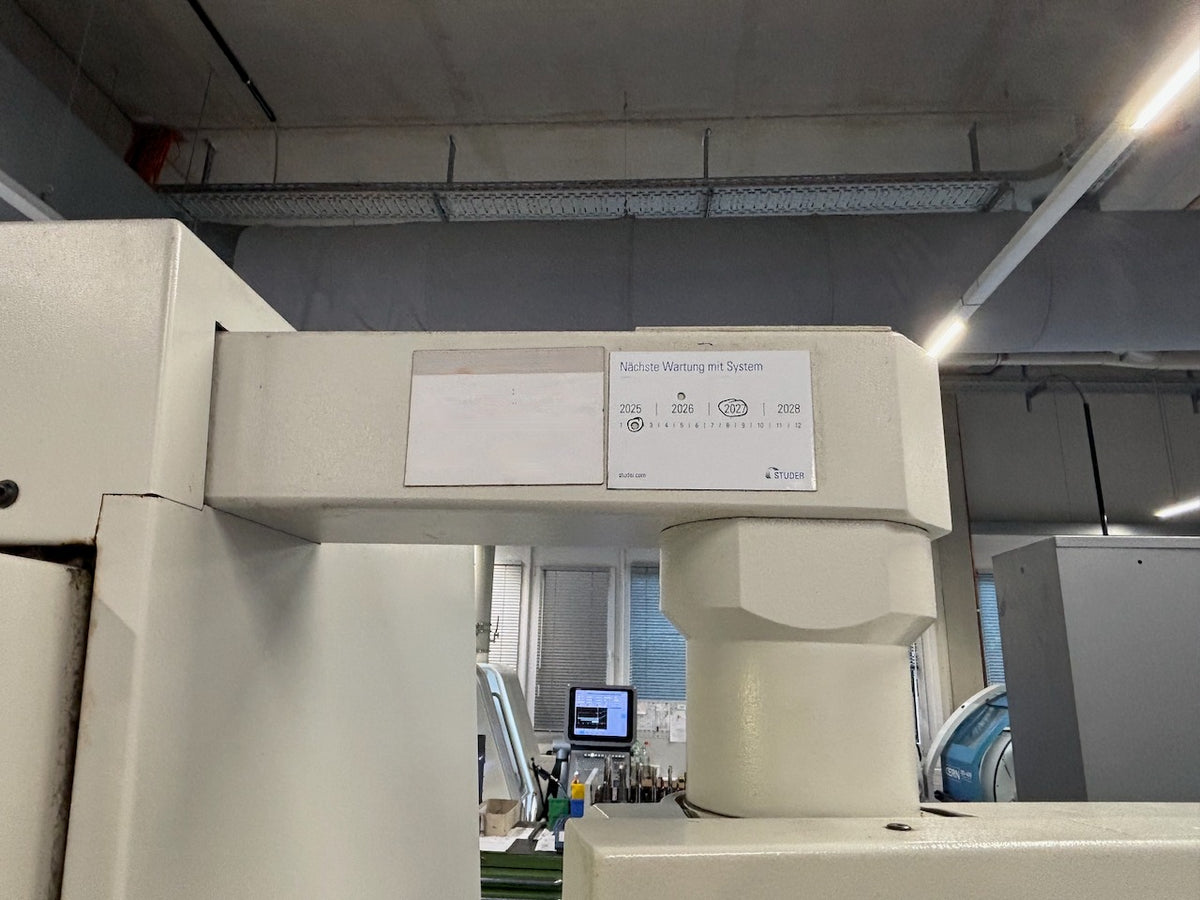

STUDER S 31 CNC is a CNC cylindrical grinder designed to deliver precision, high accuracy and reliability. Capacities: centre height 175 mm, distance between centres 650 mm, max. grinding diameter 348 mm; left grinding wheel Ø500×63 mm, right Ø400×63 mm; turret grinding holder with 2 spindles; C axis resolution 0.0001°. Axes and spindles: longitudinal Z travel 800 mm, transversal X travel 254 mm; grinding wheel speeds 1,400–3,200 rpm; work spindle speeds 1–1,300 rpm; spindle hole 26 mm; tailstock taper 3 CM, tailstock travel 35 mm. Technical data: feeds Z 0.001–10,000 mm/min, X 0.001–5,000 mm/min; supply 3×400 V 50 Hz; work spindle motor 3 kW; total installed power 23 kVA; weight ≈5,200 kg; dimensions 3000×2200×2100 mm. Accessories: paper filtration, coolant filter system, internal grinding attachment, lamp, electronic hand-held control, left/right grinding wheels; machine refurbished 2017. Suited to achieve tight tolerances in automotive, aerospace, medical, watchmaking and toolmaking.
Technical specifications are subject to change without notice
