| Max. grinding length | 450 mm |
| Max. clamping length | 1055 mm |
| Max. work piece diameter | 250 mm |
| Thread diameter: | |
| min. | 2 mm |
| max | 250 mm |
| Workpiece spindle bore | 45 mm |
| Workpiece weight on centres max. | 200 kg |
| Thread pitch: | |
| min. | mm |
| max | 100 mm |
| Max. angle pitch + | 40 ° |
| Max. angle pitch - | 40 ° |
| Max. module | 10 |
| Grinding wheels: | |
| Diameter: | |
| min. | 280 mm |
| max | 350 mm |
| Width: | |
| min. | 4 mm |
| max | 40 mm |
| Bore | 40 mm |
| Grinding-wheel speeds: | |
| number (steps) | 6 |
| from | 1700 t/min |
| up to | 2540 t/min |
| Work-piece spindle head speed: | |
| number (steps) | 27 |
| from | t/min |
| up to | 160 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 4 kW |
| Total power required | 15 kVA |
| Machine's weight about | 4700 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 1930 mm |
| Height | 1800 mm |
| Various accessories: | |
| Coolant system | |
| Set of grinding wheels | |
| Set of flanges | |
| Redressing device | |

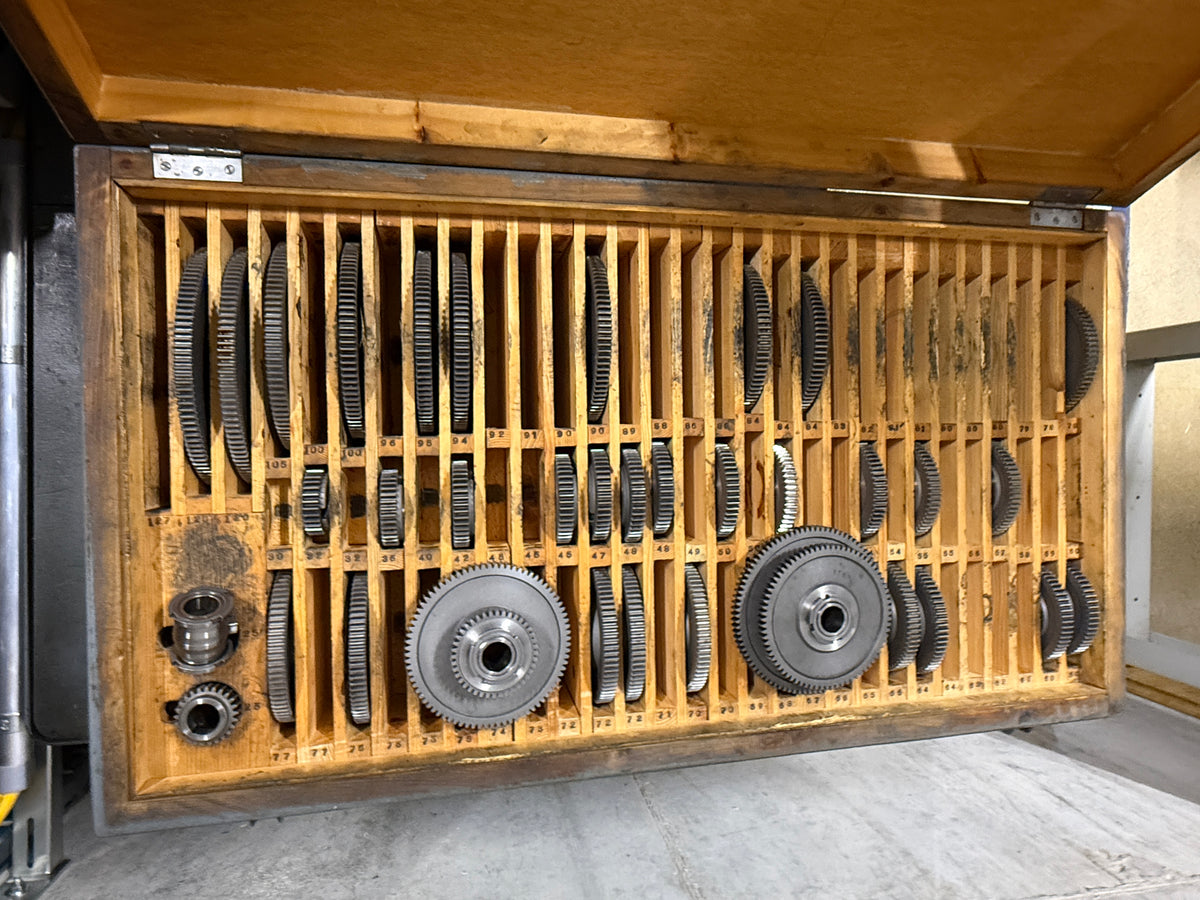

| Set of gears | |
| Set of centers | |
| Oil mist extractor |
REISHAUER US is a Thread grinding machine of high precision, engineered for superior accuracy and reliability. Capacities: grinding length 450 mm; clamping 1055 mm; max Ø 250 mm; thread Ø 2–250 mm; spindle bore 45 mm; weight on centres 200 kg; pitch ≤100 mm; angles ±40°; module ≤10; wheels Ø280–350 mm, width 4–40 mm. Specs: wheel speeds 6 steps 1700–2540 rpm; work spindle 27 steps up to 160 rpm; 3×380 V 50 Hz; grinding spindle 4 kW; total 15 kVA; machine ≈4700 kg; footprint 3300×1930×1800 mm. Accessories: coolant, wheel set, flanges, gear set, centers, oil-mist extractor. Achieves tight tolerances; suitable for automotive, aerospace, watchmaking, machine tools, medical.
Technical specifications are subject to change without notice
