HAHN + KOLB ZL 800
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Max. wheel diameter | 810 mm |
| Workpiece dimension max. | 250 mm |
| Carrier Root diameter | 306 mm |
| Speeds upper wheel: | |
| number (steps) | 4 |
| from | 30 t/min |
| up to | 84 t/min |
| Speeds lower wheel: | |
| number (steps) | 4 |
| from | 30 t/min |
| up to | 84 t/min |
| Main motor | 3.0 / 4.0 kW |
| Total power required | 11 kW |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 1720 mm |
| Width | 2100 mm |
| Height | 2100 mm |
| Various accessories: | |
| Set of grinding wheels | |
| Coolant system |

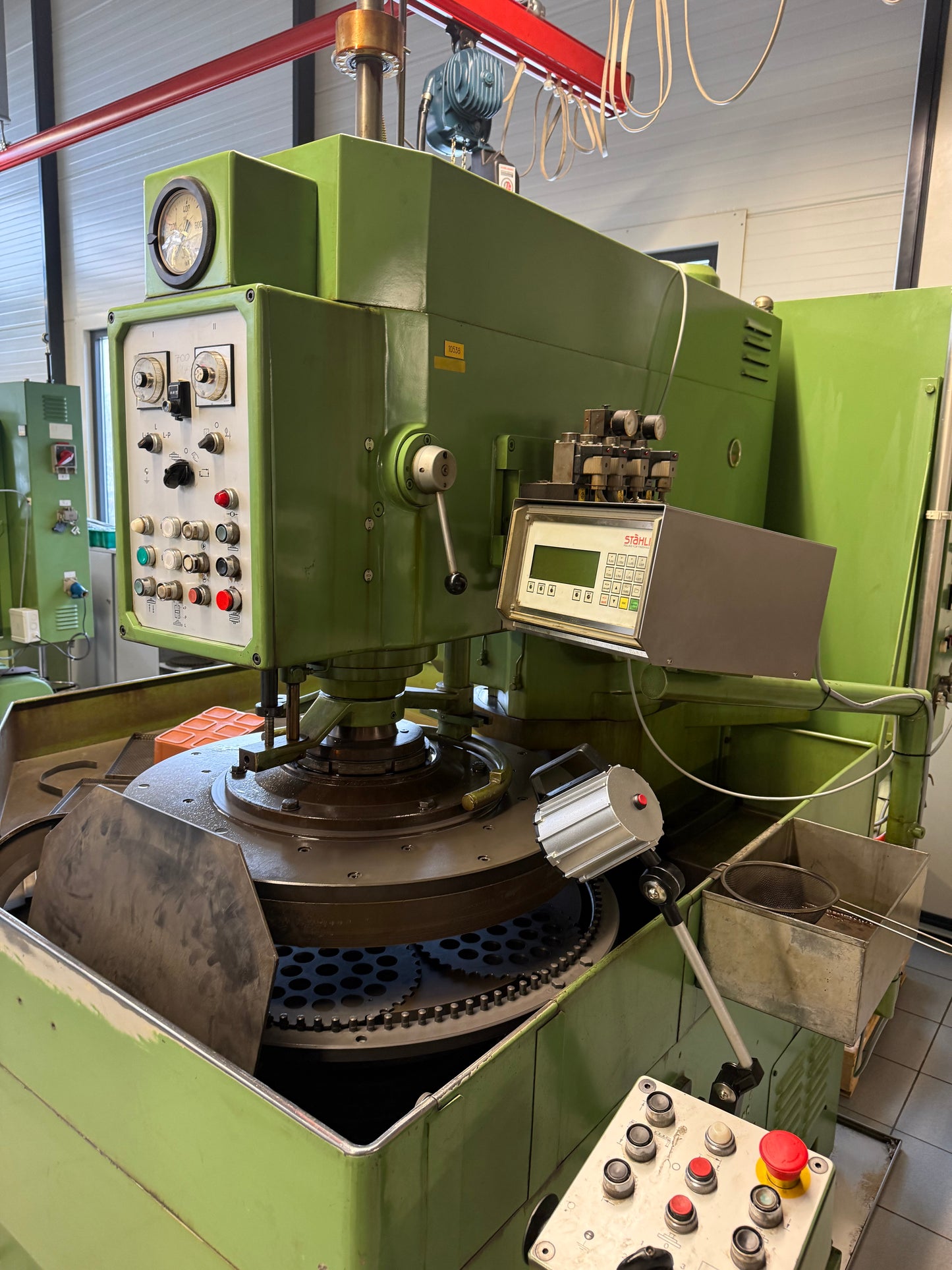

HAHN + KOLB ZL 800 is a lapping / fine grinding machine engineered for precision, high accuracy and reliable operation. Capacities: max wheel Ø 810 mm, max workpiece length 250 mm, carrier root Ø 306 mm; upper and lower wheels 4 steps, 30 t/min–84 t/min. Main specs: main motor 3.0/4.0 kW, total power 11 kW, machine weight approx. 3500 kg, footprint L1720×W2100×H2100 mm. Accessories: set of grinding wheels, coolant system. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
