YCM YEONG CHIN YCM - FV 56T is a Vertical machining center, designed for precision, high accuracy and reliability. Table 700×420 mm, 3 T-slots (14 mm) at 100 mm pitch, table load max 300 kg; travels X560 Y410 Z450 mm; 4 simultaneous axes. Tool changer 16 positions, BT30, tool Ø max 63 mm (100 mm with free pockets), tool length 200 mm, tool change 1 s; spindle 45–15,000 rpm; feed 10,000 mm/min; rapid X/Y 36 m/min Z 24 m/min; spindle power 3.7/5.5 kW; 3x400V 50Hz; weight ~2800 kg; dimensions 2630×1620×2240 mm. Accessories: 4th axis table (B), coolant system, spindle blow-out, automatic central lubrication, status light. Enables tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine tool sectors
Technical specifications are subject to change without notice

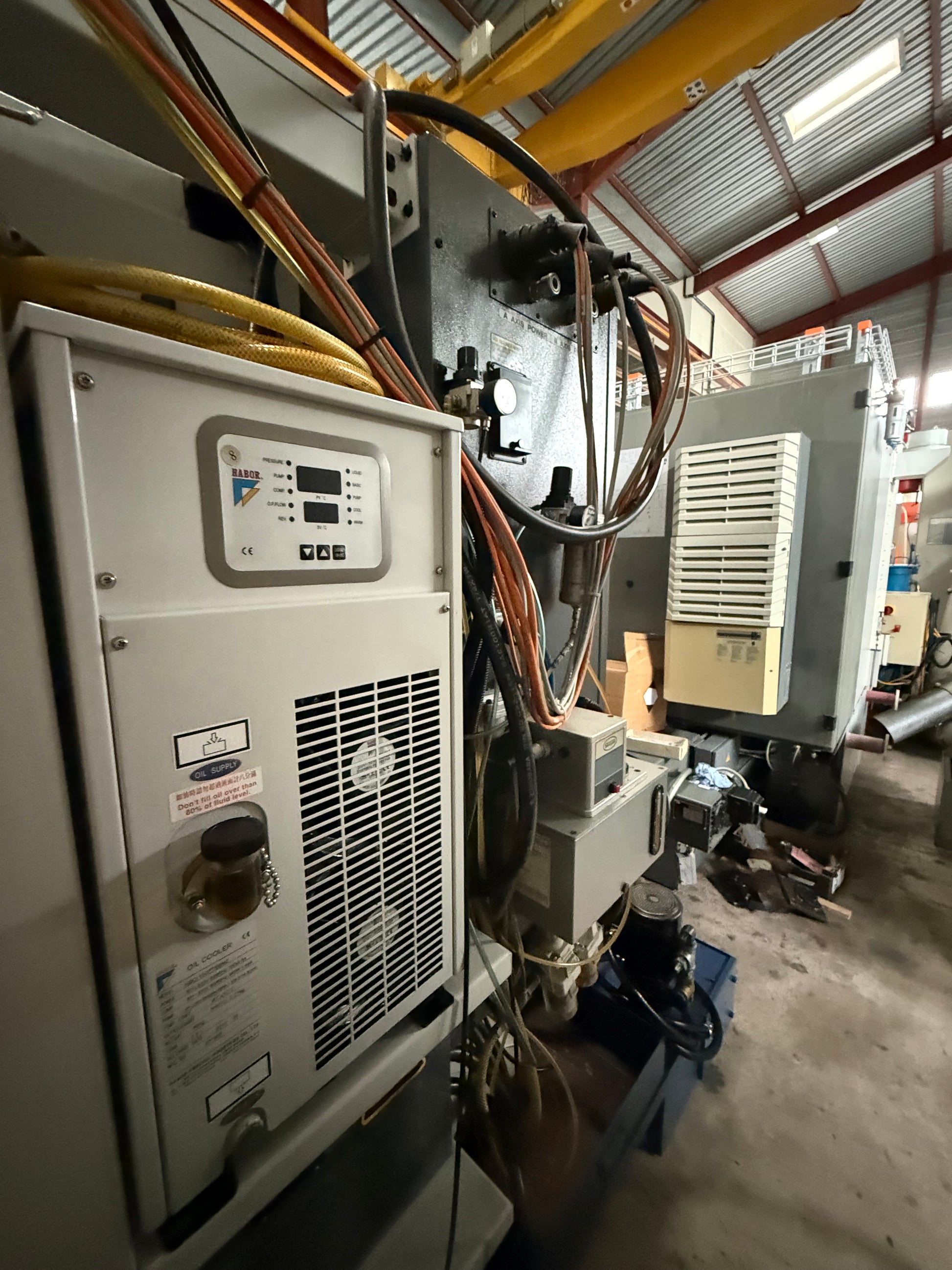

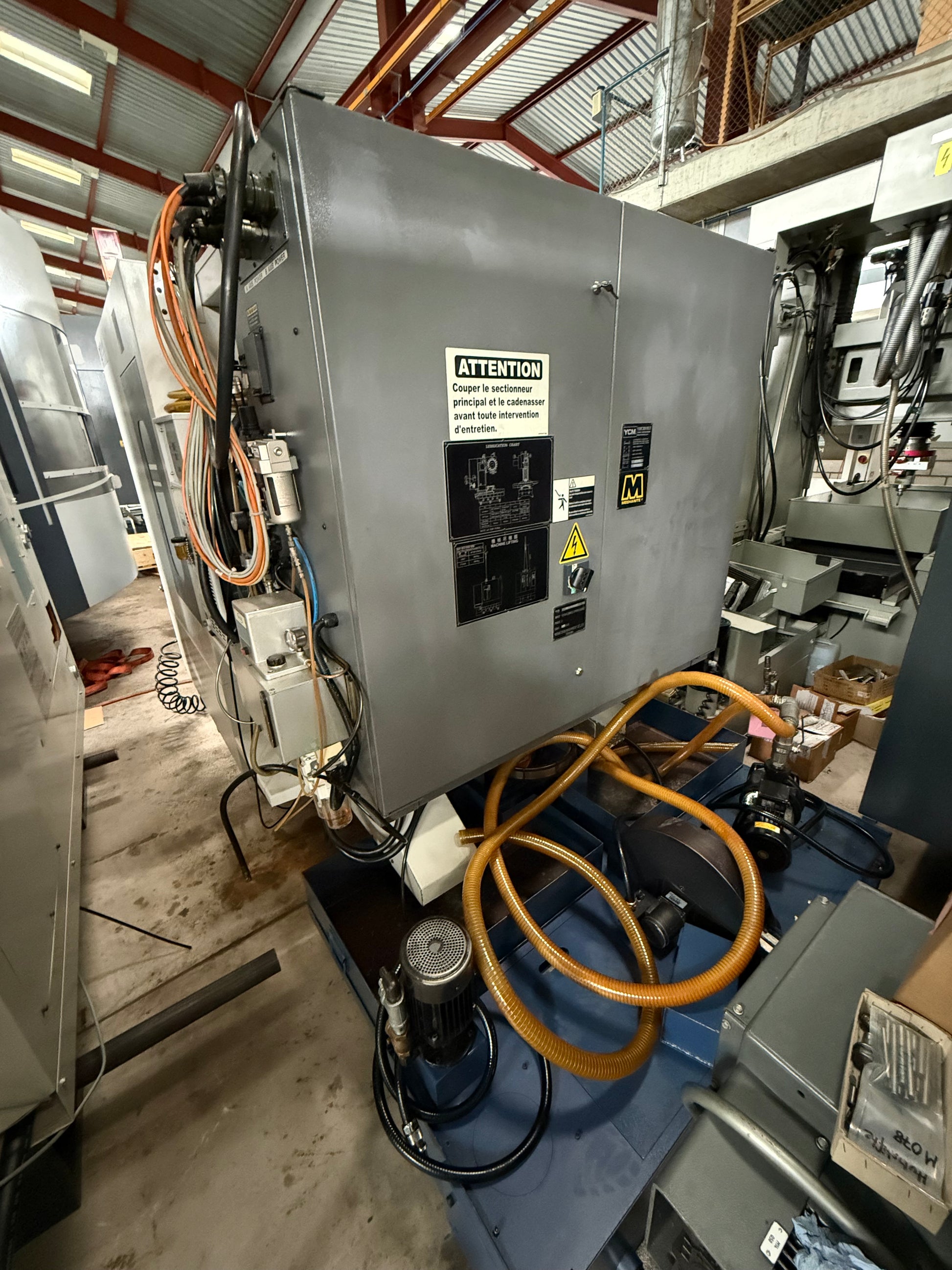

| Number of axis total | 5 |
| Number of axis simultaneous | 4 |
| Table length | 700 mm |
| Table width | 420 mm |
| Number of T-channels | 3 |
| Distance of the T-slots | 100 mm |
| T-channel width | 14 mm |
| Table load max. | 300 kg |
| Longitudinal travel (X-axis) | 560 mm |
| Transversal travel (y-axis) | 410 mm |
| Vertical travel (z axis) | 450 mm |
| Tool changer: | |
| Number of tools | 16 |
| Tool diameter max. | 63 mm |
| Diameter with free adjacent pockets | 100 mm |
| Tool lenght | 200 mm |
| Max. tool-weight | 4 kg |
| Time of tool changing | 1 s |
| Spindle nose: BT | 30 |
| Distance spindle nose to table | 110 - 560 mm |
| Spindle speeds: | |
| stepless | |
| from | 45 t/min |
| up to | 15000 t/min |
| Feed range | 10000 mm/min |
| Rapid traverse: long. | 36 m/min |
| Rapid traverse: transversal | 36 m/min |
| Rapid traverse: vertical | 24 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 3.7 / 5.5 kW |
| Total power required | 17 kVA |
| Machine's weight about | 2800 kg |
| Overall dimensions machine: | |
| Length | 2630 mm |
| Width | 1620 mm |
| Height | 2240 mm |
| Various accessories: | |
| Coolant system | |
| Spindle blow out device | |

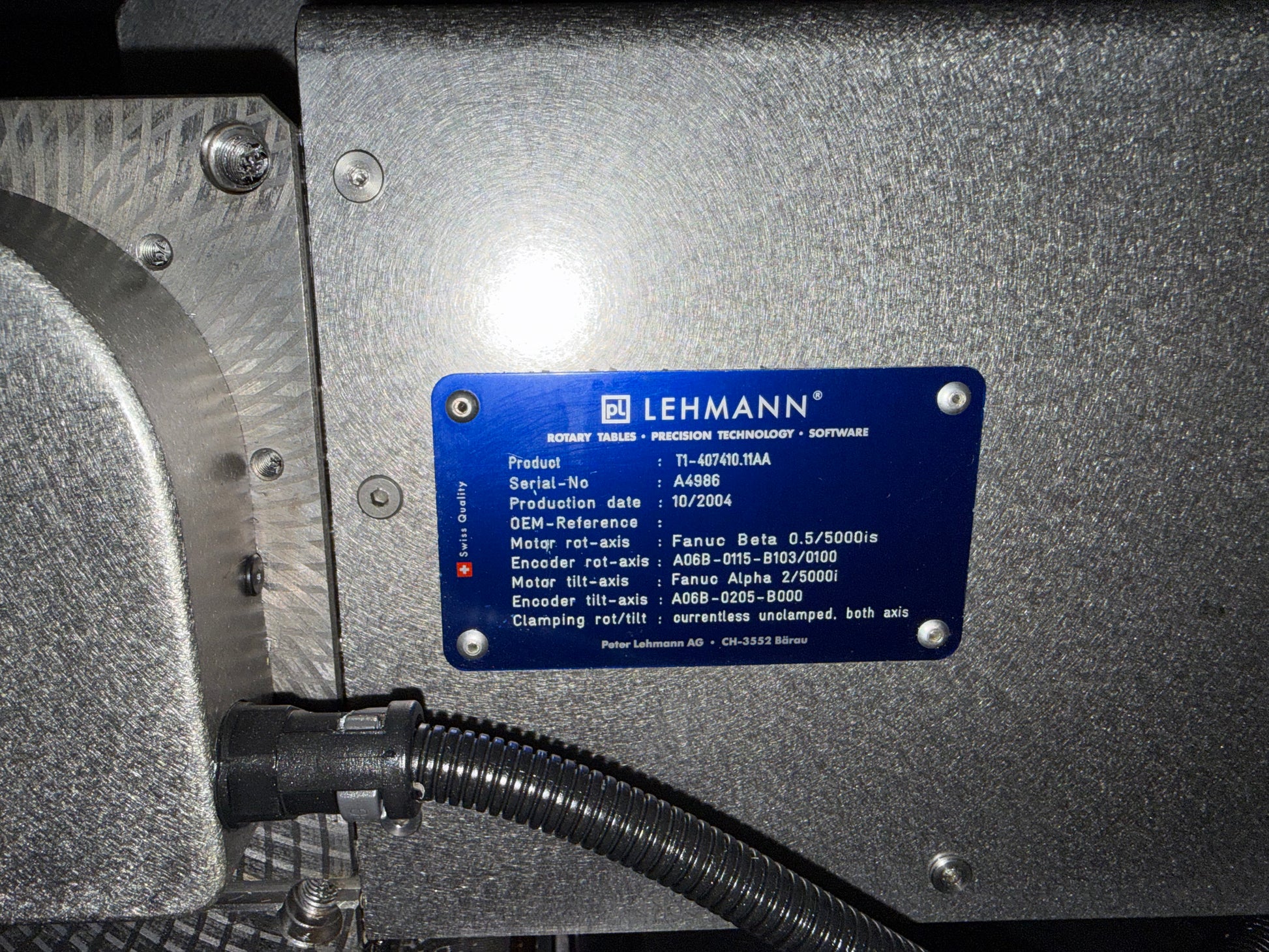

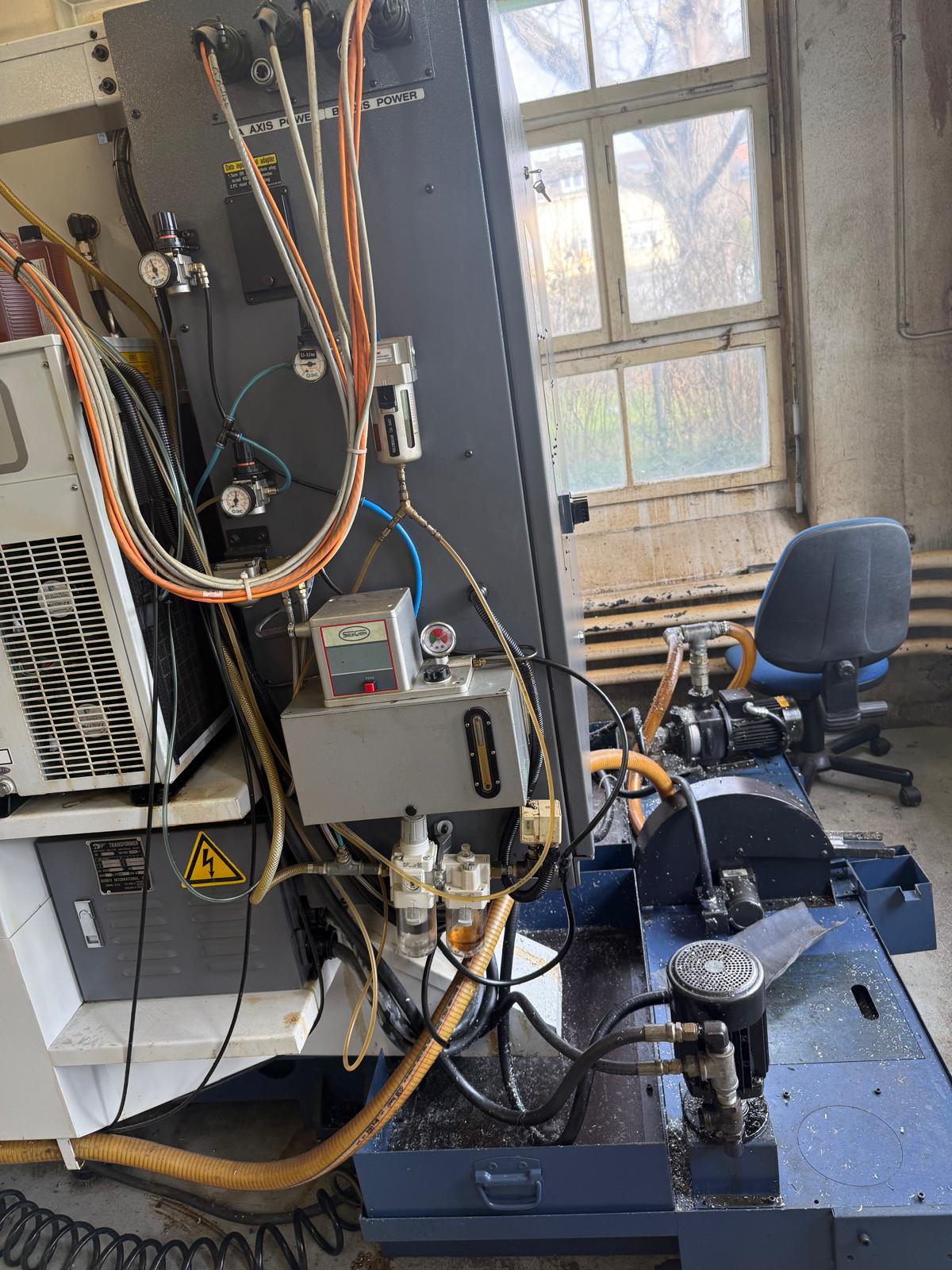

| Dividing attachment 4th and 5th axis | Lehmann |
| Automatic central lubrication | |
| Status light |
