MIYANO BNC-42 C 5
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
MIYANO BNC-42 C 5 is a CNC turning lathe engineered for precision, high accuracy and reliability. Bar passage 42 mm; max. workpiece length 175 mm; travels Z 235 mm, X 135 mm; turret 8 positions. Spindle speeds 60 t/min–6000 t/min; spindle motor 7.5/5.5 kW; voltage 50 Hz 3x 400 Volt; machine weight about 2400 kg; dimensions L2270 x W1270 x H1700 mm. Accessory: bar feeder type LNS Super Hydrobar. Delivers tight tolerances and suits sectors such as automotive, watchmaking, machine tools, aerospace and medical
Technical specifications are subject to change without notice
| Bar passage | 42 mm |
| Max. work piece length | 175 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 235 mm |
| Longitudinal travel (X-axis) | 135 mm |
| Turret slide: | |
| Number of positions | 8 |
| Spindle speeds: | |
| from | 60 t/min |
| up to | 6000 t/min |
| Spindle motor | 7.5 / 5.5 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 2400 kg |
| Overall dimensions machine: | |
| Length | 2270 mm |
| Width | 1270 mm |
| Height | 1700 mm |
| Various accessories: | |
| Bar feeder | |

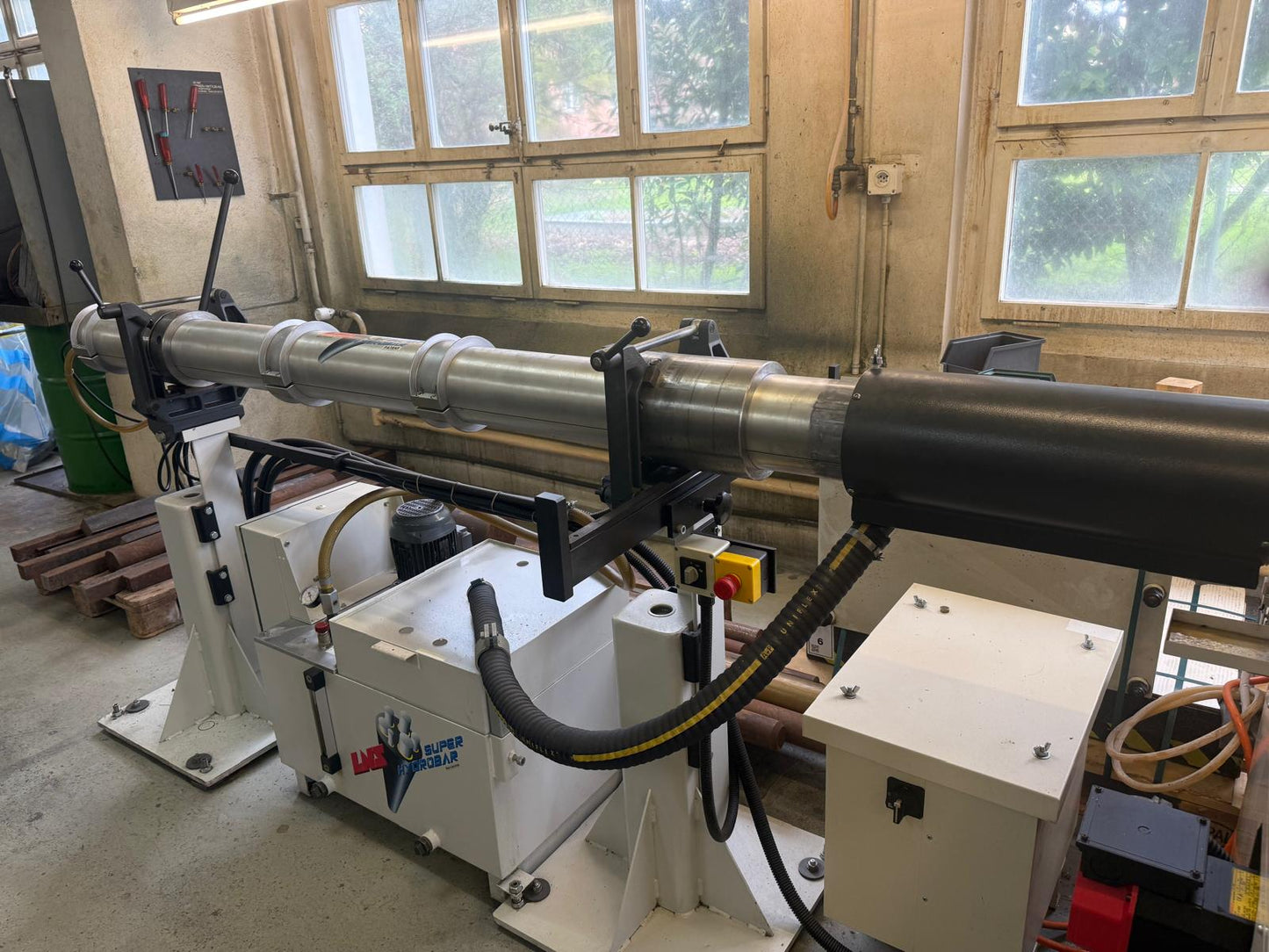

| Type | LNS Super Hydrobar |
| Workpiece conveyor | |
| Chip conveyor |
