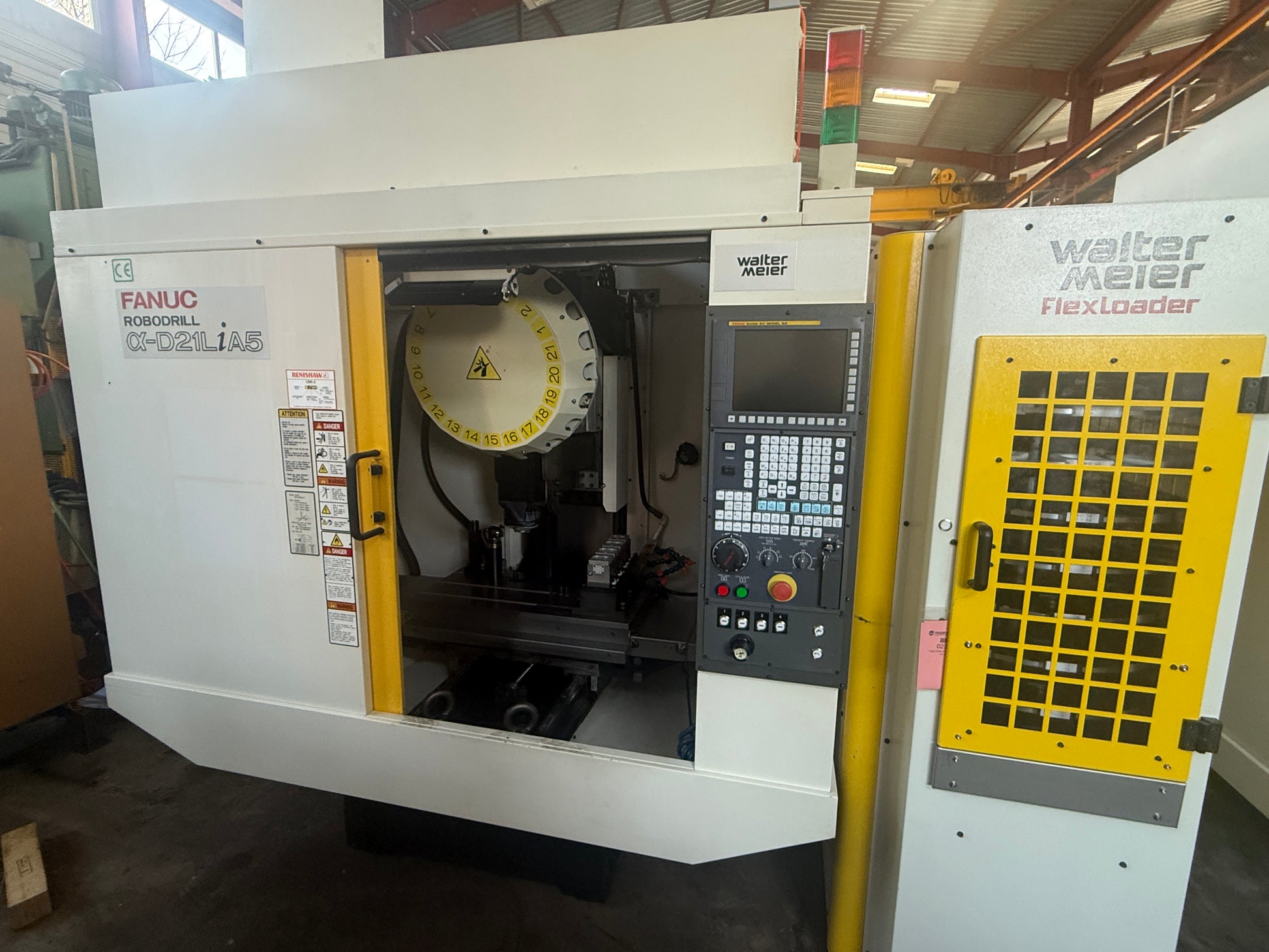

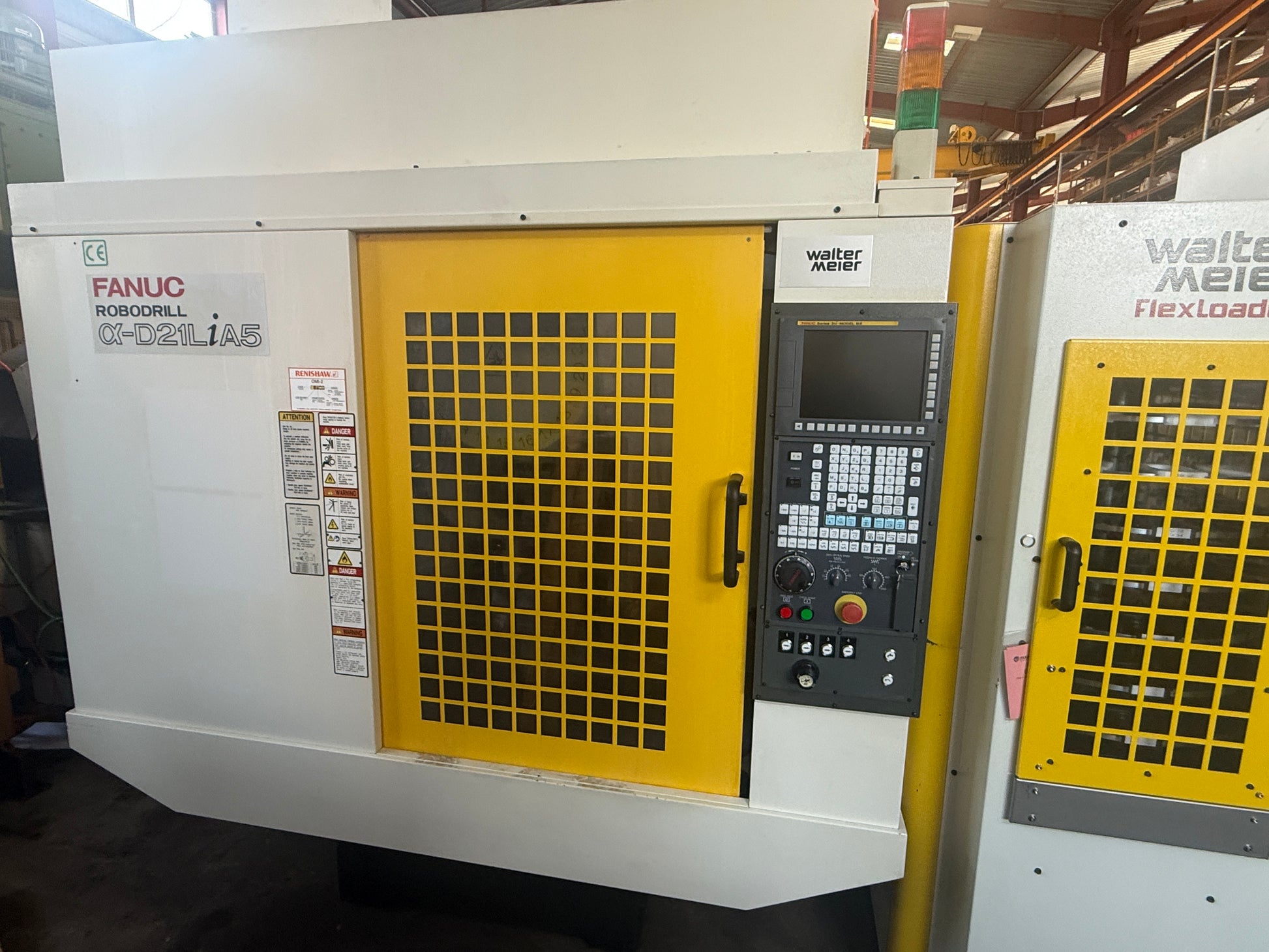

FANUC ROBODRILL ALPHA D21L i A5
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FANUC ROBODRILL ALPHA T21 i FIa is a Vertical machining center, designed for precision, high accuracy and reliability. Working capacities: 5 axes; travels X700 mm, Y400 mm, Z330 mm; table 850x400 mm, max table load 300 kg; spindle nose to table 250-580 mm; spindle nose HSK 40; tool magazine 21 places, max tool weight 23 kg. Main specs: spindle stepless 100-24000 t/min; spindle power 5.5 kW; rapid traverse 54 m/min; voltage 3x 400 V 50 Hz; total power 11 kVA; machine weight ~2200 kg; dims L2140xW2000xH2350 mm. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools
Technical specifications are subject to change without notice
| Number of axis total | 3 |

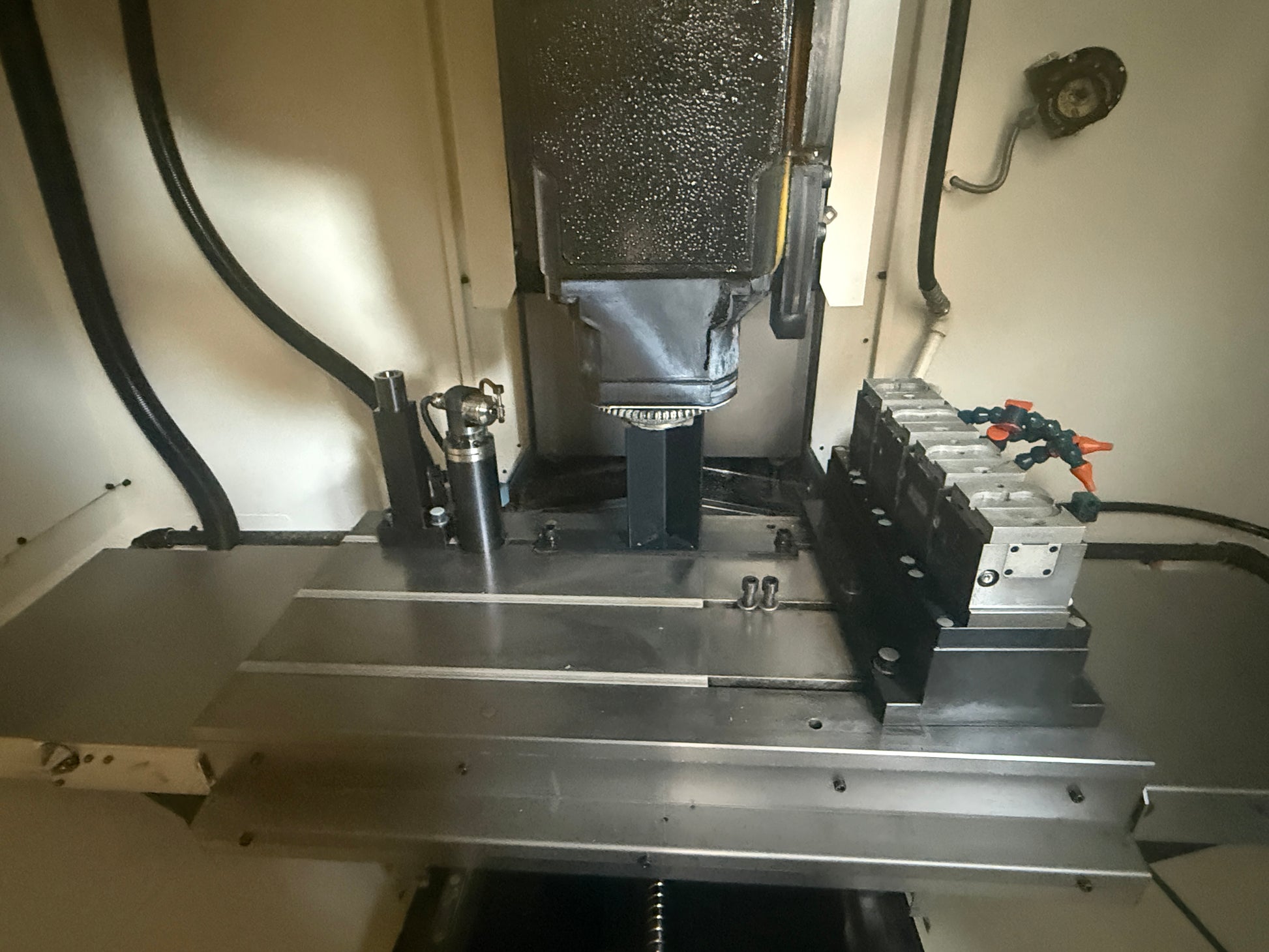

| Table length | 850 mm |
| Table width | 400 mm |
| Table load max. | 300 kg |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 330 mm |

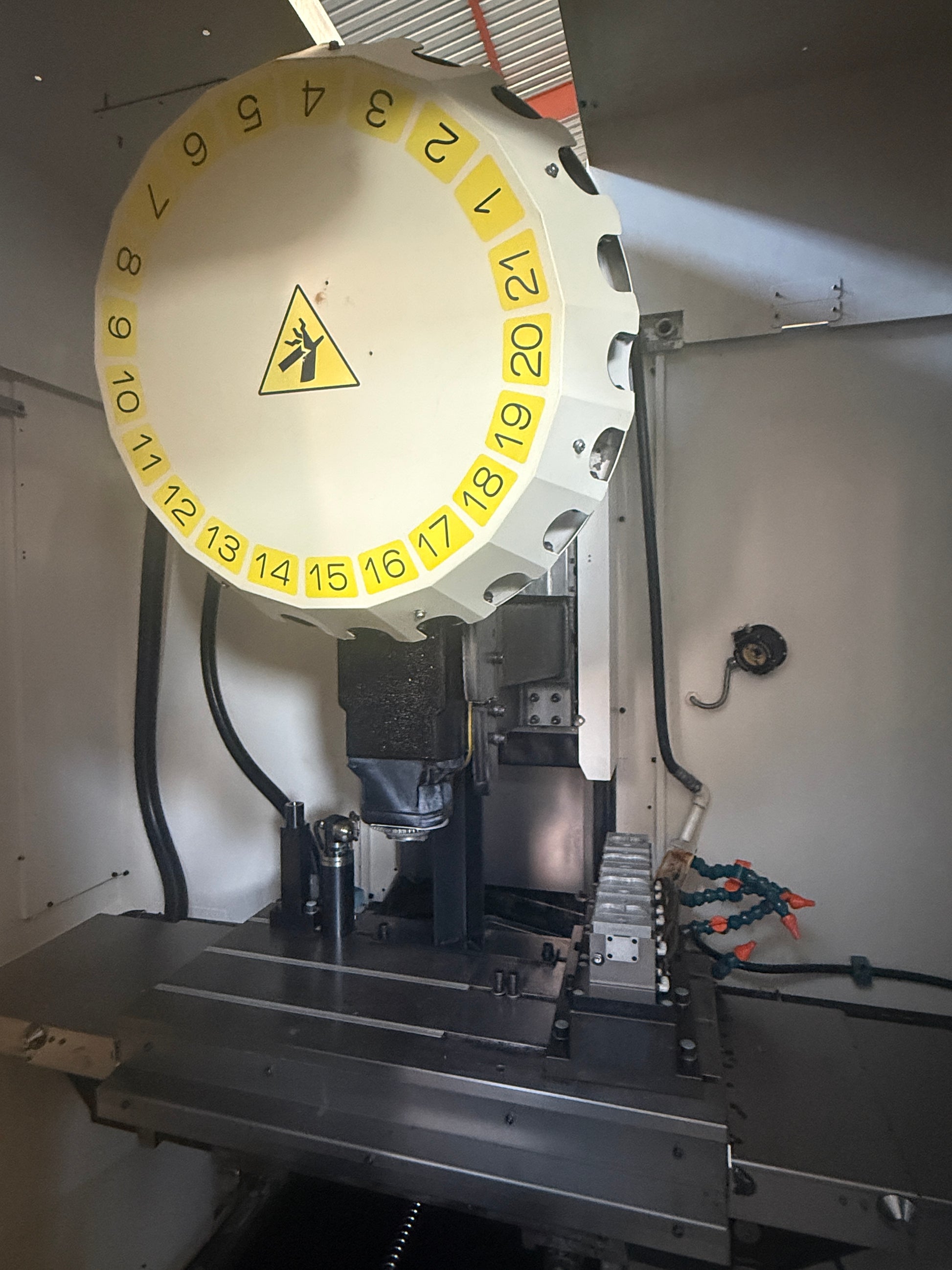

| Tool magazine number of tool places | 21 |
| Max. tool-weight | 23 kg |
| Spindle nose: HSK | 40 |
| Distance spindle nose to table | 250 - 580 mm |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 24000 t/min |
| Rapid traverse: | 54 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 5.5 kW |
| Total power required | 11 kVA |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 2140 mm |
| Width | 2000 mm |
| Height | 2350 mm |
| Various accessories: | |
| Coolant system | |

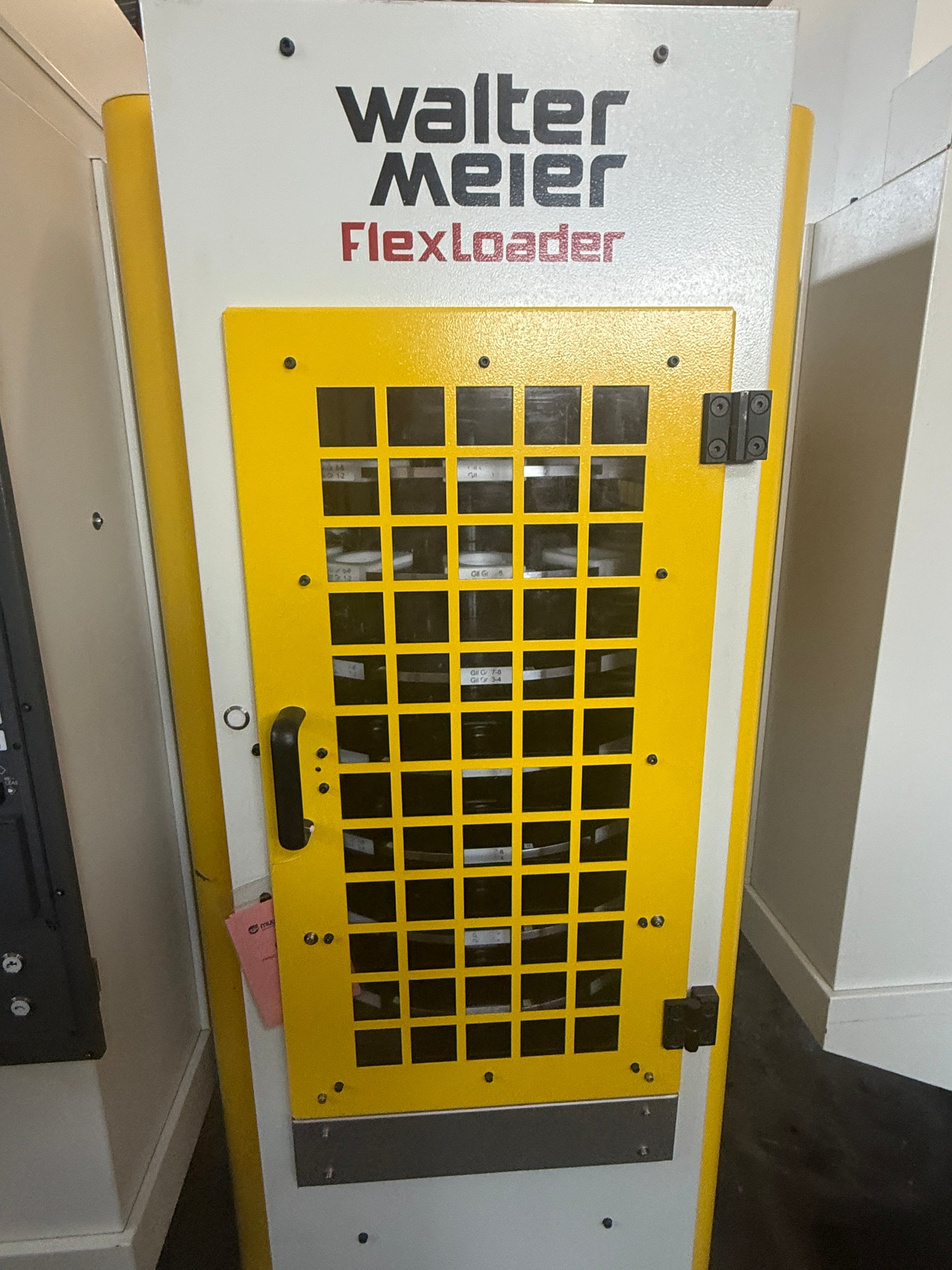

| Work piece magazine | |
| Lamp |
