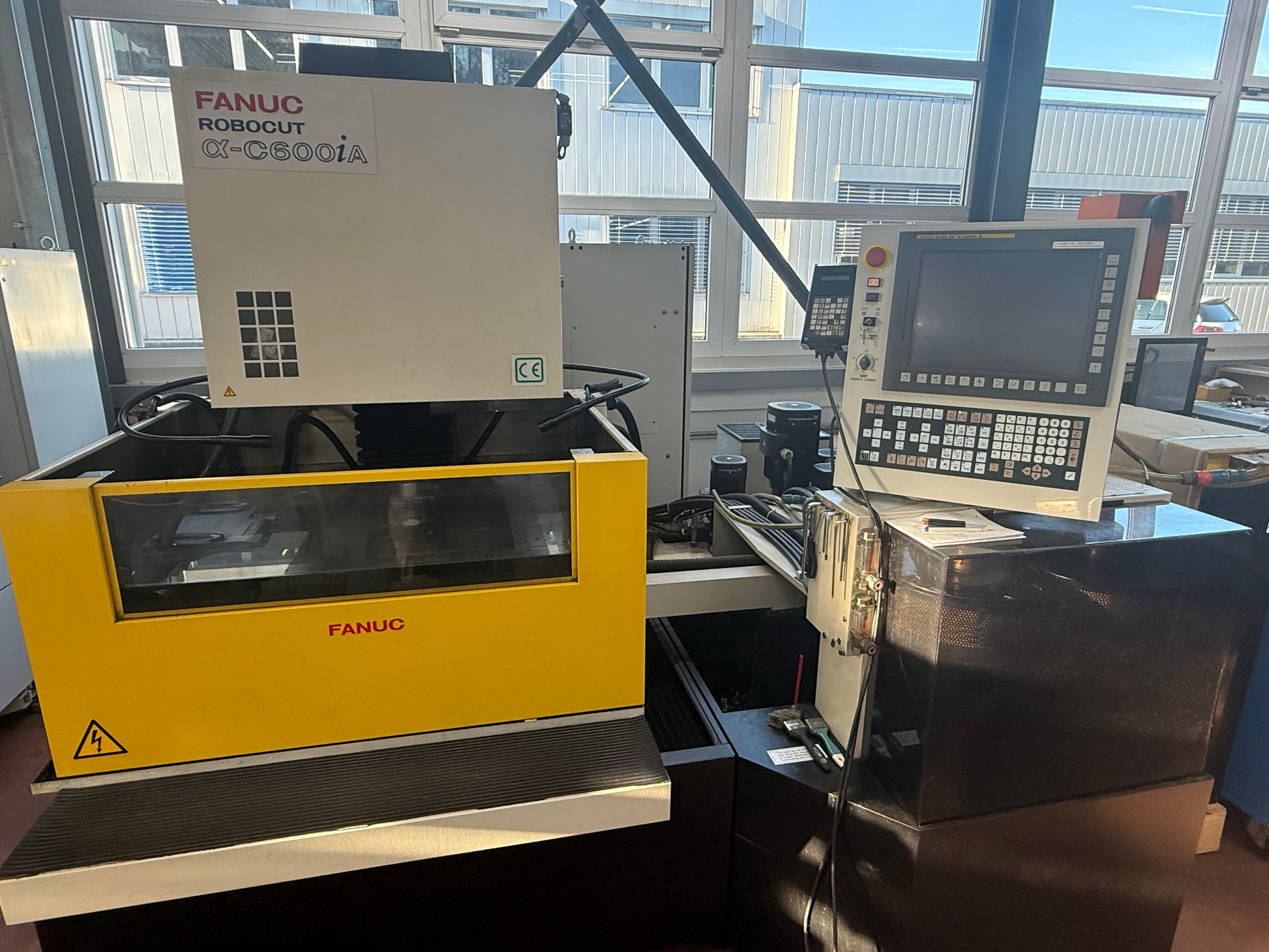

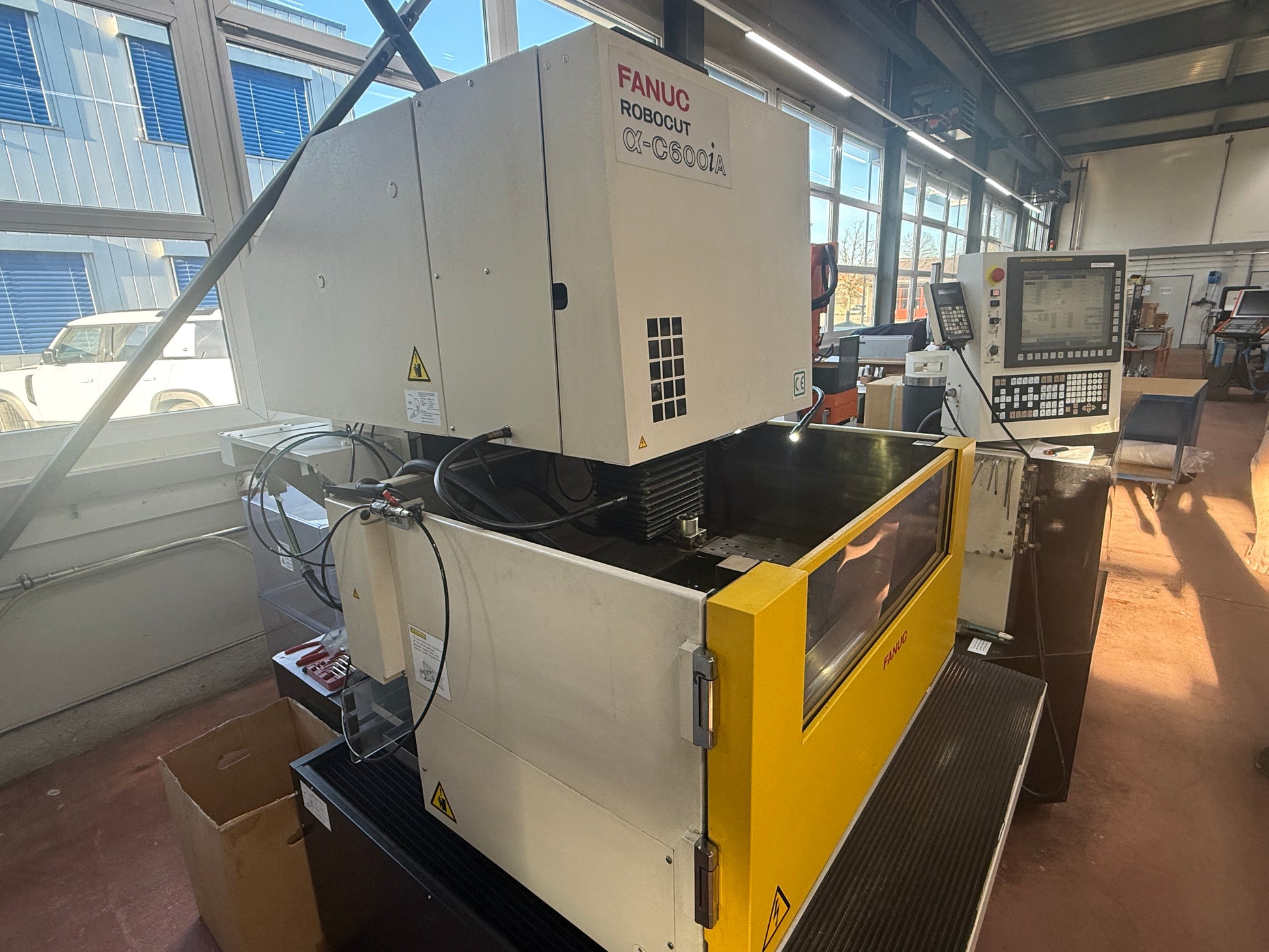

FANUC Robocut C 600 iA
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FANUC Robocut C 600 iA is a wire cutting EDM designed for precision, high accuracy and reliability. Working table 600×400 mm; max workpiece 1050×820×300 mm; table load 1000 kg; travels X600 Y400 Z310 U200 V200; wire from 0.1 mm. Power supply 50 Hz 3x 400 V; total power 11 kVA; machine weight ~1500 kg; overall 1800×1600×2000 mm. Accessories: lamp, automatic wire threading, Daikin cooling unit, automatic sliding door, glass rulers X,Y, rotating spindle Hirschmann H80R.MNXF. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice

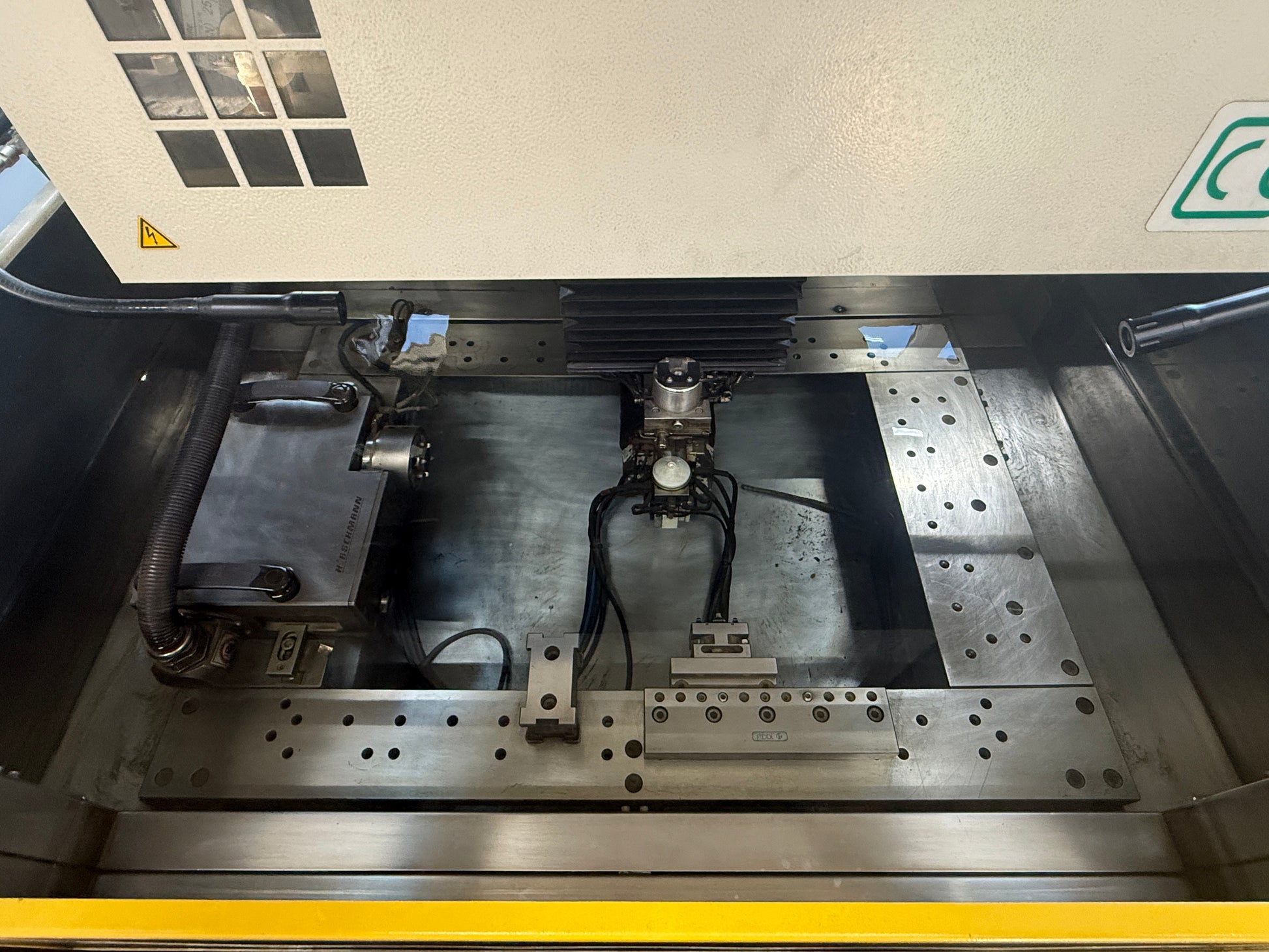

| Working table: | |
| Length | 600 mm |
| Width | 400 mm |
| Max. dimensions of work piece: | |
| Length | 1050 mm |
| Width | 820 mm |
| Height | 300 mm |
| Table load max. | 1000 kg |
| Longitudinal traverse (X-axis) | 600 mm |
| Cross traverse (Y-axis) | 400 mm |
| Vertical travel (Z axis) | 310 mm |
| U axis | 200 mm |
| V-axis | 200 mm |
| Diameter of electrode wire: | |
| from | 0.1 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 11 kVA |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1600 mm |
| Height | 2000 mm |
| Various accessories: | |
| Lamp | |

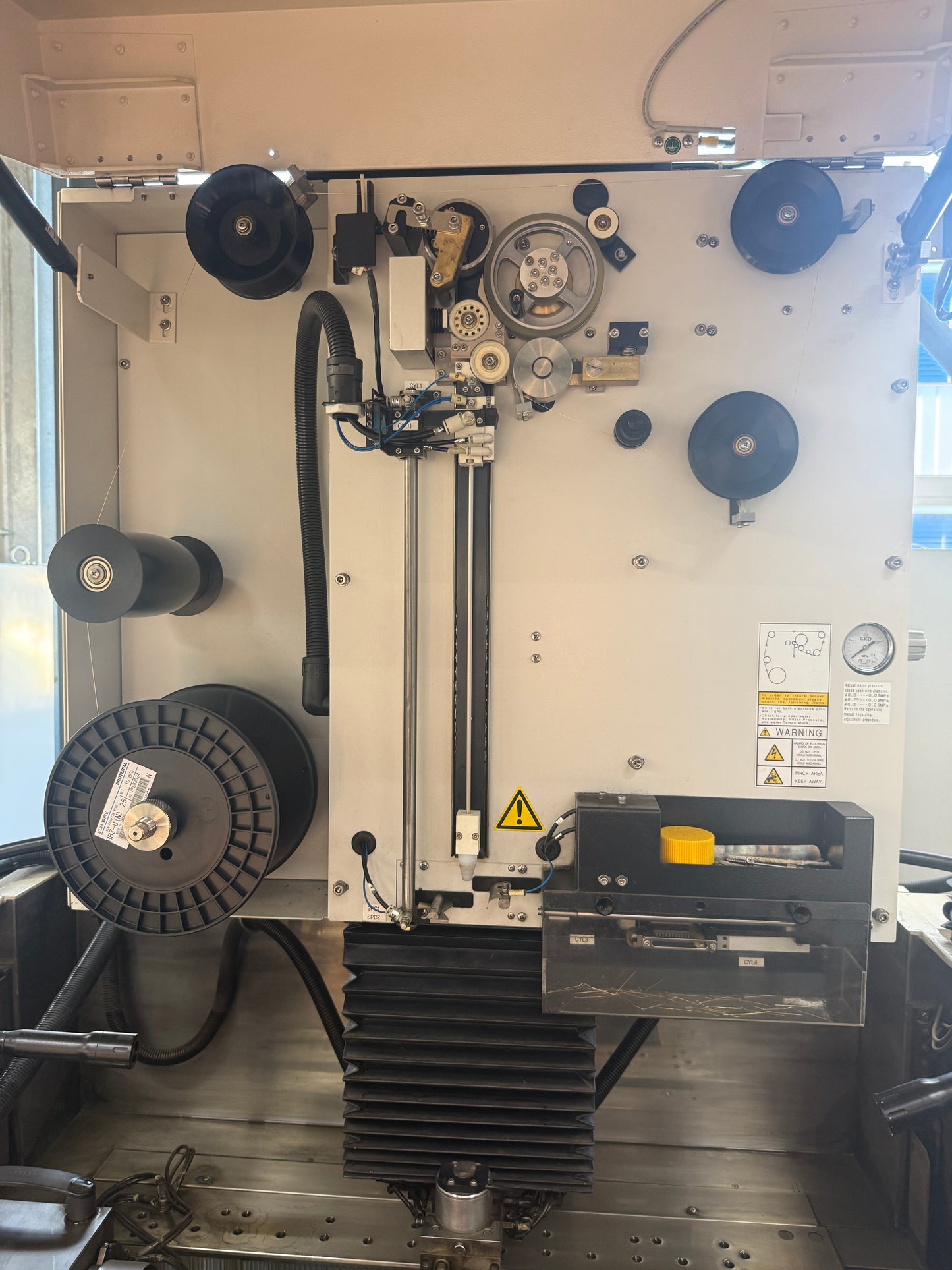

| Automatic wire treading | |

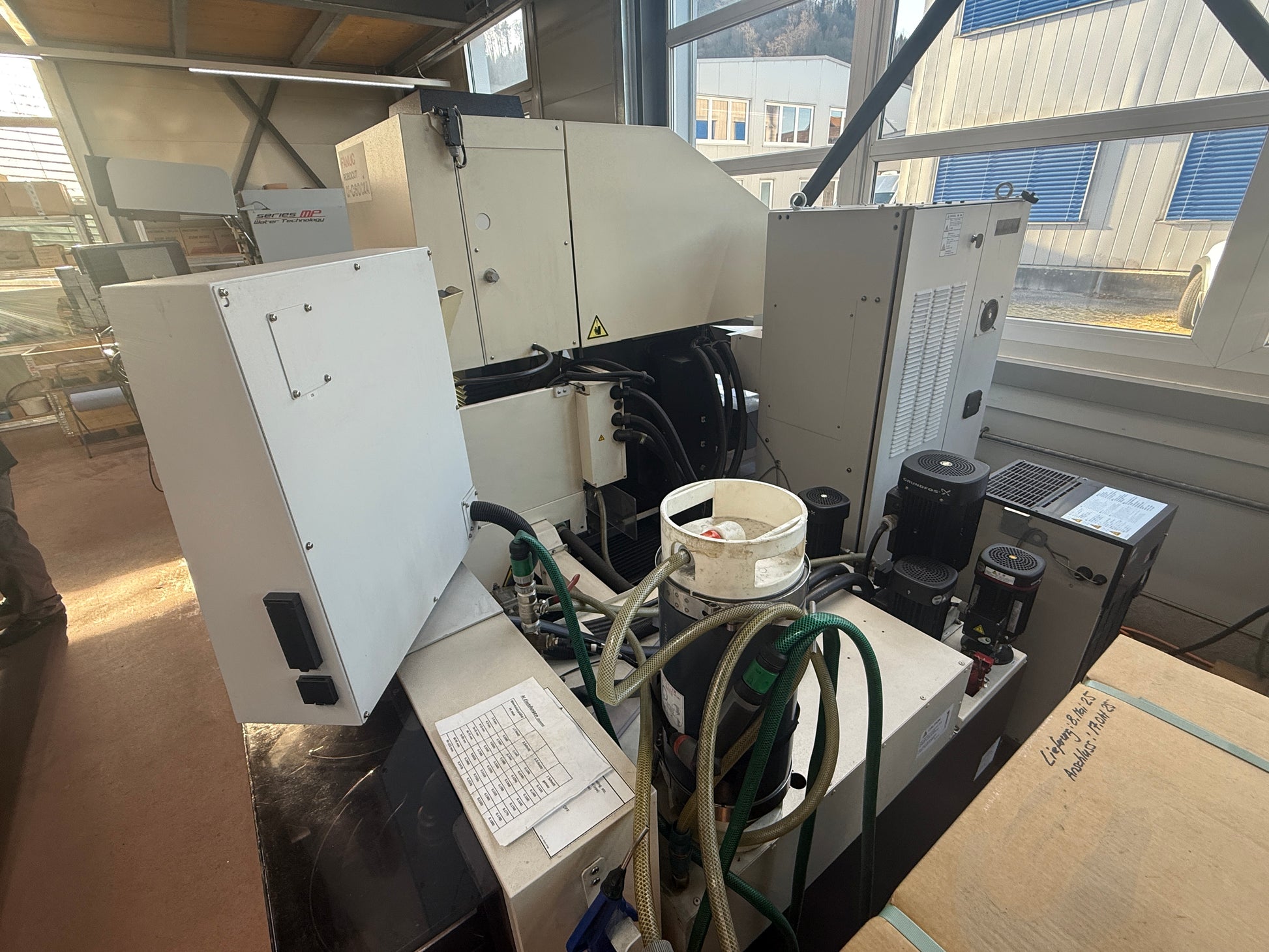

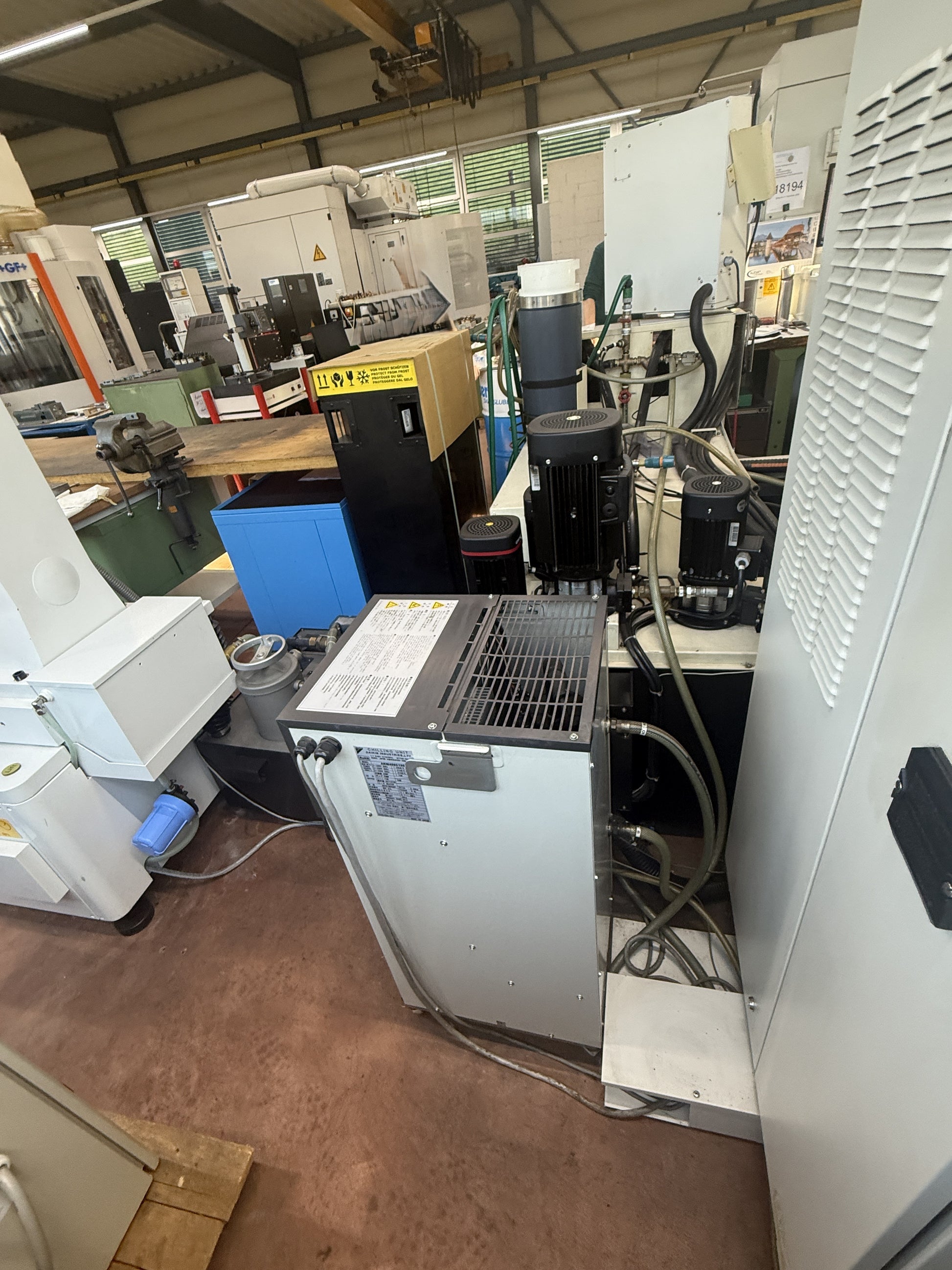

| Cooling unit for fluttines | Daikin |
| Automatic sliding door | |
| Glass rulers | X, Y |

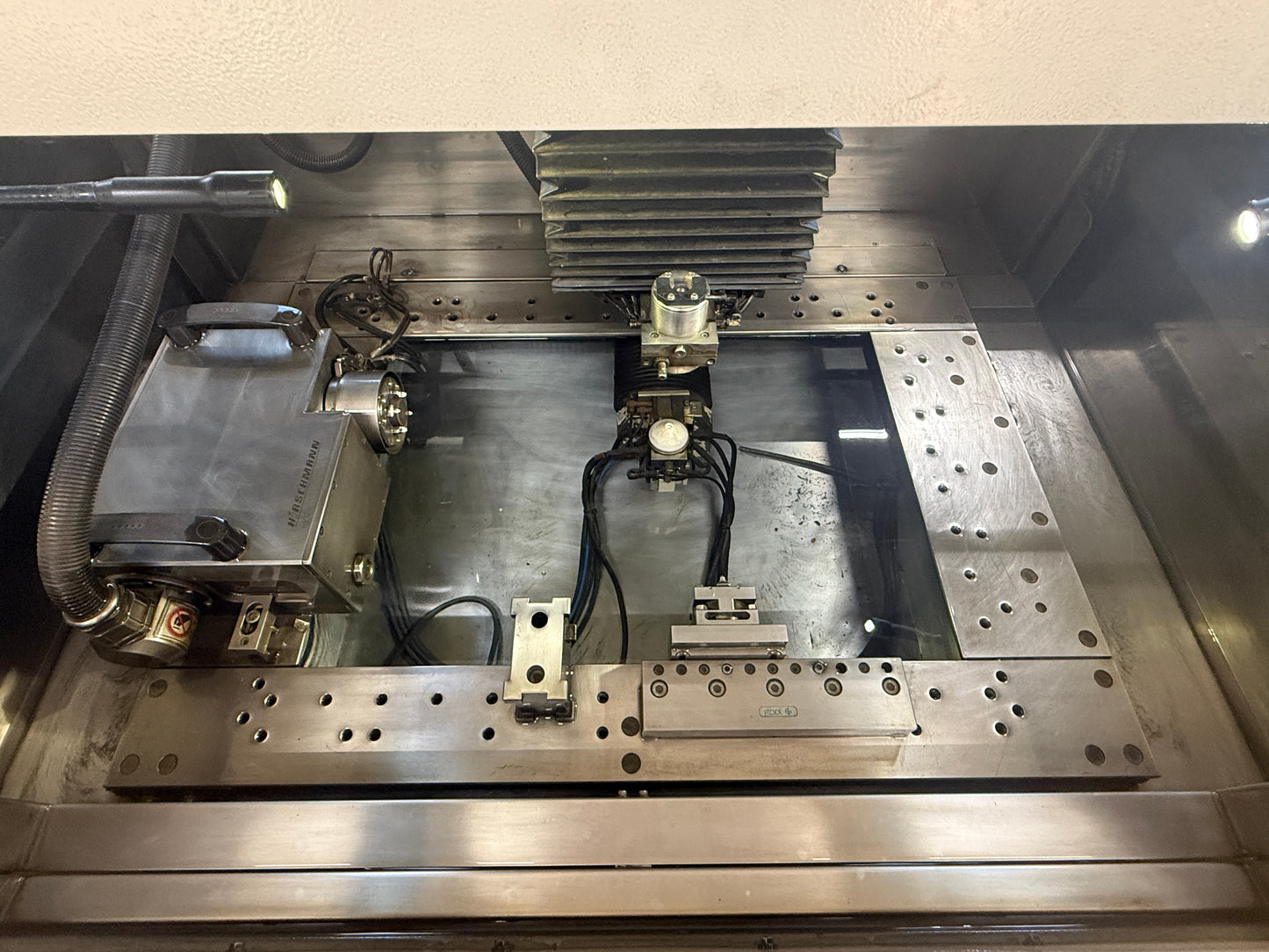

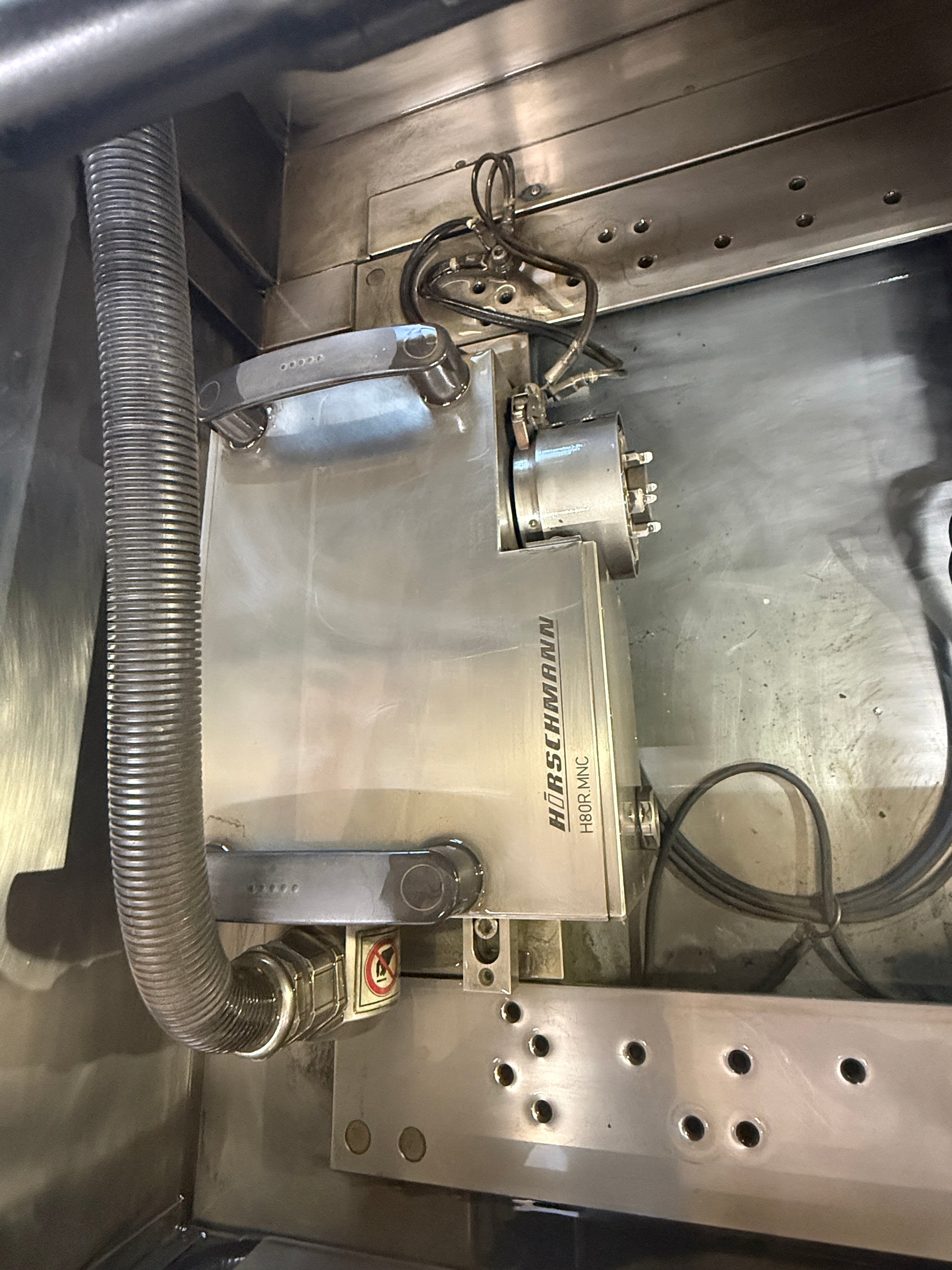

| Rotating spindle | Hirschmann H80R.MNXF |
