POLYSERVICE P 30 HF-S
Type: P 30 HF-S
Manufacturer: POLYSERVICE
Year: 2012
Stock: 023559
Download technical sheet (PDF)

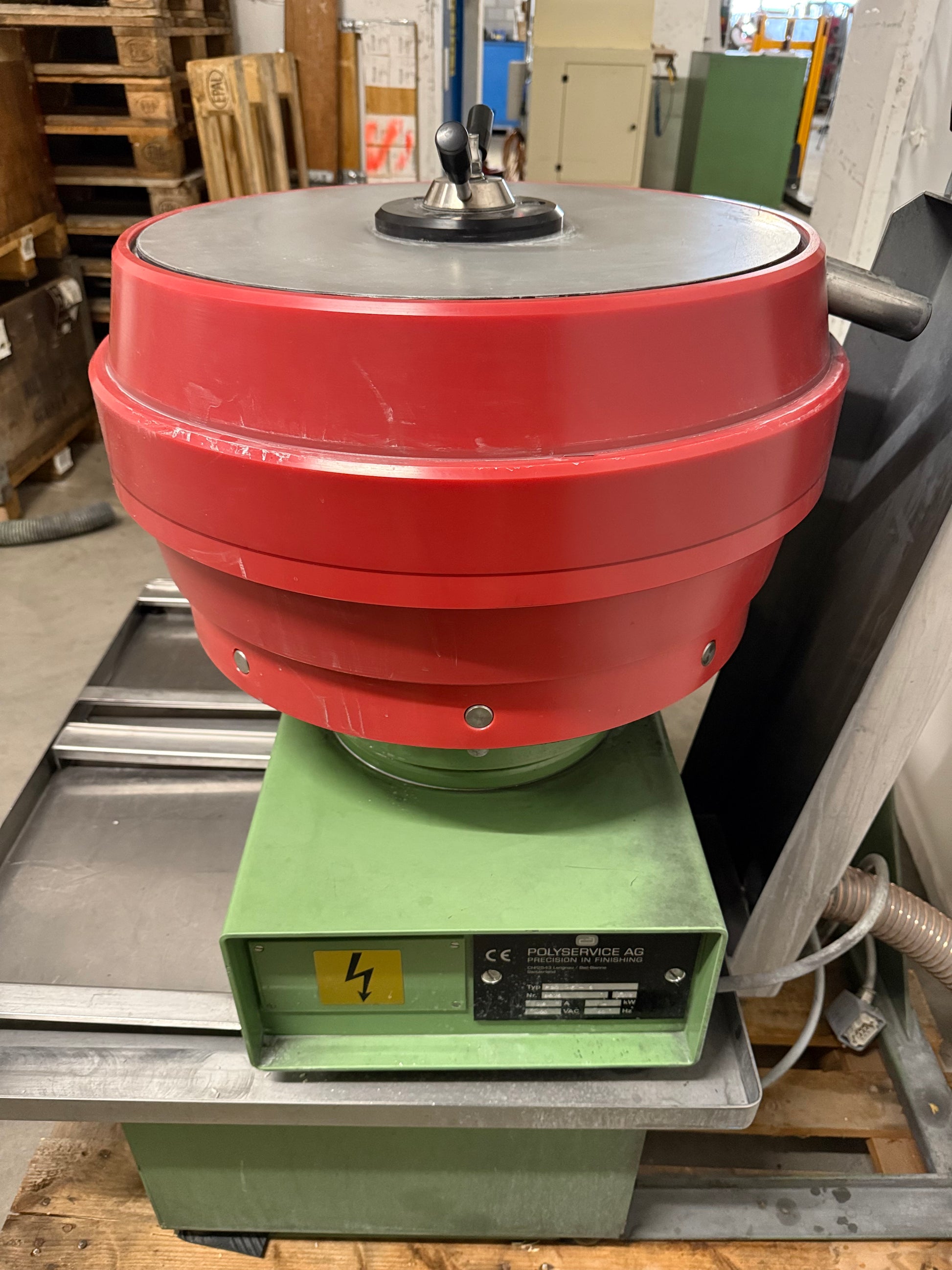

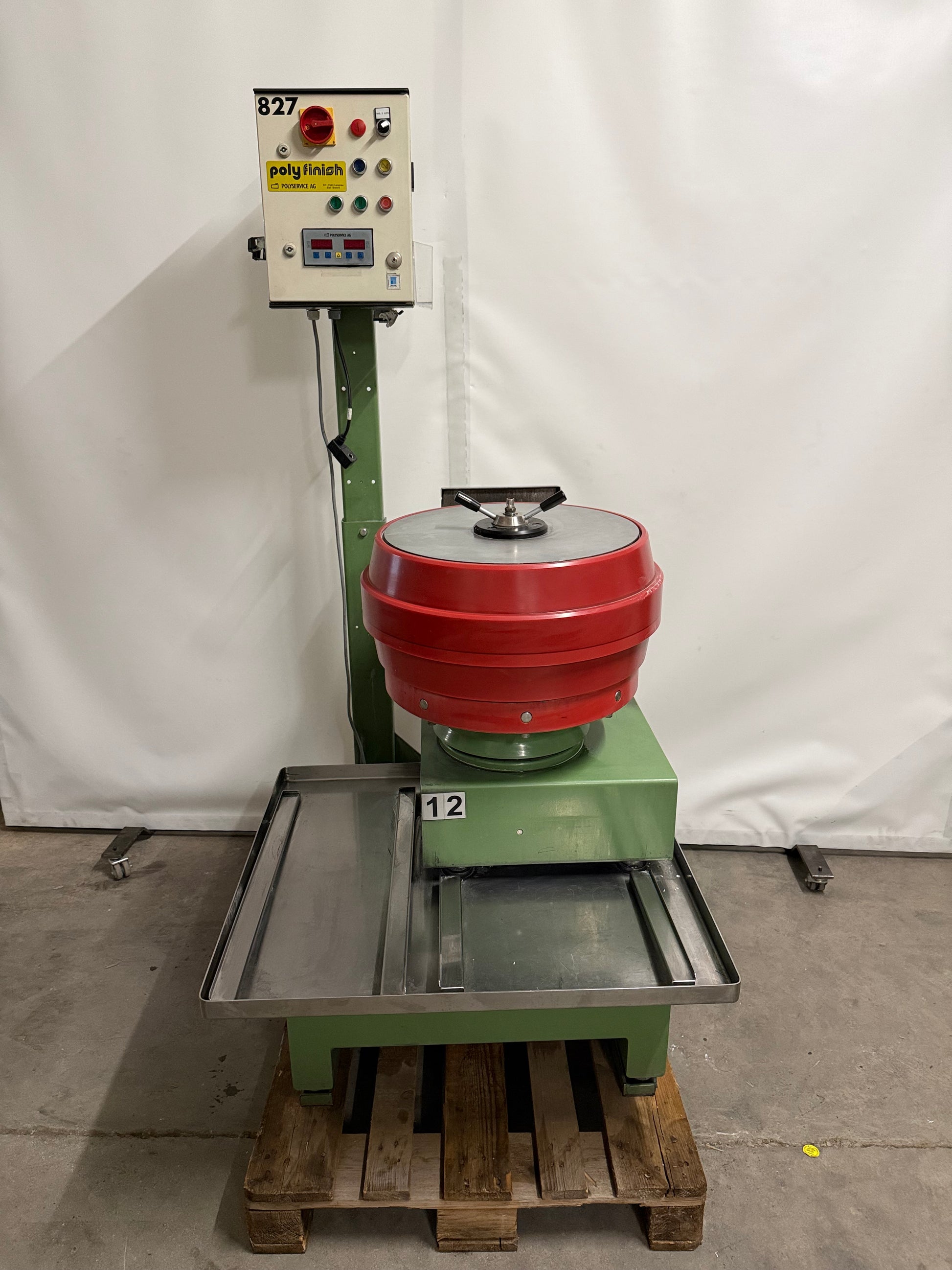

POLYSERVICE P 30 HF-S is a barrel‑polishing machine, engineered for precision work with high accuracy and reliability. Circlon ring tank internal Ø 440 mm, volume 30 L (useful ≈50%); workpieces Ø 2–80 mm, lengths 2–150 mm; 1 tank. Rotation speed 2880 rpm; voltage 50 Hz 3×380 V; installed power 1.4 kW; weight ≈150 kg; overall dimensions L900×W800×H1300 mm. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.

Technical specifications are subject to change without notice

Execution: barrel-burnishing
Number of tanks 1

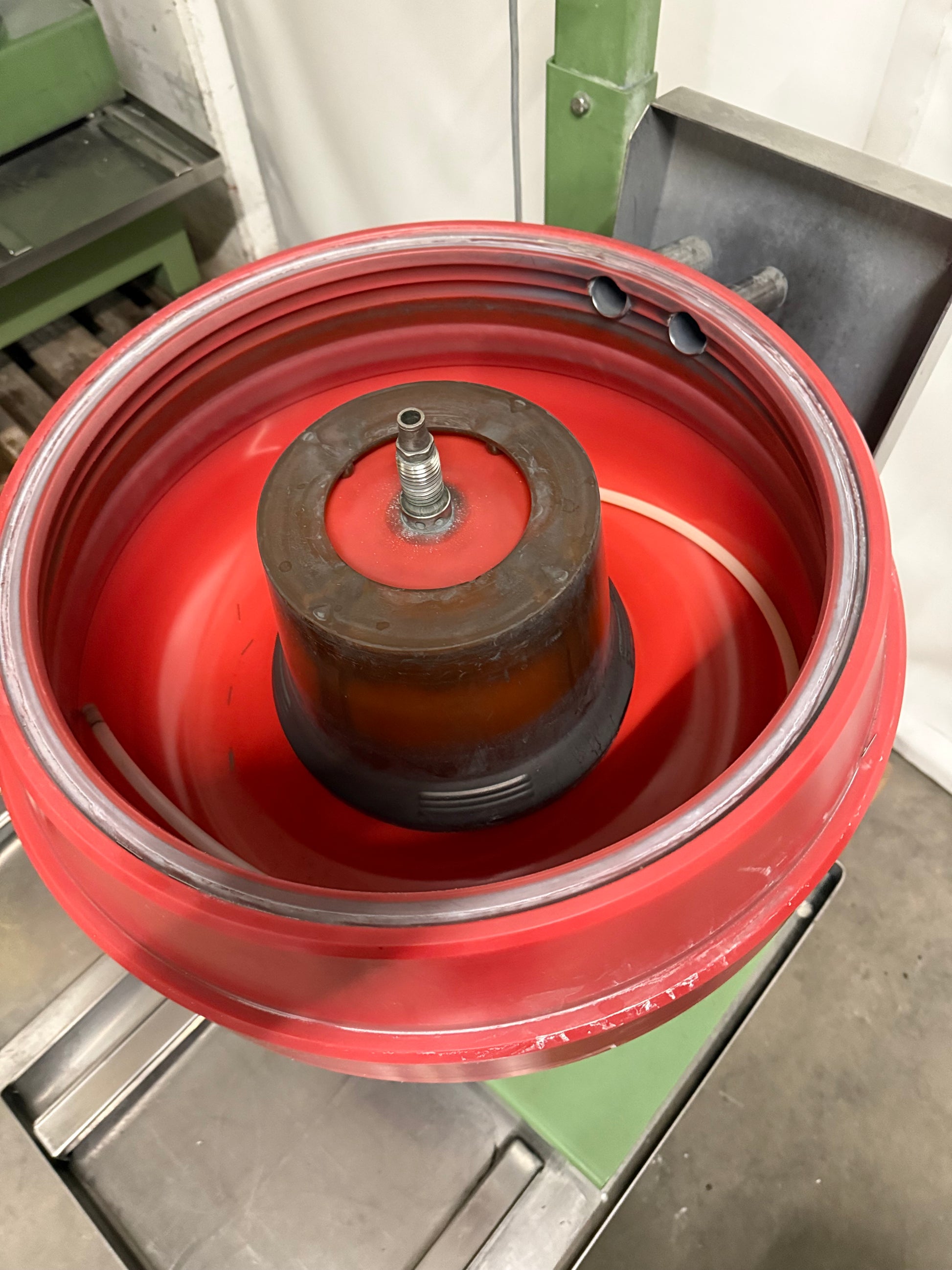

Circlon-Verfahren (Ringform)
Behältergrösse:
   Internal diameter 440 mm
   Volume 30 l
   Useful volume approximate 50 %
Work-pieces:
   diameter min. 2 mm
   max. diameter 80 mm
   Length from 2 - 150 mm
Rotation speed 2880 t/min
Voltage 50 Hz 3x 380 Volt
Installed power 1.4 kW
Machine's weight about 150 kg
Overall dimensions machine:
   Length 900 mm
   Width 800 mm
   Height 1300 mm
