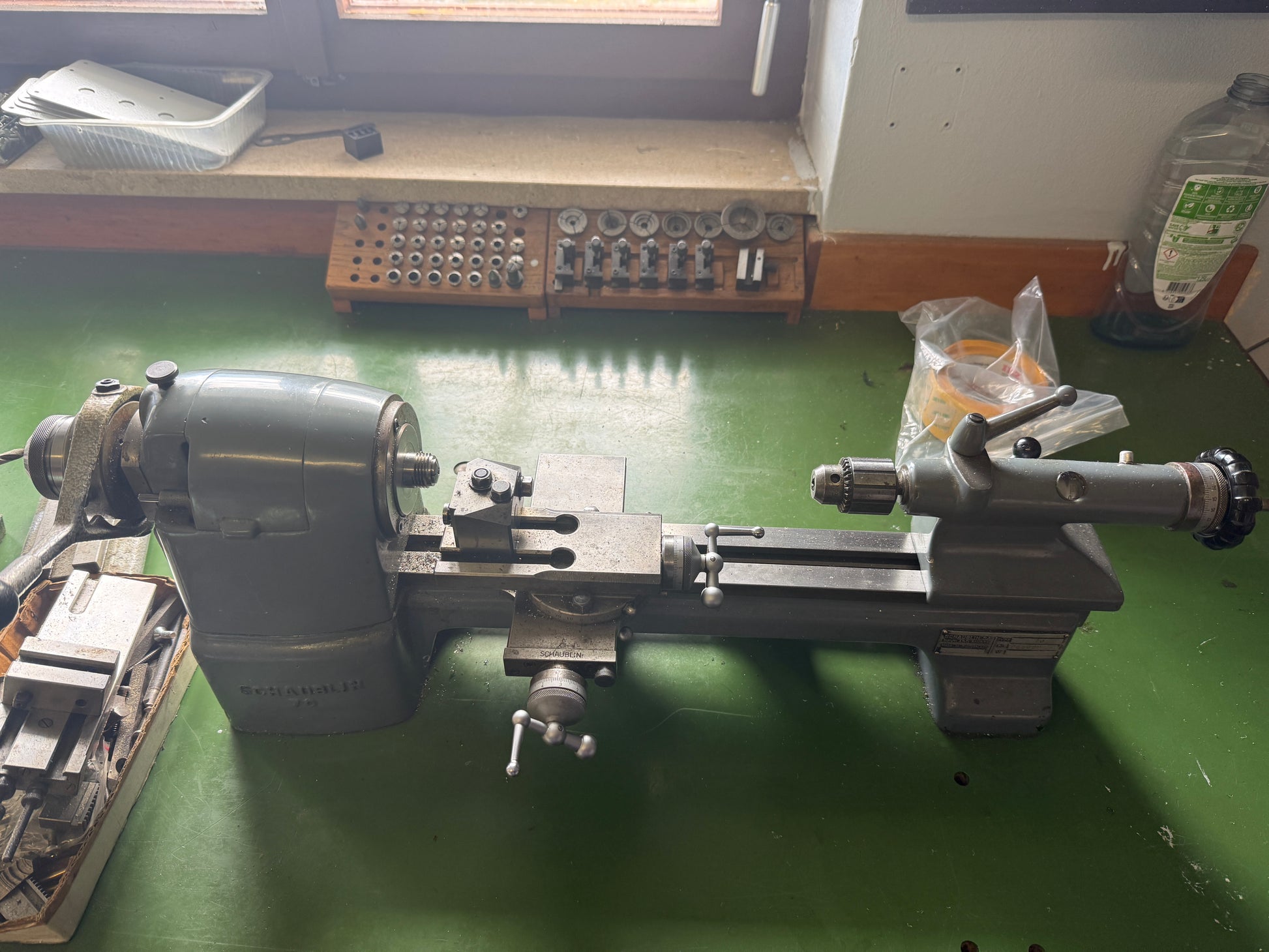

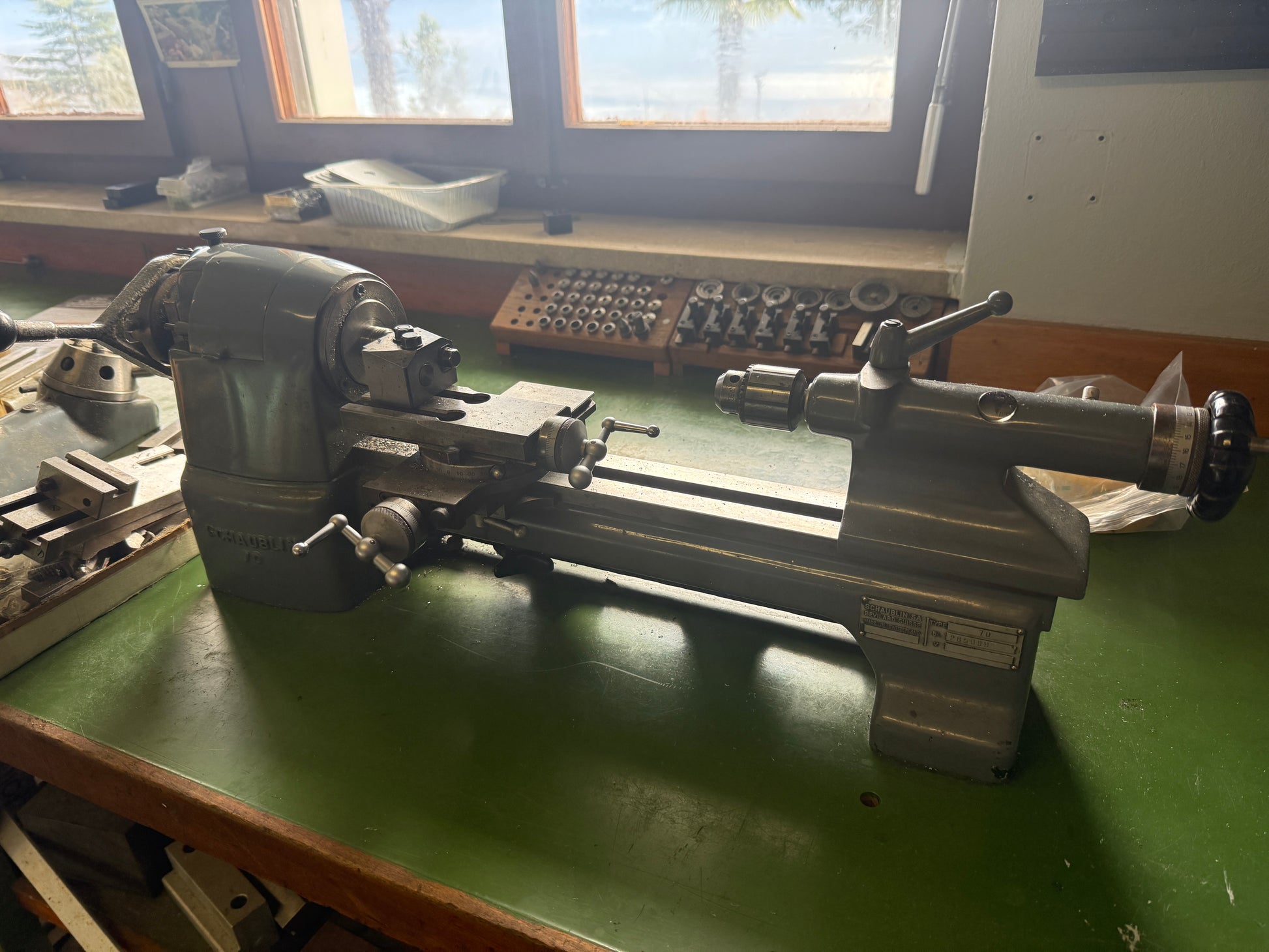

SCHAUBLIN 70 is a Toolmakers lathe engineered for precision work with high accuracy and reliability. Centre height 70 mm; distance between centres 275 mm; swing over cross‑slide 85 mm, swing over bed 155 mm; spindle hole 12 mm; inner taper type 12 W. 12 steps from 135 to 2950 t/min; spindle motor 0.8 CV. Overall dimensions L700×W700×H500 mm; weight about 50 kg. Accessories: rear drive, quick closing attachment, set of collets, set of bell collets, drilling tailstock, set of steel holders. Delivers tight tolerances; suited to watchmaking, toolmaking, automotive, aerospace and medical sectors.
| Centre height | 70 mm |
| Distance between centres | 275 mm |
| Swing over cross-slide | 85 mm |
| Swing over bed | 155 mm |
| Spindle hole | 12 mm |
| Inner taper type | 12 W |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 135 t/min |
| up to | 2950 t/min |
| Spindle motor | 0.8 CV |
| Machine's weight about | 50 kg |
| Overall dimensions machine: | |
| Length | 700 mm |
| Width | 700 mm |
| Height | 500 mm |
| Various accessories: | |

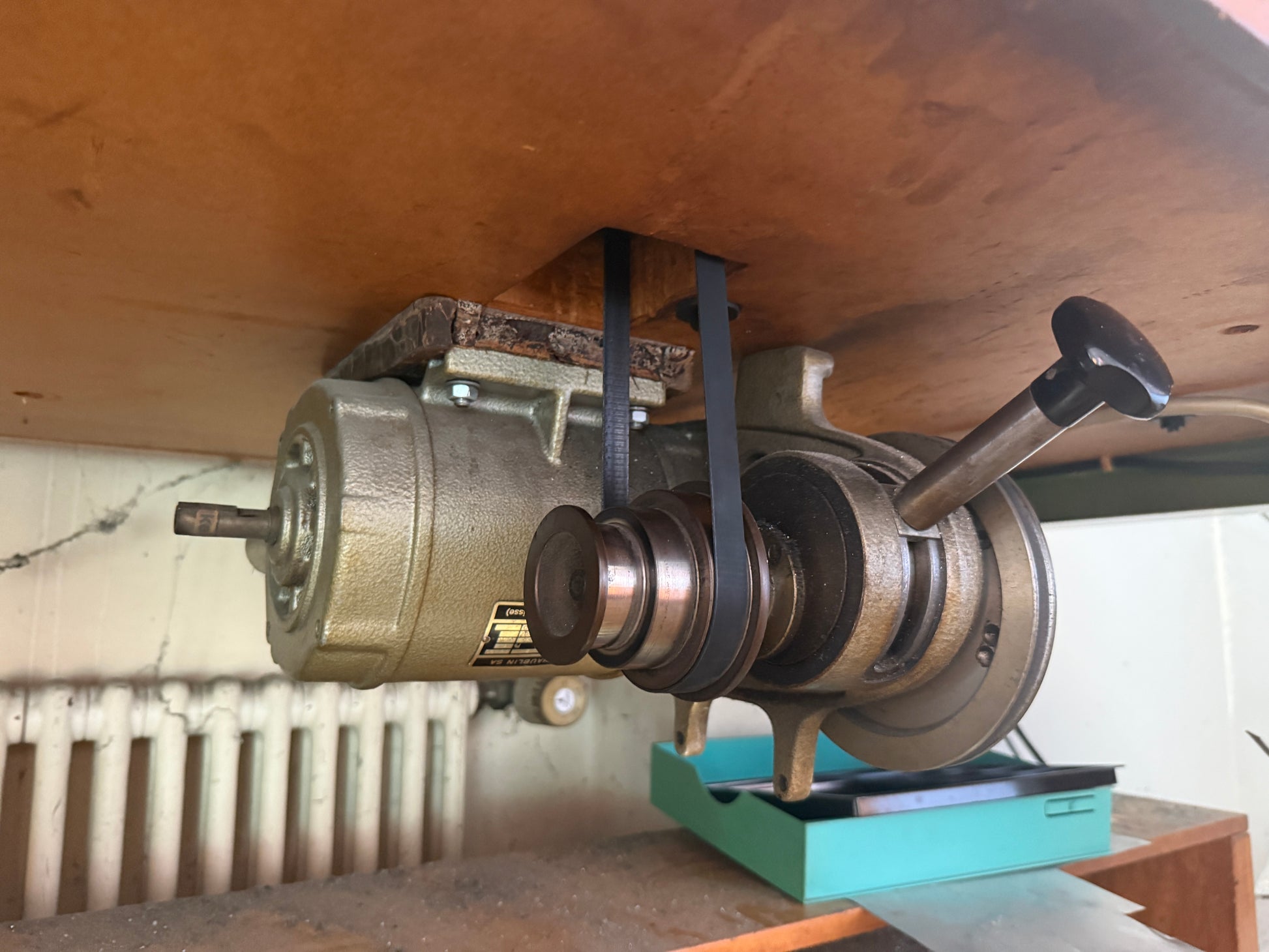

| Rear drive | |
| Quick closing attachment | |

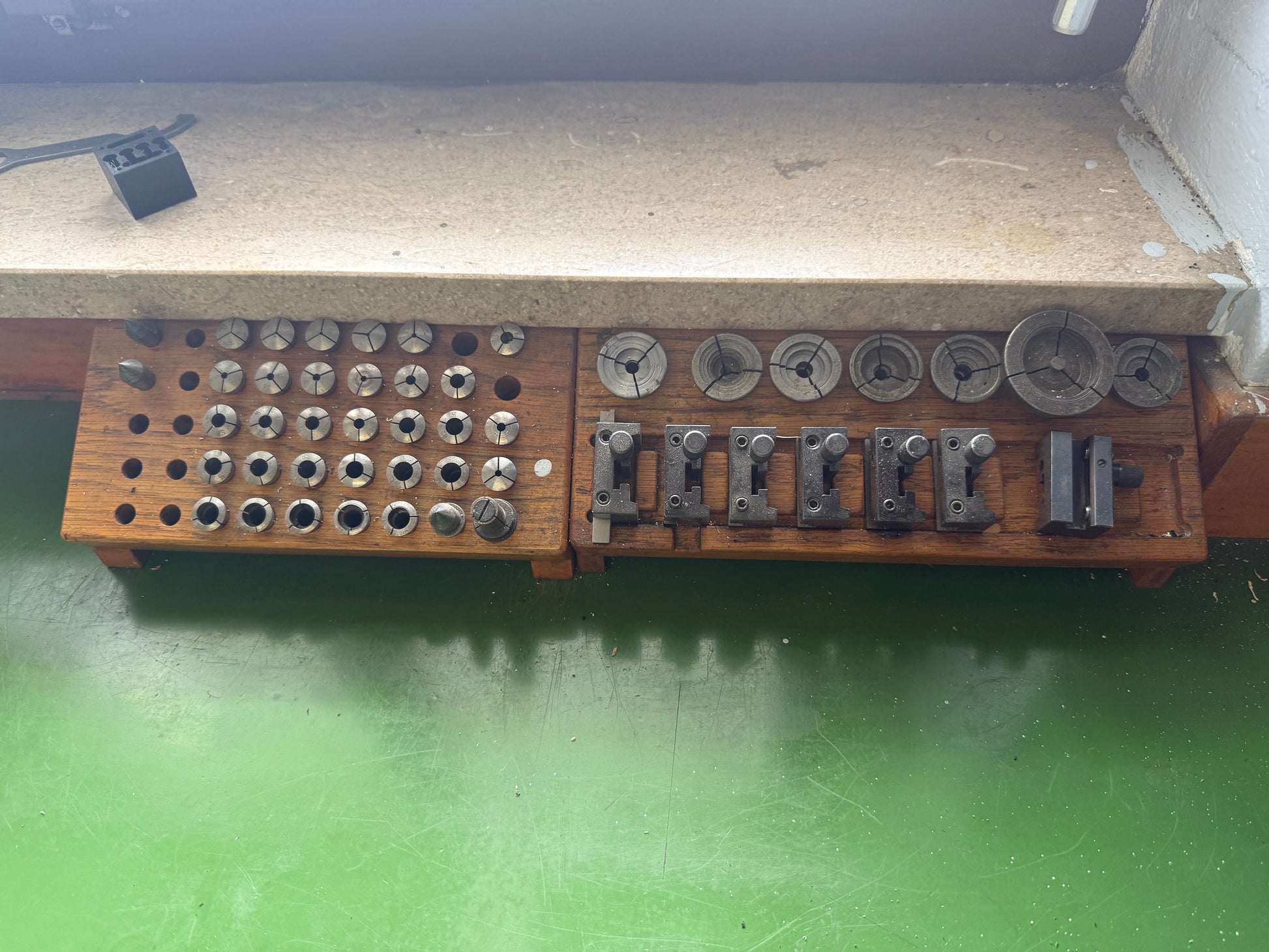

| Set of collets | |
| Set bell collets | |
| Drilling tailstock | |
| Set of steel holders |
