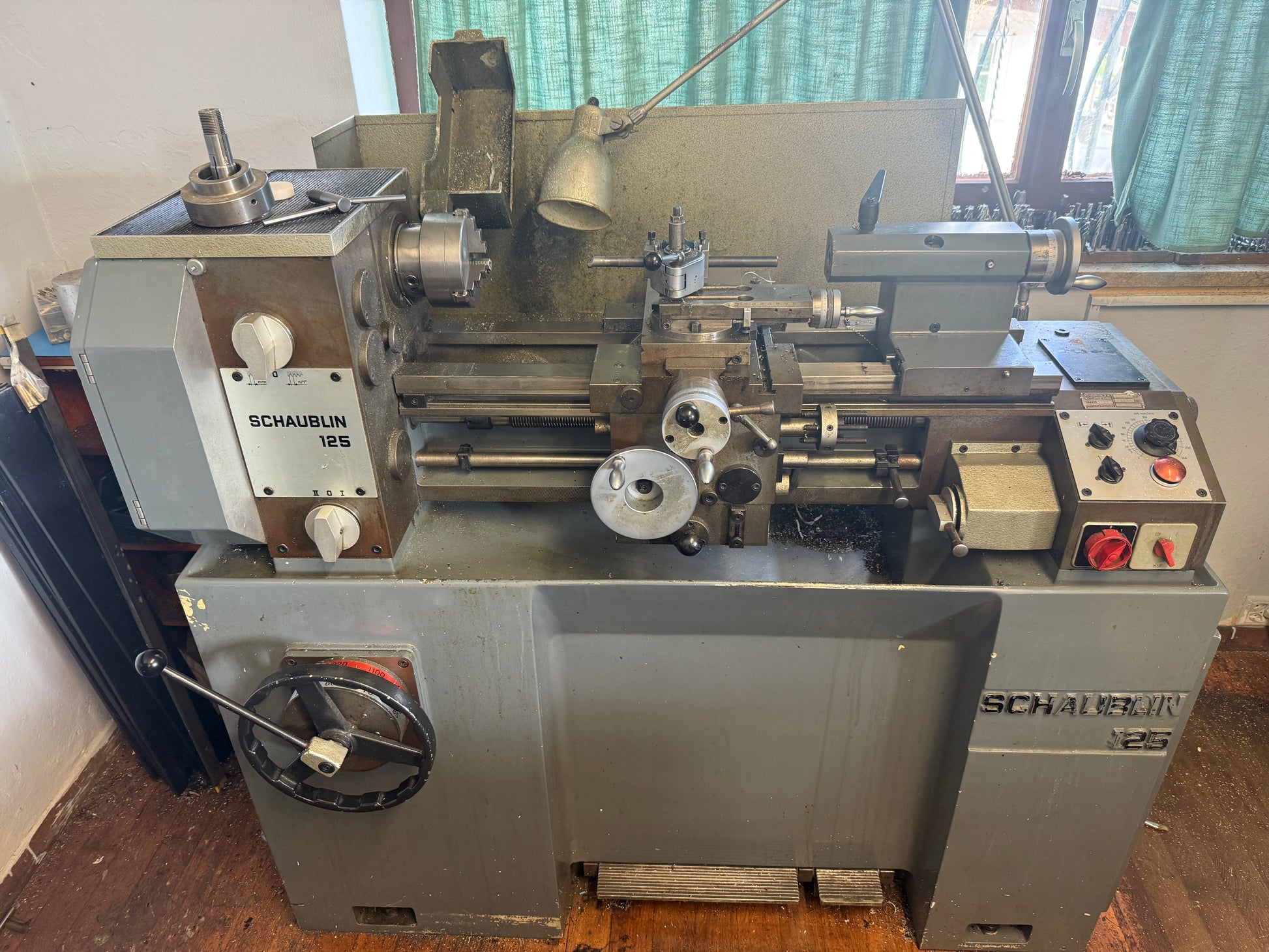

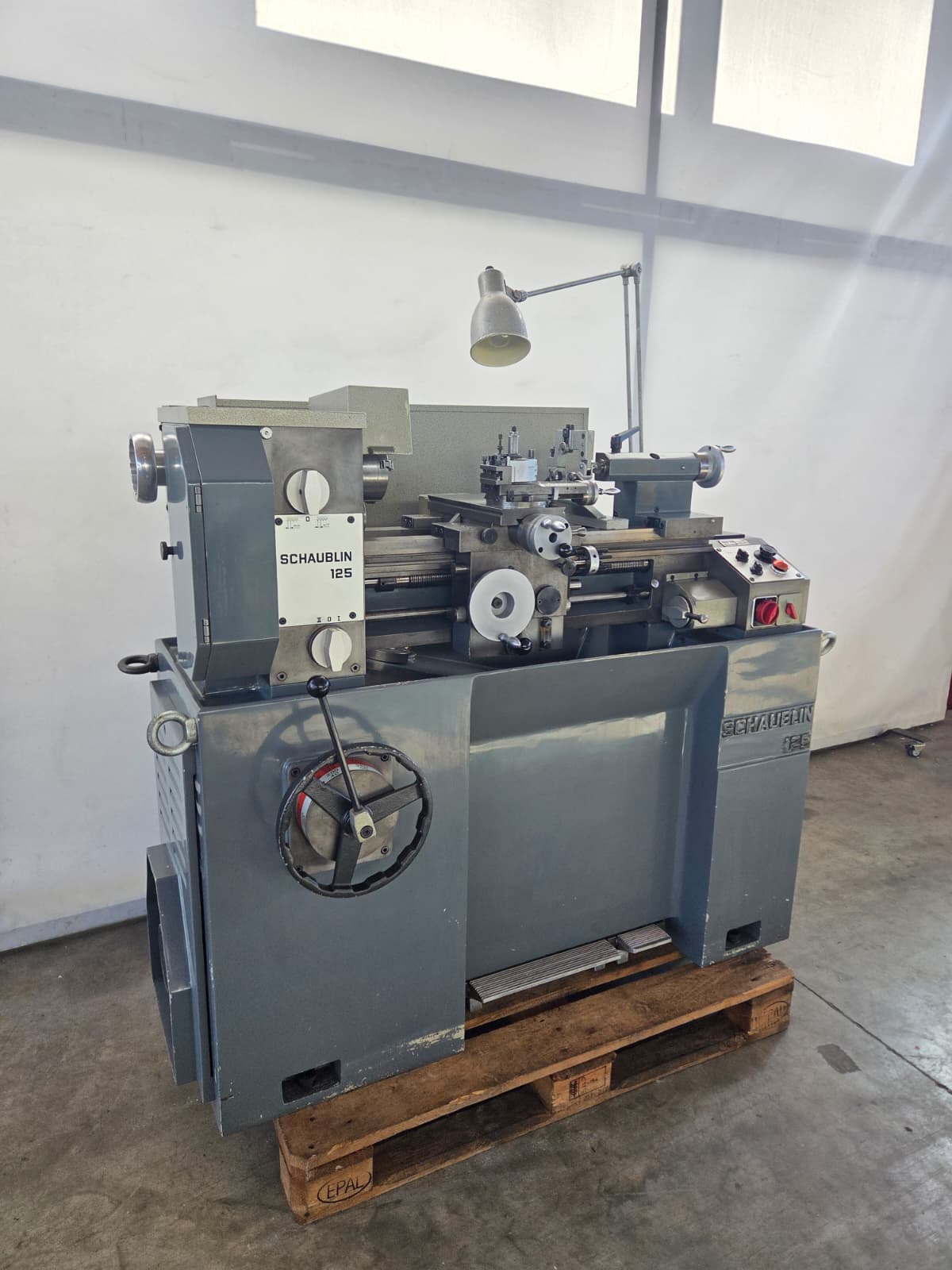

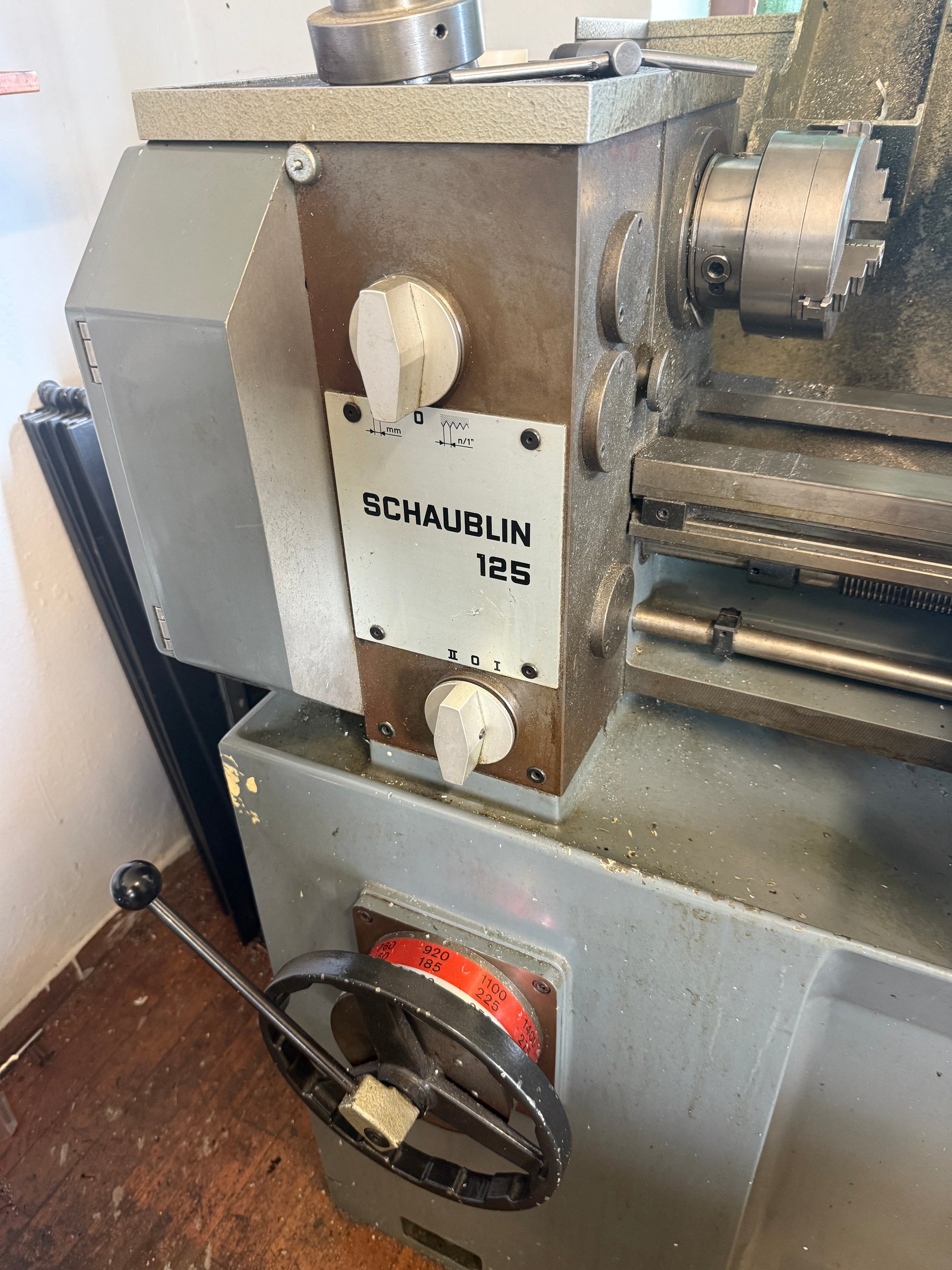

SCHAUBLIN 125 B is a Centre lathe of precision, built for high accuracy and reliability. Capacities: centre height 125 mm; distance between centres 500 mm; swing over cross-slide 52 mm; swing over bed 270 mm; spindle hole 28 mm; spindle nose for collets W25. Specs: stepless spindle speeds 200–3000 t/min; leadscrew pitch 4 mm; tailstock taper 3 CM; longitudinal and frontal feeds 0.25–8 mm/t. Voltage 50 Hz 3x380 V; spindle motor 2.3 CV; total power 3 CV; weight ~990 kg; overall L1700×W850×H1280 mm. Accessories: MULTIFIX toolholders, lamp. Achieves tight tolerances; typical applications: watchmaking, automotive, machine tools, aerospace, medical.
| Centre height | 125 mm |
| Distance between centres | 500 mm |
| Swing over cross-slide | 52 mm |
| Swing over bed | 270 mm |
| Spindle hole | 28 mm |
| Spindel nose for collets | W25 |
| Taper in spindle: | |
| Camlock | |
| Thread | |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 3000 t/min |
| Pitch of leadscrew | 4 mm |
| Taper in tailstock: | 3 CM |
| Feeds: | |
| length: | |
| from | 0.25 mm/t |
| up to | 8 mm/t |
| Frontal: | |
| from | 0.25 mm/t |
| up to | 8 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 2.3 CV |
| Total power required | 3 CV |
| Machine's weight about | 990 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 850 mm |
| Height | 1280 mm |
| Various accessories: | |
| Toolholders | MULTIFIX |
| Lamp |
