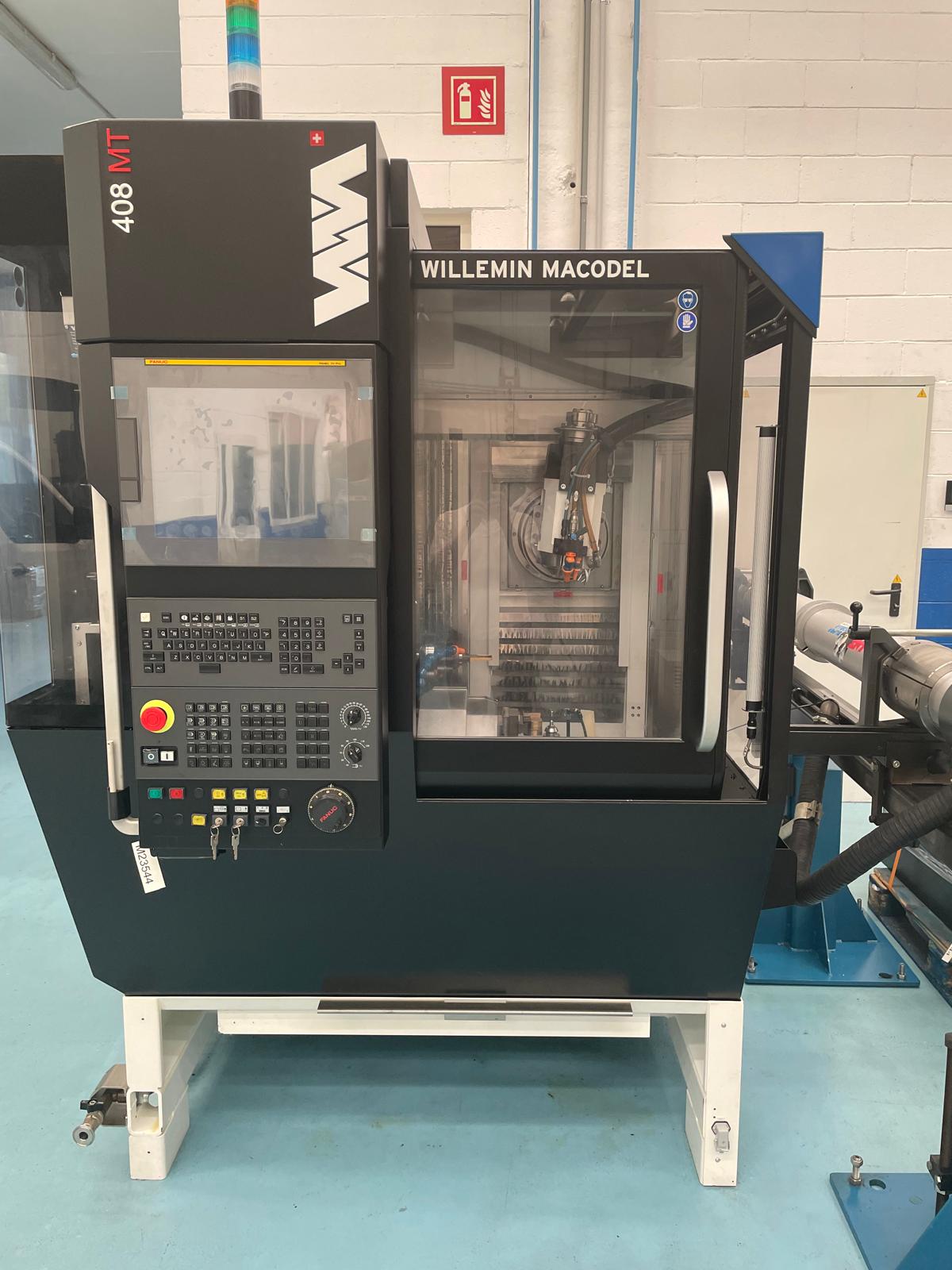

WILLEMIN MACODEL 408 MT
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
WILLEMIN MACODEL 408 MT is a Machining and turning center from bar for precision, high accuracy and reliability. Capacities: bar Ø32 mm; X250 Y200 Z300; A360° B -15/+100°. 5 axes; HSK E-40; 500–30,000 t/min; 400V 50Hz; 16 kVA; weight ≈1700 kg. Tool magazine 72 places Ø80 L95; tool change 0.8 s. BLUM Z‑MT, Renishaw OMP 400+AXISET HD‑TB, bar loader LNS Super Hydrobar. Delivers tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Number of axis total | 7 |
| Number of axis simultaneous | 5 |
| Longitudinal travel (X-axis) | 250 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 310 mm |
| A axis | 360 ° |
| Resolution | 0.001° |
| B axis | -45° +115° |
| Resolution | 0.0001° |
| C axis | |
| Bar diameter | 32 mm |
| Tool magazine number of tool places | 72 |
| Tool diameter max. | 80 mm |
| Tool lenght | 95 mm |
| Max. tool-weight | 1 kg |
| Time of tool changing | 0.8 s |
| Spindle nose: HSK | E-40 |
| Spindle speeds: | |
| stepless | |
| from | 500 t/min |
| up to | 30'000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 16 kVA |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1840 mm |
| Width | 2450 mm |
| Height | 1385 mm |
| Various accessories: | |
| Coolant system | |
| Tool measuring device | BLUM Z-MT |
| Automatic non-contact measuring device | Renishaw OMP 400 + AXISET HD-TB |
| Bar loader number of bars | LNS Super Hydrobar |
