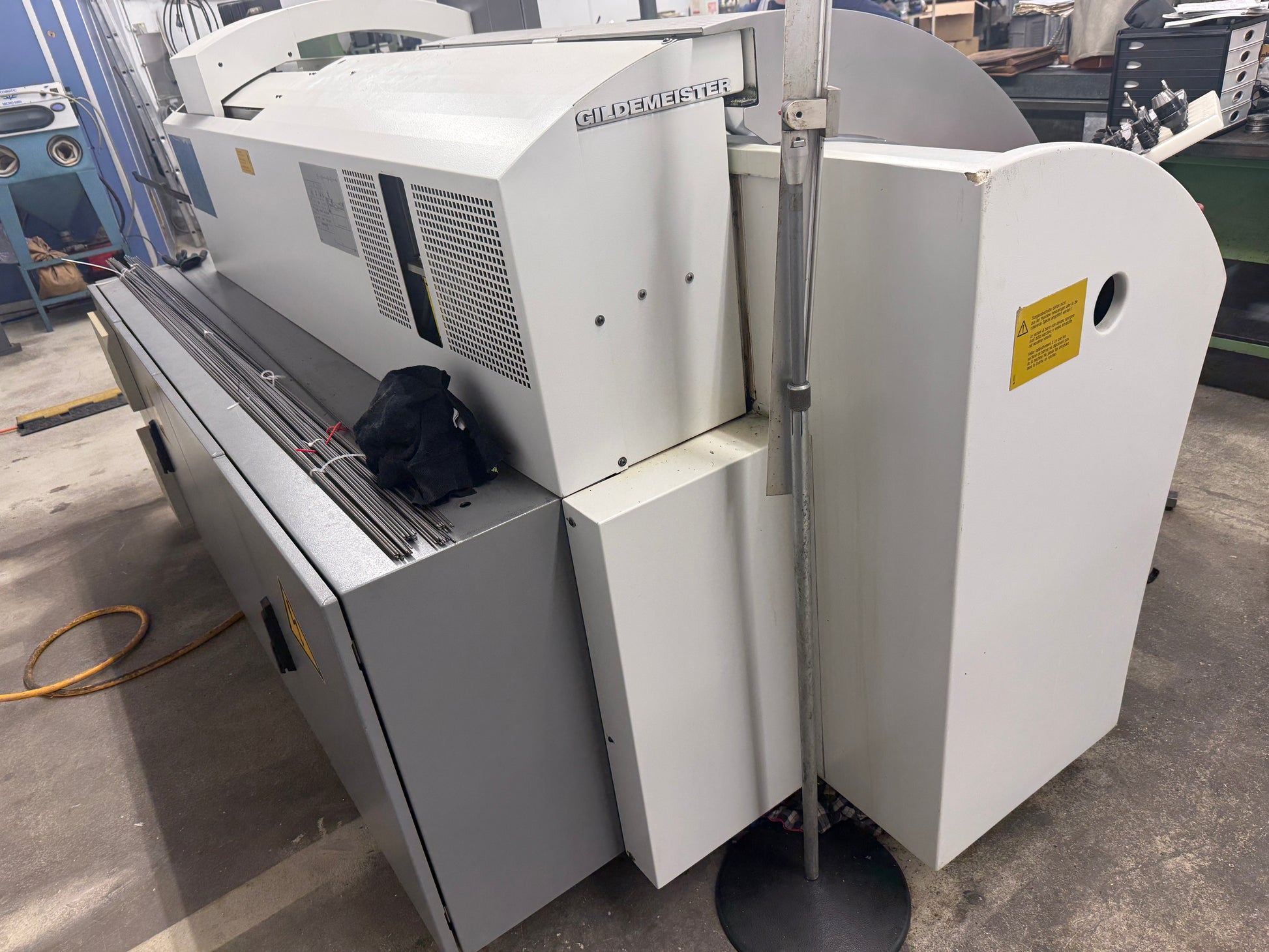

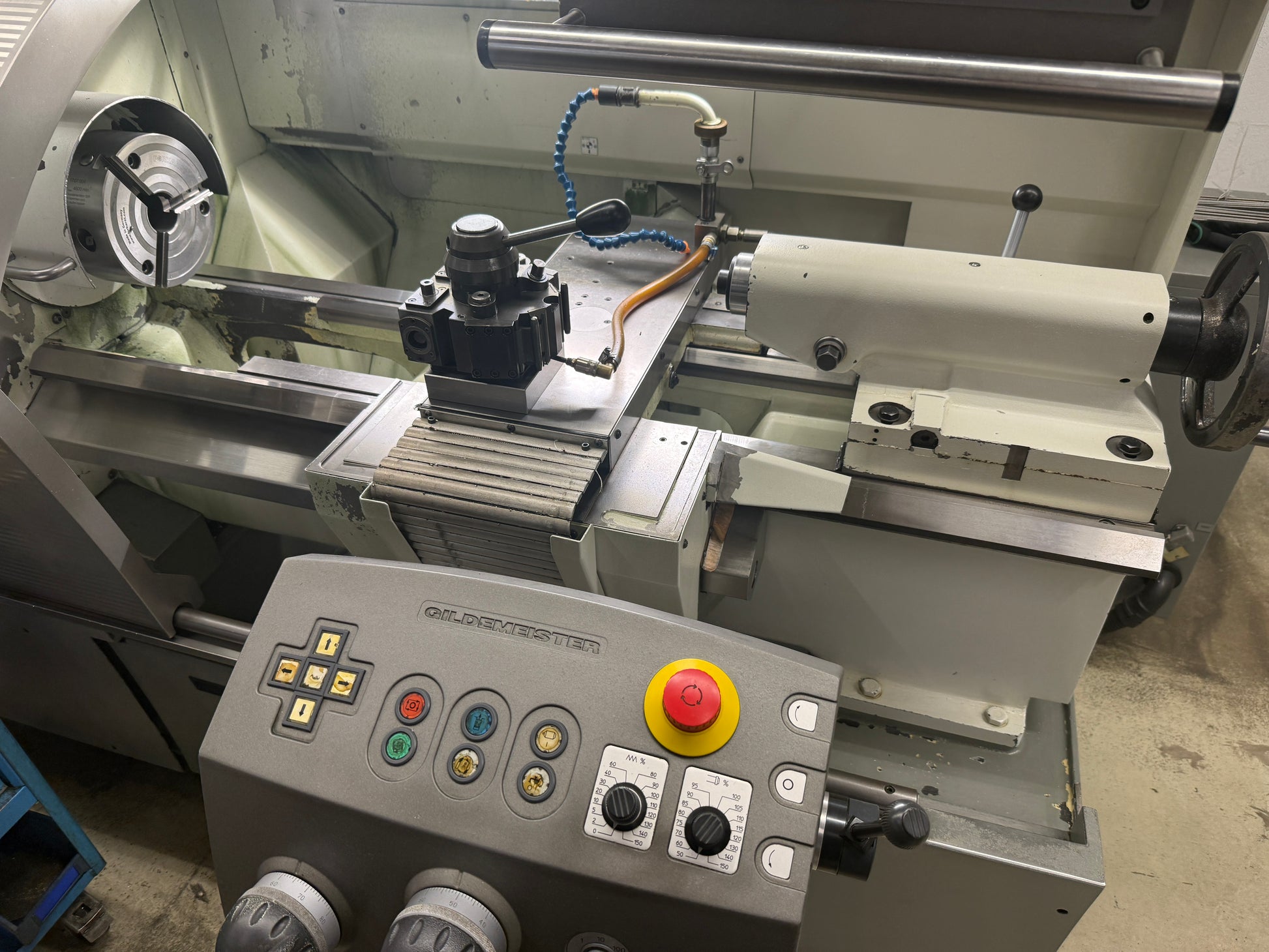

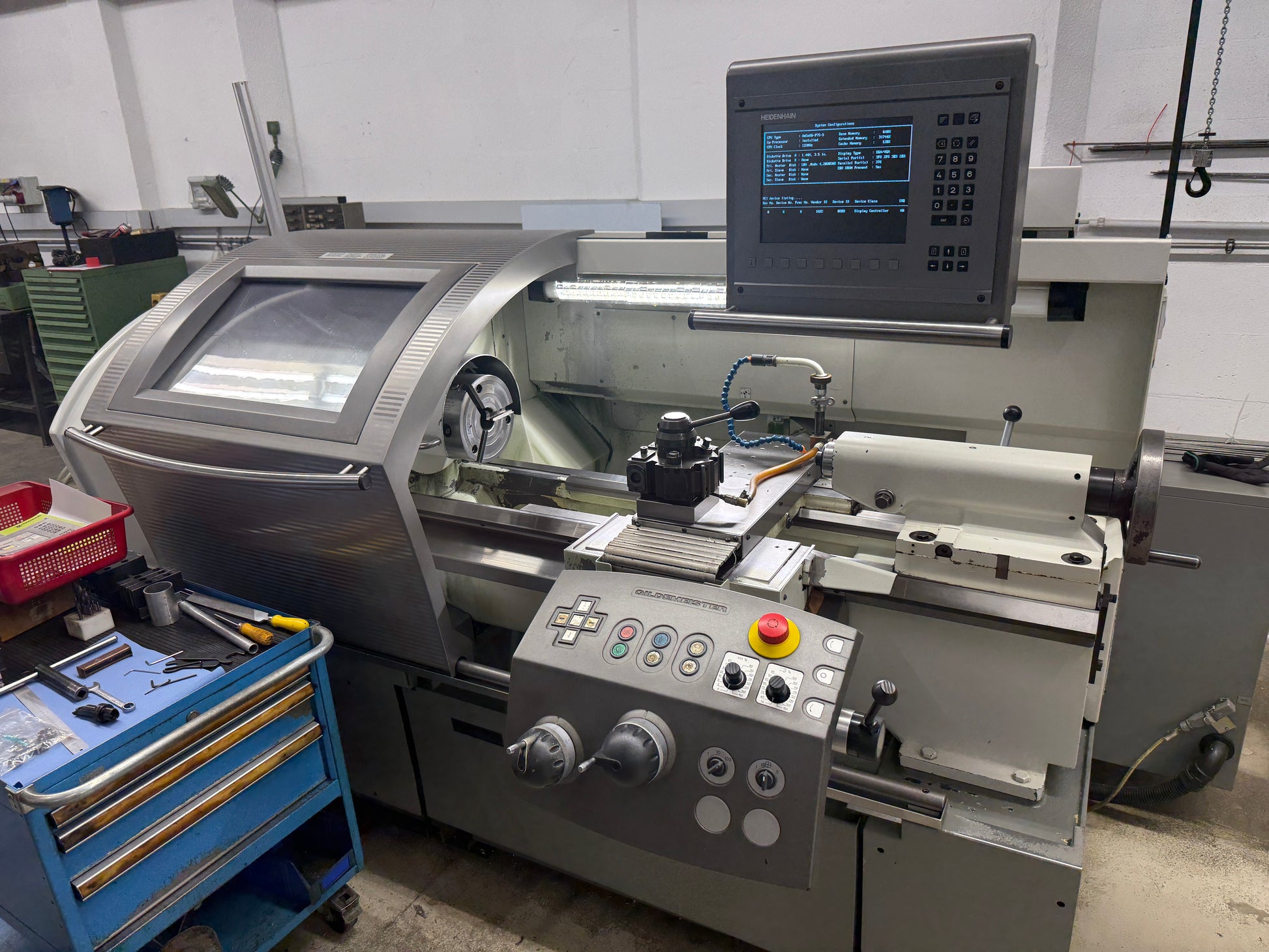

GILDEMEISTER NEF 320 is a CNC turning lathe engineered for precision machining, high accuracy and operational reliability. Working capacities: max. turning diameter 320 mm, max. turning length 740 mm, centre height 160 mm, distance between centres 750 mm, spindle hole 52 mm; travels Z 700 mm, X 185 mm. Main specs: spindle power 11 kW, max. torque 410 Nm, speeds stepless 4–4000 t/min, spindle taper MT 6; tailstock Morse taper 5, spindle stroke 120 mm, spindle diameter 70 mm; rapid traverse X 8 m/min, Z 10 m/min; weight ~2000 kg, dimensions 2450×1668×1825 mm. Enables tight tolerances; typical applications include automotive, watchmaking, toolmaking, aerospace and medical sectors.
| Number of axis total | 2 |
| Centre height | 160 mm |
| Distance between centres | 750 mm |
| Spindle hole | 52 mm |
| taper in spindle: MT | 6 |
| Maximum turning length | 740 mm |
| Max. turning diameter | 320 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 700 mm |
| Transversal strocke (X axis) | 185 mm |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 4 t/min |
| up to | 4000 t/min |
| Spindle power | 11 kW |
| Torque max. | 410 Nm |
| Tailstock: | |
| Morse taper | 5 CM |
| Spindle stroke | 120 mm |
| Spindle diameter | 70 mm |
| Rapid traverse X | 8 m/min |
| Rapid traverse Z | 10 m/min |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 2450 mm |
| Width | 1’668 mm |
| Height | 1825 mm |

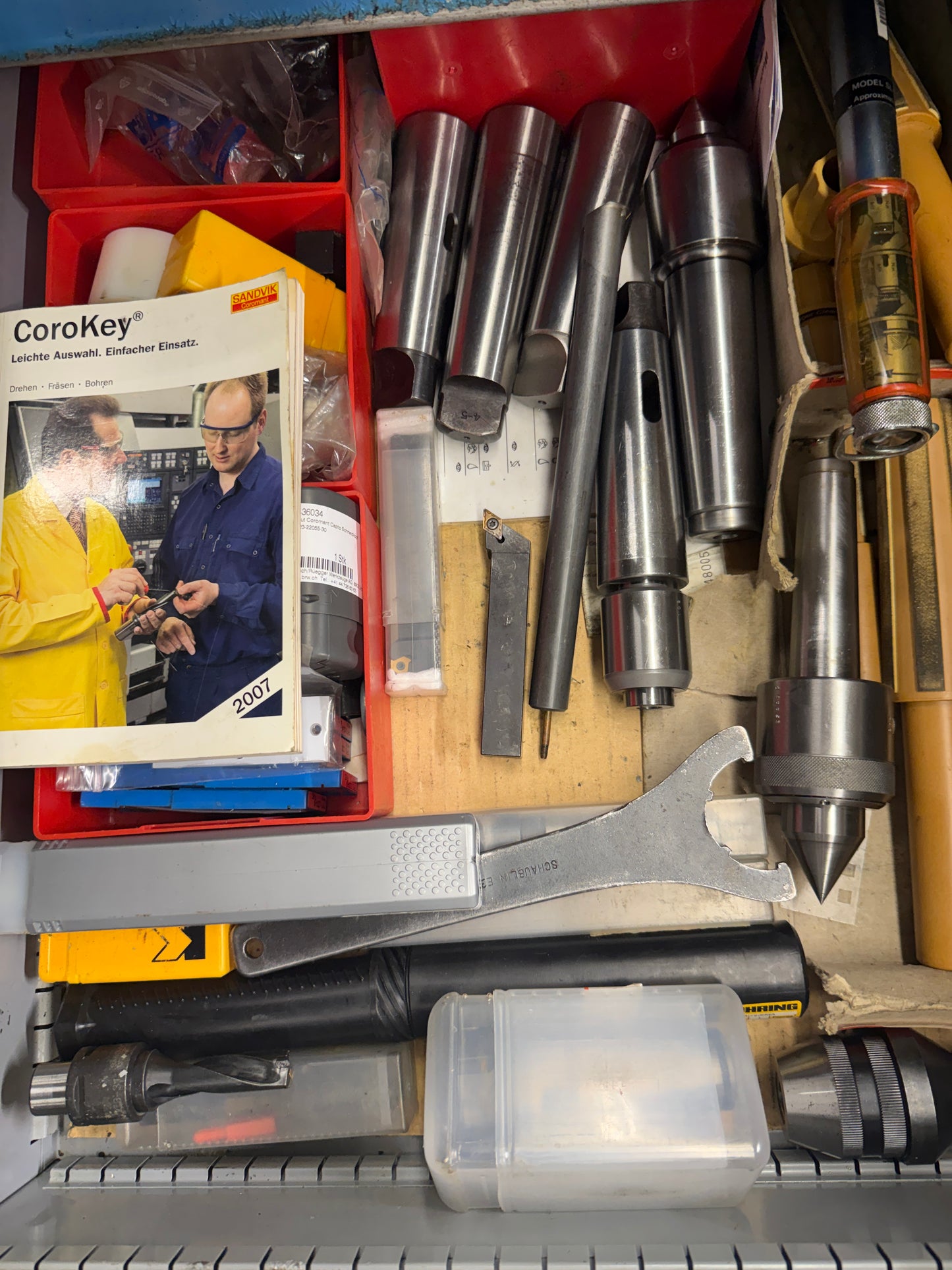

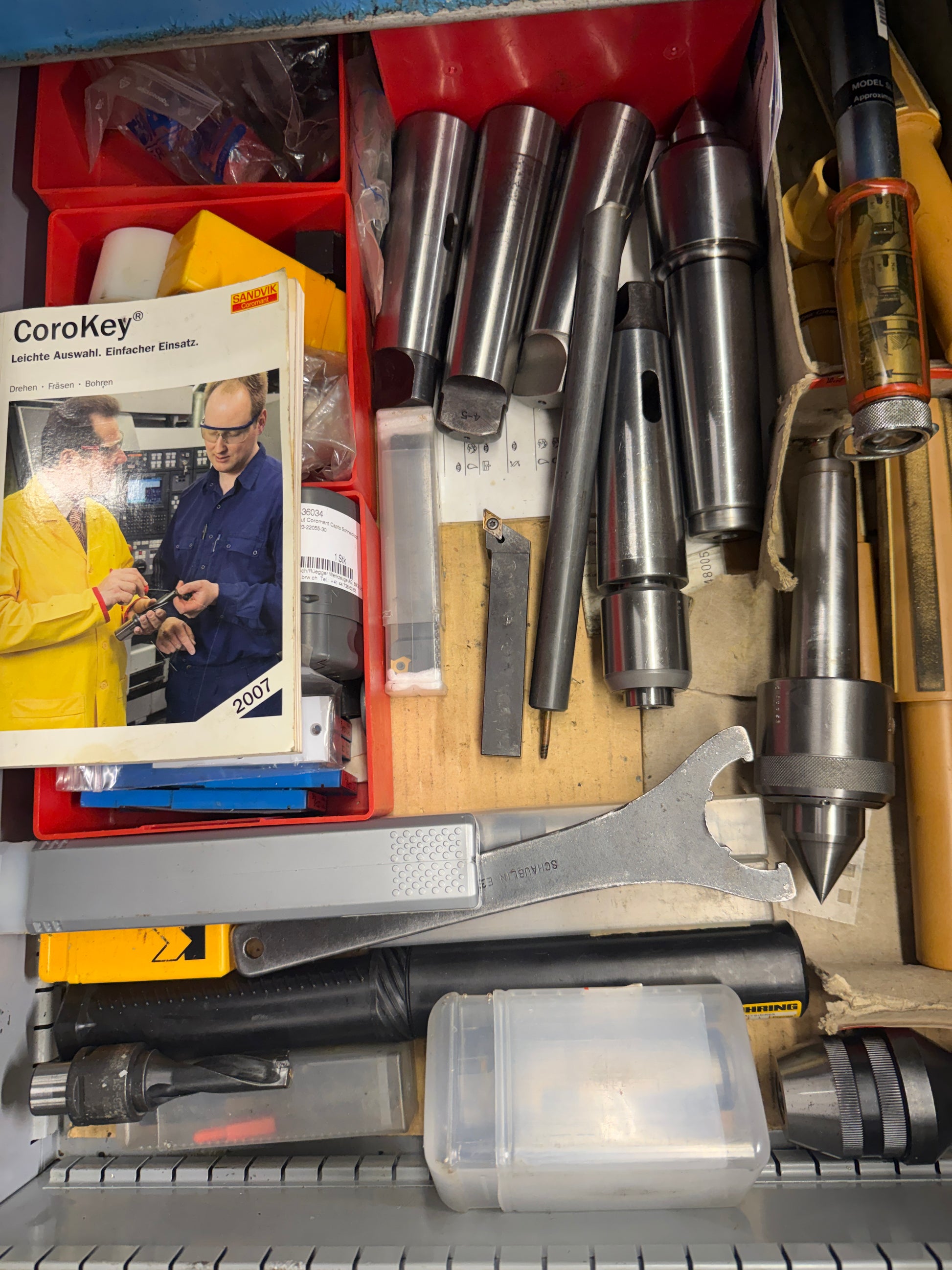

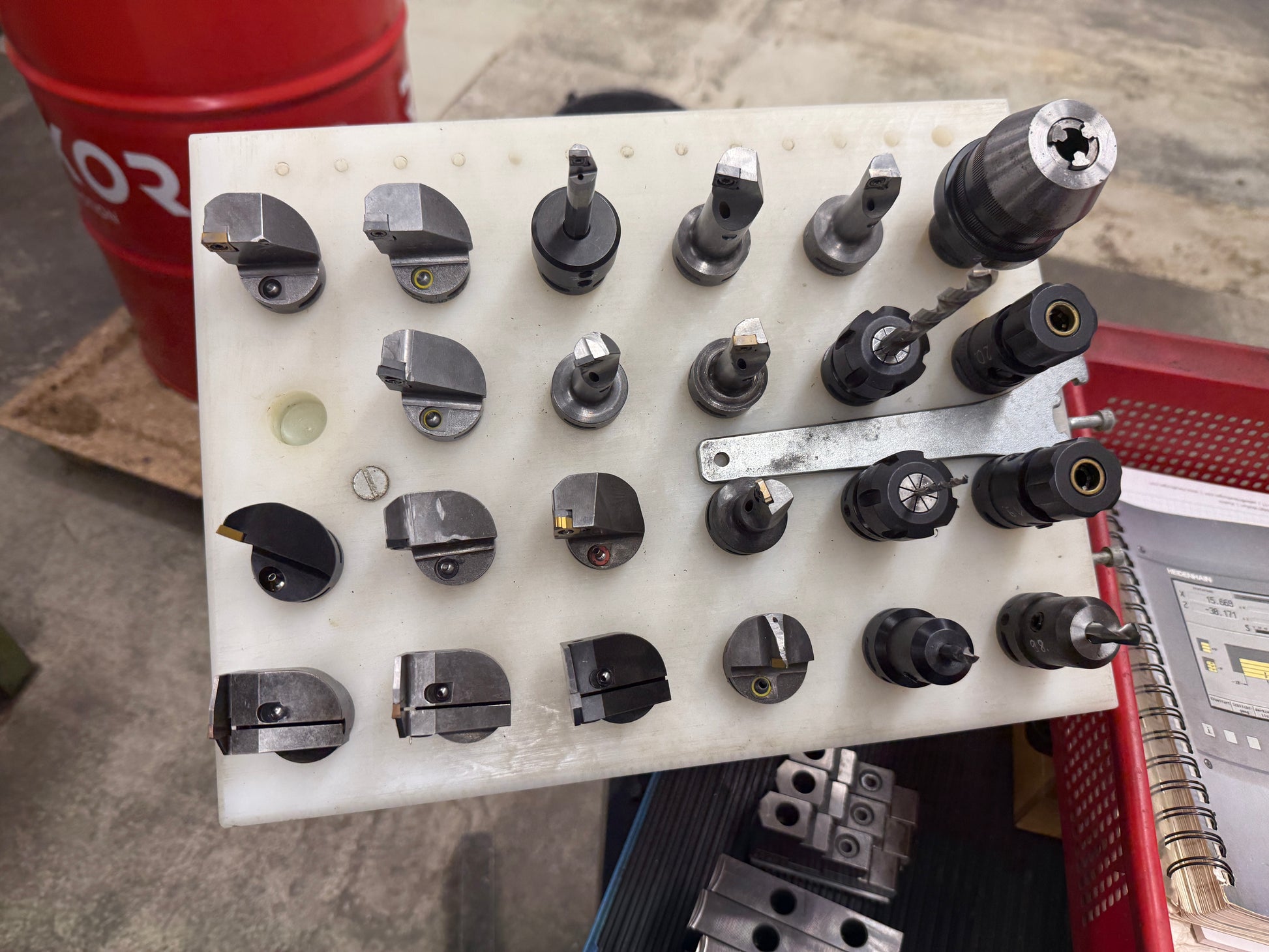

| Various accessories: |
