GILDEMEISTER GS 20
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

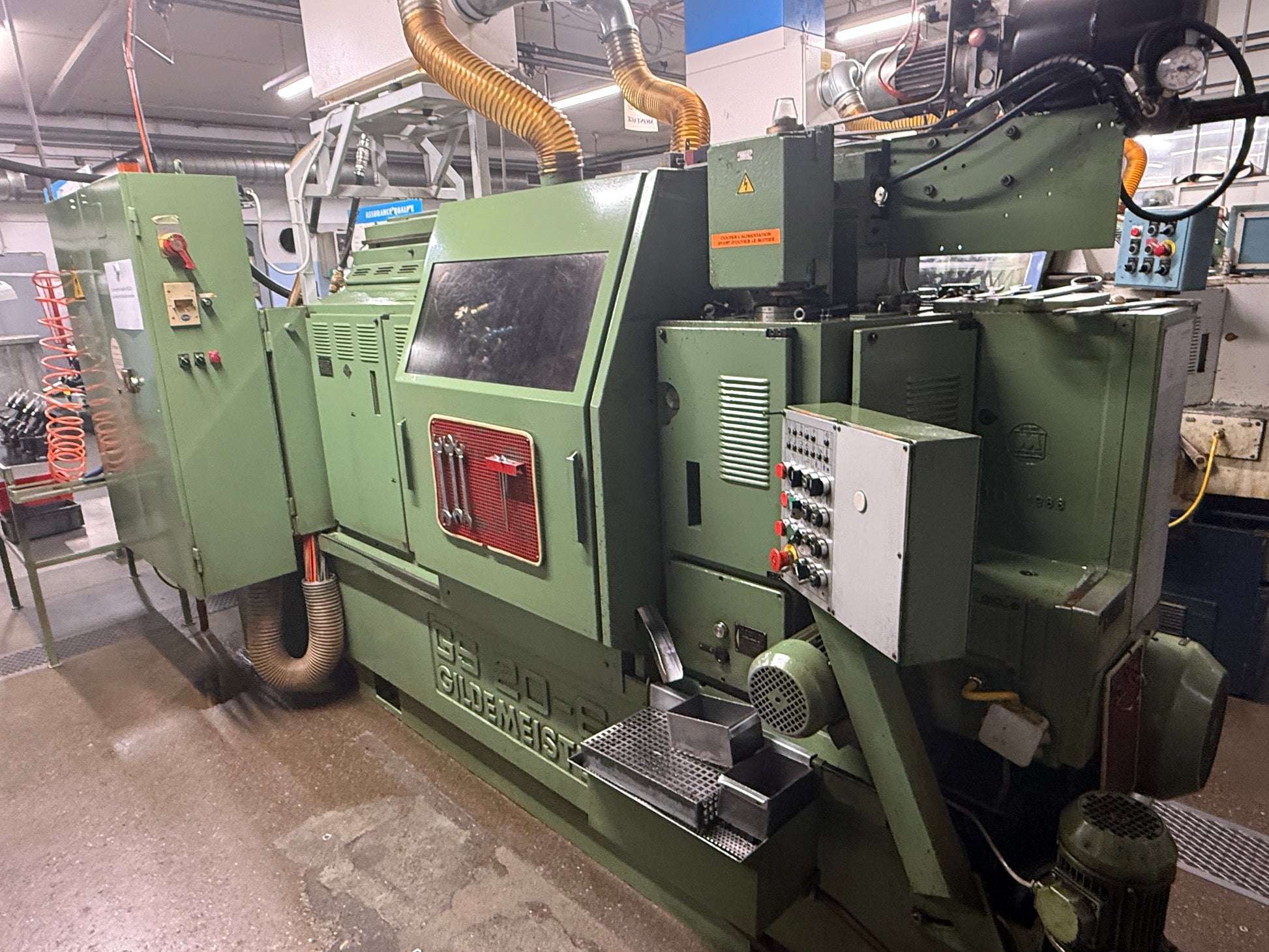

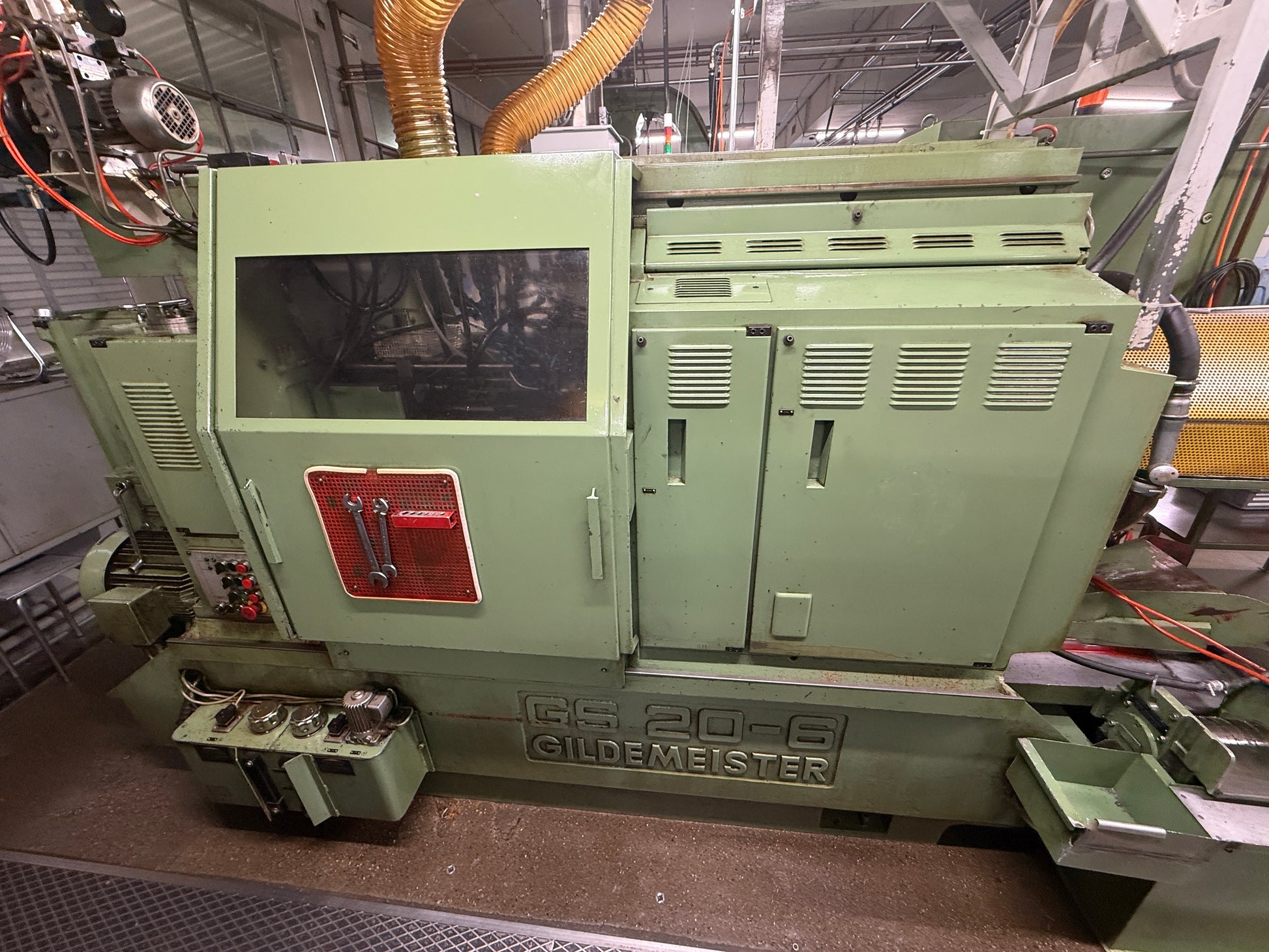

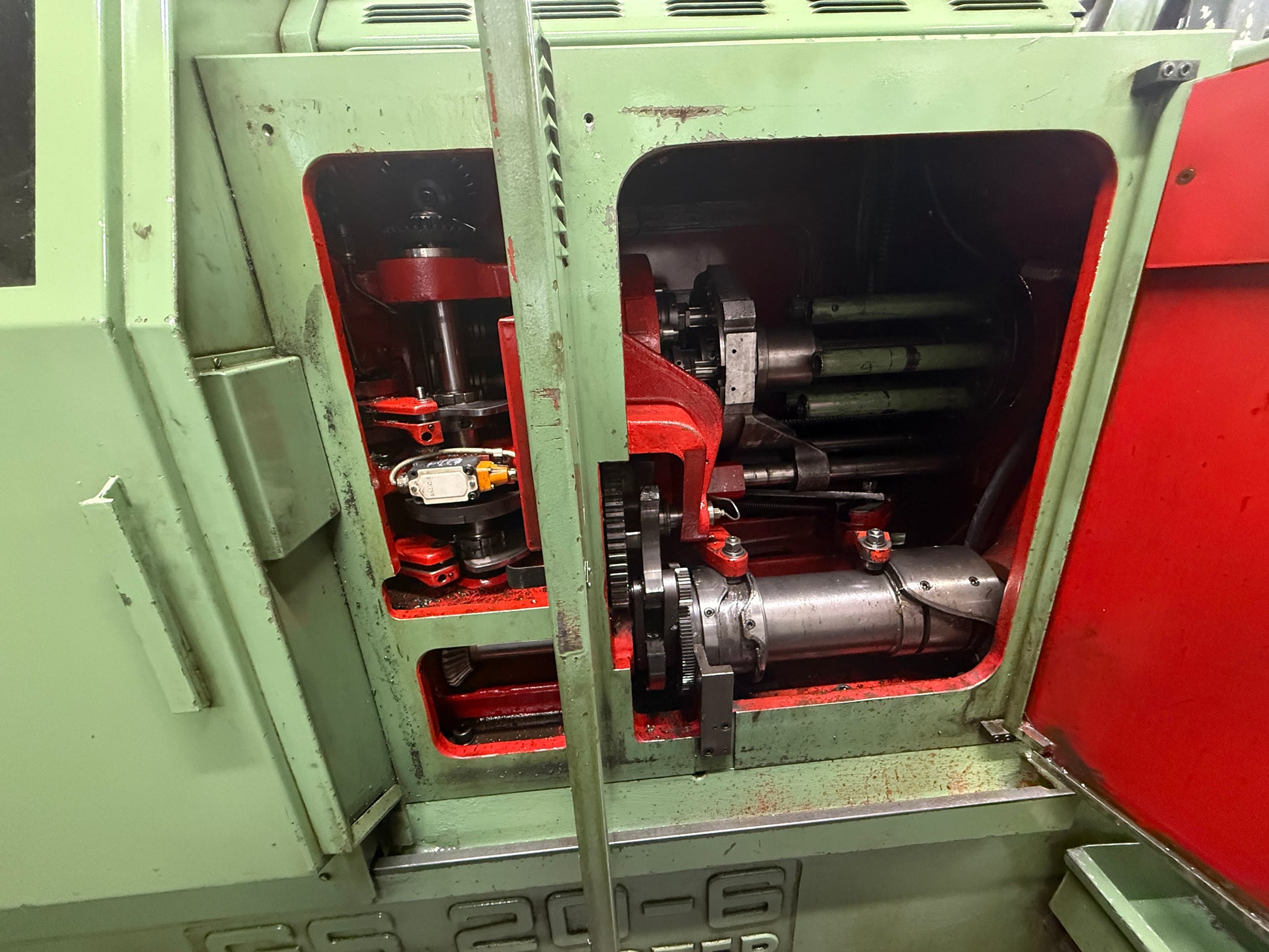

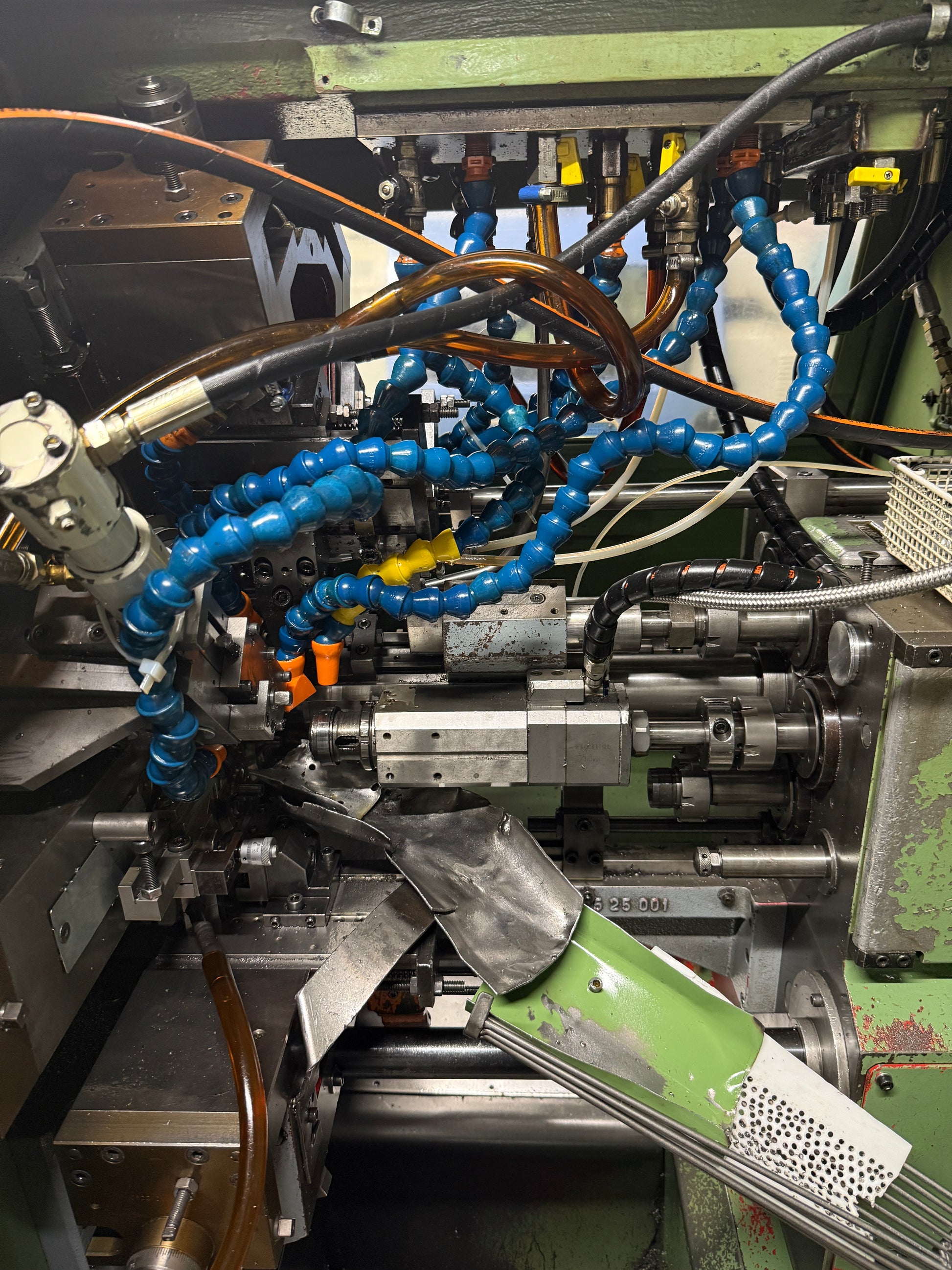

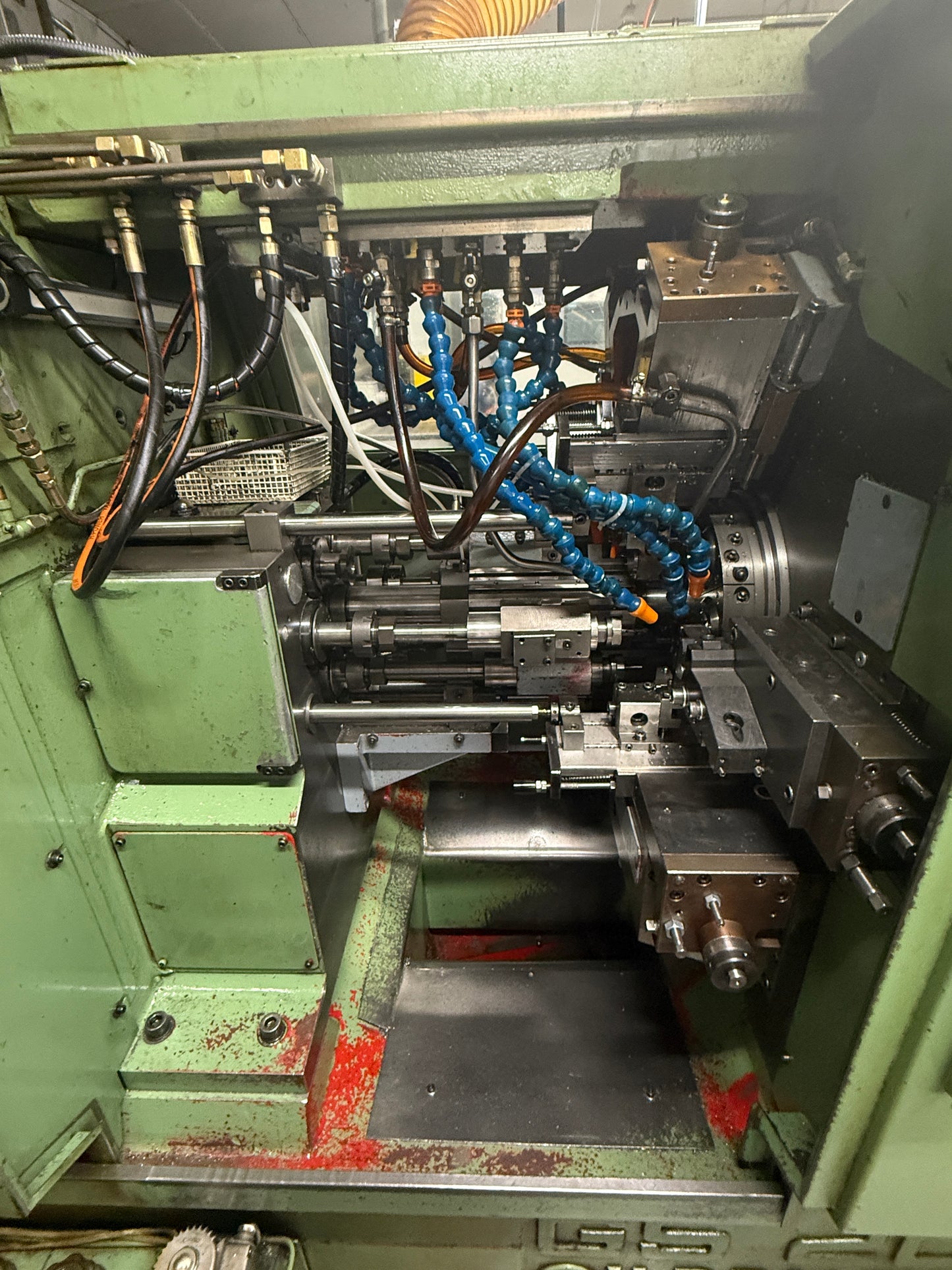

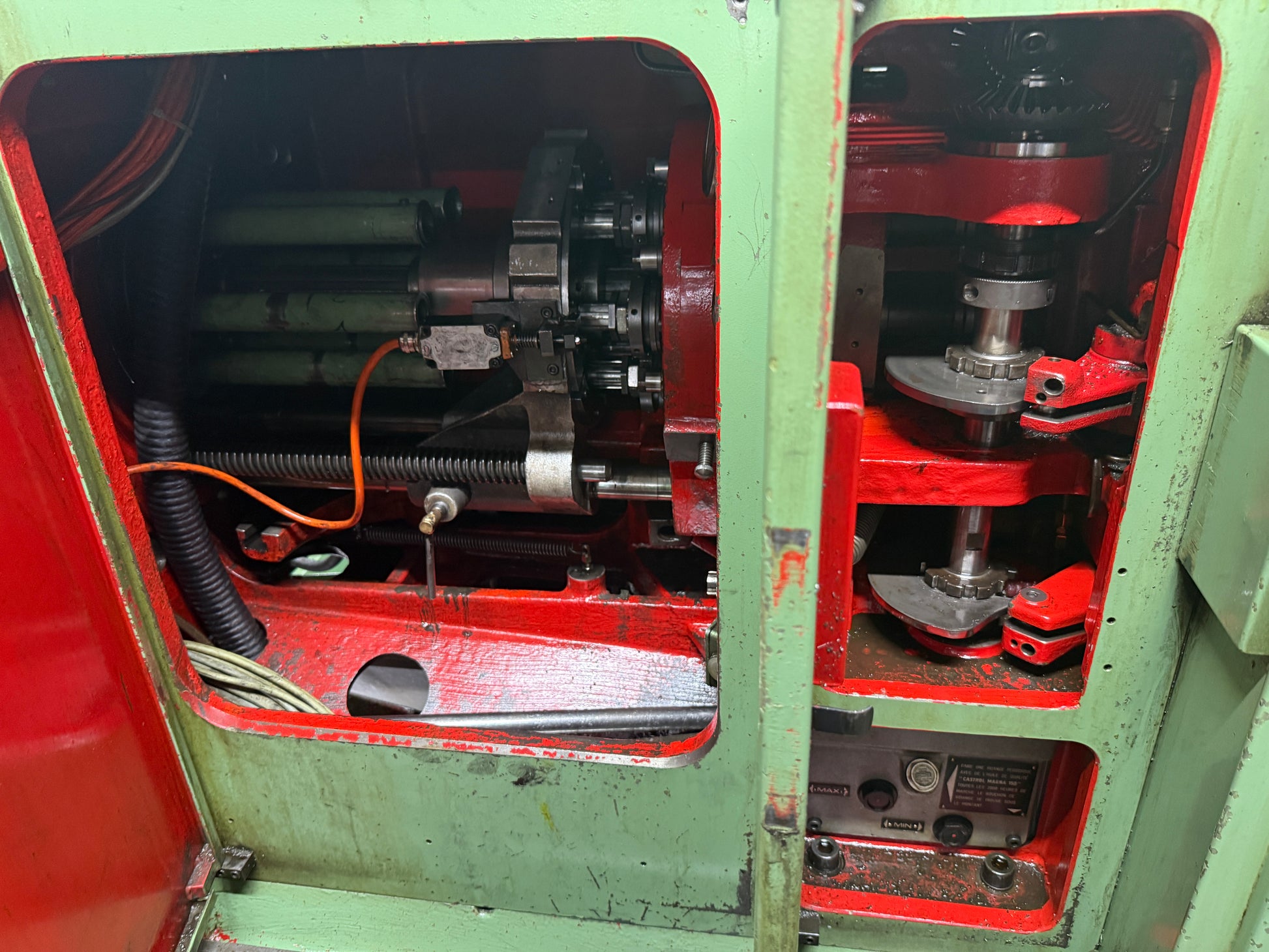

GILDEMEISTER GS 20 is a Multi-spindle turning lathe engineered for precision machining with high accuracy and reliability. 6 spindles, up to 12 tools; capacity round 20 mm, square 14 mm, hexagon 17 mm; longitudinal carriage 50 mm, cross 42 mm; max bar advance 100 mm; up to 73 parts, cycle time 1.38–58.78 s. 81 steps 214–5168 rpm; voltage 3x400 V 50 Hz; power 11 kW; weight ≈5000 kg; dimensions L3315×W1400 mm. Accessories: bar loader, coolant system, oil mist extractor. Delivers tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Number of spindles | 6 |
| Number of tools max. | 12 |
| Capacity round bar | 20 mm |
| Capacity square bar | 14 mm |
| Capacity octagonal bar | mm |
| Capacity hexagon bar | 17 mm |
| Longitudinal carriage way | 50 mm |
| Cross way | 42 mm |
| Max. advance of bar | 100 mm |
| Number of possible pieces | 73 |
| Machining rate: | |
| from | 1.38 s |
| up to | 58.78 s |
| Spindle speeds: | |
| number (steps) | 81 |
| from | 214 t/min |
| up to | 5168 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 11 kW |
| Machine's weight about | 5000 kg |
| Overall dimensions machine: | |
| Length | 3315 mm |
| Width | 1400 mm |

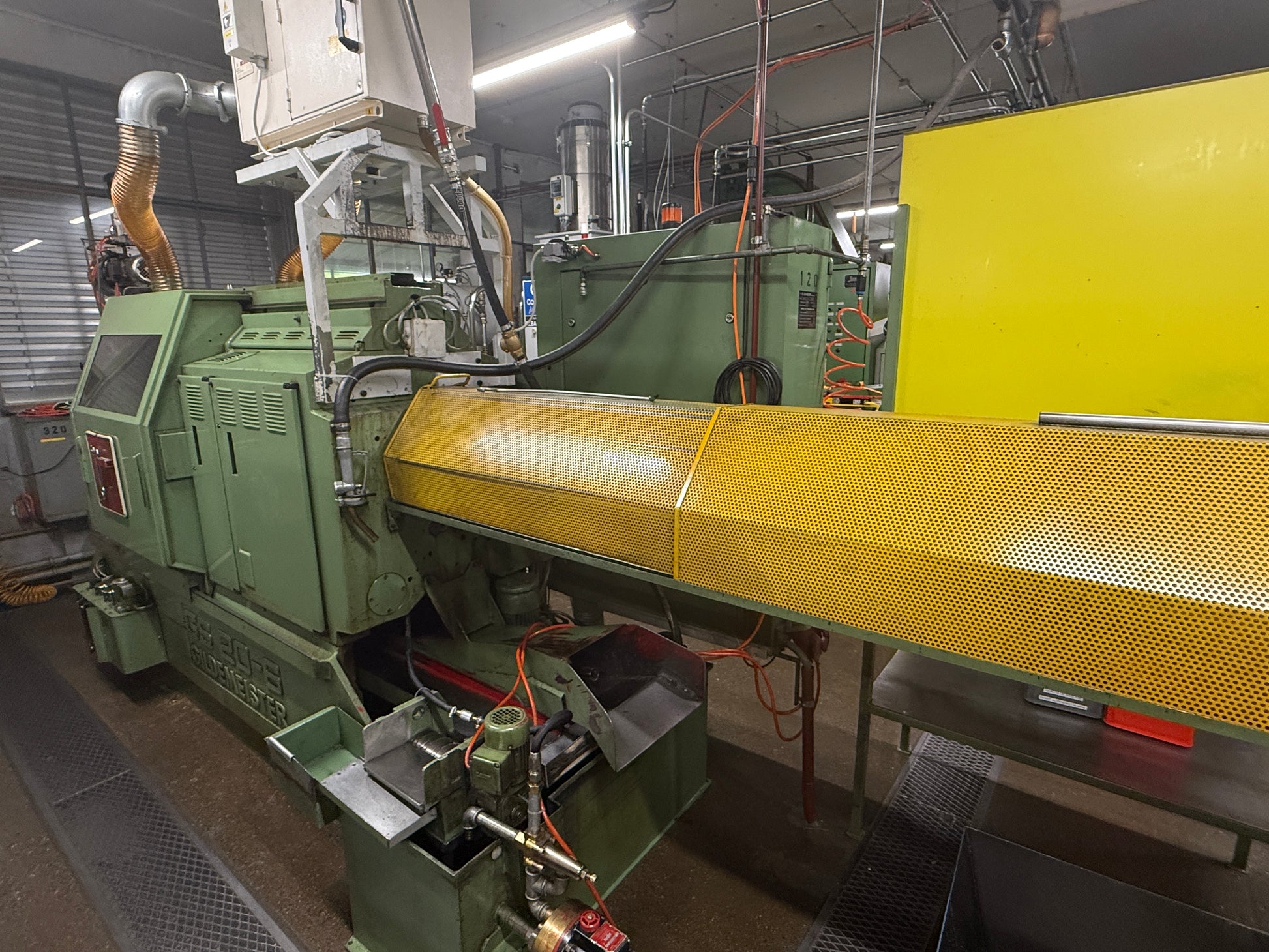

| Various accessories: | |
| Bar loader number of bars | |
| Coolant system | |

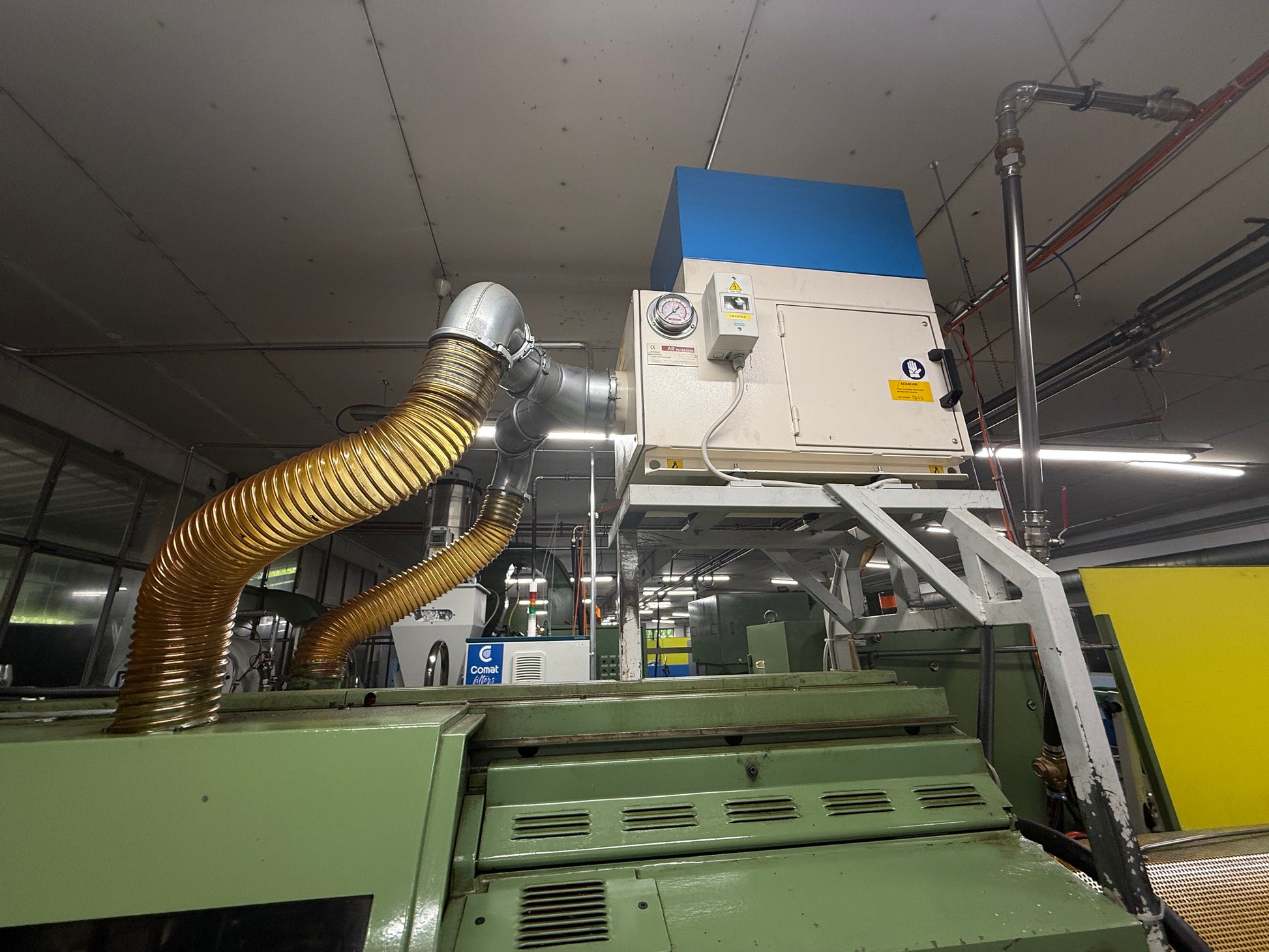

| Oil mist extractor |
