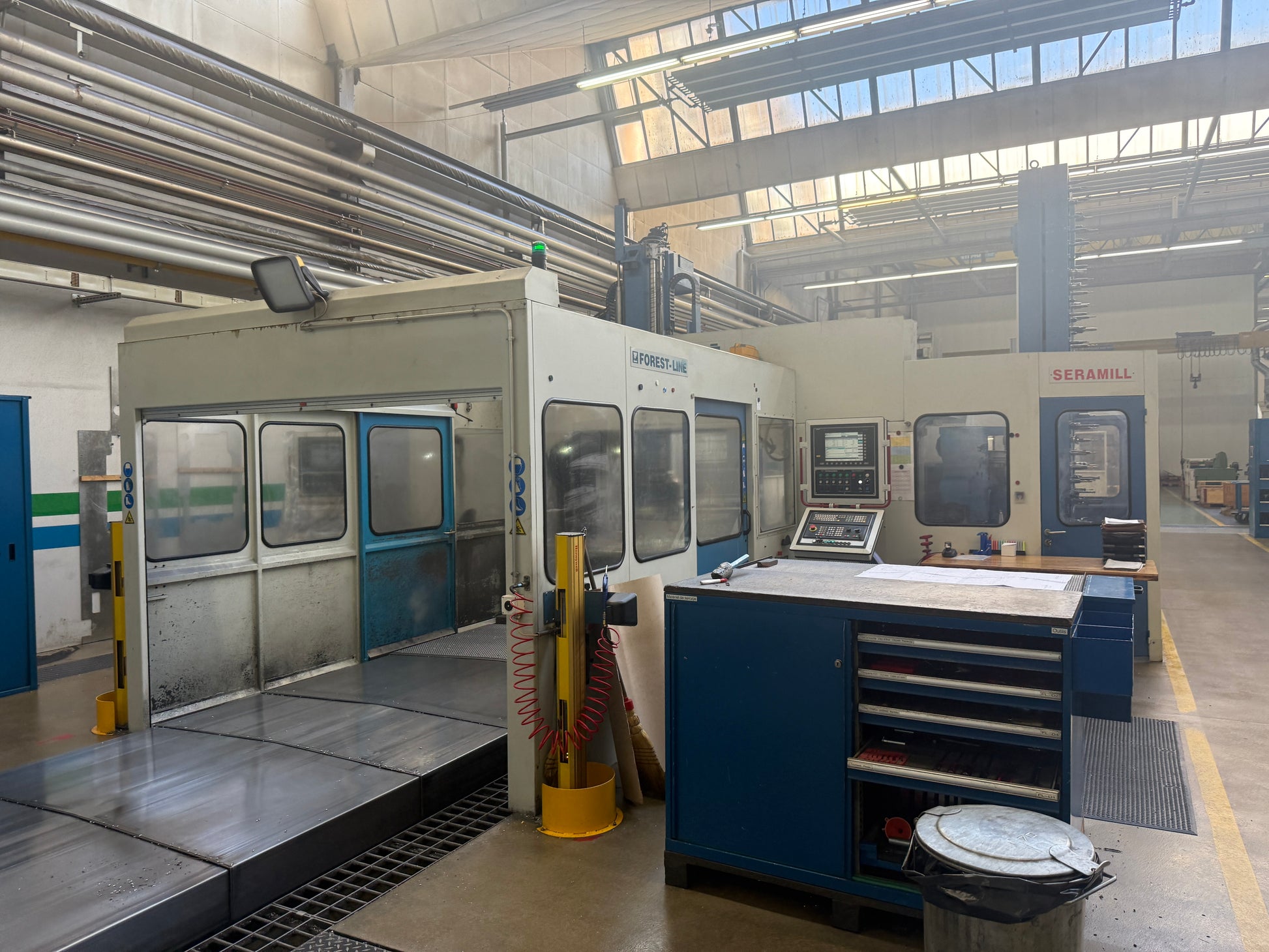

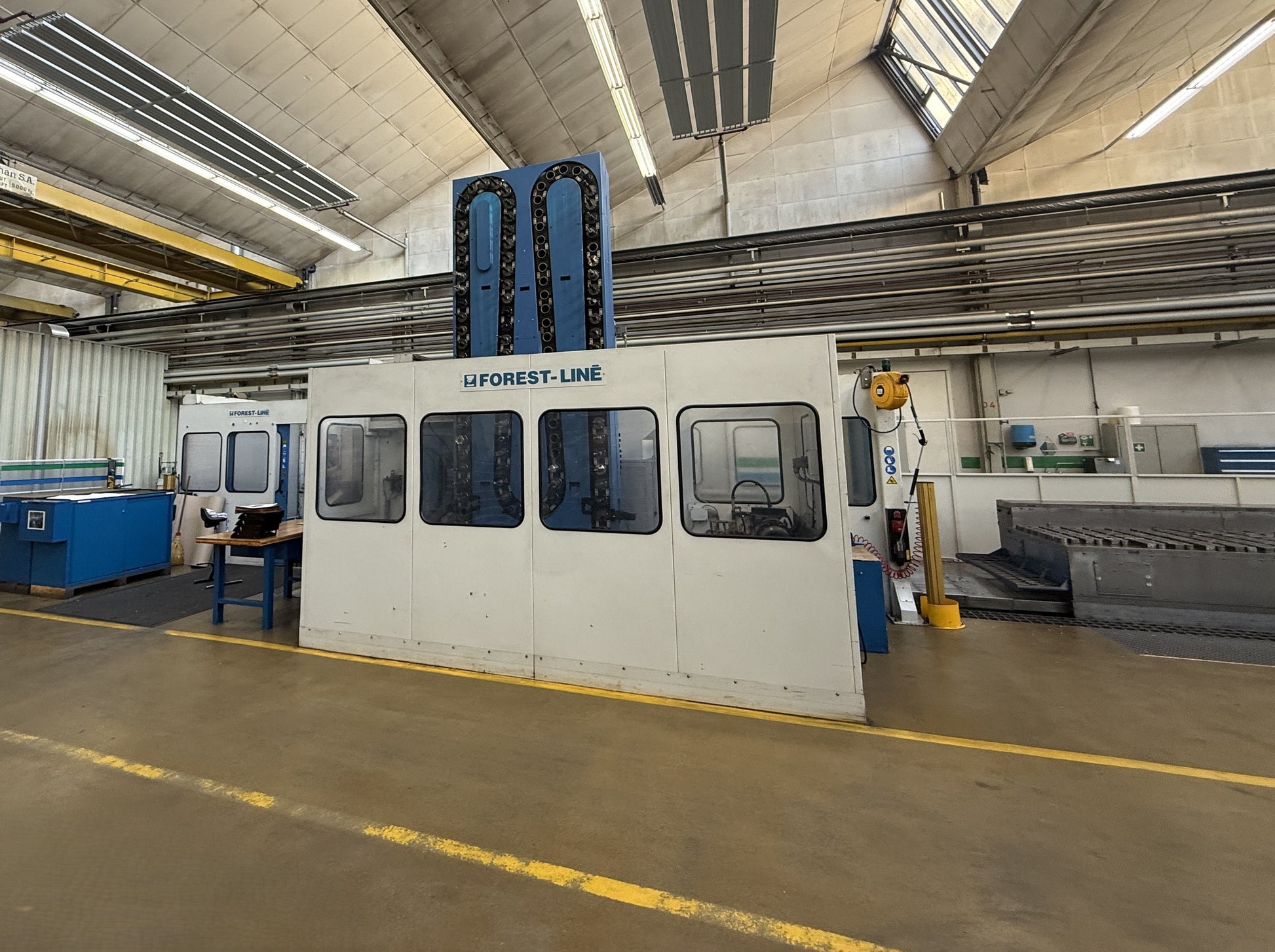

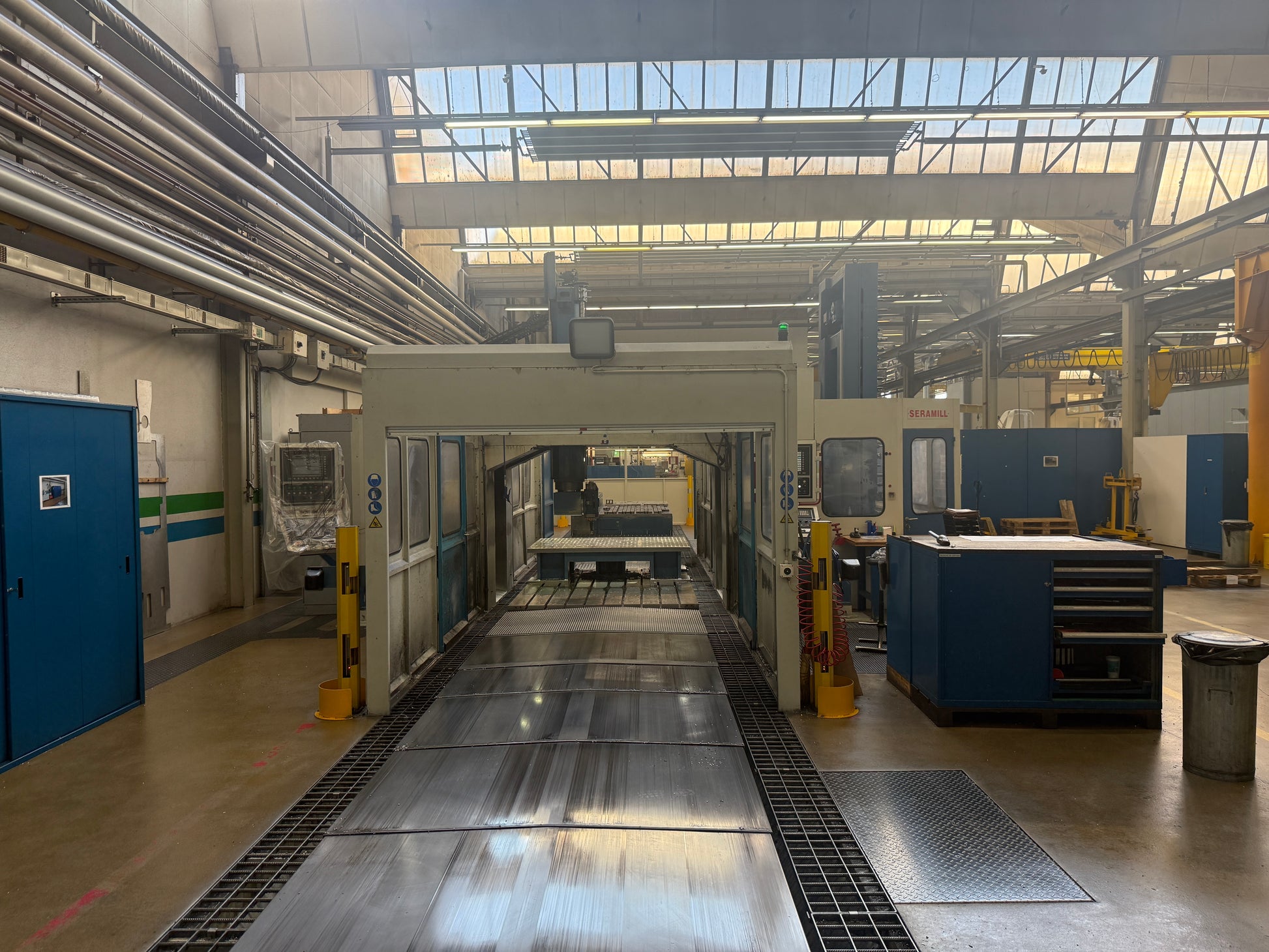

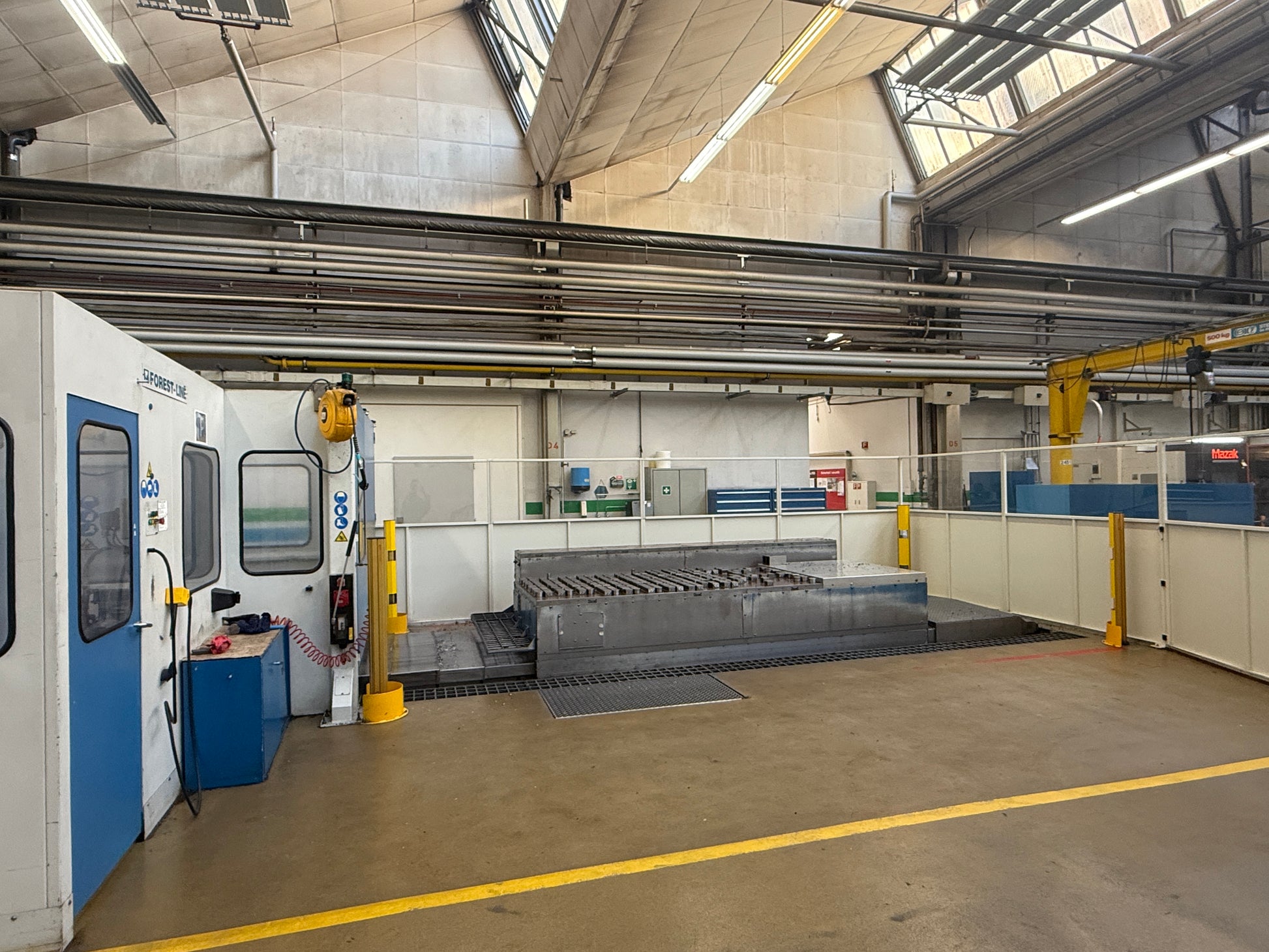

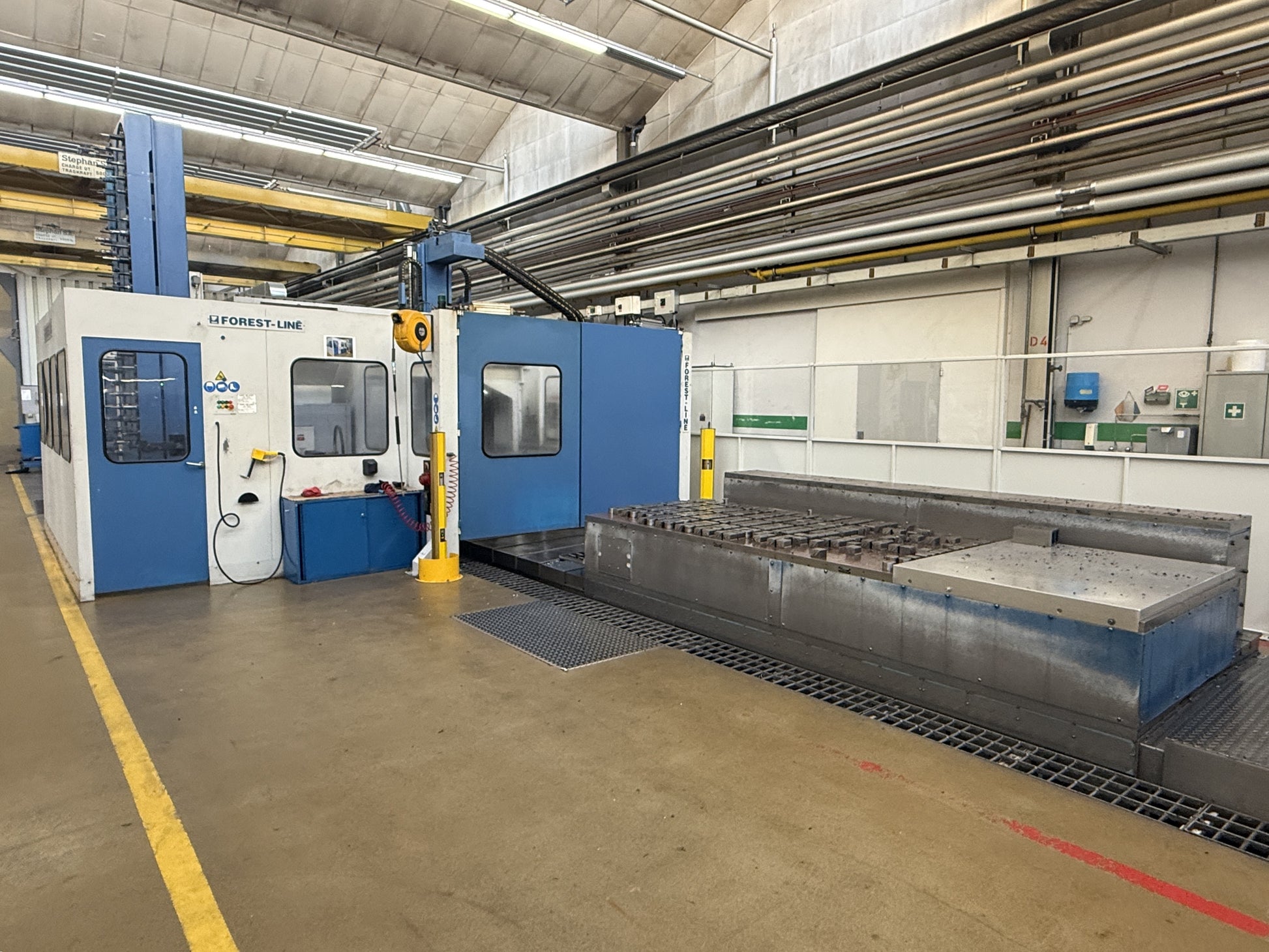

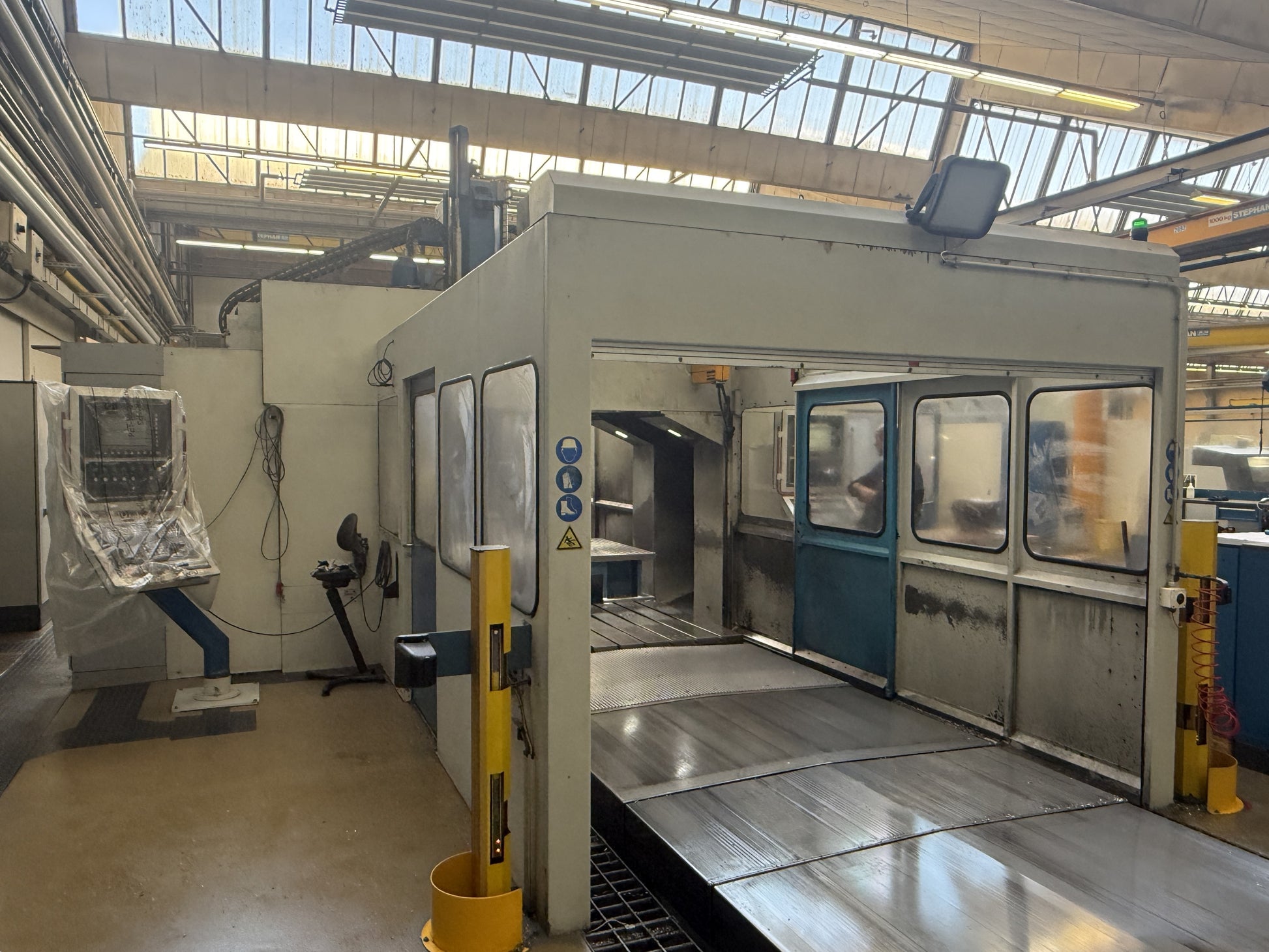

FOREST-LINE SERAMILL V3 270 2T is a gantry milling machine designed for high-precision machining, high accuracy and process reliability. Working capacities: 2 tables (table lengths 3000 mm and 4000 mm, widths 2000 mm), X axis 5000 mm (with 1 table), Y 3400 mm, Z 1250 mm, A axis ±135°/2.5° and C axis 360°/2.5°; distance between columns 2700 mm, table load max. 10,000 kg. Main specifications: spindle nose SK50, spindle speeds 10–6000 t/min, spindle motor 31 kW, spindle torque 430 Nm, total power required 90 kVA; feeds 1–30,000 mm/min on X/Y/Z; rapid traverse X 30’000 m/min, Y 40’000 m/min, Z 30’000 m/min; voltage 3x 400 V 50 Hz. Equipment: tool magazine 120 places, tool holder 700 pce, automatic tool setting BLUM, touch probe M&H. Delivers tight tolerances and is suited to automotive, aerospace, machine tool, medical and watchmaking sectors.
Technical specifications are subject to change without notice
The buyer must dismantle and pick up the machine on site. Viewings are available by appointment.

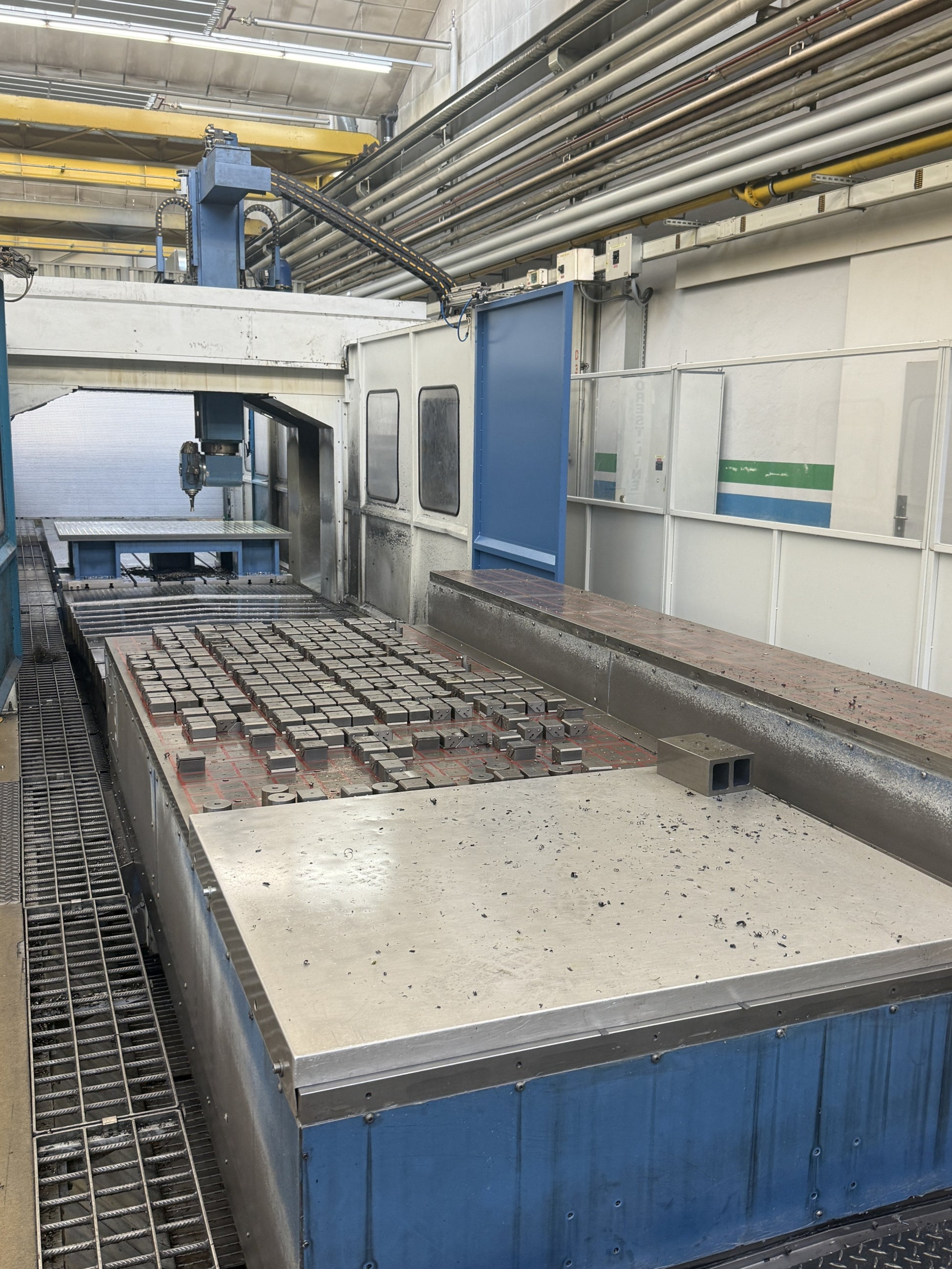

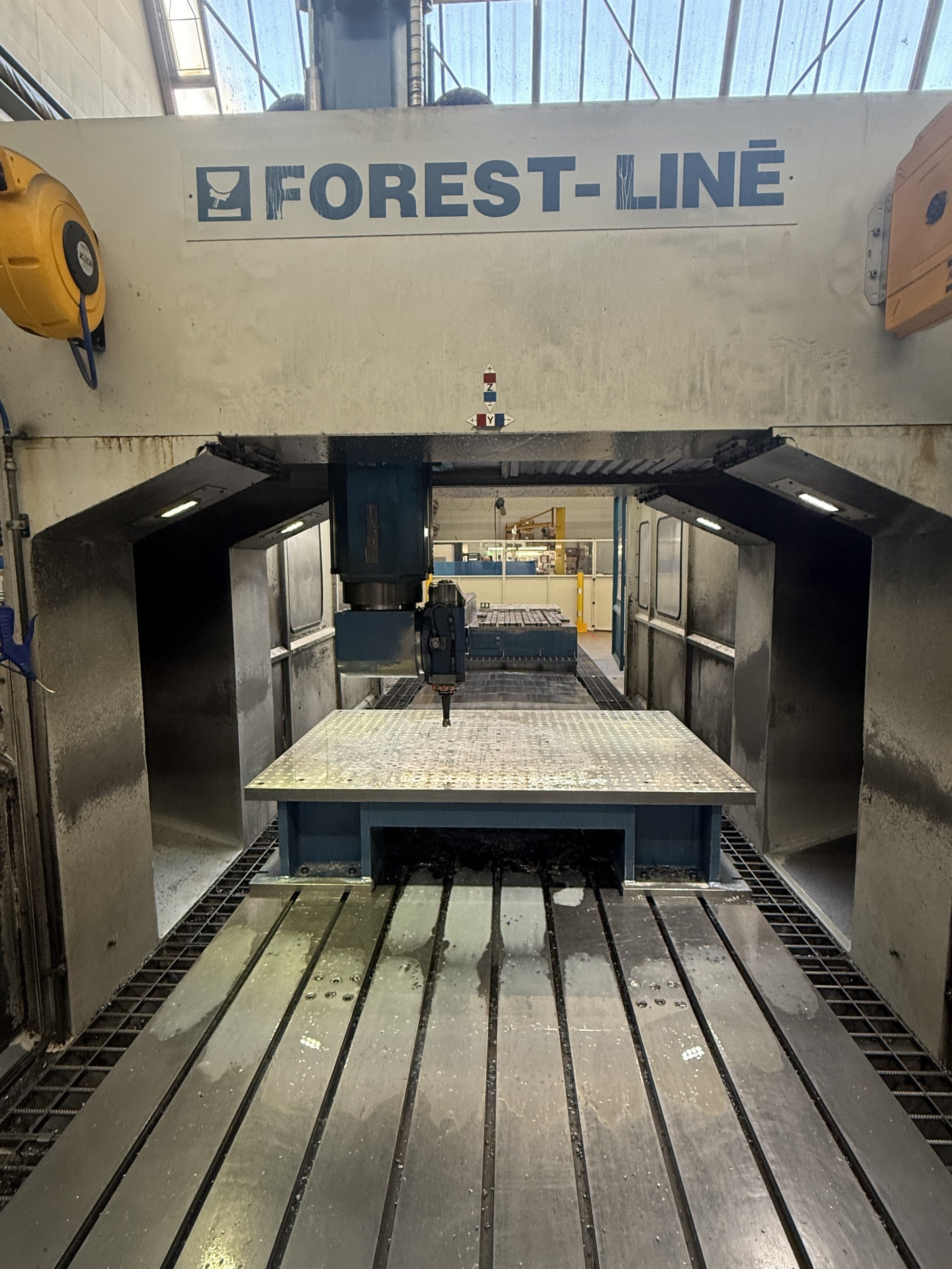

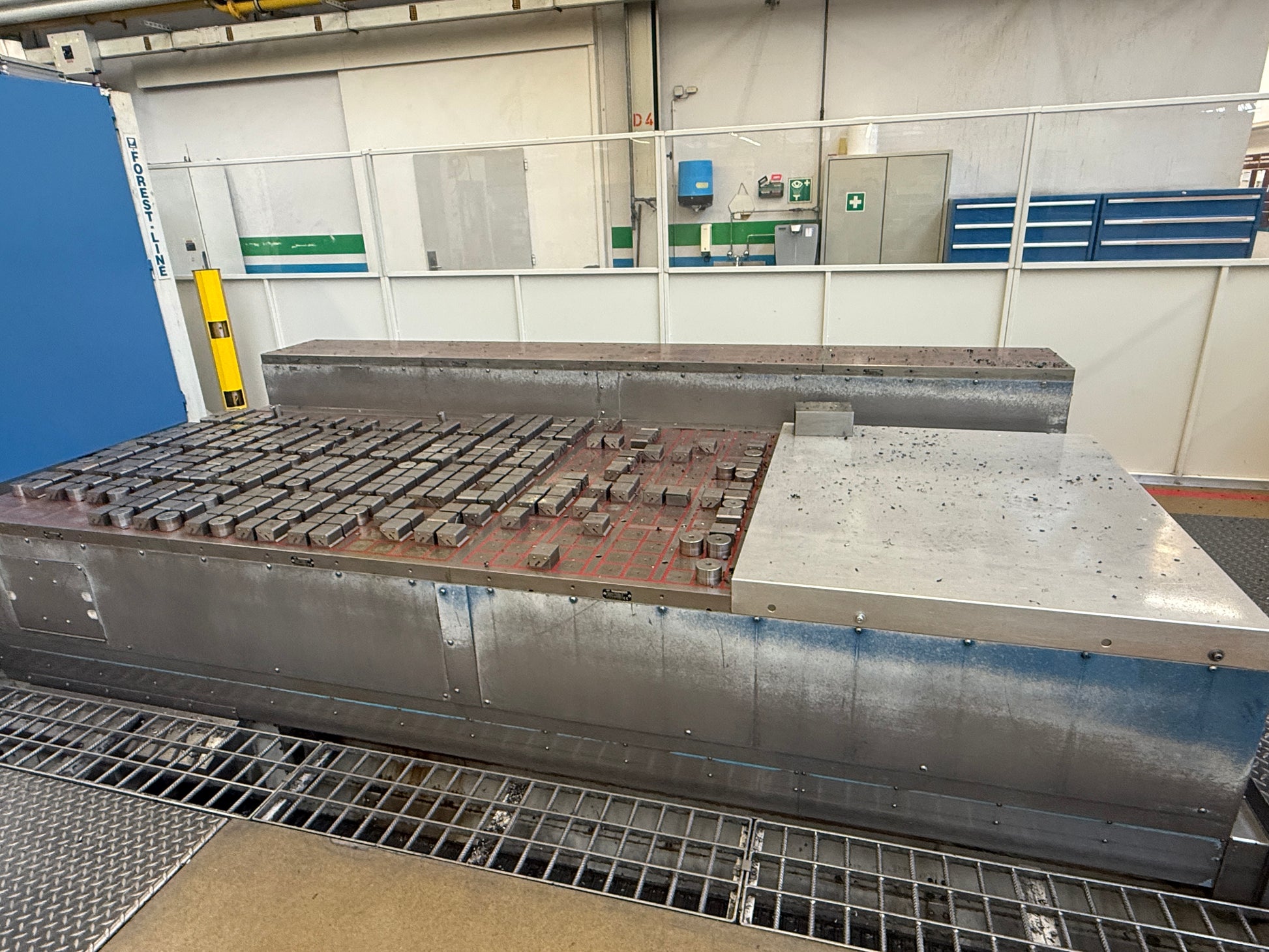

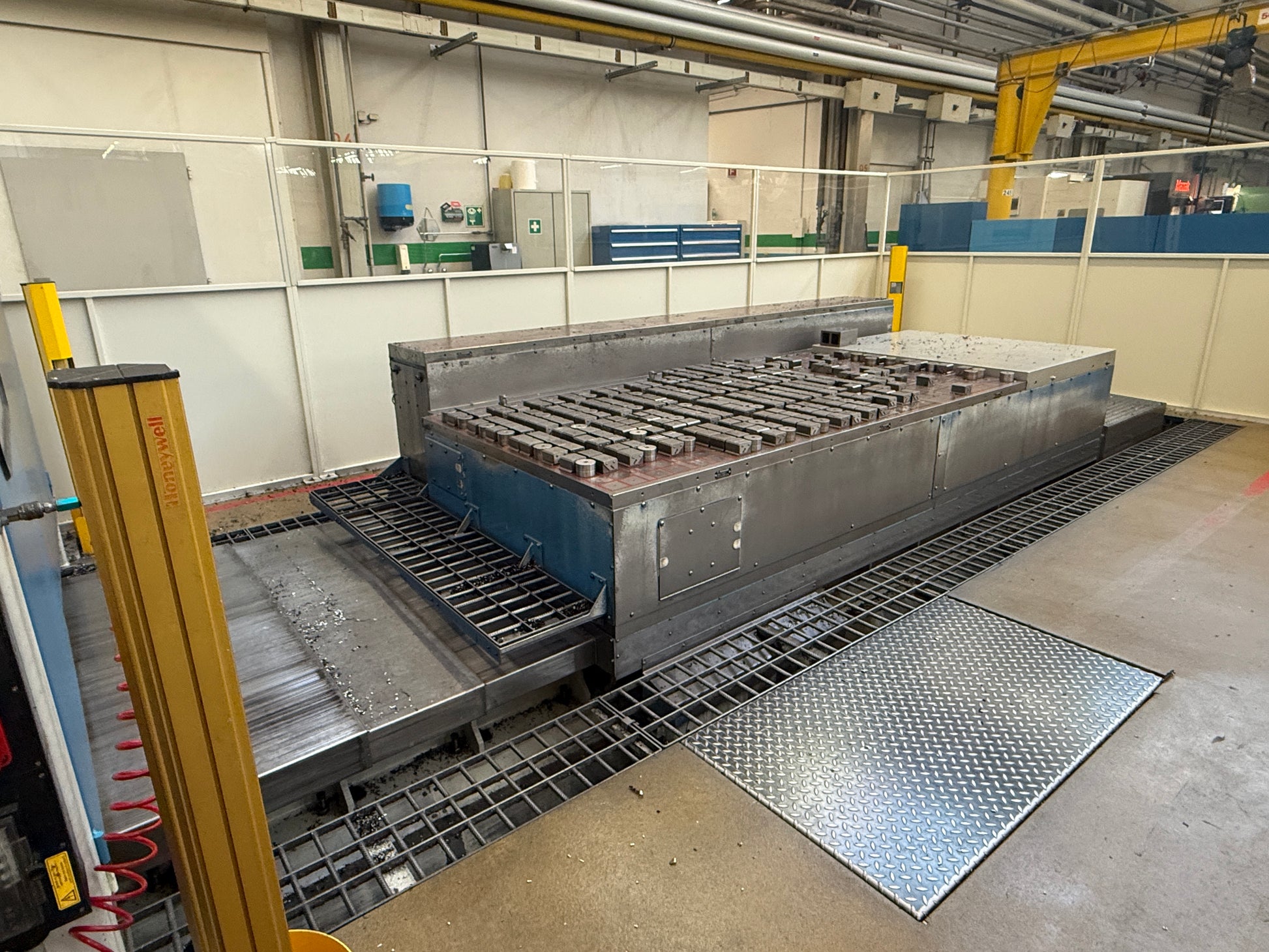

| Number of tables | 2 |
| Table length | 3000 mm |
| Table width | 2000 mm |
| Table length | 4000 mm |
| Table width | 2000 mm |
| Clamping surface: | |
| Length | 8100 mm |
| Width | 2000 mm |
| Number of T-channels | 9 |
| T-channel width | 22H12 mm |
| Distance of the T-slots | 200 mm |
| X axis | 9600 mm |
| X axis (with 1 table) | 5000 mm |
| Y axis | 3400 mm |
| Z axis | 1250 mm |
| A axis | +/- 135° / 2.5° |
| Revolving unit with Hirth serration | |
| C axis | 360° / 2.5° |
| Revolving unit with Hirth serration | |
| Distance between columns | 2700 mm |
| Table load max. | 10000 kg |
| Spindle nose SK | 50 |

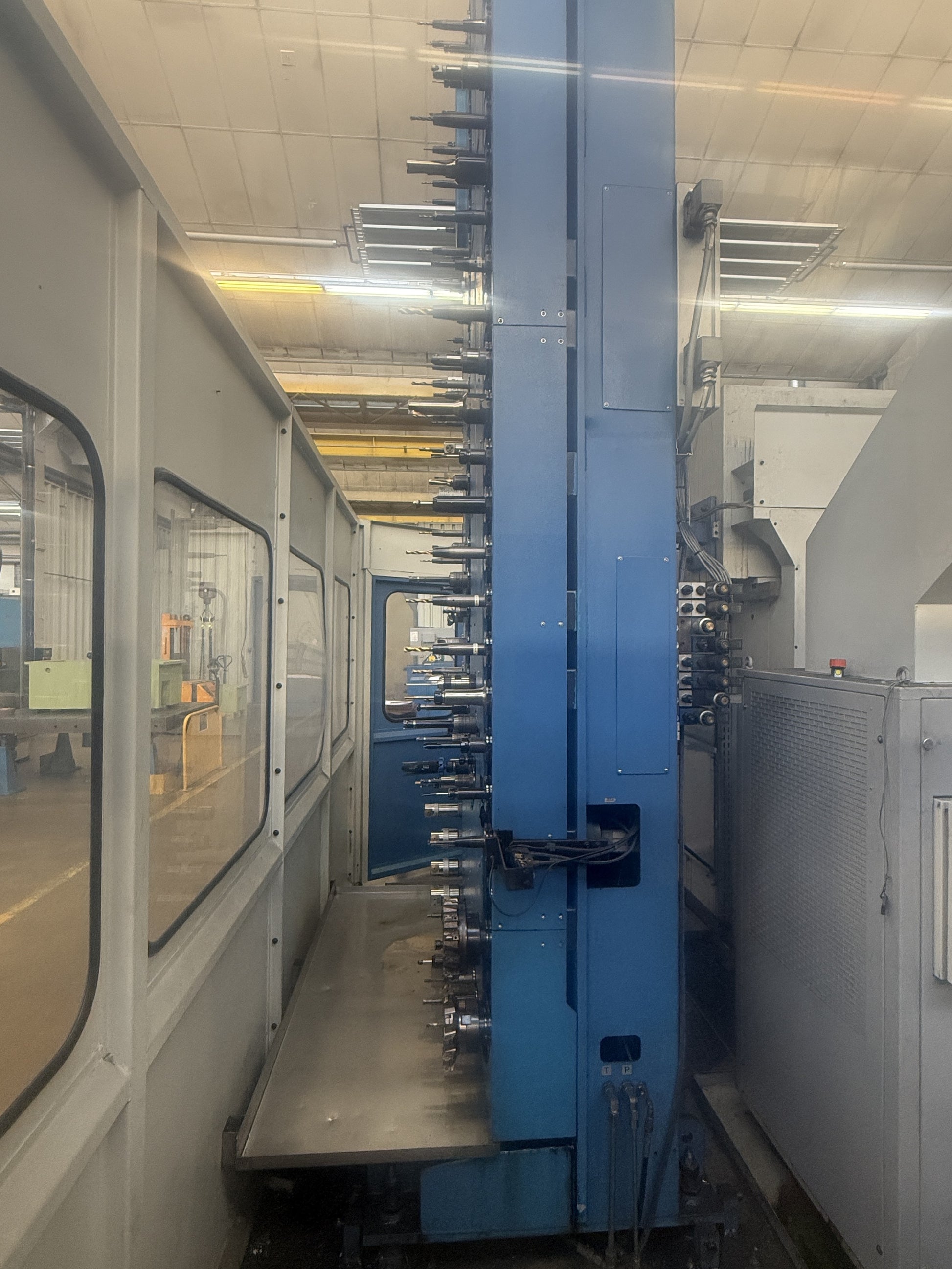

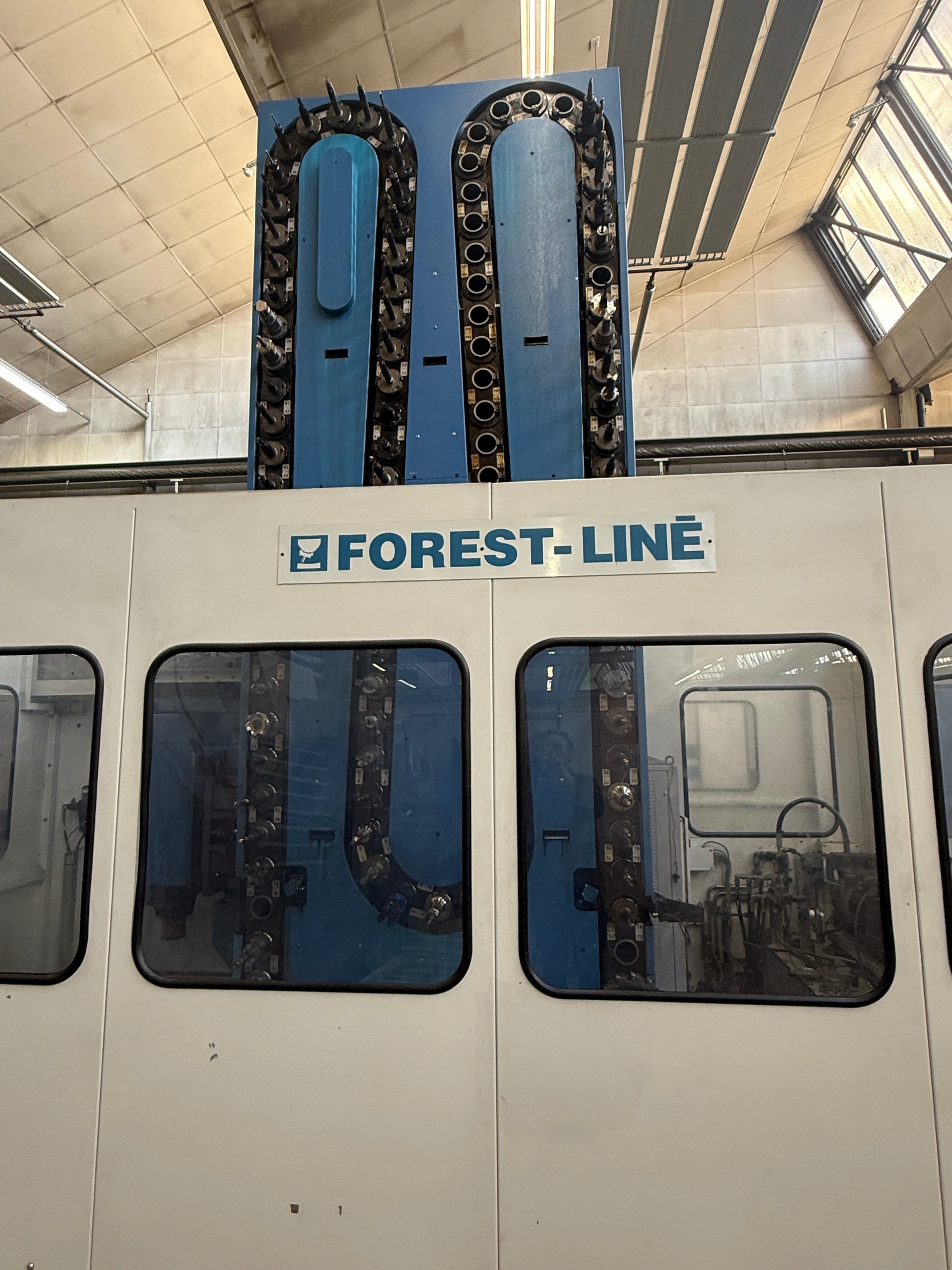

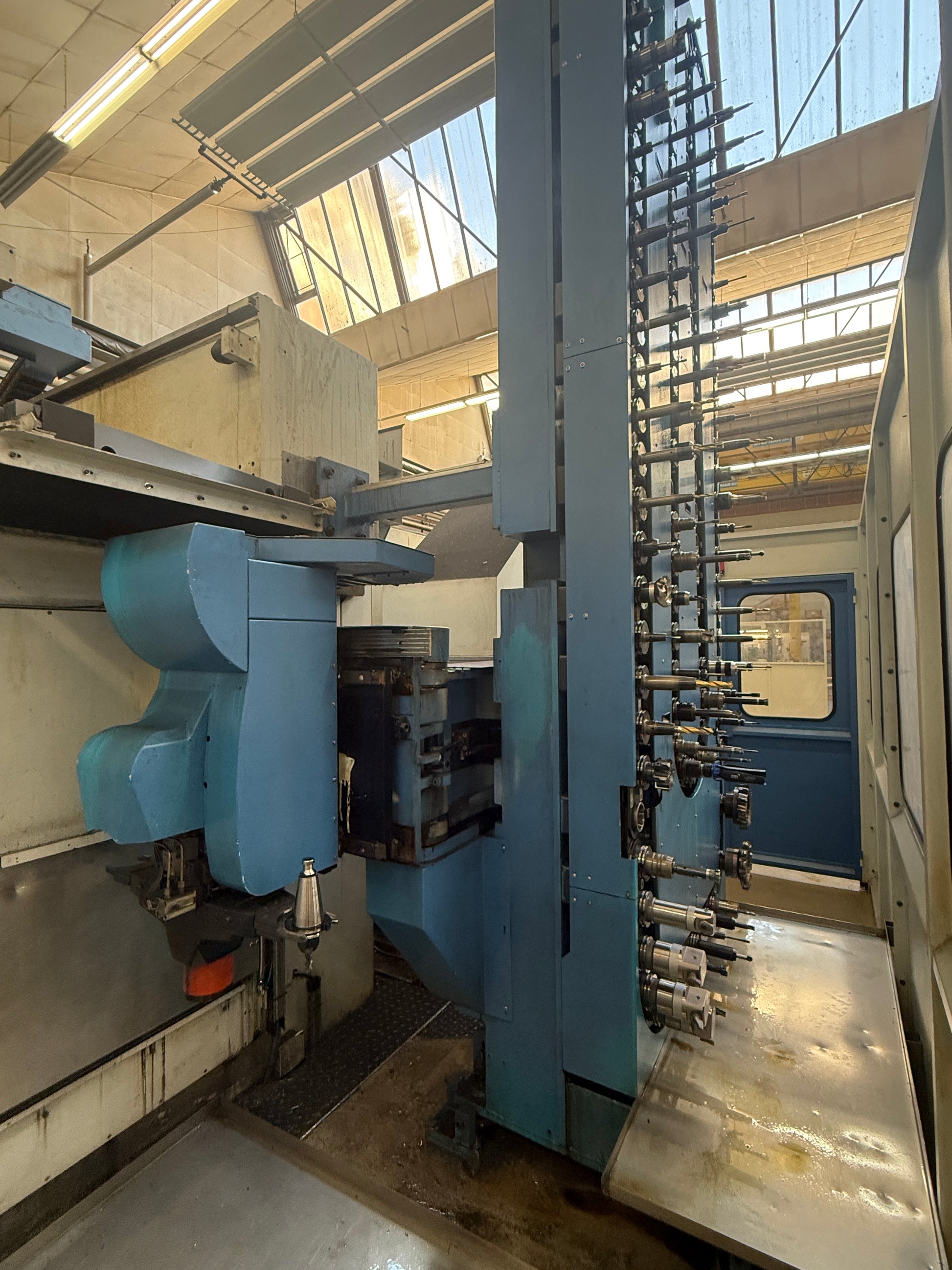

| Tool magazine number of tool places | 120 |

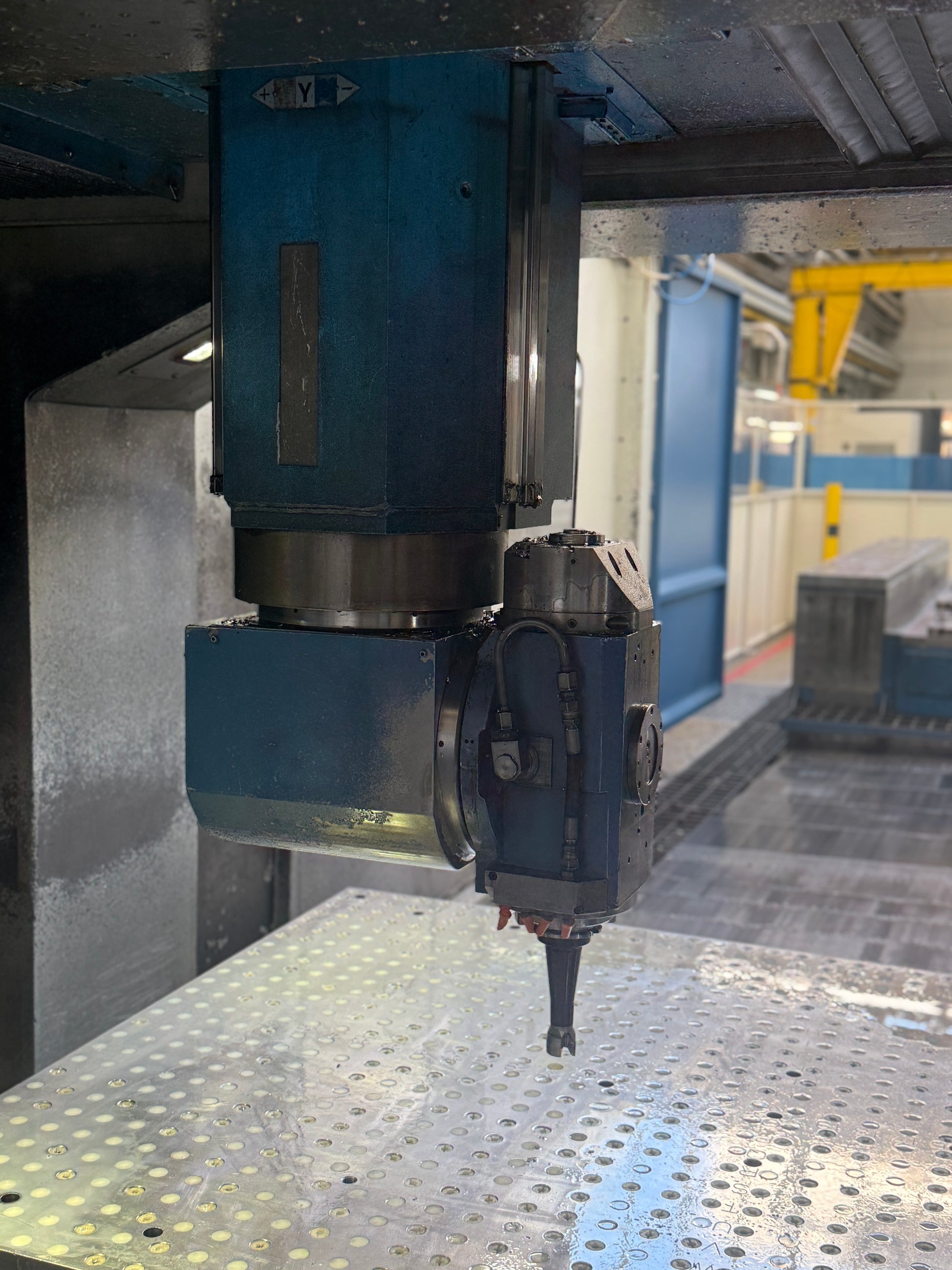

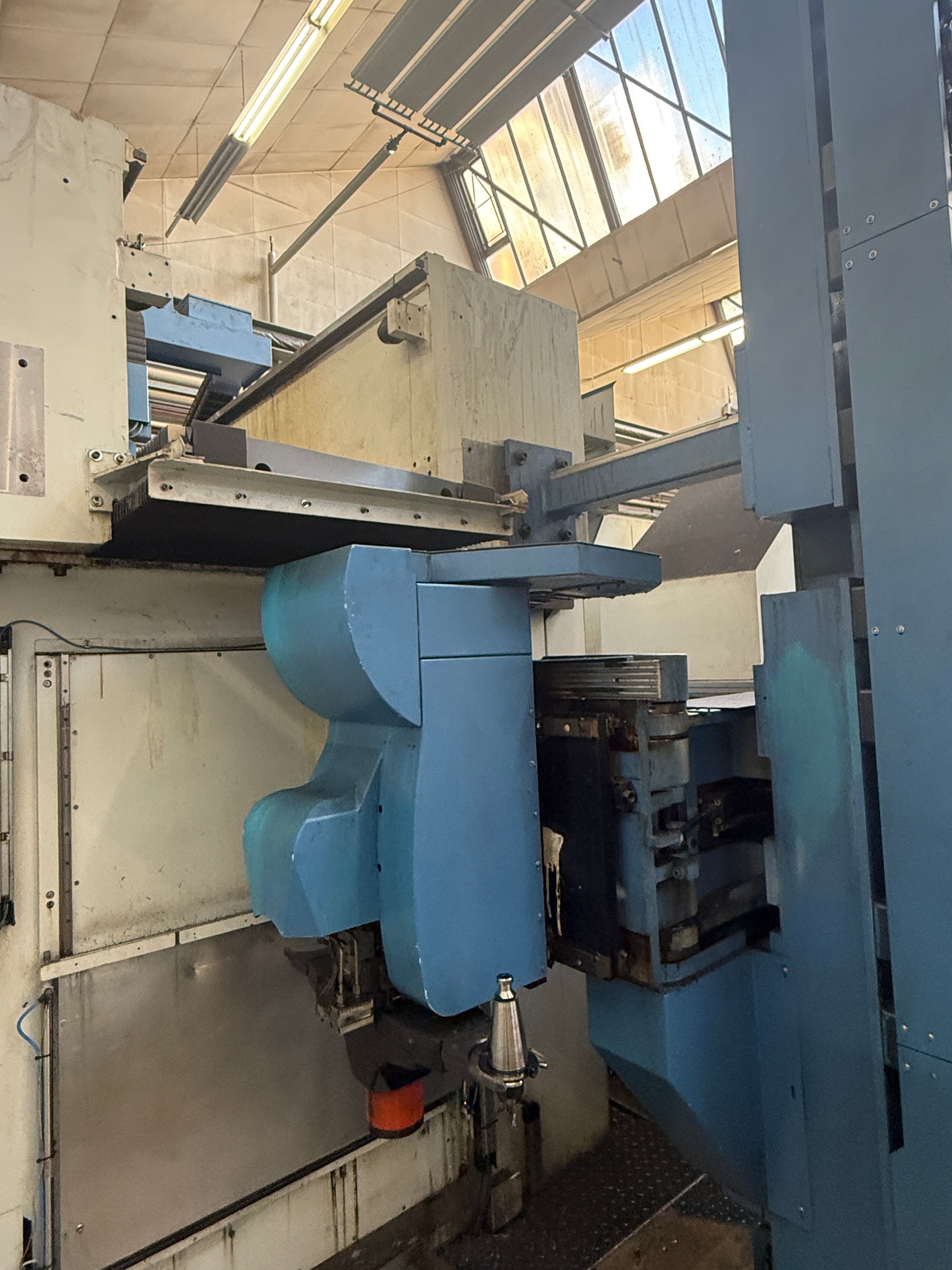

| Universal milling head | |
| Spindle speeds: | |
| from | 10 t/min |
| up to | 7500 t/min |
| Feeds: | |
| X axis from | 1 mm/min |
| up to | 30000 mm/min |
| Y axis from | 1 mm/min |
| up to | 30000 mm/min |
| Z axis from | 1 mm/min |
| up to | 30’000 mm/min |
| Rapid traverse: | |
| X axis | 30’000 m/min |
| Y axis | 40’000 m/min |
| Z axis | 30’000 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 31 kW |
| Spindle torque | 430 Nm |
| Total power required | 90 kVA |
| Length | 22000 mm |
| Width | 7500 mm |
| Height | 5020 mm |
| Various accessories: | |

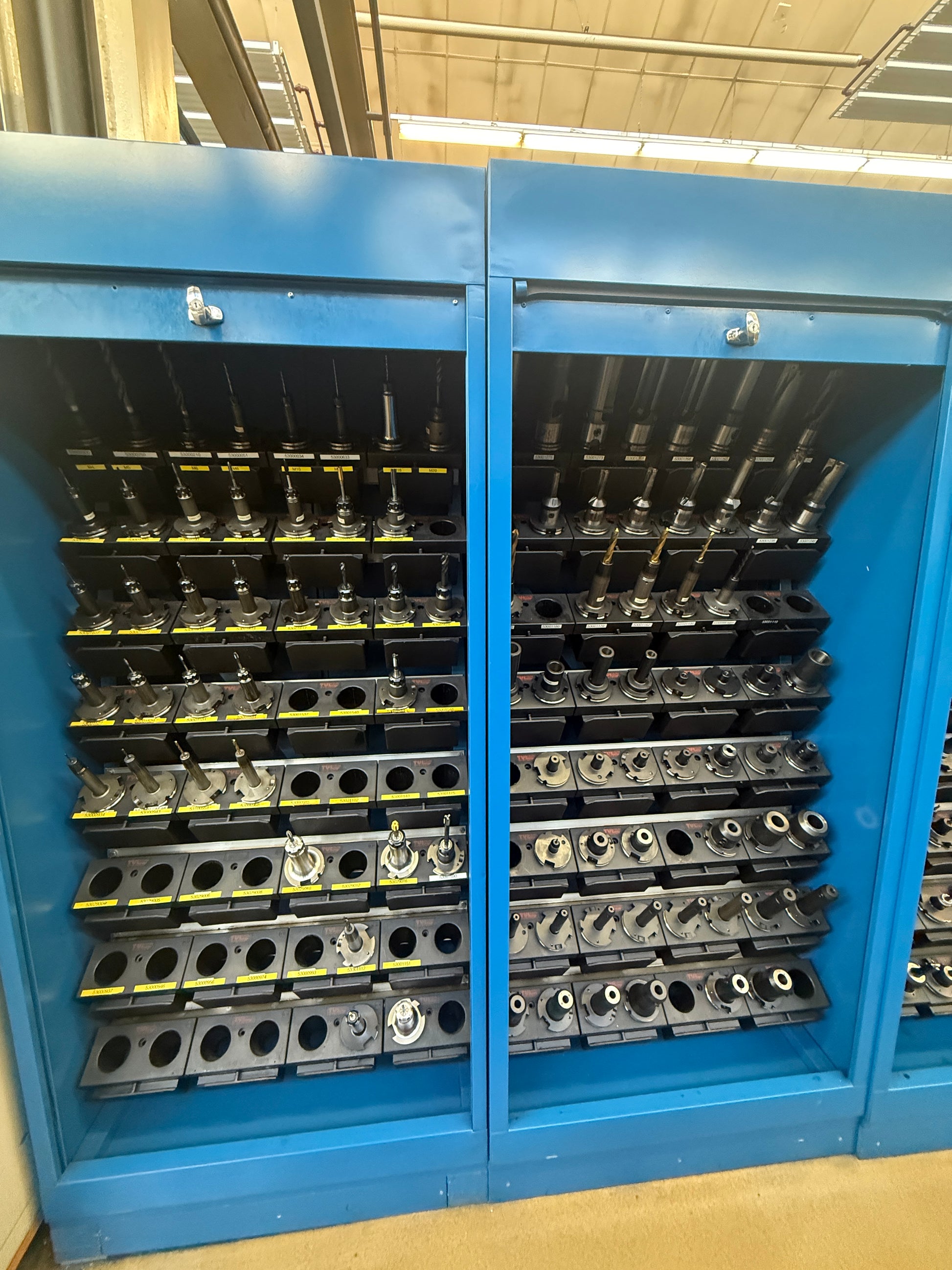

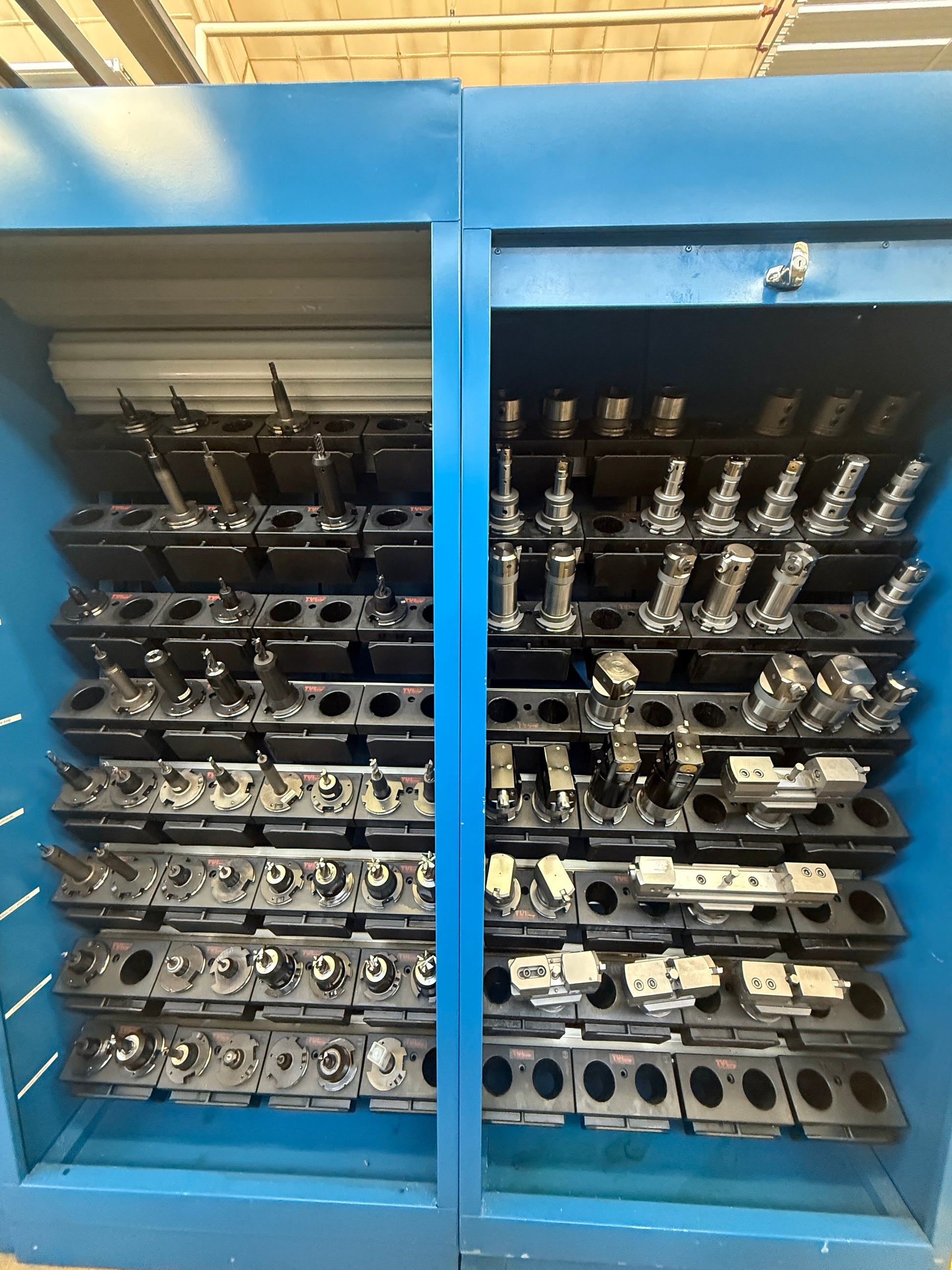

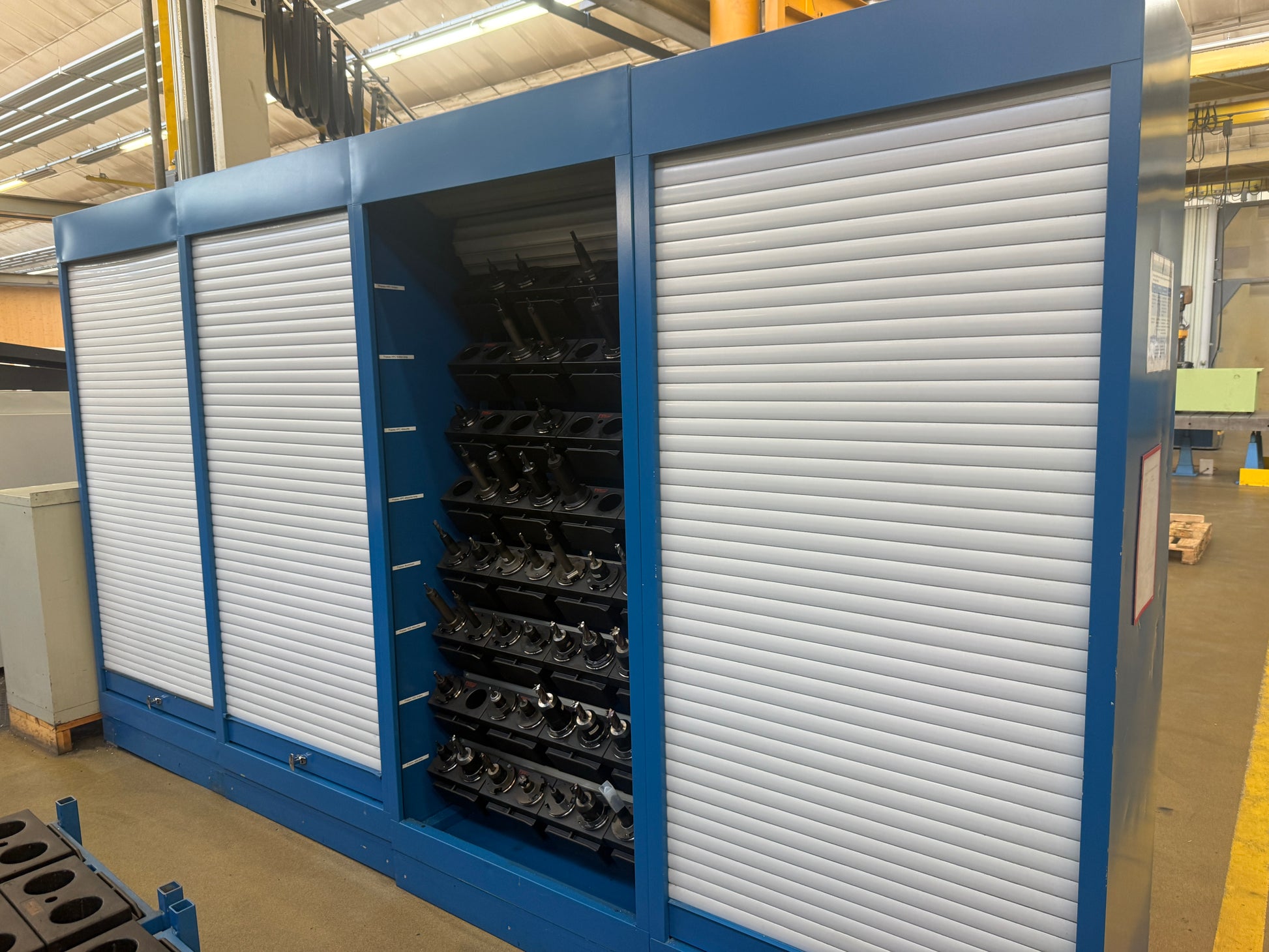

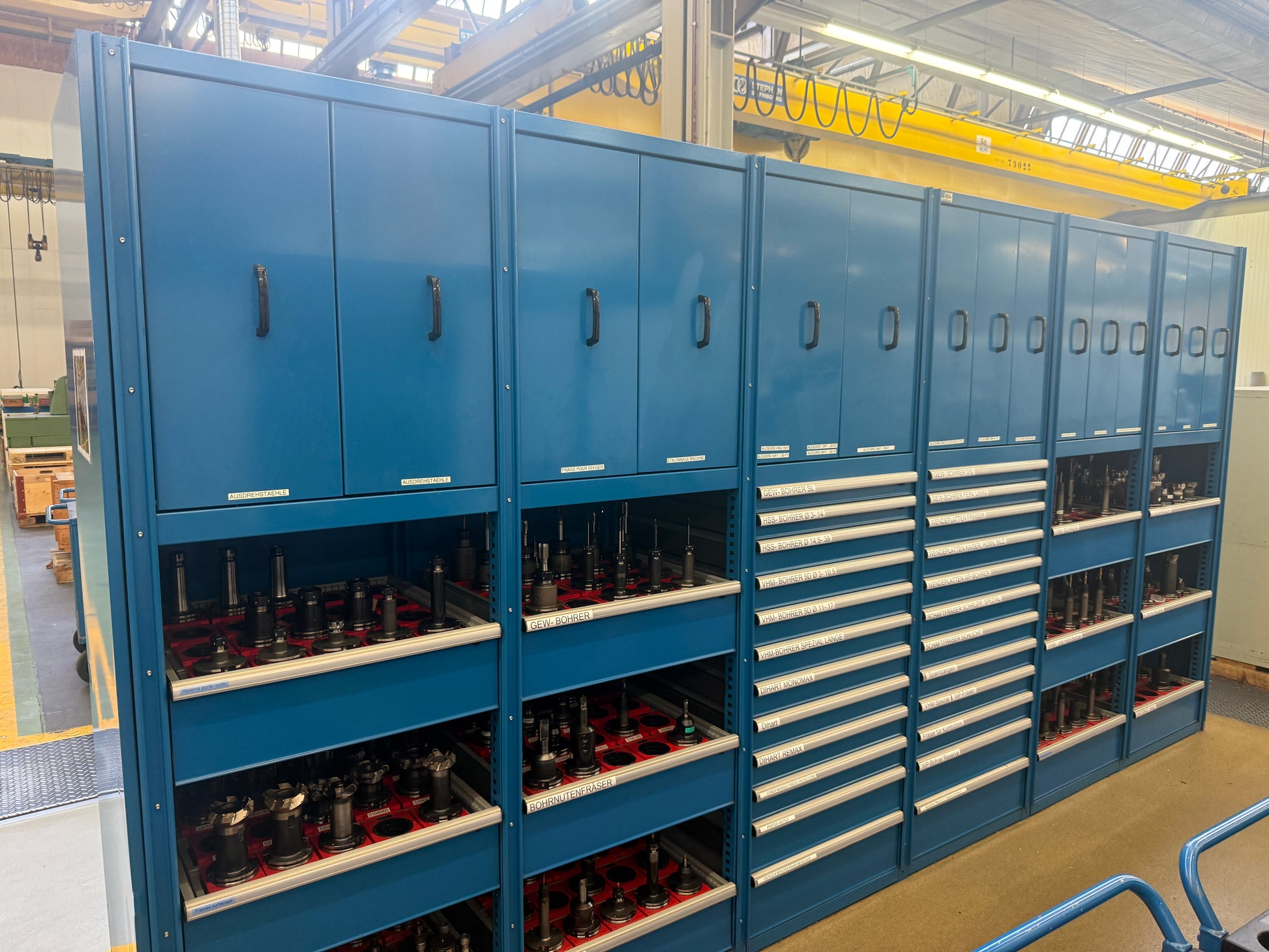

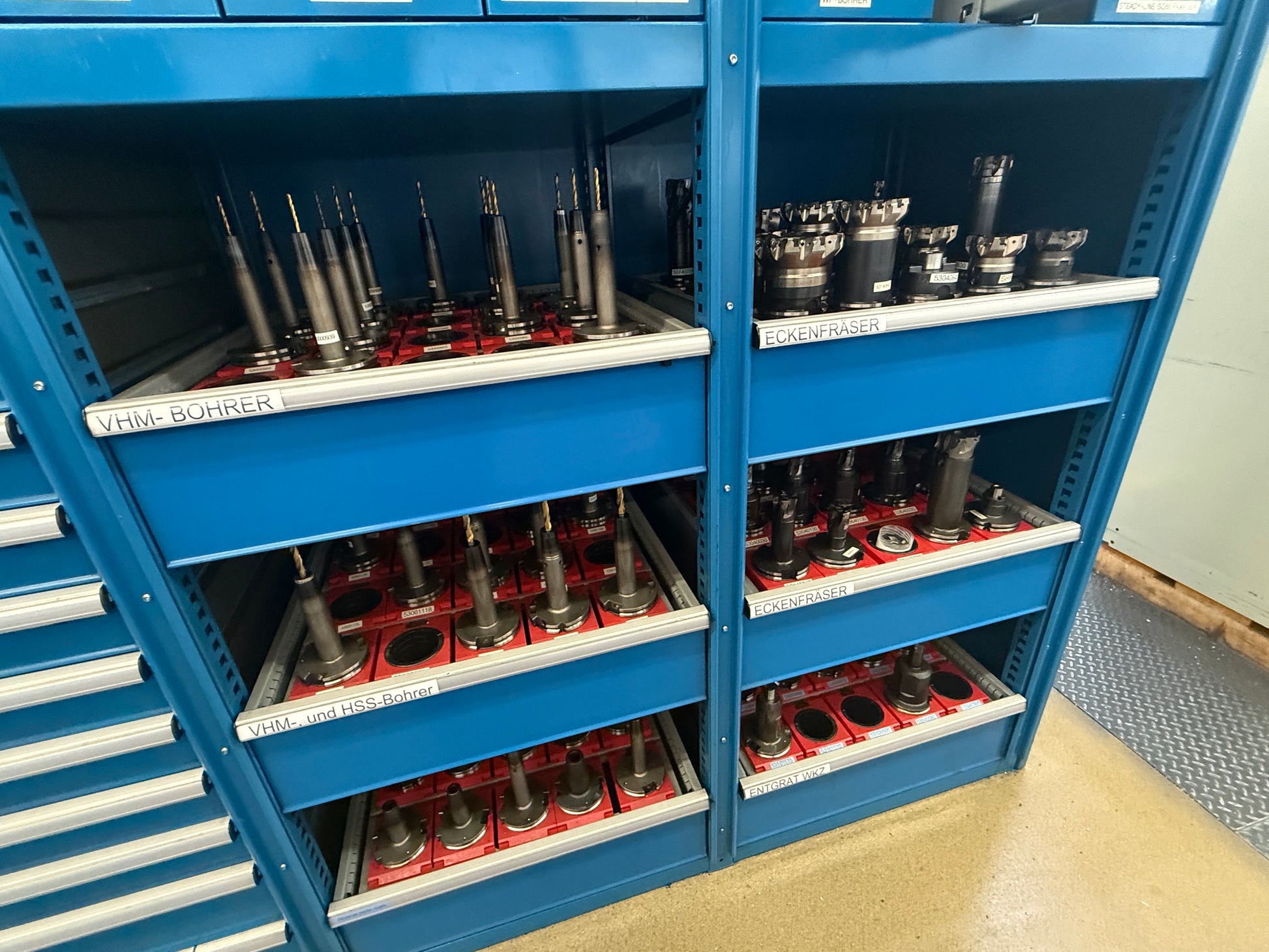

| Tool holder | 700 pce |
| Automatic setting tool | BLUM |
| Touch Probe | M&H |
| Chip conveyor | |

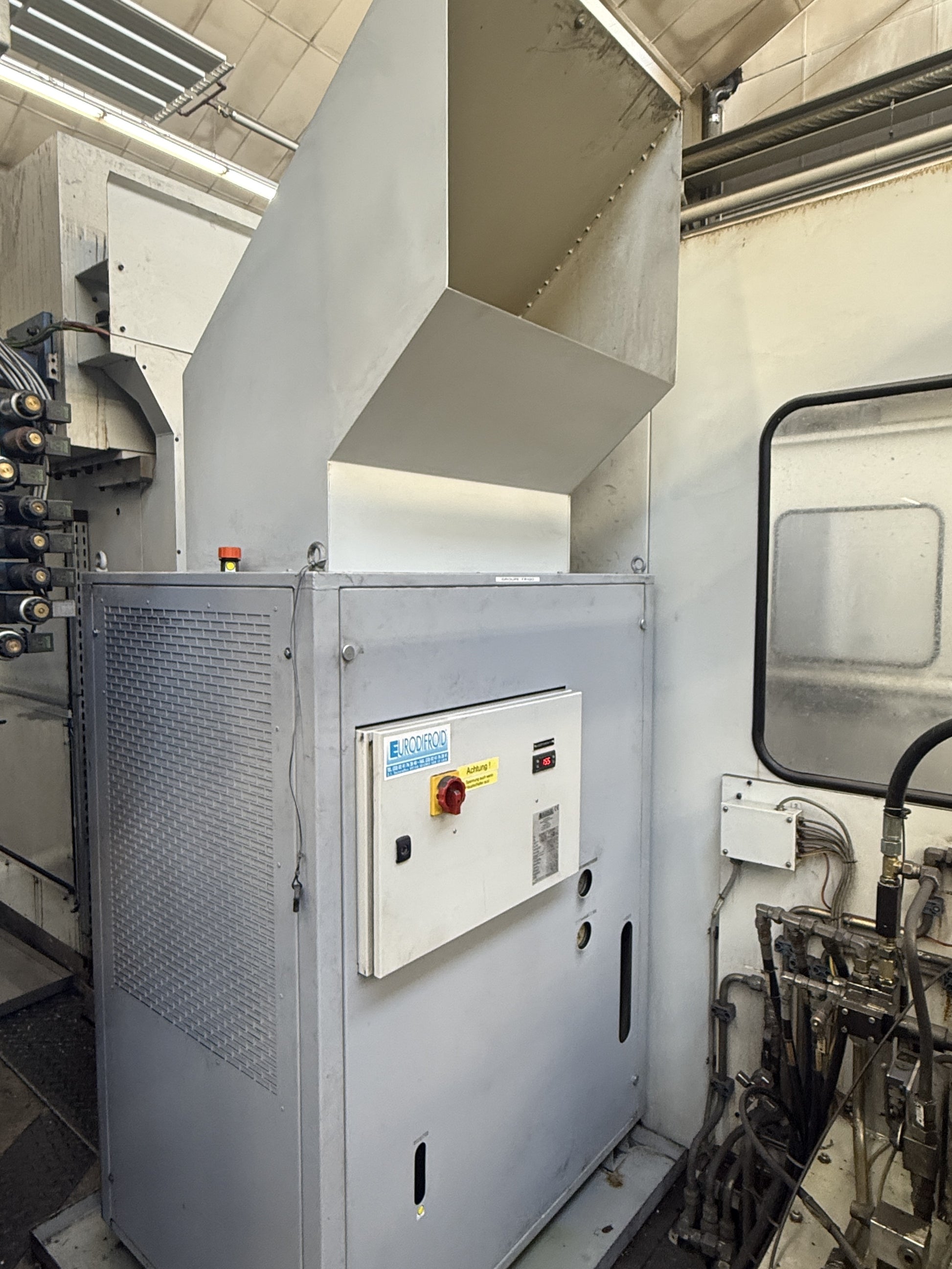

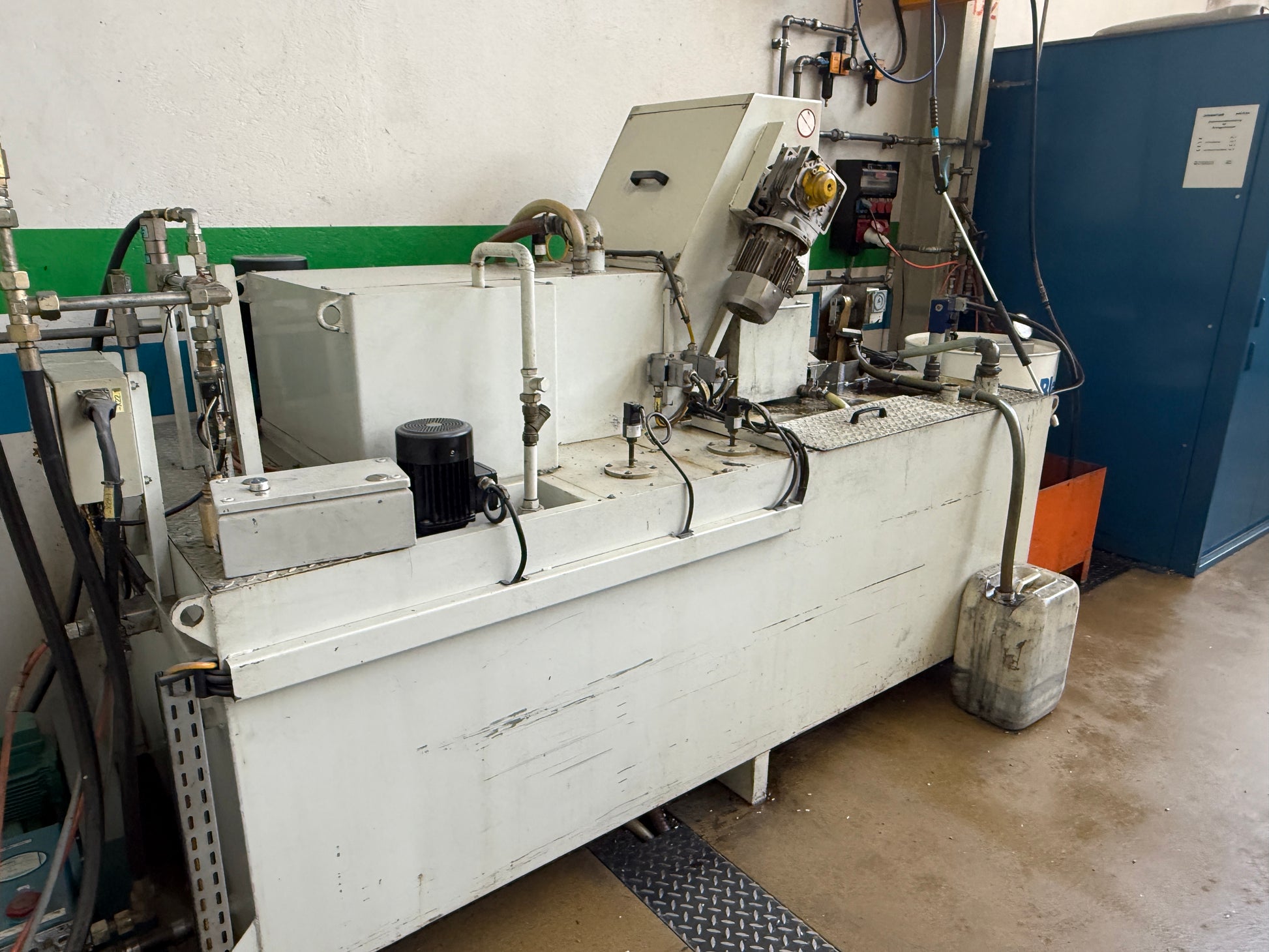

| Coolant system | |
| Coolant through spindle (cts) | |
| Various spare parts |
